ZWP - Extractor

ZWP

Extractor

The portable ZWP sets have found numerous applications in polluted air systems. Typical applications: Local exhaust systems, dehumidifiers, drying systems
Contact us

Application

Portable ZWP sets have many applications in polluted air extraction systems.

Typical Applications:

  • local extractors, dryers, drying systems
  • ventilation of halls, warehouses and sewage chambers
  • machine cooling systems
  • car exhaust extractors



Construction

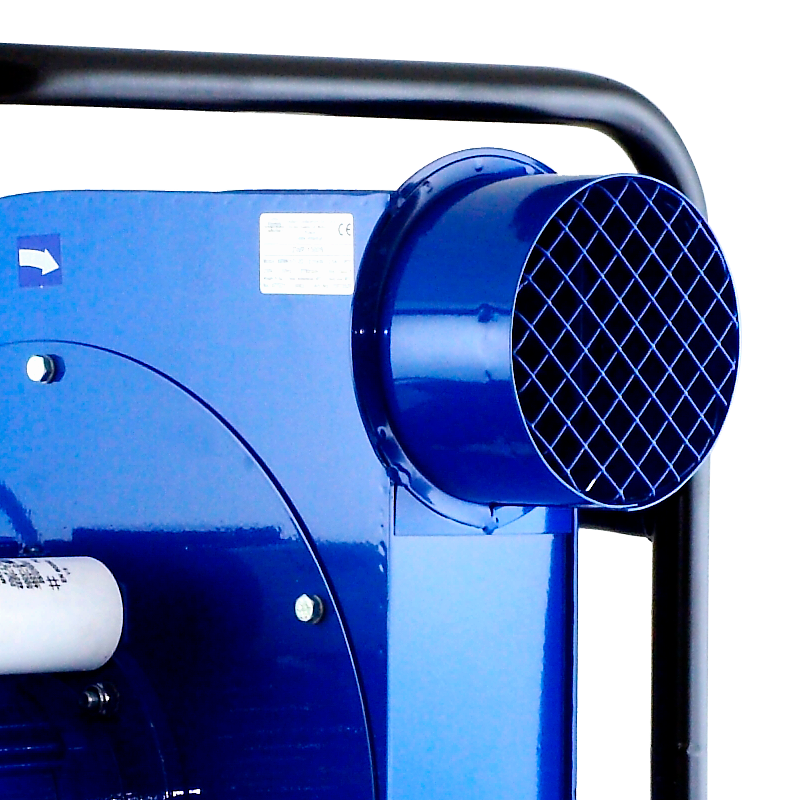

Portable ZWP sets consist of a fan mounted on a tripod, electrical equipment and a cable with a plug.

On request, the lashings can be supplied in any color from the RAL palette (standard RAL 5010 - blue).

Motor

Electric motor made in accordance with the applicable Directives and efficiency classes, marked with the CE mark. Insulation class - F. Degree of protection - IP55. Power supply - three-phase 230 / 400V 50Hz or single-phase 230V 50Hz (depending on the fan model and motor power). Fans with motors in other versions: table of special versions.

Single-phase 230V, 50Hz models with the 'S' extension are not normally adapted to voltage speed control. All 'S' models can be ordered with a 'S RU' voltage regulation motor. Three-phase model 230 / 400V 50Hz, as a standard adapted for regulation by frequency converter.
