EAC
ATEX fan

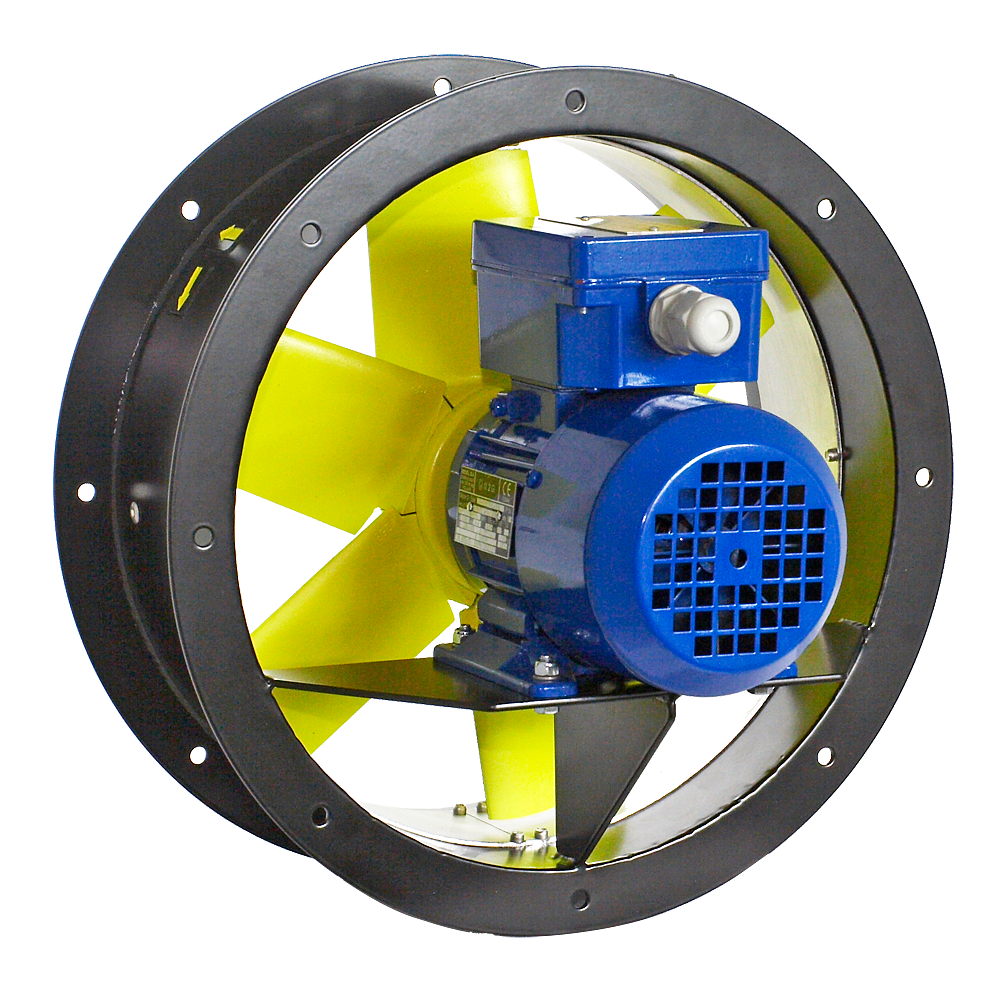

Axial channel fans of the EAC series are manufactured in compliance with the international standard ISO 9001 and comply with the quality assurance requirements concerning the products that are to be used in potentially explosive atmospheres.
Can be painted in a color
other than standard
other than standard
Application
EAC fans comply with the requirements of ATEX Directive 2014/34/UE, are designed for use in hazard zones excluding mines and mining pits, meets the requirements of group II category 3G - zone 2.
ATEX Marking: II 3G Ex h IIB T3 Gc.
Construction
- explosionproof axial fan with direct drive,
- designed for duct mounting in the horizontal position,
- aluminium hub and impeller, dynamically balanced to ISO 1940-1,
- welded sheet steel housing,
- protection ring form aluminium sheet,
- painted in RAL 9005 (corrosivity category C3),
- working temperature range from -20°C to +40°C
Motor
- explosionproof, asynchronous, three-phase, 230/400V 50Hz or 400/690V 50Hz,
- degree of protection IP5X (depending on the model),
- insulation class F.
On request
- special housing dimensions (length or diameter),
- housing made of galvanized or stainless steel sheet,
- vertical working position,
- different motor voltage and frequency,
- motors adapted for frequency converter,
- motor equipped with sensors.
Technical assistance
Work characteristics
Dimensions
| Type | A | B | C | D | E | n |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | |
| EAC/2-315-025 | 375 | 345 | 360 | 315 | 8 | 8 |
| EAC/4-315-012 | 375 | 345 | 360 | 315 | 8 | 8 |
| EAC/2-355-055 | 426 | 395 | 360 | 355 | 8 | 8 |
| EAC/4-355-012 | 426 | 395 | 360 | 355 | 8 | 8 |
| EAC/2-400-110 | 500 | 450 | 380 | 400 | 10 | 8 |
| EAC/4-400-025 | 500 | 450 | 360 | 400 | 10 | 8 |
| EAC/2-450-110 | 550 | 500 | 380 | 450 | 10 | 8 |
| EAC/4-450-037 | 550 | 500 | 380 | 450 | 10 | 8 |
| EAC/2-500-220 | 600 | 550 | 500 | 500 | 12 | 12 |
| EAC/2-500-220 | 600 | 550 | 500 | 500 | 12 | 12 |
| EAC/4-500-055 | 600 | 550 | 500 | 500 | 12 | 12 |
| EAC/4-500-075 | 600 | 550 | 500 | 500 | 12 | 12 |
| EAC/6-500-018 | 600 | 550 | 500 | 500 | 12 | 12 |
| EAC/2-560-400 | 660 | 610 | 550 | 560 | 12 | 12 |
| EAC/4-560-110 | 660 | 610 | 550 | 560 | 12 | 12 |
| EAC/4-560-110 | 660 | 610 | 550 | 560 | 12 | 12 |
| EAC/6-560-025 | 660 | 610 | 550 | 560 | 12 | 12 |
| EAC/2-630-700 | 736 | 690 | 800 | 630 | 12 | 12 |
| EAC/2-630-750 | 736 | 690 | 800 | 630 | 12 | 12 |
| EAC/4-630-150 | 736 | 690 | 800 | 630 | 12 | 12 |
| EAC/4-630-150 | 736 | 690 | 800 | 630 | 12 | 12 |
| EAC/6-630-037 | 736 | 690 | 800 | 630 | 12 | 12 |
| EAC/6-630-037 | 736 | 690 | 800 | 630 | 12 | 12 |
| EAC/4-710-400 DO | 810 | 760 | 550 | 710 | 12 | 12 |
| EAC/4-710-400 KO | 810 | 760 | 275 | 710 | 12 | 12 |
| EAC/6-710-055 | 810 | 760 | 550 | 710 | 12 | 12 |
| EAC/6-710-055 | 810 | 760 | 550 | 710 | 12 | 12 |
| EAC/8-710-037 | 810 | 760 | 550 | 710 | 12 | 12 |
| EAC/4-800-550 | 900 | 850 | 800 | 800 | 12 | 12 |
| EAC/4-800-550 | 900 | 850 | 800 | 800 | 12 | 12 |
| EAC/6-800-150 | 900 | 850 | 800 | 800 | 12 | 12 |
| EAC/6-800-150 | 900 | 850 | 800 | 800 | 12 | 12 |
| EAC/8-800-075 | 900 | 850 | 800 | 800 | 12 | 12 |
| EAC-4-900-750 | 1000 | 950 | 800 | 900 | 12 | 12 |
| EAC/4-900-750 | 1000 | 950 | 800 | 900 | 12 | 12 |
| EAC/6-900-300 | 1000 | 950 | 800 | 900 | 12 | 12 |
| EAC/6-900-300 | 1000 | 950 | 800 | 900 | 12 | 12 |
| EAC/8-900-150 | 1000 | 950 | 800 | 900 | 12 | 12 |
| EAC/4-1000-1100 | 1100 | 1050 | 850 | 1000 | 12 | 12 |
| EAC/4-1000-1100 | 1100 | 1050 | 850 | 1000 | 12 | 12 |
| EAC/6-1000-400 | 1100 | 1050 | 850 | 1000 | 12 | 12 |
| EAC/6-1000-400 | 1100 | 1050 | 850 | 1000 | 12 | 12 |
| EAC/8-1000-220 | 1100 | 1050 | 850 | 1000 | 12 | 12 |
| EAC/6-1250-1100 | 1350 | 1310 | 850 | 1250 | 12 | 16 |
| EAC/4-1250-1500 | 1350 | 1310 | 850 | 1250 | 12 | 16 |
| EAC/6-1250-1100 | 1350 | 1310 | 850 | 1250 | 12 | 16 |
| EAC/8-1250-750 | 1350 | 1310 | 850 | 1250 | 12 | 16 |
| EAC/2-400-110 DO II 3G h IIB T4 Gc | 500 | 450 | 380 | 400 | 10 | 8 |
| EAC/2-560-400T DO AP II 3G Ex h IIB T3 Gc | 660 | 610 | 550 | 560 | 12 | 12 |
| EAC/2-560-400T DO 2G 400YV 50Hz IE3 PTC VFD | 660 | 610 | 550 | 560 | 12 | 12 |
| EAC/2-710-750T DO AP II 3G Ex h IIB T3 Gc | 810 | 760 | 550 | 710 | 12 | 12 |
| EAC/2-450-220T DO II 2G Ex h IIB H2 T4 Gb | 550 | 500 | 380 | 450 | 10 | 8 |
| EAC/2-355-110T DO AP II 3G Ex h IIB T3 Gc | 426 | 395 | 360 | 355 | 8 | 8 |
| EAC/2-500-300T DO II 2G Ex h IIB H2 T4 Gb | 600 | 550 | 500 | 500 | 12 | 12 |
| EAC/2-630-550T DO II 2G Ex h IIB H2 T4 | 736 | 690 | 800 | 630 | 12 | 12 |
| EAC/4-1000-1100T DO II 2G Ex h IIB H2 T4 Gb | 1100 | 1050 | 850 | 1000 | 12 | 12 |
