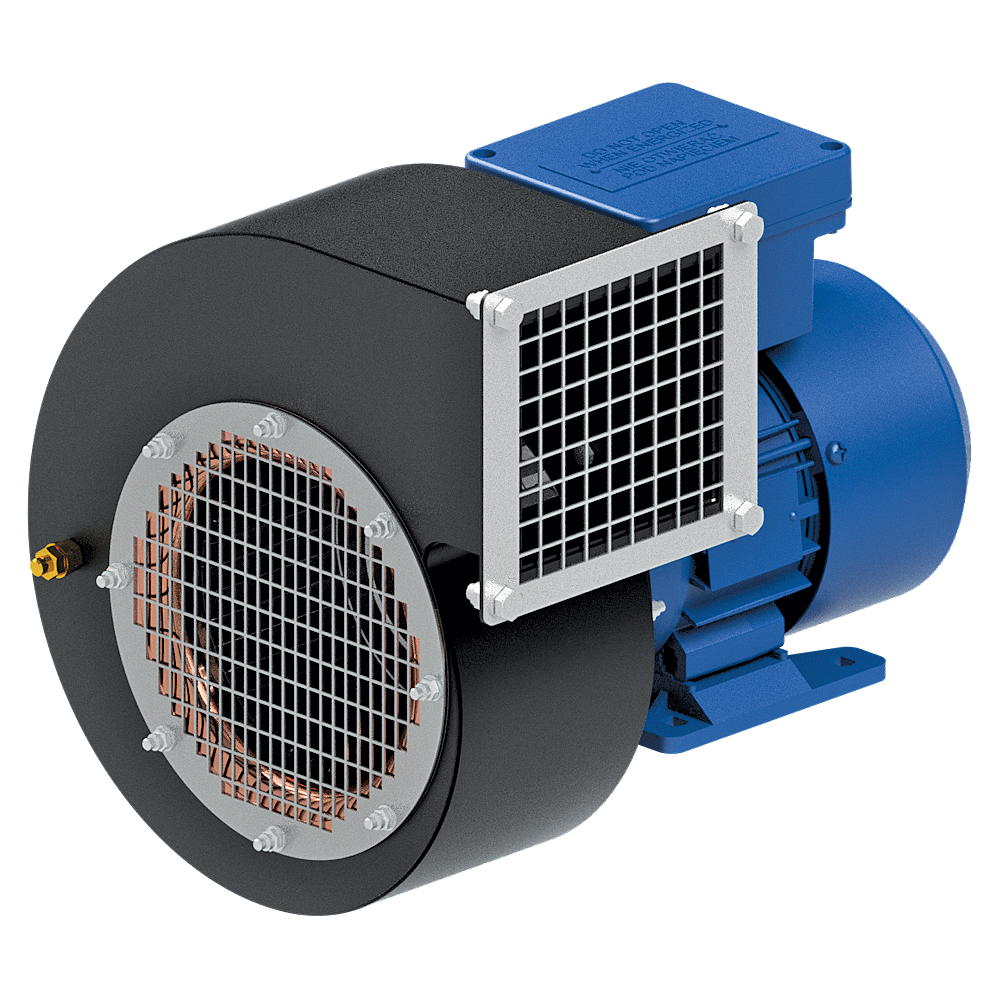

ELF fans comply with the requirements of ATEX Directive 2014/34/UE,are designed for use in hazard zones excluding mines and mining pits, meets the requirements of group II category 2G/3G – zone 1 and/or 2.
ATEX marking:
II 2G Ex h IIB T3 Gb
II 2G Ex h IIB T4 Gb on request.
Type | A | B | C | E | F | G | H |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-97T II 2G Ex h IIB T3 Gb | 199 | 200 | 245.5 | 99 | 85 | 64 | 64 |
ELF-2-97T VFD II 2G Ex h IIB T3 Gb | 199 | 200 | 262.5 | 99 | 85 | 64 | 64 |
ELF-4-97T II 2G Ex h IIB T3 Gb | 199 | 200 | 245.5 | 99 | 85 | 64 | 64 |
ELF-4-97T VFD II 2G Ex h IIB T3 Gb | 199 | 200 | 262.5 | 99 | 85 | 64 | 64 |
ELF-2-108T II 2G Ex h IIB T3 Gb | 199 | 200 | 245.5 | 99 | 85 | 64 | 64 |
ELF-2-108T VFD II 2G Ex h IIB T3 Gb | 199 | 200 | 262.5 | 99 | 85 | 64 | 64 |
ELF-4-108T II 2G Ex h IIB T3 Gb | 199 | 200 | 245.5 | 99 | 85 | 64 | 64 |
ELF-4-108T VFD II 2G Ex h IIB T3 Gb | 199 | 200 | 262.5 | 99 | 85 | 64 | 64 |
ELF-2-120T II 2G Ex h IIB T3 Gb | 218 | 222 | 263 | 107 | 95 | 81 | 80 |
ELF-2-120T VFD II 2G Ex h IIB T3 Gb | 218 | 222 | 280 | 107 | 95 | 81 | 80 |
ELF-4-120T II 2G Ex h IIB T3 Gb | 218 | 222 | 263 | 107 | 95 | 81 | 80 |
ELF-4-120 TVFD II 2G Ex h IIB T3 Gb | 218 | 222 | 280 | 107 | 95 | 81 | 80 |
ELF-2-133T II 2G Ex h IIB T3 Gb | 238 | 245 | 302 | 115 | 104 | 91 | 87 |
ELF-2-133T II 2G Ex h IIB T3 Gb | 238 | 245 | 302 | 115 | 104 | 91 | 87 |
ELF-2-133T VFD II 2G Ex h IIB T3 Gb | 238 | 245 | 293 | 115 | 104 | 91 | 87 |
ELF-2-133T VFD II 2G Ex h IIB T3 Gb | 238 | 245 | 293 | 115 | 104 | 91 | 87 |
ELF-4-133T II 2G Ex h IIB T3 Gb | 238 | 245 | 273 | 115 | 104 | 91 | 87 |
ELF-4-133T VFD II 2G Ex h IIB T3 Gb | 238 | 245 | 291 | 115 | 104 | 91 | 87 |
ELF-2-146T II 2G Ex h IIB T3 Gb | 258 | 270 | 310 | 123 | 115 | 91 | 87 |
ELF-2-146T VFD II 2G Ex h IIB T3 Gb | 258 | 270 | 310 | 123 | 115 | 91 | 87 |
ELF-4-146T II 2G Ex h IIB T3 Gb | 258 | 270 | 268 | 123 | 115 | 91 | 87 |
ELF-4-146T VFD II 2G Ex h IIB T3 Gb | 258 | 270 | 285 | 123 | 115 | 91 | 87 |
Type | I | J | K | L | S | T | W |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-97T II 2G Ex h IIB T3 Gb | 76 | 76 | 90 | 90 | 81.5 | 36.5 | 56 |
ELF-2-97T VFD II 2G Ex h IIB T3 Gb | 76 | 76 | 90 | 90 | 81.5 | 36.5 | 63 |
ELF-4-97T II 2G Ex h IIB T3 Gb | 76 | 76 | 90 | 90 | 81.5 | 36.5 | 56 |
ELF-4-97T VFD II 2G Ex h IIB T3 Gb | 76 | 76 | 90 | 90 | 81.5 | 36.5 | 63 |
ELF-2-108T II 2G Ex h IIB T3 Gb | 76 | 76 | 90 | 90 | 81.5 | 36.5 | 56 |
ELF-2-108T VFD II 2G Ex h IIB T3 Gb | 76 | 76 | 90 | 90 | 81.5 | 36.5 | 63 |
ELF-4-108T II 2G Ex h IIB T3 Gb | 76 | 76 | 90 | 90 | 81.5 | 36.5 | 56 |
ELF-4-108T VFD II 2G Ex h IIB T3 Gb | 76 | 76 | 90 | 90 | 81.5 | 36.5 | 63 |
ELF-2-120T II 2G Ex h IIB T3 Gb | 96 | 96 | 114 | 114 | 85.5 | 45 | 56 |
ELF-2-120T VFD II 2G Ex h IIB T3 Gb | 96 | 96 | 114 | 114 | 85.5 | 45 | 63 |
ELF-4-120T II 2G Ex h IIB T3 Gb | 96 | 96 | 114 | 114 | 85.5 | 45 | 56 |
ELF-4-120 TVFD II 2G Ex h IIB T3 Gb | 96 | 96 | 114 | 114 | 85.5 | 45 | 63 |
ELF-2-133T II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 96.5 | 50 | 63 |
ELF-2-133T II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 96.5 | 50 | 63 |
ELF-2-133T VFD II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 96.5 | 50 | 63 |
ELF-2-133T VFD II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 96.5 | 50 | 63 |
ELF-4-133T II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 96.5 | 50 | 56 |
ELF-4-133T VFD II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 96.5 | 50 | 56 |
ELF-2-146T II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 110 | 50 | 71 |
ELF-2-146T VFD II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 110 | 50 | 71 |
ELF-4-146T II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 110 | 50 | 56 |
ELF-4-146T VFD II 2G Ex h IIB T3 Gb | 115 | 105 | 130 | 120 | 110 | 50 | 63 |
Type | X | Y | Z | N1 | N2 | N3 | P1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-97T II 2G Ex h IIB T3 Gb | 4 | 8 | 5.8 | 10.5 | 70 | 72 | 90 |
ELF-2-97T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 81 | 100 |
ELF-4-97T II 2G Ex h IIB T3 Gb | 4 | 8 | 5.8 | 10.5 | 70 | 72 | 90 |
ELF-4-97T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 81 | 100 |
ELF-2-108T II 2G Ex h IIB T3 Gb | 4 | 8 | 5.8 | 10.5 | 70 | 72 | 90 |
ELF-2-108T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 81 | 100 |
ELF-4-108T II 2G Ex h IIB T3 Gb | 4 | 8 | 5.8 | 10.5 | 70 | 72 | 90 |
ELF-4-108T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 81 | 100 |
ELF-2-120T II 2G Ex h IIB T3 Gb | 4 | 8 | 5.8 | 10.5 | 70 | 81 | 90 |
ELF-2-120T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 90 | 100 |
ELF-4-120T II 2G Ex h IIB T3 Gb | 4 | 8 | 5.8 | 10.5 | 70 | 81 | 90 |
ELF-4-120 TVFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 90 | 100 |
ELF-2-133T II 2G Ex h IIB T3 Gb | 4 | 10 | 7 | 13 | 80 | 90 | 100 |
ELF-2-133T II 2G Ex h IIB T3 Gb | 4 | 10 | 7 | 13 | 80 | 90 | 100 |
ELF-2-133T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 90 | 100 |
ELF-2-133T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 90 | 100 |
ELF-4-133T II 2G Ex h IIB T3 Gb | 4 | 8 | 5.8 | 10.5 | 71 | 86 | 90 |
ELF-4-133T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 95 | 100 |
ELF-2-146T II 2G Ex h IIB T3 Gb | 4 | 10 | 7 | 13 | 90 | 90 | 112 |
ELF-2-146T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 9 | 90 | 90 | 112 |
ELF-4-146T II 2G Ex h IIB T3 Gb | 4 | 8 | 5.8 | 10.5 | 71 | 81 | 90 |
ELF-4-146T VFD II 2G Ex h IIB T3 Gb | 4 | 12 | 7 | 12.5 | 80 | 90 | 100 |
Type | P2 | X1 | ØO | ØD1 | ØD2 | ØD3 | ØO1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-97T II 2G Ex h IIB T3 Gb | 110 | 8 | 6 | 135 | 125 | 81.6 | 4 |
ELF-2-97T VFD II 2G Ex h IIB T3 Gb | 120 | 8 | 6 | 135 | 125 | 81.6 | 4 |
ELF-4-97T II 2G Ex h IIB T3 Gb | 110 | 8 | 6 | 135 | 125 | 81.6 | 4 |
ELF-4-97T VFD II 2G Ex h IIB T3 Gb | 120 | 8 | 6 | 135 | 125 | 81.6 | 4 |
ELF-2-108T II 2G Ex h IIB T3 Gb | 110 | 8 | 6 | 135 | 125 | 81.6 | 4 |
ELF-2-108T VFD II 2G Ex h IIB T3 Gb | 120 | 8 | 6 | 135 | 125 | 81.6 | 4 |
ELF-4-108T II 2G Ex h IIB T3 Gb | 110 | 8 | 6 | 135 | 125 | 81.6 | 4 |
ELF-4-108T VFD II 2G Ex h IIB T3 Gb | 120 | 8 | 6 | 135 | 125 | 81.6 | 4 |
ELF-2-120T II 2G Ex h IIB T3 Gb | 110 | 8 | 6 | 150 | 138 | 96 | 4 |
ELF-2-120T VFD II 2G Ex h IIB T3 Gb | 120 | 8 | 6 | 150 | 138 | 96 | 4 |
ELF-4-120T II 2G Ex h IIB T3 Gb | 110 | 8 | 6 | 150 | 138 | 96 | 4 |
ELF-4-120 TVFD II 2G Ex h IIB T3 Gb | 120 | 8 | 6 | 150 | 138 | 96 | 4 |
ELF-2-133T II 2G Ex h IIB T3 Gb | 124 | 8 | 7 | 160 | 150 | 110 | 4 |
ELF-2-133T II 2G Ex h IIB T3 Gb | 124 | 8 | 7 | 160 | 150 | 110 | 4 |
ELF-2-133T VFD II 2G Ex h IIB T3 Gb | 120 | 8 | 7 | 160 | 150 | 110 | 4 |
ELF-2-133T VFD II 2G Ex h IIB T3 Gb | 120 | 8 | 7 | 160 | 150 | 110 | 4 |
ELF-4-133T II 2G Ex h IIB T3 Gb | 110 | 8 | 7 | 160 | 150 | 110 | 4 |
ELF-4-133T VFD II 2G Ex h IIB T3 Gb | 120 | 8 | 7 | 160 | 150 | 110 | 4 |
ELF-2-146T II 2G Ex h IIB T3 Gb | 142 | 8 | 7 | 175 | 165 | 118 | 4 |
ELF-2-146T VFD II 2G Ex h IIB T3 Gb | 112 | 8 | 7 | 175 | 165 | 118 | 4 |
ELF-4-146T II 2G Ex h IIB T3 Gb | 110 | 8 | 7 | 175 | 165 | 118 | 4 |
ELF-4-146T VFD II 2G Ex h IIB T3 Gb | 100 | 8 | 7 | 175 | 165 | 118 | 4 |

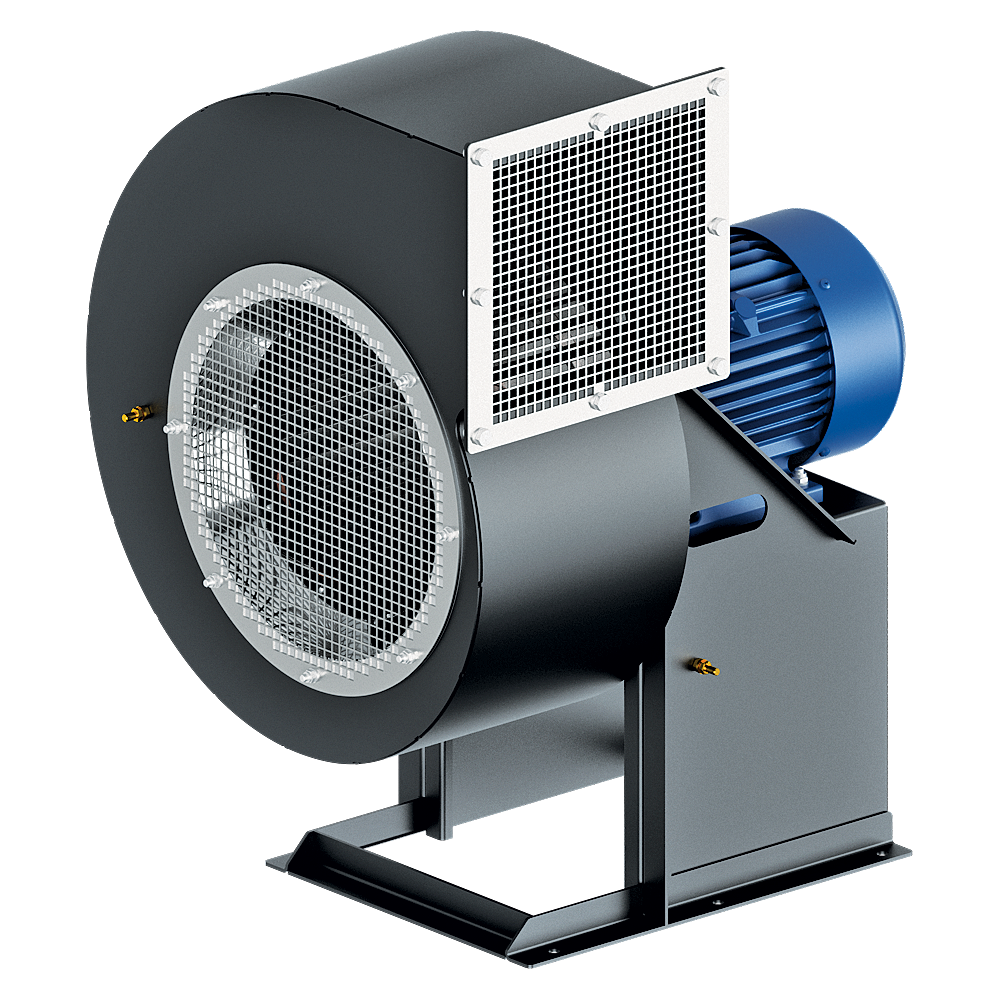

Type | A | B | C | E | F | G | H |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-160T II 2G Ex h IIB T3 Gb | 280 | 422 | 309.5 | 132 | 252 | 90 | 107 |
ELF-2-160T II 2G Ex h IIB T3 Gb | 280 | 422 | 309.5 | 132 | 252 | 90 | 107 |
ELF-2-160T VFD II 2G Ex h IIB T3 Gb | 280 | 422 | 308.5 | 132 | 252 | 90 | 107 |
ELF-2-160T VFD II 2G Ex h IIB T3 Gb | 280 | 422 | 308.5 | 132 | 252 | 90 | 107 |
ELF-4-160T II 2G Ex h IIB T3 Gb | 280 | 414 | 285.5 | 132 | 244 | 90 | 107 |
ELF-4-160T VFD II 2G Ex h IIB T3 Gb | 280 | 414 | 291.5 | 132 | 244 | 90 | 107 |
ELF-2-180T II 2G Ex h IIB T3 Gb | 312 | 452 | 335 | 145 | 261 | 100 | 122 |
ELF-2-180T VFD II 2G Ex h IIB T3 Gb | 312 | 452 | 355 | 145 | 261 | 100 | 122 |
ELF-4-180T II 2G Ex h IIB T3 Gb | 312 | 443 | 325 | 145 | 252 | 100 | 122 |
ELF-4-180T VFD II 2G Ex h IIB T3 Gb | 312 | 443 | 325 | 145 | 252 | 100 | 122 |
ELF-2-200T II 2G Ex h IIB T3 Gb | 371 | 484 | 385 | 182 | 271 | 119 | 137 |
ELF-2-200T VFD II 2G Ex h IIB T3 Gb | 371 | 484 | 394 | 182 | 271 | 119 | 137 |
ELF-4-200T II 2G Ex h IIB T3 Gb | 371 | 474 | 355 | 182 | 261 | 119 | 137 |
ELF-4-200T VFD II 2G Ex h IIB T3 Gb | 371 | 474 | 374 | 182 | 261 | 119 | 137 |
Type | I | J | K | L | S | T | X |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-160T II 2G Ex h IIB T3 Gb | 110 | 120 | 126 | 140 | 367 | 49.5 | 4 |
ELF-2-160T II 2G Ex h IIB T3 Gb | 110 | 120 | 126 | 140 | 367 | 49.5 | 4 |
ELF-2-160T VFD II 2G Ex h IIB T3 Gb | 110 | 120 | 126 | 140 | 367 | 49.5 | 4 |
ELF-2-160T VFD II 2G Ex h IIB T3 Gb | 110 | 120 | 126 | 140 | 367 | 49.5 | 4 |
ELF-4-160T II 2G Ex h IIB T3 Gb | 110 | 120 | 126 | 140 | 359 | 49.5 | 4 |
ELF-4-160T VFD II 2G Ex h IIB T3 Gb | 110 | 120 | 126 | 140 | 359 | 49.5 | 4 |
ELF-2-180T II 2G Ex h IIB T3 Gb | 130 | 130 | 155 | 155 | 390 | 55 | 4 |
ELF-2-180T VFD II 2G Ex h IIB T3 Gb | 130 | 130 | 155 | 155 | 390 | 55 | 4 |
ELF-4-180T II 2G Ex h IIB T3 Gb | 130 | 130 | 155 | 155 | 381 | 55 | 4 |
ELF-4-180T VFD II 2G Ex h IIB T3 Gb | 130 | 130 | 155 | 155 | 381 | 55 | 4 |
ELF-2-200T II 2G Ex h IIB T3 Gb | 143 | 160 | 163 | 180 | 414 | 65 | 4 |
ELF-2-200T VFD II 2G Ex h IIB T3 Gb | 143 | 160 | 163 | 180 | 414 | 65 | 4 |
ELF-4-200T II 2G Ex h IIB T3 Gb | 143 | 160 | 163 | 180 | 404 | 65 | 4 |
ELF-4-200T VFD II 2G Ex h IIB T3 Gb | 143 | 160 | 163 | 180 | 404 | 65 | 4 |
Type | N1 | N2 | N3 | N4 | P1 | P2 | X1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-160T II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 200 | 232 | 251 | 8 |
ELF-2-160T II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 200 | 232 | 251 | 8 |
ELF-2-160T VFD II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 200 | 232 | 251 | 8 |
ELF-2-160T VFD II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 200 | 232 | 251 | 8 |
ELF-4-160T II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 200 | 232 | 251 | 8 |
ELF-4-160T VFD II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 200 | 232 | 251 | 8 |
ELF-2-180T II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 220 | 232 | 251 | 8 |
ELF-2-180T VFD II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 220 | 232 | 251 | 8 |
ELF-4-180T II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 210 | 232 | 251 | 8 |
ELF-4-180T VFD II 2G Ex h IIB T3 Gb | 12.5 | 117.5 | 130 | 210 | 232 | 251 | 8 |
ELF-2-200T II 2G Ex h IIB T3 Gb | 12.5 | 157.5 | 170 | 268 | 242 | 261 | 8 |
ELF-2-200T VFD II 2G Ex h IIB T3 Gb | 12.5 | 157.5 | 170 | 268 | 242 | 261 | 8 |
ELF-4-200T II 2G Ex h IIB T3 Gb | 12.5 | 157.5 | 170 | 268 | 242 | 261 | 8 |
ELF-4-200T VFD II 2G Ex h IIB T3 Gb | 12.5 | 157.5 | 170 | 268 | 242 | 261 | 8 |
Type | X2 | ØO | ØD1 | ØD2 | ØD3 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-160T II 2G Ex h IIB T3 Gb | 4 | 7 | 194 | 180 | 130 | 5 | 9 |
ELF-2-160T II 2G Ex h IIB T3 Gb | 4 | 7 | 194 | 180 | 130 | 5 | 9 |
ELF-2-160T VFD II 2G Ex h IIB T3 Gb | 4 | 7 | 194 | 180 | 130 | 5 | 9 |
ELF-2-160T VFD II 2G Ex h IIB T3 Gb | 4 | 7 | 194 | 180 | 130 | 5 | 9 |
ELF-4-160T II 2G Ex h IIB T3 Gb | 4 | 7 | 194 | 180 | 130 | 5 | 9 |
ELF-4-160T VFD II 2G Ex h IIB T3 Gb | 4 | 7 | 194 | 180 | 130 | 5 | 9 |
ELF-2-180T II 2G Ex h IIB T3 Gb | 4 | 7 | 220 | 205 | 150 | 5 | 9 |
ELF-2-180T VFD II 2G Ex h IIB T3 Gb | 4 | 7 | 220 | 205 | 150 | 5 | 9 |
ELF-4-180T II 2G Ex h IIB T3 Gb | 4 | 7 | 220 | 205 | 150 | 5 | 9 |
ELF-4-180T VFD II 2G Ex h IIB T3 Gb | 4 | 7 | 220 | 205 | 150 | 5 | 9 |
ELF-2-200T II 2G Ex h IIB T3 Gb | 4 | 7 | 235 | 222 | 170 | 5 | 9 |
ELF-2-200T VFD II 2G Ex h IIB T3 Gb | 4 | 7 | 235 | 222 | 170 | 5 | 9 |
ELF-4-200T II 2G Ex h IIB T3 Gb | 4 | 7 | 235 | 222 | 170 | 5 | 9 |
ELF-4-200T VFD II 2G Ex h IIB T3 Gb | 4 | 7 | 235 | 222 | 170 | 5 | 9 |
Type | A | B | C | E | F | G | H | I |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
ELF-2-225T II 2G Ex h IIB T3 Gb | 372.5 | 513 | 491.5 | 183 | 300 | 148 | 136 | 173 |
ELF-2-225T VFD II 2G Ex h IIB T3 Gb | 372.5 | 513 | 491.5 | 183 | 300 | 148 | 136 | 173 |
ELF-4-225T II 2G Ex h IIB T3 Gb | 372.5 | 513 | 491.5 | 183 | 300 | 148 | 136 | 173 |
ELF-4-225T VFD II 2G Ex h IIB T3 Gb | 372.5 | 513 | 491.5 | 183 | 300 | 148 | 136 | 173 |
ELF-2-250T II 2G Ex h IIB T3 Gb | 416.5 | 618 | 573.5 | 204 | 370 | 168 | 190 | 210 |
ELF-2-250T VFD II 2G Ex h IIB T3 Gb | 416.5 | 618 | 573.5 | 204 | 370 | 168 | 190 | 210 |
ELF-4-250T II 2G Ex h IIB T3 Gb | 416.5 | 618 | 573.5 | 204 | 370 | 168 | 190 | 210 |
ELF-4-250T VFD II 2G Ex h IIB T3 Gb | 416.5 | 618 | 573.5 | 204 | 370 | 168 | 190 | 210 |
ELF-2-280T II 2G Ex h IIB T3 Gb | 425 | 625 | 543.5 | 207 | 370 | 135 | 174 | 177 |
ELF-2-280T VFD II 2G Ex h IIB T3 Gb | 425 | 625 | 543.5 | 207 | 370 | 135 | 174 | 177 |
ELF-4-280T II 2G Ex h IIB T3 Gb | 425 | 625 | 543.5 | 207 | 370 | 135 | 174 | 177 |
ELF-4-280T VFD II 2G Ex h IIB T3 Gb | 425 | 625 | 543.5 | 207 | 370 | 135 | 174 | 177 |
Type | J | K | L | S | T | X | N1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-225T II 2G Ex h IIB T3 Gb | 161 | 193 | 181 | 443 | 80.5 | 4 | 20 |
ELF-2-225T VFD II 2G Ex h IIB T3 Gb | 161 | 193 | 181 | 443 | 80.5 | 4 | 20 |
ELF-4-225T II 2G Ex h IIB T3 Gb | 161 | 193 | 181 | 443 | 80.5 | 4 | 20 |
ELF-4-225T VFD II 2G Ex h IIB T3 Gb | 161 | 193 | 181 | 443 | 80.5 | 4 | 20 |
ELF-2-250T II 2G Ex h IIB T3 Gb | 230 | 235 | 255 | 521 | 90 | 4 | 20 |
ELF-2-250T VFD II 2G Ex h IIB T3 Gb | 230 | 235 | 255 | 521 | 90 | 4 | 20 |
ELF-4-250T II 2G Ex h IIB T3 Gb | 230 | 235 | 255 | 521 | 90 | 4 | 20 |
ELF-4-250T VFD II 2G Ex h IIB T3 Gb | 230 | 235 | 255 | 521 | 90 | 4 | 20 |
ELF-2-280T II 2G Ex h IIB T3 Gb | 214 | 202 | 239 | 536 | 73.5 | 4 | 20 |
ELF-2-280T VFD II 2G Ex h IIB T3 Gb | 214 | 202 | 239 | 536 | 73.5 | 4 | 20 |
ELF-4-280T II 2G Ex h IIB T3 Gb | 214 | 202 | 239 | 536 | 73.5 | 4 | 20 |
ELF-4-280T VFD II 2G Ex h IIB T3 Gb | 214 | 202 | 239 | 536 | 73.5 | 4 | 20 |
Type | N2 | N3 | N4 | N5 | P1 | P2 | X1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-225T II 2G Ex h IIB T3 Gb | 175 | 330 | 330.5 | 350 | 245 | 265 | 8 |
ELF-2-225T VFD II 2G Ex h IIB T3 Gb | 175 | 330 | 330.5 | 350 | 245 | 265 | 8 |
ELF-4-225T II 2G Ex h IIB T3 Gb | 175 | 330 | 330.5 | 350 | 245 | 265 | 8 |
ELF-4-225T VFD II 2G Ex h IIB T3 Gb | 175 | 330 | 330.5 | 350 | 245 | 265 | 8 |
ELF-2-250T II 2G Ex h IIB T3 Gb | 190 | 360 | 380.5 | 380 | 326 | 350 | 8 |
ELF-2-250T VFD II 2G Ex h IIB T3 Gb | 190 | 360 | 380.5 | 380 | 326 | 350 | 8 |
ELF-4-250T II 2G Ex h IIB T3 Gb | 190 | 360 | 380.5 | 380 | 326 | 350 | 8 |
ELF-4-250T VFD II 2G Ex h IIB T3 Gb | 190 | 360 | 380.5 | 380 | 326 | 350 | 8 |
ELF-2-280T II 2G Ex h IIB T3 Gb | 190 | 360 | 364 | 380 | 326 | 350 | 8 |
ELF-2-280T VFD II 2G Ex h IIB T3 Gb | 190 | 360 | 364 | 380 | 326 | 350 | 8 |
ELF-4-280T II 2G Ex h IIB T3 Gb | 190 | 360 | 364 | 380 | 326 | 350 | 8 |
ELF-4-280T VFD II 2G Ex h IIB T3 Gb | 190 | 360 | 364 | 380 | 326 | 350 | 8 |
Type | X2 | ØO | ØD1 | ØD2 | ØD3 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-2-225T II 2G Ex h IIB T3 Gb | 6 | 11 | 265 | 250 | 170 | 6 | 9 |
ELF-2-225T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 265 | 250 | 170 | 6 | 9 |
ELF-4-225T II 2G Ex h IIB T3 Gb | 6 | 11 | 265 | 250 | 170 | 6 | 9 |
ELF-4-225T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 265 | 250 | 170 | 6 | 9 |
ELF-2-250T II 2G Ex h IIB T3 Gb | 6 | 11 | 310 | 290 | 203 | 6 | 11 |
ELF-2-250T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 310 | 290 | 203 | 6 | 11 |
ELF-4-250T II 2G Ex h IIB T3 Gb | 6 | 11 | 310 | 290 | 203 | 6 | 11 |
ELF-4-250T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 310 | 290 | 203 | 6 | 11 |
ELF-2-280T II 2G Ex h IIB T3 Gb | 6 | 11 | 330 | 310 | 221 | 6 | 11 |
ELF-2-280T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 330 | 310 | 221 | 6 | 11 |
ELF-4-280T II 2G Ex h IIB T3 Gb | 6 | 11 | 330 | 310 | 221 | 6 | 11 |
ELF-4-280T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 330 | 310 | 221 | 6 | 11 |
Type | A | B | C | E | F | G | H | I |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
ELF-4-315T II 2G Ex h IIB T3 Gb | 498 | 740 | 573 | 217.5 | 400 | 230 | 240 | 271 |
ELF-4-315T VFD II 2G Ex h IIB T3 Gb | 498 | 740 | 573 | 217.5 | 400 | 230 | 240 | 271 |
ELF-6-315T II 2G Ex h IIB T3 Gb | 498 | 740 | 573 | 217.5 | 400 | 230 | 240 | 271 |
ELF-6-315T VFD II 2G Ex h IIB T3 Gb | 498 | 740 | 573 | 217.5 | 400 | 230 | 240 | 271 |
ELF-4-355T II 2G Ex h IIB T3 Gb | 579.5 | 761 | 572.5 | 260.5 | 410 | 217 | 215 | 256 |
ELF-4-355T VFD II 2G Ex h IIB T3 Gb | 579.5 | 761 | 572.5 | 260.5 | 410 | 217 | 215 | 256 |
ELF-6-355T II 2G Ex h IIB T3 Gb | 579.5 | 761 | 572.5 | 260.5 | 410 | 217 | 215 | 256 |
ELF-6-355T VFD II 2G Ex h IIB T3 Gb | 579.5 | 761 | 572.5 | 260.5 | 410 | 217 | 215 | 256 |
ELF-4-400T II 2G Ex h IIB T3 Gb | 658.5 | 948 | 739.5 | 284.5 | 520 | 289 | 274 | 332 |
ELF-4-400T VFD II 2G Ex h IIB T3 Gb | 658.5 | 948 | 739.5 | 284.5 | 520 | 289 | 274 | 332 |
ELF-6-400T II 2G Ex h IIB T3 Gb | 658.5 | 948 | 739.5 | 284.5 | 520 | 289 | 274 | 332 |
ELF-6-400T VFD II 2G Ex h IIB T3 Gb | 658.5 | 948 | 739.5 | 284.5 | 520 | 289 | 274 | 332 |
Type | J | K | L | S | T | X | N1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-4-315T II 2G Ex h IIB T3 Gb | 281 | 305 | 315 | 617 | 121.5 | 8 | 25 |
ELF-4-315T VFD II 2G Ex h IIB T3 Gb | 281 | 305 | 315 | 617 | 121.5 | 8 | 25 |
ELF-6-315T II 2G Ex h IIB T3 Gb | 281 | 305 | 315 | 617 | 121.5 | 8 | 25 |
ELF-6-315T VFD II 2G Ex h IIB T3 Gb | 281 | 305 | 315 | 617 | 121.5 | 8 | 25 |
ELF-4-355T II 2G Ex h IIB T3 Gb | 252 | 286 | 282 | 650.5 | 115.5 | 8 | 25 |
ELF-4-355T VFD II 2G Ex h IIB T3 Gb | 252 | 286 | 282 | 650.5 | 115.5 | 8 | 25 |
ELF-6-355T II 2G Ex h IIB T3 Gb | 252 | 286 | 282 | 650.5 | 115.5 | 8 | 25 |
ELF-6-355T VFD II 2G Ex h IIB T3 Gb | 252 | 286 | 282 | 650.5 | 115.5 | 8 | 25 |
ELF-4-400T II 2G Ex h IIB T3 Gb | 315 | 366 | 349 | 808 | 153.5 | 8 | 30 |
ELF-4-400T VFD II 2G Ex h IIB T3 Gb | 315 | 366 | 349 | 808 | 153.5 | 8 | 30 |
ELF-6-400T II 2G Ex h IIB T3 Gb | 315 | 366 | 349 | 808 | 153.5 | 8 | 30 |
ELF-6-400T VFD II 2G Ex h IIB T3 Gb | 315 | 366 | 349 | 808 | 153.5 | 8 | 30 |
Type | N2 | N3 | N4 | N5 | P1 | P2 | X1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-4-315T II 2G Ex h IIB T3 Gb | 210 | 395 | 402.5 | 420 | 253 | 280 | 8 |
ELF-4-315T VFD II 2G Ex h IIB T3 Gb | 210 | 395 | 402.5 | 420 | 253 | 280 | 8 |
ELF-6-315T II 2G Ex h IIB T3 Gb | 210 | 395 | 402.5 | 420 | 253 | 280 | 8 |
ELF-6-315T VFD II 2G Ex h IIB T3 Gb | 210 | 395 | 402.5 | 420 | 253 | 280 | 8 |
ELF-4-355T II 2G Ex h IIB T3 Gb | 210 | 395 | 397 | 420 | 273 | 300 | 8 |
ELF-4-355T VFD II 2G Ex h IIB T3 Gb | 210 | 395 | 397 | 420 | 273 | 300 | 8 |
ELF-6-355T II 2G Ex h IIB T3 Gb | 210 | 395 | 397 | 420 | 273 | 300 | 8 |
ELF-6-355T VFD II 2G Ex h IIB T3 Gb | 210 | 395 | 397 | 420 | 273 | 300 | 8 |
ELF-4-400T II 2G Ex h IIB T3 Gb | 260 | 490 | 503 | 540 | 394 | 430 | 8 |
ELF-4-400T VFD II 2G Ex h IIB T3 Gb | 260 | 490 | 503 | 540 | 394 | 430 | 8 |
ELF-6-400T II 2G Ex h IIB T3 Gb | 260 | 490 | 503 | 540 | 394 | 430 | 8 |
ELF-6-400T VFD II 2G Ex h IIB T3 Gb | 260 | 490 | 503 | 540 | 394 | 430 | 8 |
Type | X2 | ØO | ØD1 | ØD2 | ØD3 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-4-315T II 2G Ex h IIB T3 Gb | 6 | 11 | 382 | 360 | 254 | 6 | 12 |
ELF-4-315T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 382 | 360 | 254 | 6 | 12 |
ELF-6-315T II 2G Ex h IIB T3 Gb | 6 | 11 | 382 | 360 | 254 | 6 | 12 |
ELF-6-315T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 382 | 360 | 254 | 6 | 12 |
ELF-4-355T II 2G Ex h IIB T3 Gb | 6 | 11 | 410 | 390 | 287 | 6 | 12 |
ELF-4-355T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 410 | 390 | 287 | 6 | 12 |
ELF-6-355T II 2G Ex h IIB T3 Gb | 6 | 11 | 410 | 390 | 287 | 6 | 12 |
ELF-6-355T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 410 | 390 | 287 | 6 | 12 |
ELF-4-400T II 2G Ex h IIB T3 Gb | 6 | 11 | 470 | 440 | 325 | 8 | 14 |
ELF-4-400T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 470 | 440 | 325 | 8 | 14 |
ELF-6-400T II 2G Ex h IIB T3 Gb | 6 | 11 | 470 | 440 | 325 | 8 | 14 |
ELF-6-400T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 470 | 440 | 325 | 8 | 14 |
Type | A | B | C | E | F | G | H | I | J | K |
---|---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
ELF-6-450T II 2G Ex h IIB T3 Gb | 712.5 | 971 | 769 | 314.5 | 520 | 319 | 297 | 270 | 260 | 409 |
ELF-6-450T VFD II 2G Ex h IIB T3 Gb | 712.5 | 971 | 769 | 314.5 | 520 | 319 | 297 | 270 | 260 | 409 |
Type | L | S | T | X | I1 | J1 | N1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-6-450T II 2G Ex h IIB T3 Gb | 385 | 819.5 | 168.5 | 12 | 369 | 345 | 20 |
ELF-6-450T VFD II 2G Ex h IIB T3 Gb | 385 | 819.5 | 168.5 | 12 | 369 | 345 | 20 |
Type | N2 | N3 | N4 | N5 | P1 | P2 | X1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-6-450T II 2G Ex h IIB T3 Gb | 270 | 548 | 518 | 568 | 334 | 370 | 8 |
ELF-6-450T VFD II 2G Ex h IIB T3 Gb | 270 | 548 | 518 | 568 | 334 | 370 | 8 |
Type | X2 | ØO | ØD1 | ØD2 | ØD3 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
ELF-6-450T II 2G Ex h IIB T3 Gb | 6 | 11 | 530 | 500 | 365 | 8 | 14 |
ELF-6-450T VFD II 2G Ex h IIB T3 Gb | 6 | 11 | 530 | 500 | 365 | 8 | 14 |
