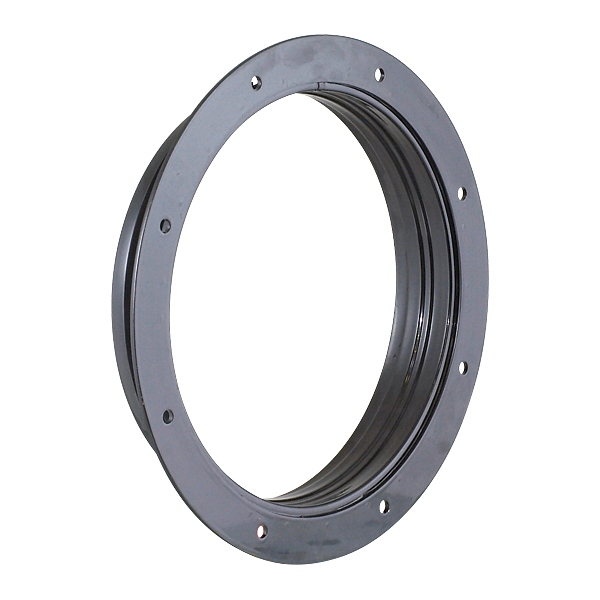

AFC/Compact - Connector

AFC/Compact

Connector

---
Contact us

Technical assistance

Choose a fan www.fanselectoronline.com

m3/h
Pa

Dimensions

Type A B C D N* ØE
  mm mm mm mm mm mm
KR AFC/Compact 250 310 63 280 250 8 10
KR AFC/Compact 315 375 63 345 315 8 10
KR AFC/Compact 355 395 63 395 355 8 10
KR AFC/Compact 400 500 81 450 400 8 12
KR AFC/Compact 450 555 83 500 450 8 10
KR AFC/Compact 500 600 63 550 500 12 12
KR AFC/Compact 560 655 63 610 560 12 12
KR AFC/Compact 630 725 63 690 630 12 12
KR Compact 710 806 63 770 710 16 12
KR AFC 710 810 63 760 710 12 12
KR Compact 800 895 75 860 800 16 12
KR AFC 800 911 63 850 800 12 12
KR AFC 900 1000 75 950 900 12 12
KR AFC 1000 1100 75 1050 1000 12 12
KR AFC 1120 1100 75 1050 1000 12 12
KR AFC 1250 1100 75 1050 1000 12 12
