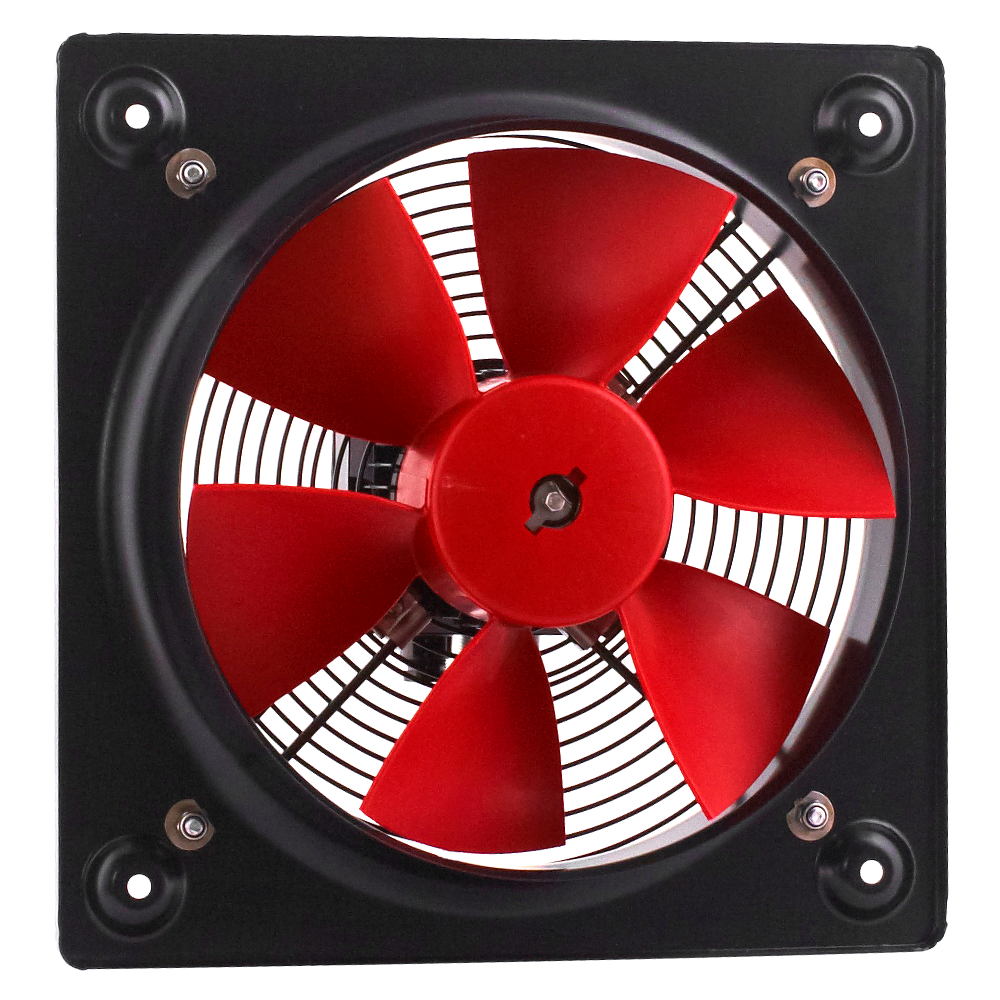

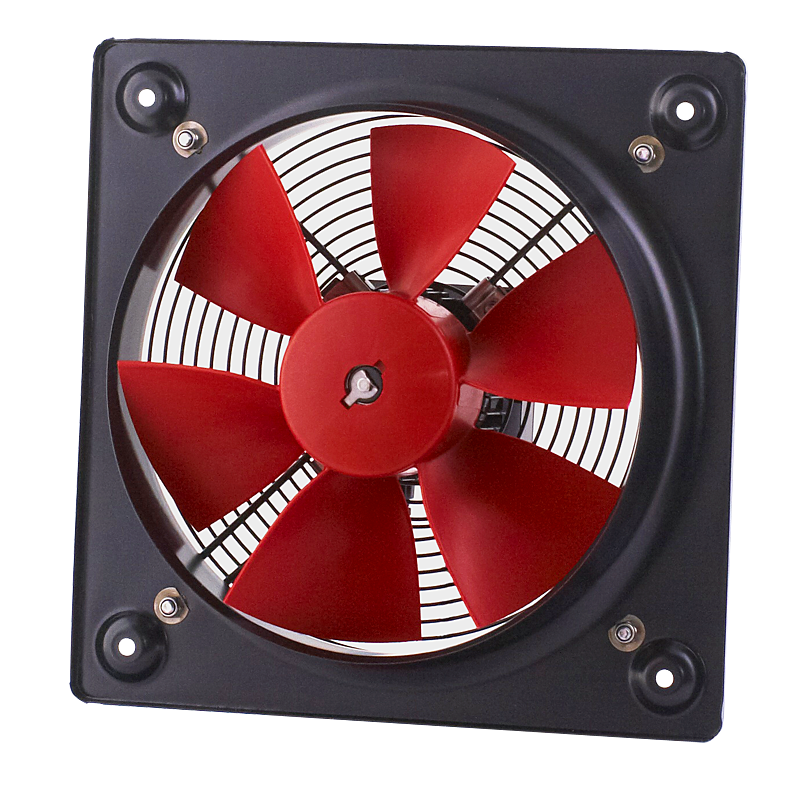

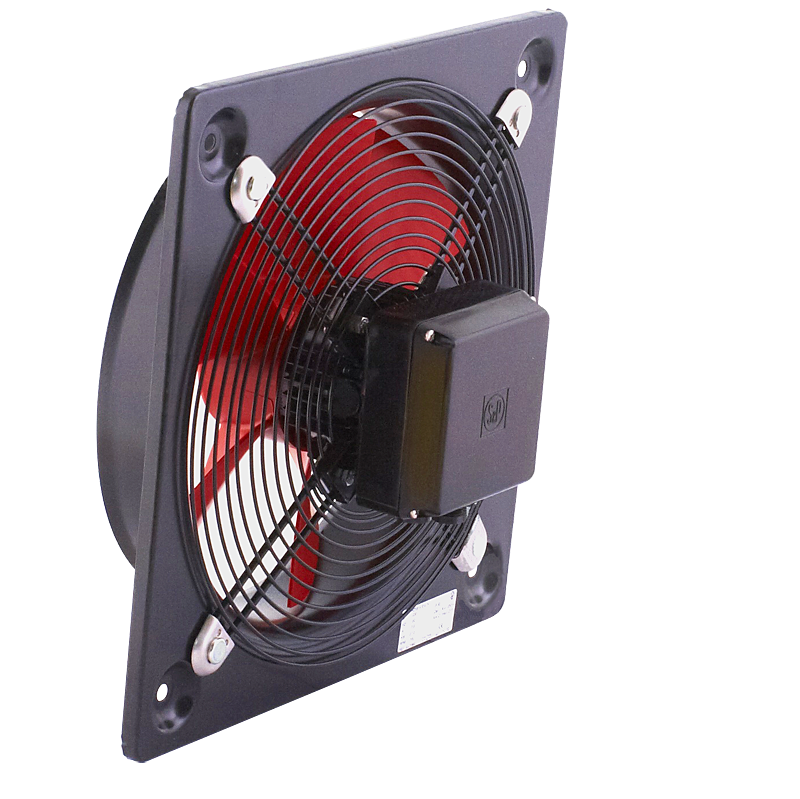

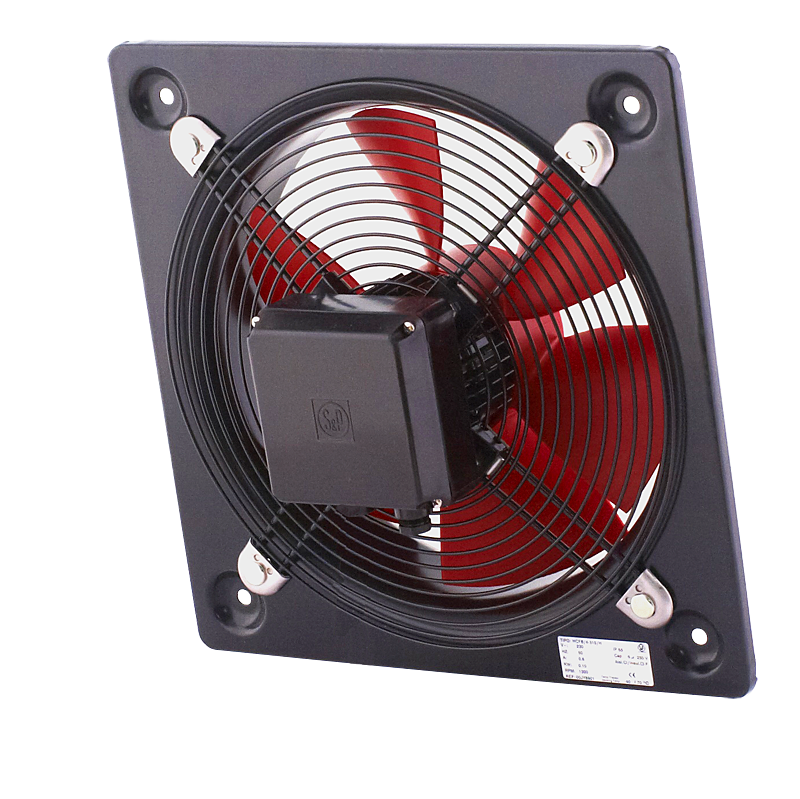

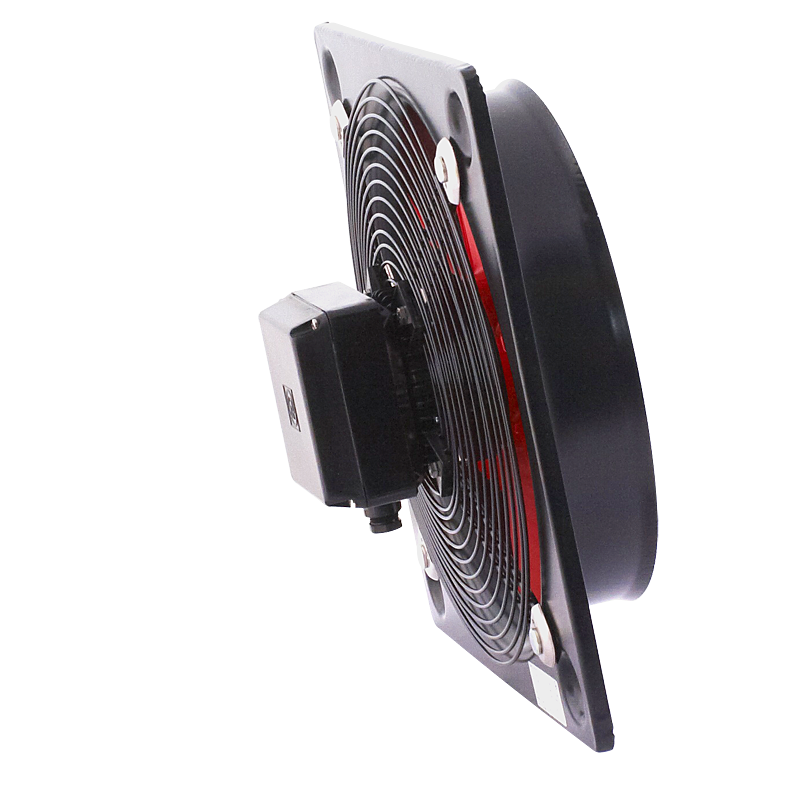

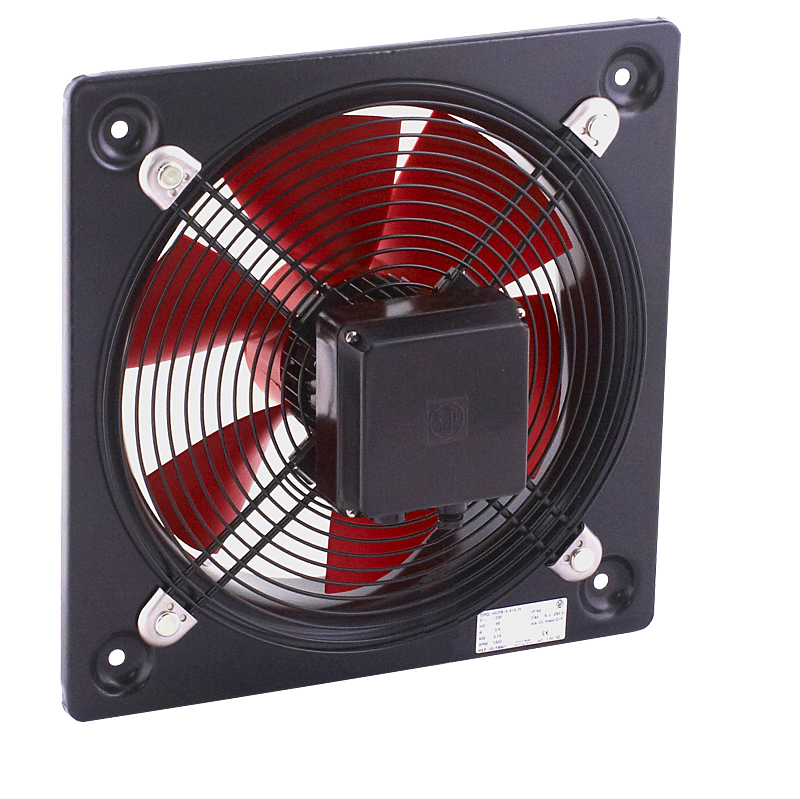

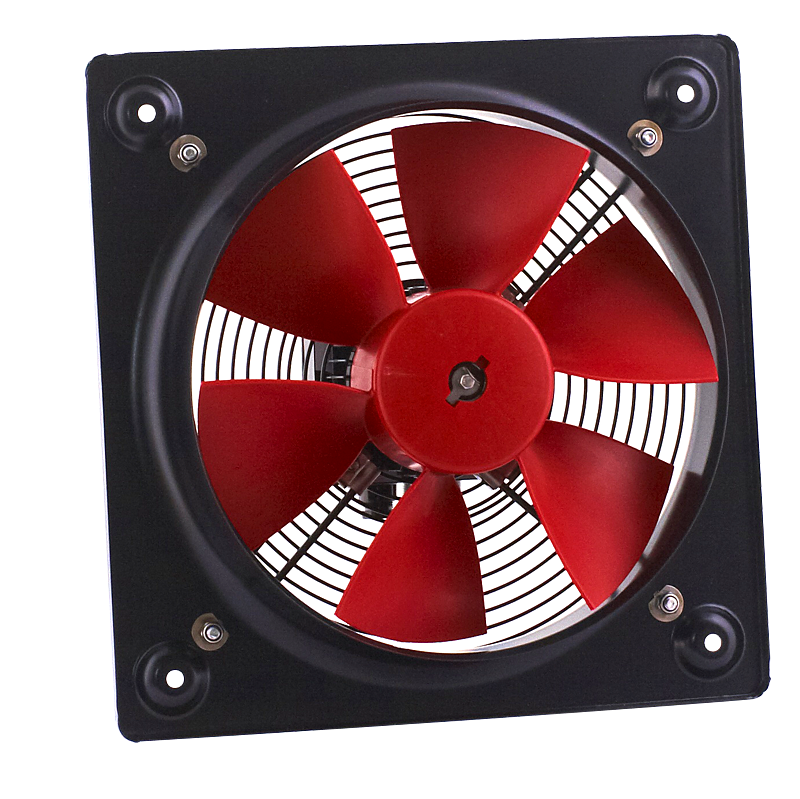

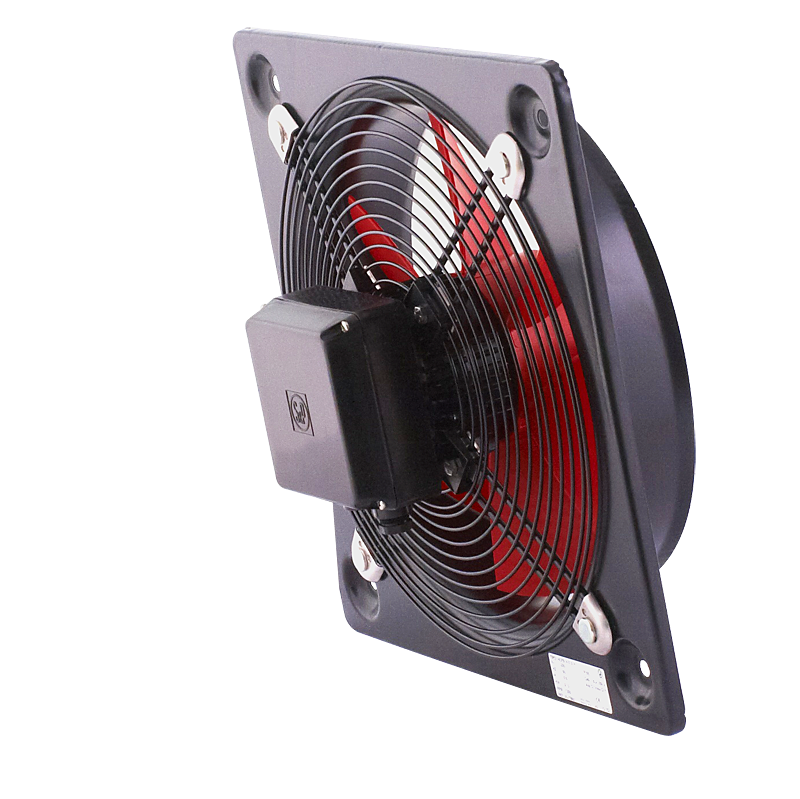

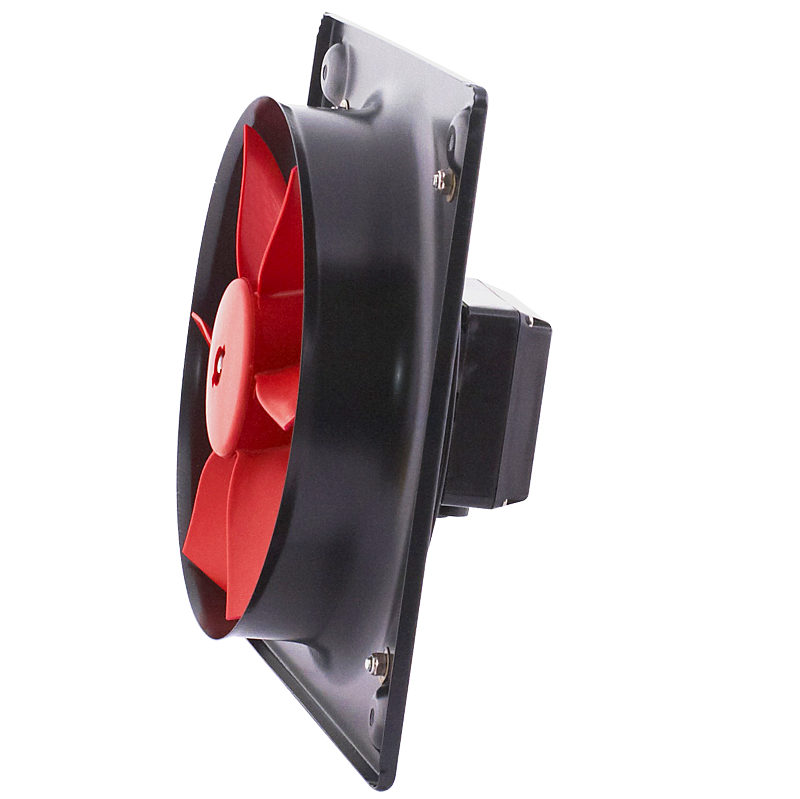

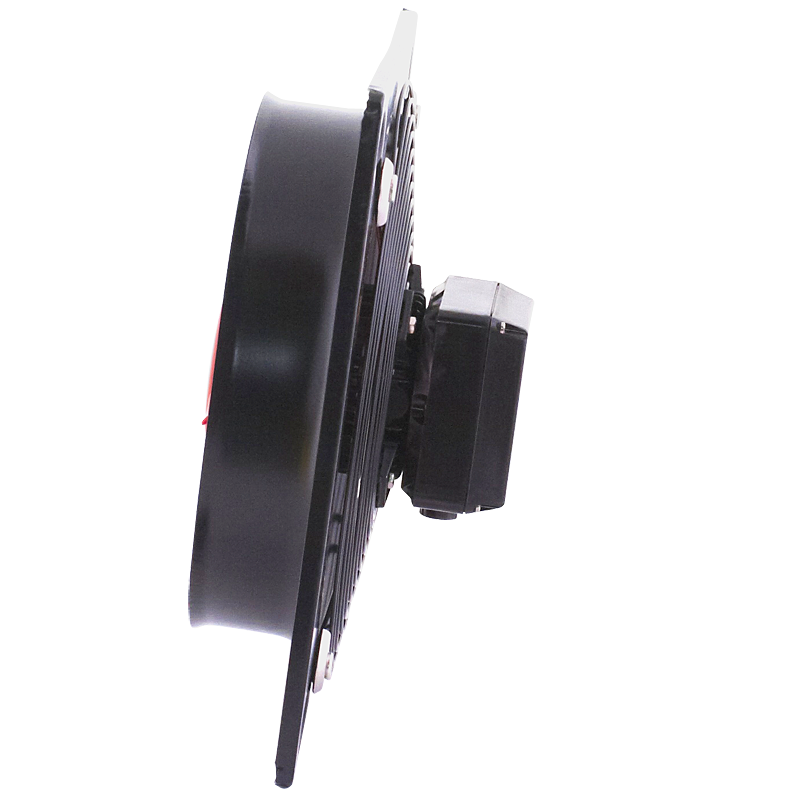

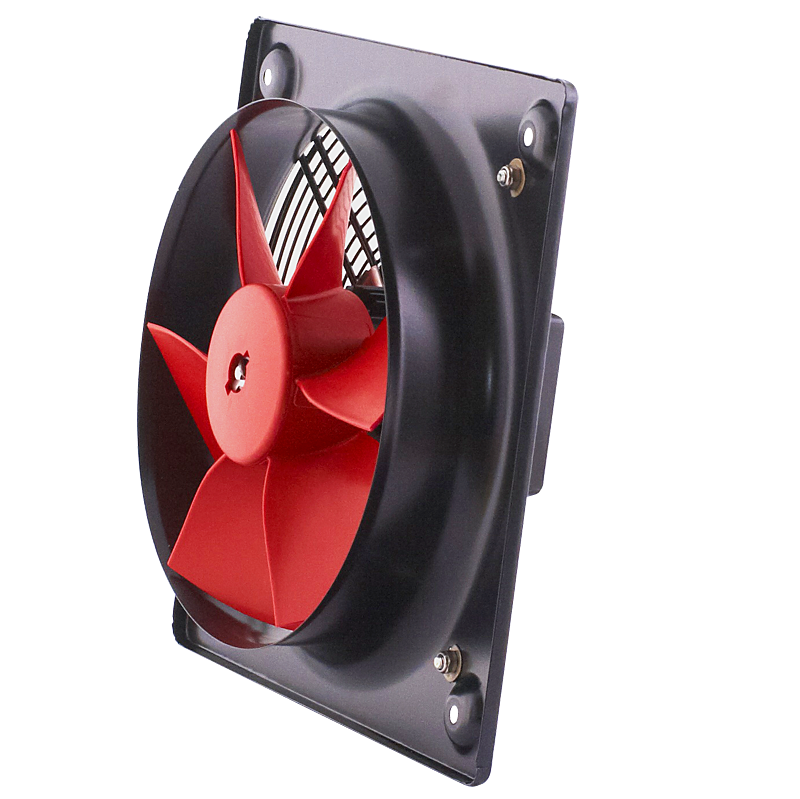

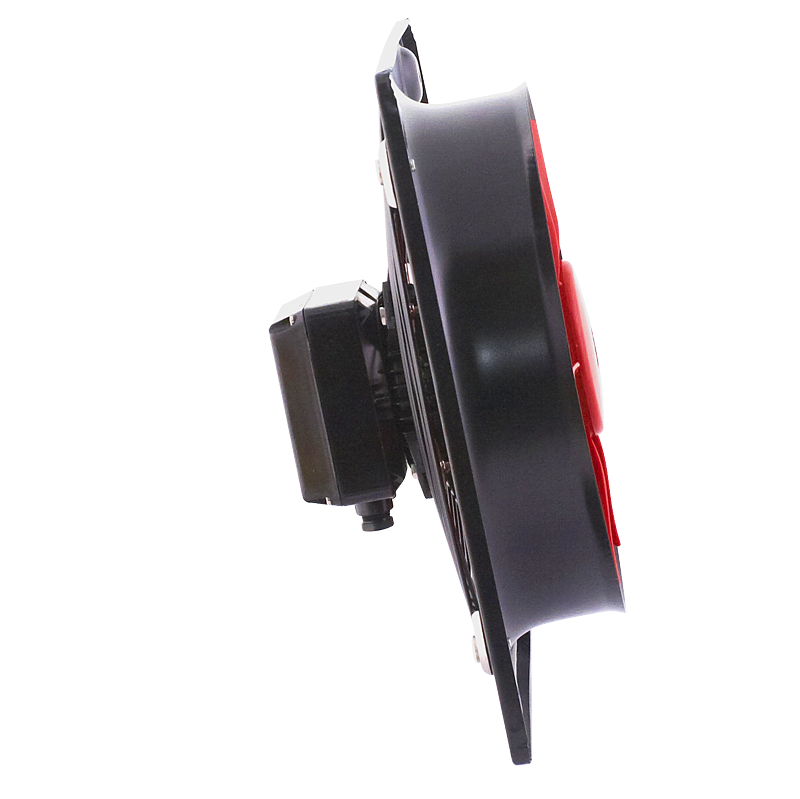

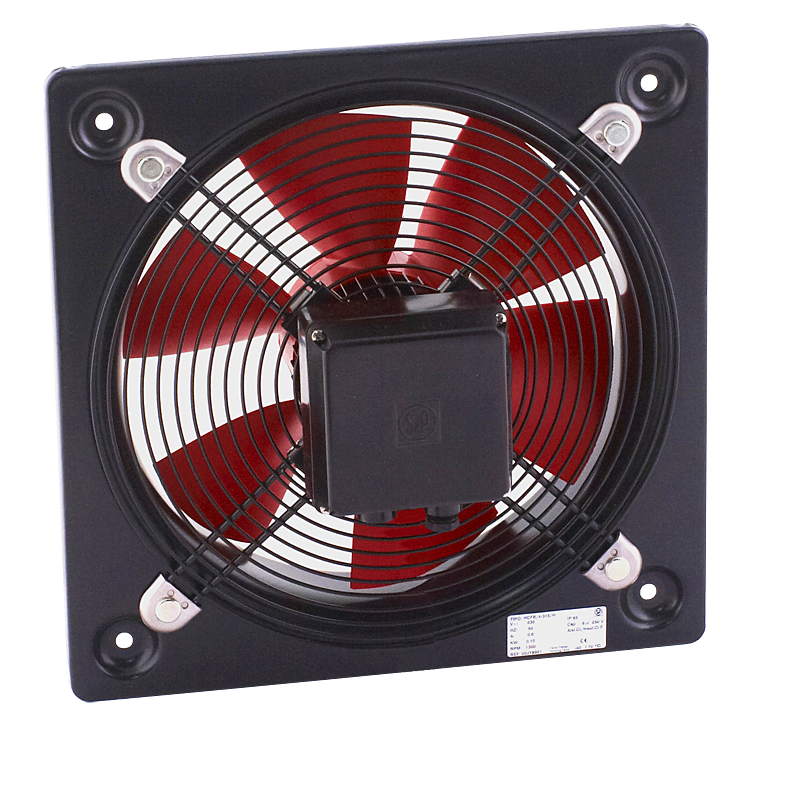

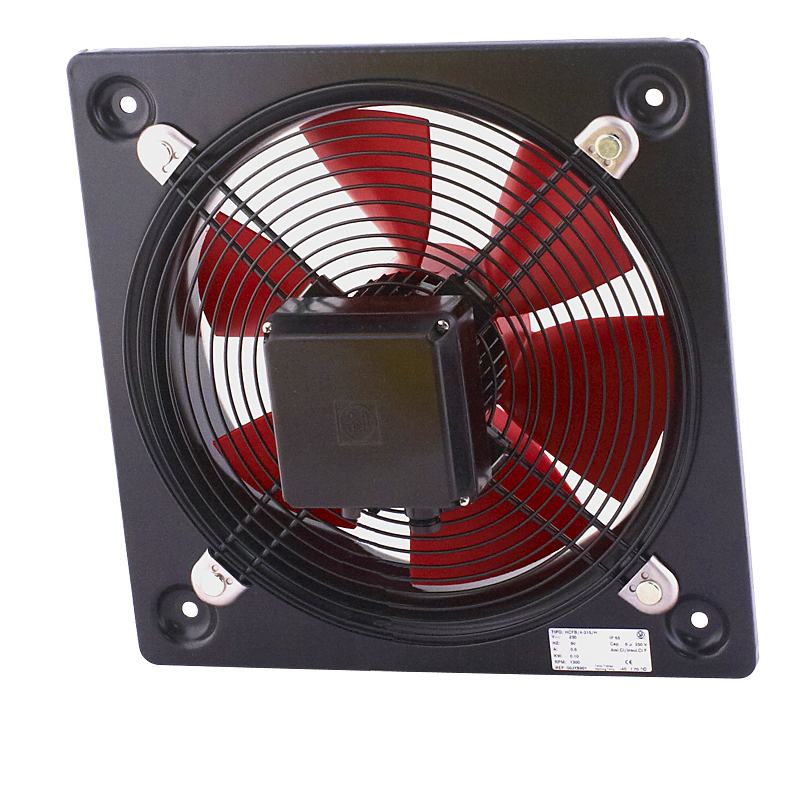

HCFT/B, HCBT/B - Axial-flow wall fan

HCFT/B, HCBT/B

Axial-flow wall fan

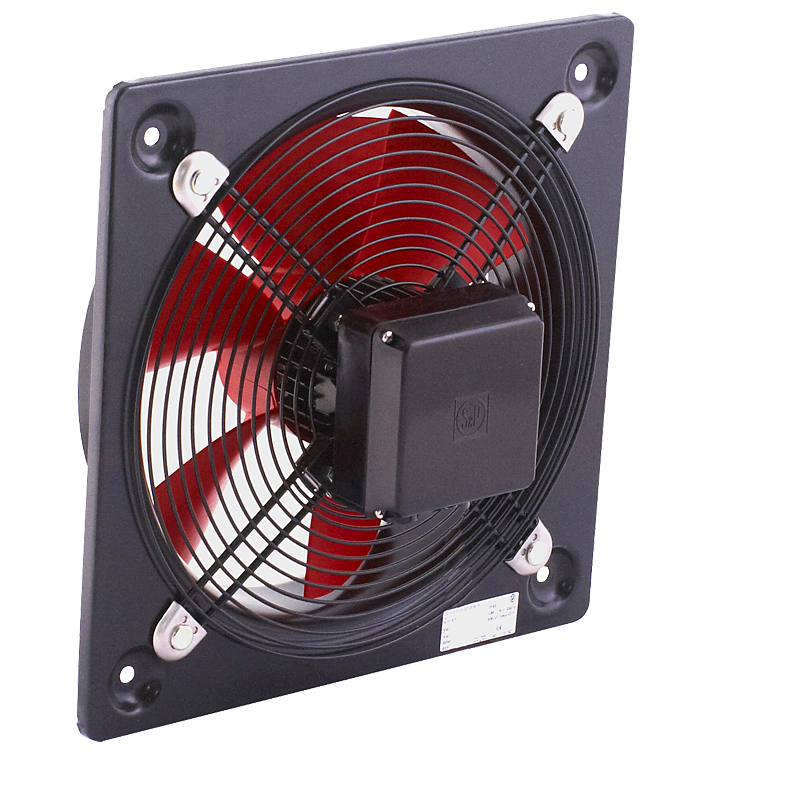

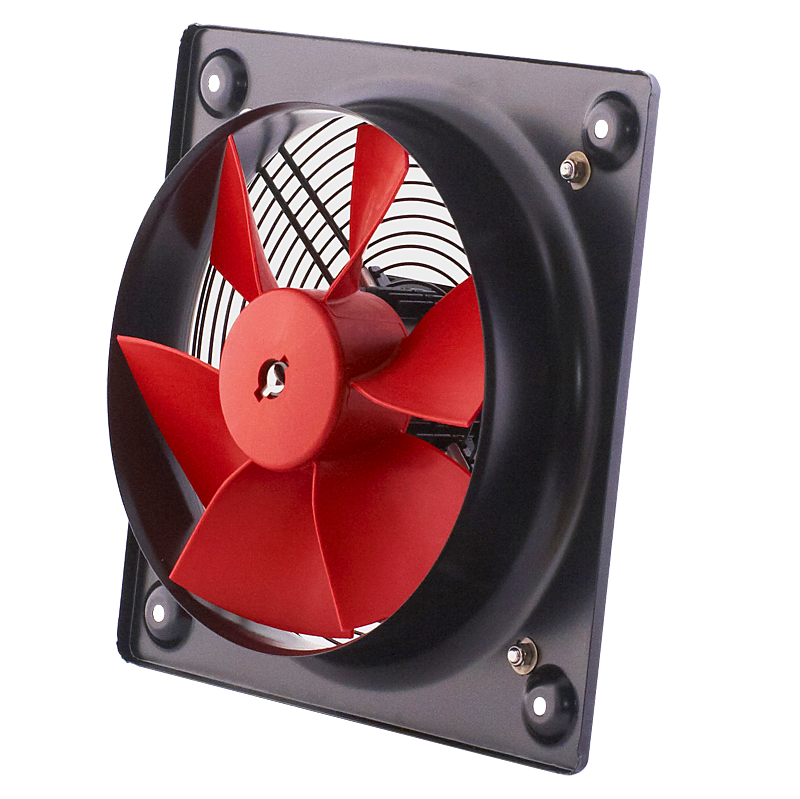

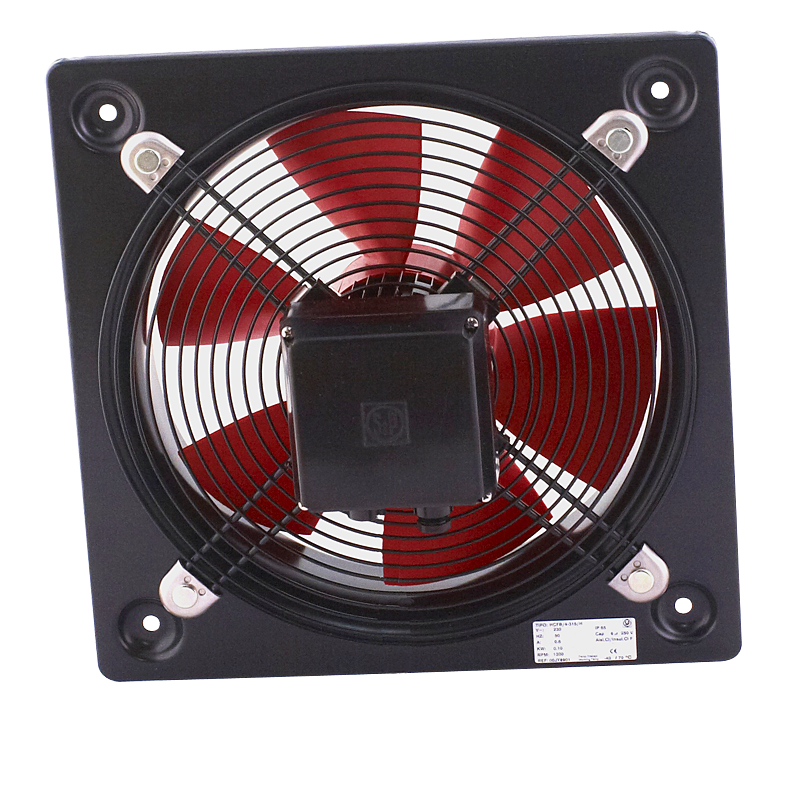

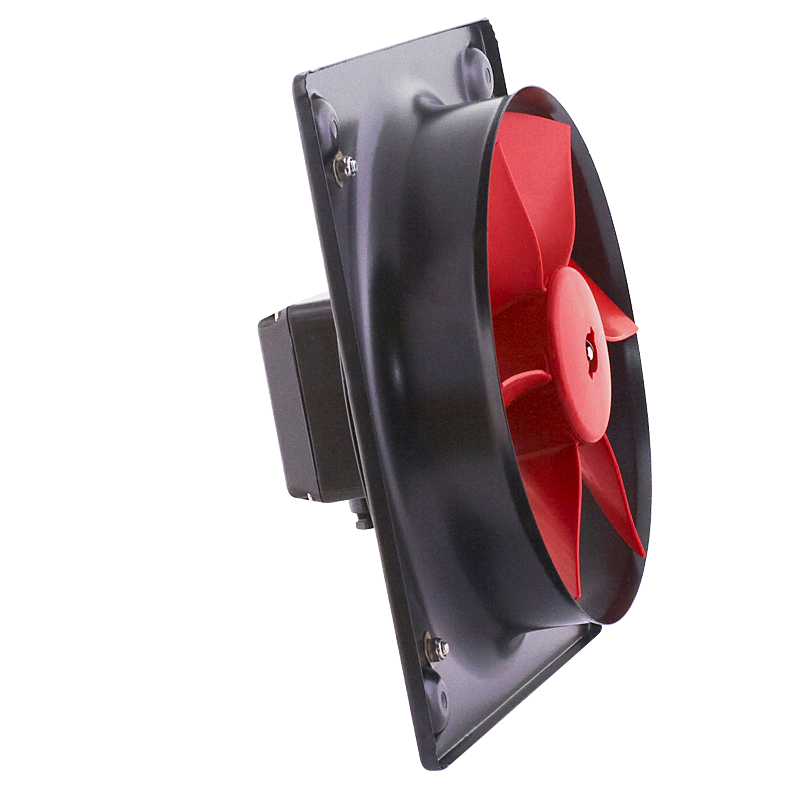

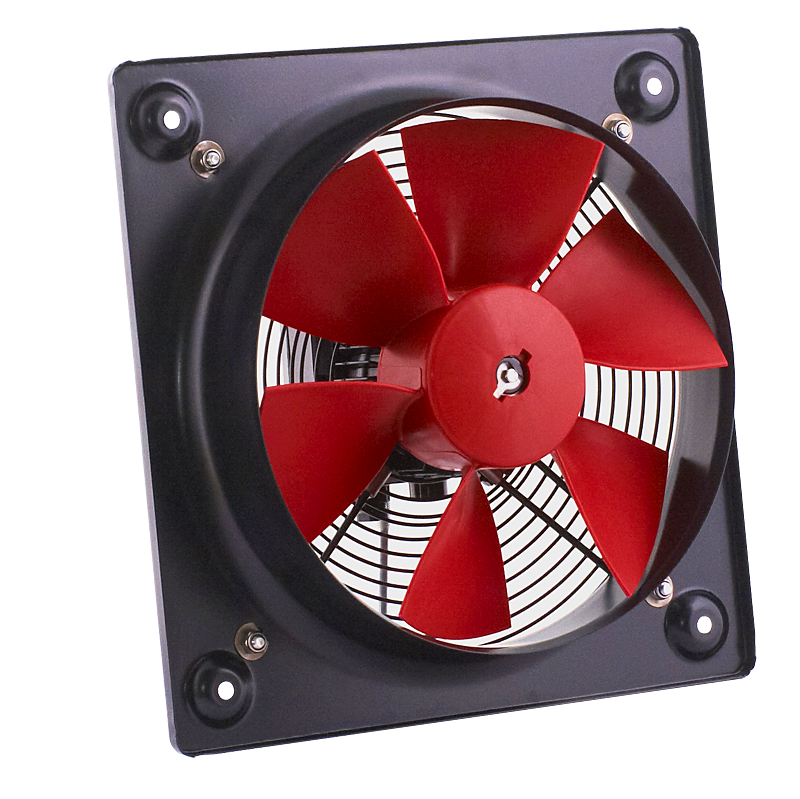

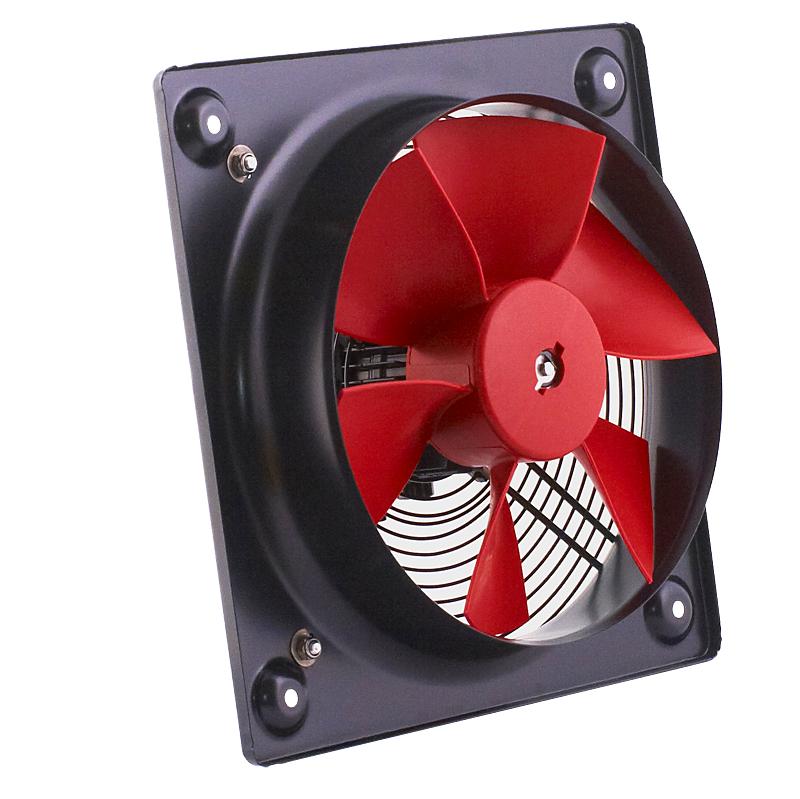

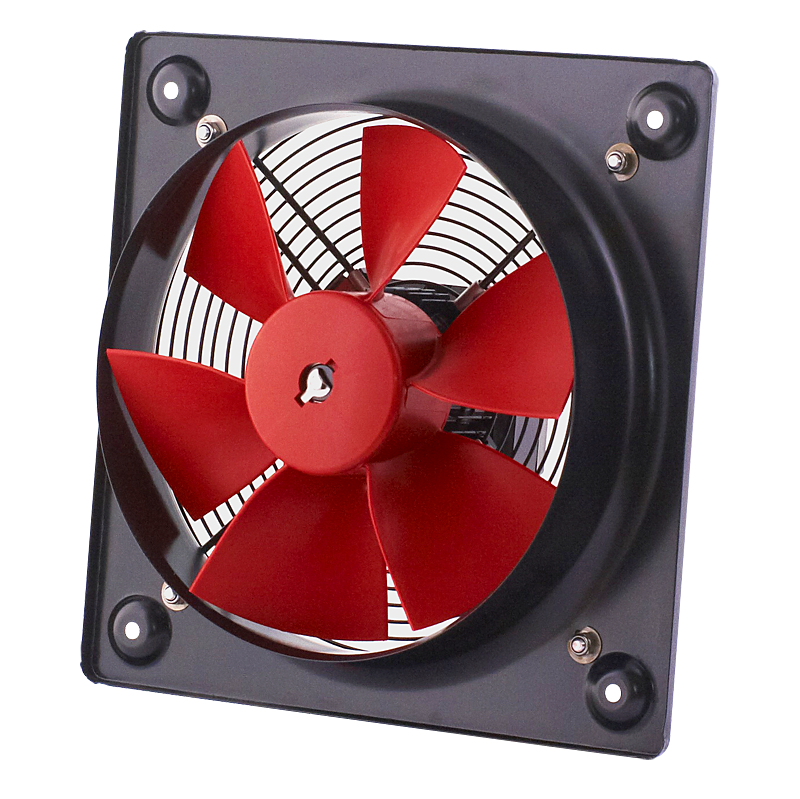

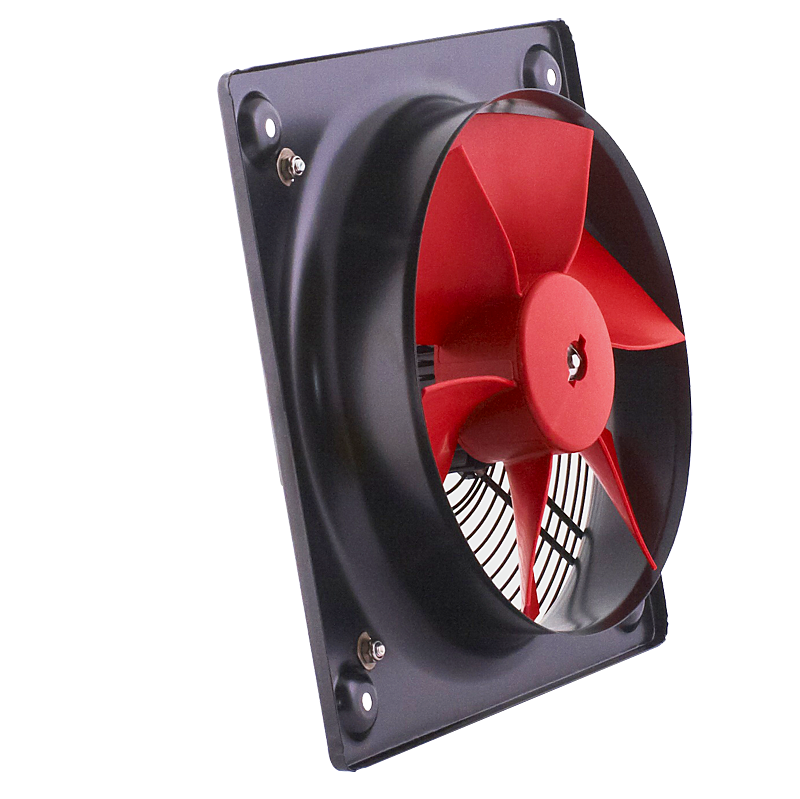

Range of low profile plate mounted axial fans fitted with plastic impellers with fiberglass (HCFT/B) or aluminium impellers (HCBT/B), single phase motor (/B) or three phase motor (/T)
Contact us

Construction

Range of low profile plate mounted axial fans fitted with plastic impellers with fiberglass (HCFT/B) or aluminium impellers (HCBT/B), single phase motor (/B) or three phase motor (/T), IP65 (2 pole motor and Ø 800, 900 and 1000 models are IP55), Class F insulation, equipped with thermal protection (except models 800 to 1000).

Working temperatures from -40ºC up to +70ºC. Except models 4-710 suitable up to +55ºC and models Ø 800 to 1000 suitable for usage in environments from -20ºC to +40ºC.

Motor

  • Available, depending upon the model, with single or three phase motors in 2, 4 or 6 poles,
  • All motors are speed controllable by autotransformer except models 2 pole and /4-630, B/710, T/4-710, T/800, T/900 and T/1000,
  • Three phase models are speed controllable by inverter.

Electrical supplies:

  • Single phase 220-240V-50Hz. (Capacitor located inside the wiring terminal box),
  • Three phase 220-240/380-415V-50Hz or 400V-50Hz.

Additional Information

Standard air direction: form (A) configuration (motor over Impeller).

On request

Inlet finger proof guard for models Ø 800 to 1000.

Technical assistance

Catalog card

Choose a fan www.fanselectoronline.com

m3/h
Pa

Work characteristics

Dimensions

Type A B C F J K L M ØD ØE ØG
  mm mm mm mm mm mm mm mm mm mm mm
HCGB/2-315/L 400 330 280 129 45 68 12 65 315 10 329
HCGB/2-355/I 450 380 315 129 45 75 12 65 355 10 371
HCFB/4-250/H 315 260 220 122 59 53 12 65 254 10 294
HCFB/4-315/H 400 330 280 122 32 68 12 65 315 10 329
HCFB/4-355/H 450 380 315 129 45 75 12 65 355 10 371
HCFB/4-400/H 500 420 355 129 50.5 78 12 65 400 10 422
HCFB/4-450/H 560 480 400 150 48 91 12 65 450 10 476
HCFB/4-500/H 630 560 450 150 44.5 97 12 65 500 10 536
HCFB/4-560/H 710 630 510 218.5 110.5 98.5 12 65 560 10 596
HCFB/4-630/H 800 710 580 218.5 110.5 103 12 65 630 12 674
HCFB/6-315/H 400 330 280 122 32 68 12 65 315 10 329
HCFB/6-355/H 450 380 315 129 45 75 12 65 355 10 371
HCFB/6-400/H 500 420 355 129 40.5 78 12 65 400 10 422
HCFB/6-450/H 560 480 400 150 48 91 12 65 450 10 476
HCFB/6-500/H 630 560 450 150 44.5 97 12 65 500 10 536
HCFB/6-560/H 710 630 510 150 42 98.5 12 65 560 10 596
HCFB/6-630/H 800 710 580 150 41 103 12 65 630 12 674
HCGT/2-315/L 400 330 280 129 45 68 12 40 315 10 329
HCGT/2-355/I 450 380 315 129 45 75 12 40 355 10 371
HCFT/4-250/H 315 260 220 122 59 53 12 40 254 10 294
HCFT/4-315/H 400 330 280 122 32 68 12 40 315 10 329
HCFT/4-355/H 450 380 315 129 45 75 12 40 355 10 371
HCFT/4-400/H 500 420 355 129 50.5 78 12 40 400 10 422
HCFT/4-450/H 560 480 400 150 48 91 12 40 450 10 476
HCFT/4-500/H 630 560 450 150 44.5 97 12 40 500 10 536
HCFT/4-560/H 710 630 510 218.5 110.5 98.5 12 40 560 10 596
HCFT/4-630/H 800 710 580 218.5 110.5 103 12 40 630 12 674
HCFT/4-710/H 900 800 636 218.5 134 91.5 16.5 40 710 12 733
HCFT/6-355/H 450 380 315 129 45 75 12 40 355 10 371
HCFT/6-400/H 500 420 355 129 40.5 78 12 40 400 10 422
HCFT/6-450/H 560 480 400 150 48 91 12 40 450 10 476
HCFT/6-500/H 630 560 450 150 44.5 97 12 40 500 10 536
HCFT/6-560/H 710 630 510 150 42 98.5 12 40 560 10 596
HCFT/6-630/H 800 710 580 150 41 103 12 40 630 12 674
HCFT/6-710/H 900 800 636 218.5 134 91.5 16.5 40 710 12 733
HCBB/4-250/H 315 260 220 122 59 53 12 65 254 10 294
HCBB/4-315/H 400 330 280 122 32 68 12 65 315 10 329
HCBB/4-355/H 450 380 315 129 45 75 12 65 355 10 371
HCBB/4-400/H 500 420 355 129 50.5 78 12 65 400 10 422
HCBB/4-450/H 560 480 400 150 48 91 12 65 450 10 476
HCBB/4-500/H 630 560 450 150 44.5 97 12 65 500 10 536
HCBB/4-560/H 710 630 510 218.5 110.5 98.5 12 65 560 10 596
HCBB/4-630/H 800 710 580 218.5 110.5 103 12 65 630 12 674
HCBB/6-355/H 450 380 315 129 45 75 12 65 355 10 371
HCBB/6-400/H 500 420 355 129 40.5 78 12 65 400 10 422
HCBB/6-450/H 560 480 400 150 48 91 12 65 450 10 476
HCBB/6-500/H 630 560 450 150 44.5 97 12 65 500 10 536
HCBB/6-560/H 710 630 510 150 42 98.5 12 65 560 10 596
HCBB/6-630/H 800 710 580 150 41 103 12 65 630 12 674
HCBT/4-250/H 315 260 220 122 59 53 12 40 254 10 294
HCBT/4-315/H 400 330 280 122 32 68 12 40 315 10 329
HCBT/4-355/H 450 380 315 129 45 75 12 40 355 10 371
HCBT/4-400/H 500 420 355 129 50.5 78 12 40 400 10 422
HCBT/4-450/H 560 480 400 150 48 91 12 40 450 10 476
HCBT/4-500/H 630 560 450 150 44.5 97 12 40 500 10 536
HCBT/4-560/H 710 630 510 218.5 110.5 98.5 12 40 560 10 596
HCBT/4-630/H 800 710 580 218.5 110.5 103 12 40 630 12 674
HCBT/4-710/H 900 800 636 218.5 134 91.5 16.5 40 710 12 733
HCBT/6-355/H 450 380 315 129 45 75 12 40 355 10 371
HCBT/6-400/H 500 420 355 129 40.5 78 12 40 400 10 422
HCBT/6-450/H 560 480 400 150 48 91 12 40 450 10 476
HCBT/6-500/H 630 560 450 150 44.5 97 12 40 500 10 536
HCBT/6-560/H 710 630 510 150 42 98.5 12 40 560 10 596
HCBT/6-630/H 800 710 580 150 41 103 12 40 630 12 674
HCBT/6-710/H 900 800 636 218.5 134 91.5 16.5 40 710 12 733
Type J C_H C_L ØD ØG sq_A sq_B ØF_H ØF_L
  mm mm mm mm mm mm mm mm mm
HCFT/4-800/L-X-1.5 92 380 345 800 926 1000 800 203 181
HCFT/4-800/H-X-3 92 380 345 800 926 1000 800 203 181
HCFT/4-900/L-X-3 120 439 392 900 1060 1120 900 280 203
HCFT/4-900/H-X-5.5 120 439 392 900 1060 1120 900 280 203
HCFT/4-1000/L-X-3 110 380 380 1000 1154 1250 1000 280 203
HCFT/4-1000/H-X-7.5 110 380 380 1000 1154 1250 1000 280 203
HCFT/6-800/L-X-0.55 92 345 310 800 926 1000 800 181 162
HCFT/6-800/H-X-0.75 92 345 310 800 926 1000 800 181 162
HCFT/6-900/L-X-1.1 120 392 350 900 1060 1120 900 203 181
HCFT/6-900/H-X-1.5 120 392 350 900 1060 1120 900 203 181
HCFT/6-1000/L-X-1.1 110 380 345 1000 1154 1250 1000 203 181
HCFT/6-1000/H-X-1.5 110 380 345 1000 1154 1250 1000 203 181
HCBT/4-800/L-X-1.5 92 380 345 800 926 1000 800 203 181
HCBT/4-800/H-X-3 92 380 345 800 926 1000 800 203 181
HCBT/4-900/L-X-3 120 439 392 900 1060 1120 900 280 203
HCBT/4-900/H-X-5.5 120 439 392 900 1060 1120 900 280 203
HCBT/4-1000/L-X-3 110 380 380 1000 1154 1250 1000 280 203
HCBT/4-1000/H-X-5.5 110 380 380 1000 1154 1250 1000 280 203
HCBT/6-800/L-X-0.55 92 345 310 800 926 1000 800 181 162
HCBT/6-800/H-X-0.75 92 345 310 800 926 1000 800 181 162
HCBT/6-900/L-X-1,1 120 439 392 900 1060 1120 900 280 203
HCBT/6-900/H-X-1,5 120 439 392 900 1060 1120 900 280 203
HCBT/6-1000/L-X-1.1 110 380 345 1000 1154 1250 1000 203 181
HCBT/6-1000/H-X-1.5 110 380 345 1000 1154 1250 1000 203 181
