LFA - Centrifugal fan

LFA

Centrifugal fan

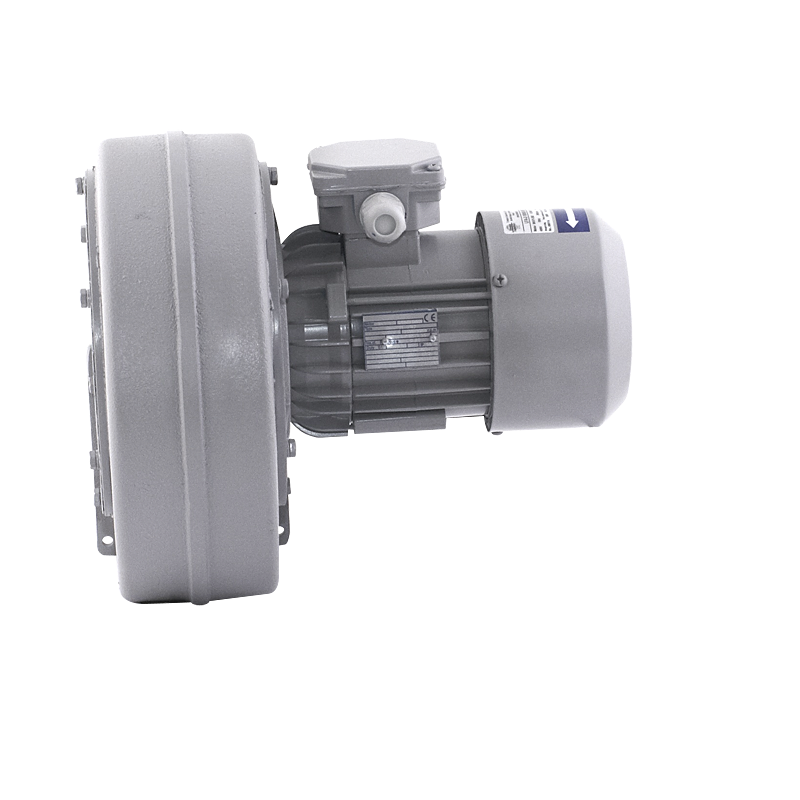

Low-pressure radial fan with direct drive, designed for transporting non-aggressive and non-explosive gases without pollution.
Can be painted in a color
other than standard
Contact us

Application

The fan is designed for transport systems of non-aggressive and non-explosive gases without pollution. Typical uses are:

  • supply / exhaust in individual ventilation and air conditioning systems,
  • cooling and drying systems,
  • ventilation of workshops.

Construction

  • low-pressure radial fan with direct drive
  • impeller welded from steel sheet with forward curved blades, dynamically balanced according to ISO 1940-1
  • casing made of aluminum alloy
  • galvanized protective mesh at the inlet
  • fan stand in models 160A, 180-225
  • motor stand in the 250 model
  • fan painted gray RAL 7042
  • maximum temperature of the transported medium 80°C
  • motor ambient temperature from -20°C to +40°C
  • figure LG270

Motor

  • asynchronous, single-phase, 230V 50Hz (power up to 1,5kW)
  • asynchronous, three-phase, 230/400V 50Hz (power up to 3kW)
  • asynchronous, three-phase, 400/690V 50Hz (power from 4kW)
  • degree of protection IP55
  • insulation class F
  • for frequency control (three-phase motors)

Special Executions

  • any LG / RD figure
  • painting in a color other than the standard
  • motor for voltage and frequency other than standard
  • motor with different IP protection class
  • motor equipped with sensors or additional cooling
  • sealing between the housing and the motor (simmering)
  • motor ambient temperature below -20°C and above +40°C

Technical assistance

Catalog card

Choose a fan www.fanselectoronline.com

m3/h
Pa

Work characteristics

Dimensions

Type A B C E F G H I J
  mm mm mm mm mm mm mm mm mm
LFA/2-108/42-005T 183 182 245 94 103 52 52 56 56
LFA/2-108/42-003S 183 182 245 94 103 52 52 56 56
LFA/4-108/42-006T 183 182 245 94 103 52 52 56 56
LFA/4-108/42-006S 183 182 245 94 103 52 52 56 56
LFA/2-133/62-018T 251 251 295 130 142 86 86 96 96
LFA/2-133/62-018S 251 251 295 130 142 86 86 96 96
LFA/4-133/62-006T 251 251 295 130 142 86 86 96 96
LFA/4-133/62-006S 251 251 295 130 142 86 86 96 96
LFA/2-146/62-025T 254 254 295 130 142 86 86 96 96
LFA/2-146/62-025S 254 254 295 130 142 86 86 96 96
LFA/4-146/62-006T 254 254 295 130 142 86 86 96 96
LFA/4-146/62-006S 254 254 295 130 142 86 86 96 96
LFA/2-160/75-037T 271 302 300 124 174 86 113 110 120
LFA/2-160/75-037S 271 302 338 124 174 86 113 110 120
LFA/4-160/75-009T 271 302 300 124 174 86 113 110 120
LFA/4-160/75-009S 271 302 338 124 174 86 113 110 120
LFA/2-180/62-055T 271 302 321 124 174 86 113 110 120
LFA/2-180/62-055S 271 302 338 124 174 86 113 110 120
LFA/4-180/62-012T 271 302 321 124 174 86 113 110 120
LFA/4-180/62-018S 271 302 338 124 174 86 113 110 120
Type K L O T X D1 D2 O1 X1
  mm mm mm mm mm mm mm mm mm
LFA/2-108/42-005T 72 72 7 42 4 120 110 M5 4
LFA/2-108/42-003S 72 72 7 42 4 120 110 M5 4
LFA/4-108/42-006T 72 72 7 42 4 120 110 M5 4
LFA/4-108/42-006S 72 72 7 42 4 120 110 M5 4
LFA/2-133/62-018T 112 114 7 54 4 157 135 M5 4
LFA/2-133/62-018S 112 114 7 54 4 157 135 M5 4
LFA/4-133/62-006T 112 114 7 54 4 157 135 M5 4
LFA/4-133/62-006S 112 114 7 54 4 157 135 M5 4
LFA/2-146/62-025T 112 114 7 54 4 157 141 M5 4
LFA/2-146/62-025S 112 114 7 54 4 157 141 M5 4
LFA/4-146/62-006T 112 114 7 54 4 157 141 M5 4
LFA/4-146/62-006S 112 114 7 54 4 157 141 M5 4
LFA/2-160/75-037T 125 144 7 54 4 194 177 M6 6
LFA/2-160/75-037S 125 144 7 54 4 194 184 M6 6
LFA/4-160/75-009T 125 144 7 54 4 194 177 M6 6
LFA/4-160/75-009S 125 144 7 54 4 194 184 M6 6
LFA/2-180/62-055T 125 144 7 54 4 194 184 M6 6
LFA/2-180/62-055S 125 144 7 54 4 194 184 M6 6
LFA/4-180/62-012T 125 144 7 54 4 194 184 M6 6
LFA/4-180/62-018S 125 144 7 54 4 194 184 M6 6
Type A B C E F G H I J
  mm mm mm mm mm mm mm mm mm
LFA/2-120/52-012T 254 254 283 130 135 86 86 96 96
LFA/4-120/52-006T 254 254 283 130 135 86 86 96 96
LFA/4-120/52-006S 254 254 283 130 135 86 86 96 96
Type K L O T X D1 D2 O1 X1
  mm mm mm mm mm mm mm mm mm
LFA/2-120/52-012T 112 114 7 55 4 157 135 M5 4
LFA/4-120/52-006T 112 114 7 55 4 157 135 M5 4
LFA/4-120/52-006S 112 114 7 55 4 157 135 M5 4
Type A B C E F G H
  mm mm mm mm mm mm mm
LFA/2-250/114-550T 458 499 522 220 298 170 170
Type I J K L O S T
  mm mm mm mm mm mm mm
LFA/2-250/114-550T 196 196 220 220 11 117 102
Type X Y Z D1 D2 N1 N2
  mm mm mm mm mm mm mm
LFA/2-250/114-550T 4 13 13 296 281 16 254
Type N3 N4 O1 P1 P2 P3 X1
  mm mm mm mm mm mm mm
LFA/2-250/114-550T 270 419 M6 178 211 270 8
Type A B C E F G H I J
  mm mm mm mm mm mm mm mm mm
LFA/2-160A/62-055S 286 312 355 140 185 110 110 115 115
LFA/2-160A/62-055T 286 312 355 140 185 110 110 115 115
LFA/4-160A/62-018S 286 312 355 140 185 110 110 115 115
LFA/4-160A/62-018T 286 312 355 140 185 110 110 115 115
LFA/2-200/74-150T 349 377 401 165 230 125 127 130 130
LFA/2-200/74-150S 349 377 401 165 230 125 127 130 130
LFA/2-225/104-300T 399 450 488 170 265 155 158 166 166
Type K L O S T X Y Z D1
  mm mm mm mm mm mm mm mm mm
LFA/2-160A/62-055S 140 147 9 78 69 4 11 10 176
LFA/2-160A/62-055T 140 147 9 78 69 4 11 10 176
LFA/4-160A/62-018S 140 147 9 78 69 4 11 10 176
LFA/4-160A/62-018T 140 147 9 78 69 4 11 10 176
LFA/2-200/74-150T 155 157 7 90 78 4 12 12 230
LFA/2-200/74-150S 155 157 7 90 78 4 12 12 230
LFA/2-225/104-300T 190 190 12 100 87 4 13 12 256
Type D2 N1 N2 N3 N4 O1 P1 P2 X1
  mm mm mm mm mm mm mm mm mm
LFA/2-160A/62-055S 164 20 120 150 235 M5 95 125 4
LFA/2-160A/62-055T 164 20 120 150 235 M5 95 125 4
LFA/4-160A/62-018S 164 20 120 150 235 M5 95 125 4
LFA/4-160A/62-018T 164 20 120 150 235 M5 95 125 4
LFA/2-200/74-150T 218 28 148 190 245 M6 140 180 6
LFA/2-200/74-150S 218 28 148 190 245 M6 140 180 6
LFA/2-225/104-300T 235 29 149 190 297 M6 140 180 8
Type A B C E F G H I J
  mm mm mm mm mm mm mm mm mm
LFA/2-180/85-110T 349 377 407 165 230 125 127 130 130
LFA/2-180/85-110S 349 377 435 165 230 125 127 130 130
LFA/4-180/85-018T 349 377 407 165 230 125 127 130 130
LFA/4-180/85-018S 349 377 435 165 230 125 127 130 130
LFA/2-215/102-220T 362 380 515 185 230 170 153 180 160
Type K L O S T X Y Z D1
  mm mm mm mm mm mm mm mm mm
LFA/2-180/85-110T 155 157 7 90 78 4 12 12 230
LFA/2-180/85-110S 155 157 7 90 78 4 12 12 230
LFA/4-180/85-018T 155 157 7 90 78 4 12 12 230
LFA/4-180/85-018S 155 157 7 90 78 4 12 12 230
LFA/2-215/102-220T 210 194 7 120 100 4 12 12 240
Type D2 N1 N2 N3 N4 O1 P1 P2 X1
  mm mm mm mm mm mm mm mm mm
LFA/2-180/85-110T 220 28 148 157 245 M6 140 180 6
LFA/2-180/85-110S 220 28 148 157 245 M6 140 180 6
LFA/4-180/85-018T 220 28 148 157 245 M6 140 180 6
LFA/4-180/85-018S 220 28 148 157 245 M6 140 180 6
LFA/2-215/102-220T 228 28 148 157 263 M6 140 180 8
