MSB

Application

Fans designed for dusty air transport systems. Typical applications:

• pneumatic transport,
• blowing in drying systems (e.g. graphic machines, processing plastics),
• air blowing systems in combustion / thermal treatment systems (e.g. melting furnaces),
• for air transport in ventilation systems and technological lines,
• dust-laden air extraction

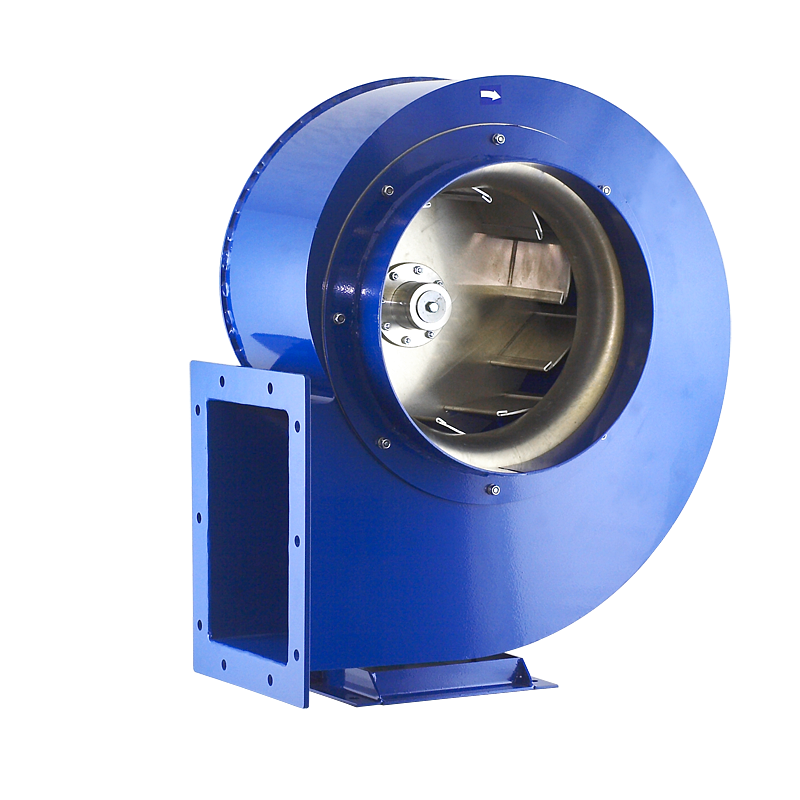

CONSTRUCTION

• medium-pressure centrifugal fan with direct drive
• aluminum or steel impeller with backward curved blades, dynamically balanced according to ISO 1940-1
• housing is welded from steel sheet
• fan painted blue RAL 5010 (corrosivity category C3)
• maximum temperature of the transported medium 80°C
• motor ambient temperature from -20°C to + 40°C
• standard figure LG270
• models MSB-2-560/180-3000 and MSB-2-560/180-3700 available in figure RD270 as standard

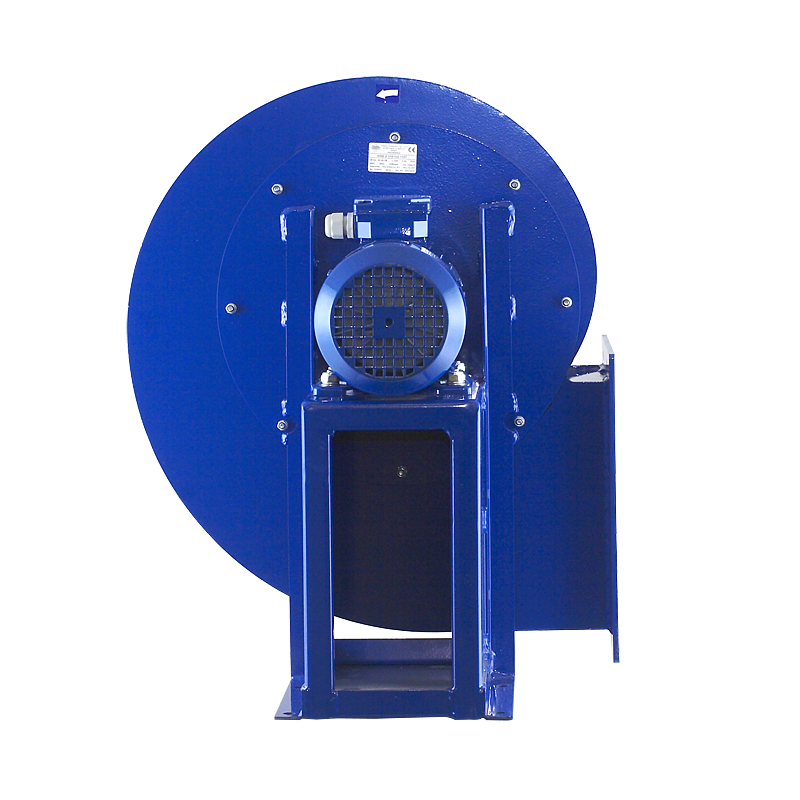

MOTOR

• asynchronous 3-phase 230/400V, 50Hz or 400/690V, 50Hz depending on motor power
• degree of protection IP55
• insulation class F
• adapted to frequency regulation
• motor ambient temperature from -20°C to +40°C

SPECIAL EXECUTIONS

• optional configuration LG/RD
• color other than standard
• painting in higher category of corrosivity
• housing and support made of galvanized steel sheet
• housing and support made of stainless steel 1.4301
• housing and support made of acid-proof steel 1.4404
• motor with voltage and frequency of power different than standard
• motor with other than standard degree of protection
• motor equipped with sensors or additional cooling
• sealing between the housing and the motor
• ambient temperature range below -20°C and above +40°C
• for transporting a medium with a temperature below -20°C and above +80°C
