MSBN - Centrifugal fan

MSBN

Centrifugal fan

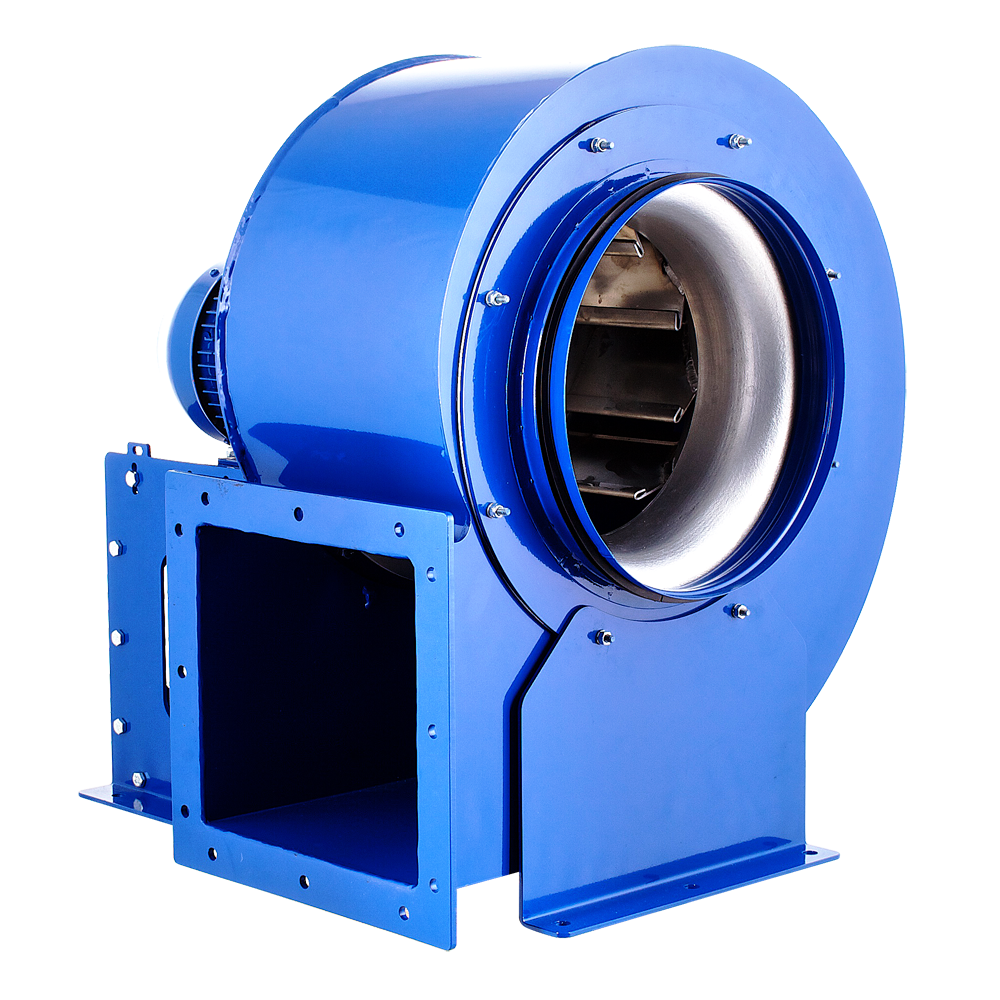

Centrifugal medium-pressure fans MSBN, designed for transport of dusty air. They are used in various mechanical ventilation systems, for air forcing in production processes, ventilation systems, in cooling and air conditioning equipment, dryers.
Can be painted in a color
other than standard
Contact us

APPLICATION

Fans designed for dusty air transport systems. Typical applications:



  • pneumatic transport,
  • blowing in drying systems (e.g. graphic machines, processing plastics),
  • air blowing systems in combustion / thermal treatment systems (e.g. melting furnaces),
  • for air transport in ventilation systems and technological lines,
  • dust-laden air extraction

CONSTRUCTION

  • medium-pressure radial fan with direct drive
  • aluminum or steel impeller with backward curved blades, dynamically balanced according to ISO 1940-1
  • housing is welded from steel sheet
  • fan painted blue RAL 5010 (corrosivity category C3)
  • maximum temperature of the transported medium 80°C
  • motor ambient temperature from -20°C to + 40°C
  • figure LG270

MOTOR

  • asynchronous 3-phase 230/400V, 50Hz or 400/690V, 50Hz
  • degree of protection IP55
  • insulation class F
  • adapted to frequency regulation
  • motor ambient temperature from -20°C to +40°C

SPECIAL EXECUTIONS

  • optional configuration LG/RD
  • color other than standard
  • painting in higher category of corrosivity
  • housing and support made of galvanized steel sheet
  • housing and support made of stainless steel 1.4301
  • housing and support made of acid-proof steel 1.4404
  • motor with voltage and frequency of power different than standard
  • motor with other than standard degree of protection
  • motor equipped with sensors or additional cooling
  • sealing between the housing and the motor
  • ambient temperature range below -20°C and above +40°C
  • for transporting a medium with a temperature below -20°C and above +80°C

Technical assistance

Choose a fan www.fanselectoronline.com

m3/h
Pa

Work characteristics

Dimensions

Type A B C E F S T X M1 N1
  mm mm mm mm mm mm mm mm mm mm
MSBN-2-355/50-150T 549 646 535 252 390 167 157 10 50 40
MSBN-4-355/50-055T 549 646 469 252 390 167 157 10 50 40
MSBN-2-355/71-220T 549 646 557 252 390 167 168 10 40 40
MSBN-4-355/71-055T 549 646 511 252 390 167 168 10 40 40
MSBN-2-355/100-220T 549 646 622 252 390 167 182 12 40 40
MSBN-4-355/100-055T 549 646 556 252 390 167 182 12 40 40
MSBN-2-400/56-300T 606 728 598 272 440 189 167 10 35 40
MSBN-4-400/56-075T 606 728 525 272 440 189 167 10 35 40
MSBN-2-400/80-400T 606 728 634 272 440 189 179 12 40 40
MSBN-4-400/94-110T 706 857 614 309 510 206 178 12 45 40
MSBN-2-400/112-550T 606 728 718 272 440 198 195 12 40 40
MSBN-4-400/112-150T 606 728 718 272 440 198 195 12 40 40
MSBN-2-450/63-550T 697 813 691 322 490 208 185 14 50 50
MSBN-4-450/63-220T 697 813 570 322 490 208 185 14 50 50
MSBN-2-450/90-550T 697 813 718 322 490 208 198 14 50 50
MSBN-4-450/90-220T 697 813 597 322 490 208 198 14 50 50
MSBN-2-450/125-750T 697 813 754 322 490 208 216 14 50 50
MSBN-2-450/125-1100T 697 813 876 322 490 208 216 14 50 50
MSBN-4-450/125-300T 697 813 691 322 490 208 216 14 50 50
MSBN-2-500/71-1100T 767 902 883 352 545 231 233 14 80 50
MSBN-4-500/71-400T 767 902 707 352 545 231 233 14 80 50
MSBN-2-500/100-1100T 767 902 911 352 545 231 247 14 80 50
MSBN-4-500/100-400T 767 902 736 352 545 231 247 14 80 50
MSBN-2-500/140-1500T 767 902 951 352 545 231 267 14 80 50
MSBN-4-500/140-550T 767 902 866 352 545 231 267 14 80 50
MSBN-4-630/90-400T 974 1108 782 452 660 264 272 16 80 50
MSBN-6-630/90-220T 974 1108 818 452 660 264 289 16 80 50
MSBN-4-630/125-550T 974 1108 899 452 660 264 289 16 80 50
MSBN-6-630/125-220T 974 1108 818 452 660 264 289 16 80 50
MSBN-4-630/180-750T 974 1108 954 452 660 264 317 16 80 50
MSBN-6-630/180-300T 974 1108 954 452 660 264 317 16 80 50
MSBN-2-710/95-5500T 1008 1269 1208 426 770 712 415 17 50 50
MSBN-4-710/100-750T 1061 1274 897 474 770 570 324 302 80 40
MSBN-4-710/140-750T 1061 1274 940 474 770 324 302 16 80 40
MSBN-6-710/140-300T 1061 1274 940 474 770 324 302 16 80 40
MSBN-4-710/200-1100T 1061 1196 1086 474 770 324 332 16 80 40
MSBN-4-900/125-2200T 1395 1558 1145 652 930 364 326 24 60 50
MSBN-6-900/125-750T 1395 1558 1085 652 930 364 326 24 60 50
MSBN-4-900/180-3000T 1395 1558 1326 652 930 364 326 24 60 50
MSBN-6-900/180-1100T 1395 1558 1140 652 930 364 353 24 60 50
MSBN-4-900/250-3000T 1395 1558 1270 652 930 364 388 24 60 50
MSBN-6-900/250-1100T 1395 1558 1210 652 930 364 353 24 60 50
Type N2 N3 N4 N5 N6 N7 N8 P1
  mm mm mm mm mm mm mm mm
MSBN-2-355/50-150T 150 260 300 407 516 541 561 230
MSBN-4-355/50-055T 150 260 600 407 516 541 561 230
MSBN-2-355/71-220T 150 260 300 418 545 562 582 230
MSBN-4-355/71-055T 150 260 300 407 545 562 582 230
MSBN-2-355/100-220T 150 260 300 407 516 591 611 230
MSBN-4-355/100-055T 150 260 300 432 574 591 611 230
MSBN-2-400/56-300T 175 310 350 470 600 617 637 270
MSBN-4-400/56-075T 175 310 350 470 600 617 637 270
MSBN-2-400/80-400T 175 310 350 482 624 641 661 270
MSBN-4-400/94-110T 175 310 350 480 613 638 658 270
MSBN-2-400/112-550T 175 310 350 498 656 673 693 270
MSBN-4-400/112-150T 175 310 350 498 656 673 693 270
MSBN-2-450/63-550T 225 400 450 586 732 752 772 340
MSBN-4-450/63-220T 225 400 450 586 732 752 772 340
MSBN-2-450/90-550T 225 400 450 599 759 779 799 349
MSBN-4-450/90-220T 225 400 450 599 759 779 799 340
MSBN-2-450/125-750T 225 400 450 617 794 814 834 340
MSBN-2-450/125-1100T 225 400 450 617 794 814 834 340
MSBN-4-450/125-300T 225 400 450 617 794 814 834 340
MSBN-2-500/71-1100T 225 400 450 602 765 785 805 340
MSBN-4-500/71-400T 225 400 450 602 765 785 805 340
MSBN-2-500/100-1100T 225 400 450 617 794 814 834 340
MSBN-4-500/100-400T 225 400 450 617 794 814 834 340
MSBN-2-500/140-1500T 225 400 450 637 834 854 874 340
MSBN-4-500/140-550T 225 400 450 637 834 854 874 340
MSBN-4-630/90-400T 225 400 450 639 838 854 878 400
MSBN-6-630/90-220T 225 400 450 657 874 894 914 400
MSBN-4-630/125-550T 225 400 450 657 874 894 914 400
MSBN-6-630/125-220T 225 400 450 657 874 894 914 400
MSBN-4-630/180-750T 225 400 450 684 928 968 400 450
MSBN-6-630/180-300T 225 400 450 684 928 968 400 450
MSBN-2-710/95-5500T 400 750 800 977 1163 1181 1201 612
MSBN-4-710/100-750T 225 410 450 659 869 896 914 480
MSBN-4-710/140-750T 225 410 450 679 916 935 954 480
MSBN-6-710/140-300T 225 410 450 679 916 935 954 480
MSBN-4-710/200-1100T 225 410 450 709 969 996 1014 480
MSBN-4-900/125-2200T 300 550 600 864 1129 1159 1179 500
MSBN-6-900/125-750T 300 550 600 864 1129 1284 1304 500
MSBN-4-900/180-3000T 300 550 600 891 1184 1214 1234 500
MSBN-6-900/180-1100T 300 550 600 891 1184 1214 1234 500
MSBN-4-900/250-3000T 300 550 600 926 1254 1284 1304 500
MSBN-6-900/250-1100T 300 550 600 891 1184 1214 1234 500
Type P2 P3 X2 X3 ØD ØO ØO2 ØO3
  mm mm mm mm mm mm mm mm
MSBN-2-355/50-150T 280 320 6 3 315 10 12 12
MSBN-4-355/50-055T 280 320 6 3 315 10 12 12
MSBN-2-355/71-220T 280 320 6 3 315 10 12 12
MSBN-4-355/71-055T 320 320 6 3 315 10 12 12
MSBN-2-355/100-220T 280 320 6 3 315 10 12 12
MSBN-4-355/100-055T 280 320 6 3 315 10 12 12
MSBN-2-400/56-300T 320 360 6 3 355 10 12 12
MSBN-4-400/56-075T 320 360 6 3 355 10 12 12
MSBN-2-400/80-400T 320 360 6 3 355 10 12 12
MSBN-4-400/94-110T 320 360 6 3 355 10 12 12
MSBN-2-400/112-550T 320 360 6 3 355 10 12 12
MSBN-4-400/112-150T 360 360 6 3 355 10 12 12
MSBN-2-450/63-550T 400 440 6 3 400 12 16 16
MSBN-4-450/63-220T 400 440 6 3 400 12 16 16
MSBN-2-450/90-550T 400 440 6 3 400 12 16 16
MSBN-4-450/90-220T 400 440 6 3 400 12 16 16
MSBN-2-450/125-750T 400 440 6 3 400 12 16 16
MSBN-2-450/125-1100T 400 440 6 3 400 12 16 16
MSBN-4-450/125-300T 440 440 6 3 400 12 16 16
MSBN-2-500/71-1100T 440 440 6 3 450 12 16 16
MSBN-4-500/71-400T 440 440 6 3 450 12 16 16
MSBN-2-500/100-1100T 440 440 6 3 450 12 16 16
MSBN-4-500/100-400T 440 440 6 3 450 12 16 16
MSBN-2-500/140-1500T 440 440 6 3 450 12 16 16
MSBN-4-500/140-550T 440 440 6 3 450 12 16 16
MSBN-4-630/90-400T 500 500 6 3 560 12 16 16
MSBN-6-630/90-220T 500 500 6 3 560 12 16 16
MSBN-4-630/125-550T 500 500 6 3 560 12 16 16
MSBN-6-630/125-220T 500 500 6 3 560 12 16 16
MSBN-4-630/180-750T 500 500 6 3 560 12 16 16
MSBN-6-630/180-300T 500 500 6 3 560 12 16 16
MSBN-2-710/95-5500T 672 712 6 3 520 14 18 18
MSBN-4-710/100-750T 530 570 12 3 630 16 6 12
MSBN-4-710/140-750T 530 570 6 3 630 12 12 12
MSBN-6-710/140-300T 530 570 6 3 630 12 12 12
MSBN-4-710/200-1100T 530 570 6 3 630 12 12 12
MSBN-4-900/125-2200T 560 600 6 3 800 15 16 16
MSBN-6-900/125-750T 560 600 6 3 800 15 16 16
MSBN-4-900/180-3000T 560 600 6 3 800 15 16 16
MSBN-6-900/180-1100T 560 600 6 3 800 15 16 16
MSBN-4-900/250-3000T 560 600 6 3 800 15 16 16
MSBN-6-900/250-1100T 560 600 6 3 800 15 16 16
