SWS

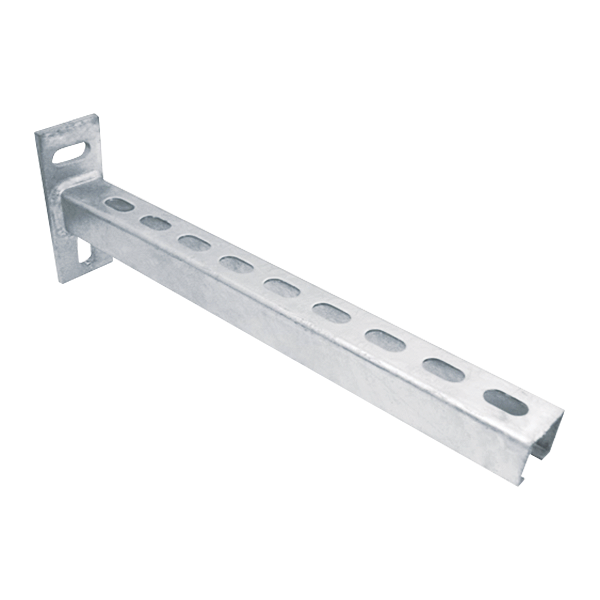

Straight bracket

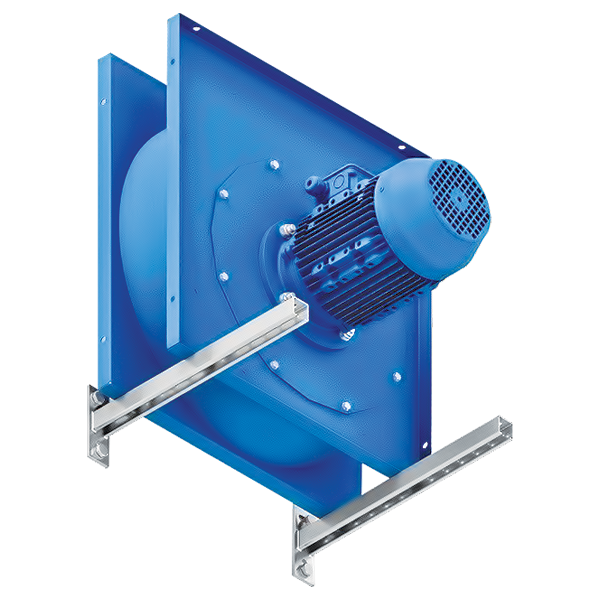

The console is used when mounting ventilation devices directly next to the wall, as well as other elements of ventilation systems, such as ventilation ducts.
Application
The console is used when mounting ventilation devices directly next to the wall, as well as other elements of ventilation systems, such as ventilation ducts.
Dimensions
| Type | A | B | L |
|---|---|---|---|
| mm | mm | mm | |
| SWS-30-30-200 | 30 | 30 | 200 |
| SWS-30-30-300 | 30 | 30 | 300 |
| SWS-30-30-400 | 30 | 30 | 400 |
| SWS-30-30-500 | 30 | 30 | 500 |
| SWS-30-30-600 | 30 | 30 | 600 |
| SWS-30-30-700 | 30 | 30 | 700 |
