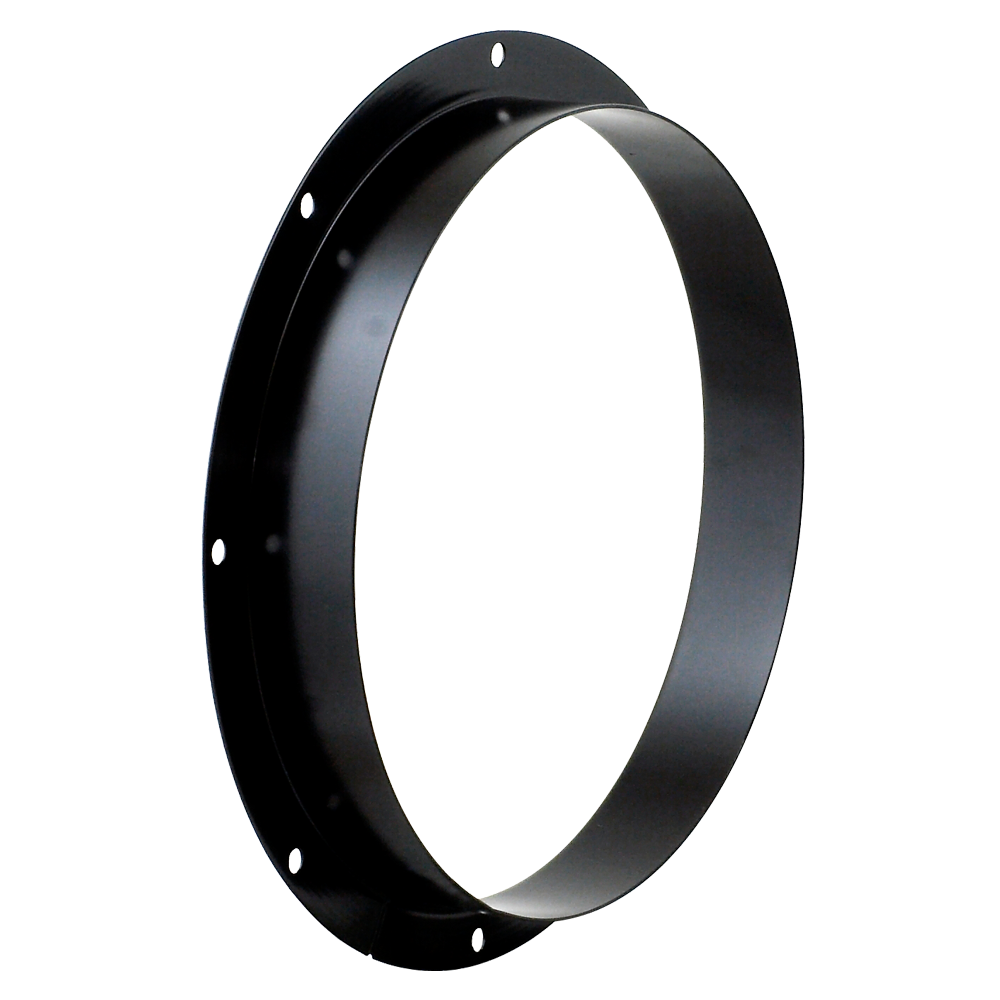

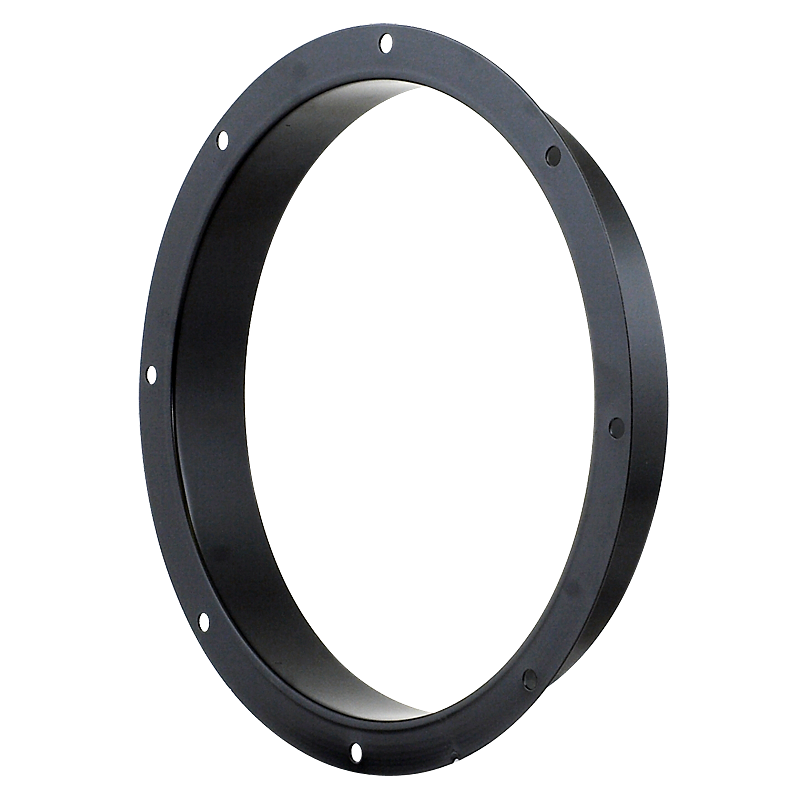

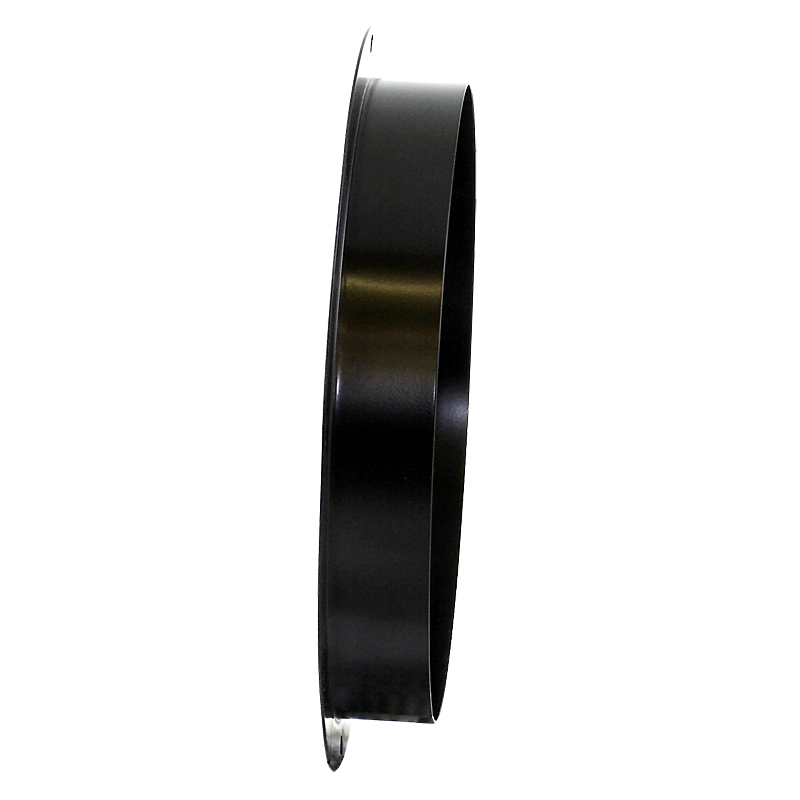

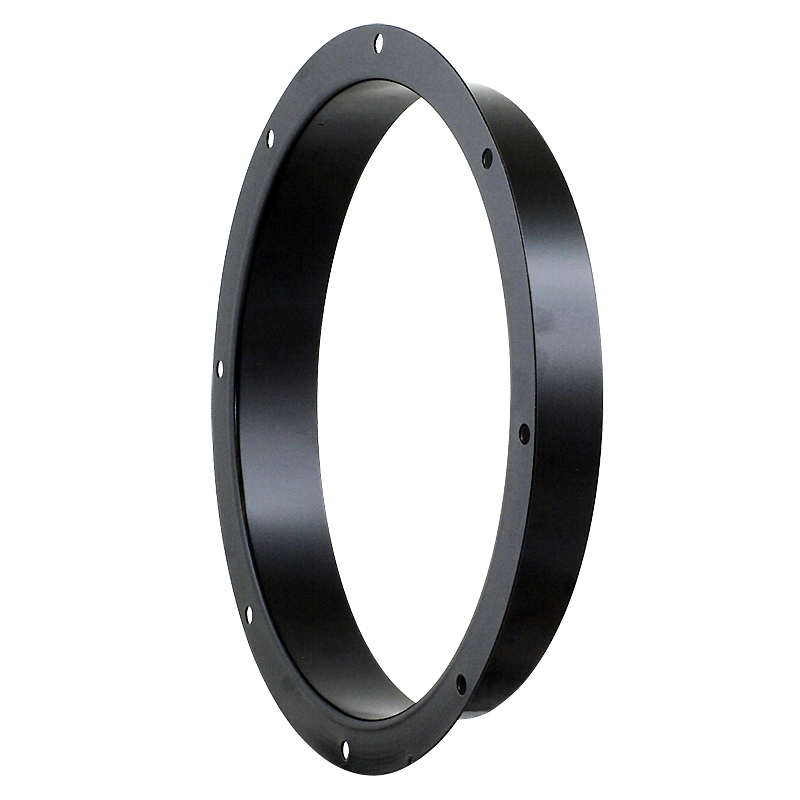

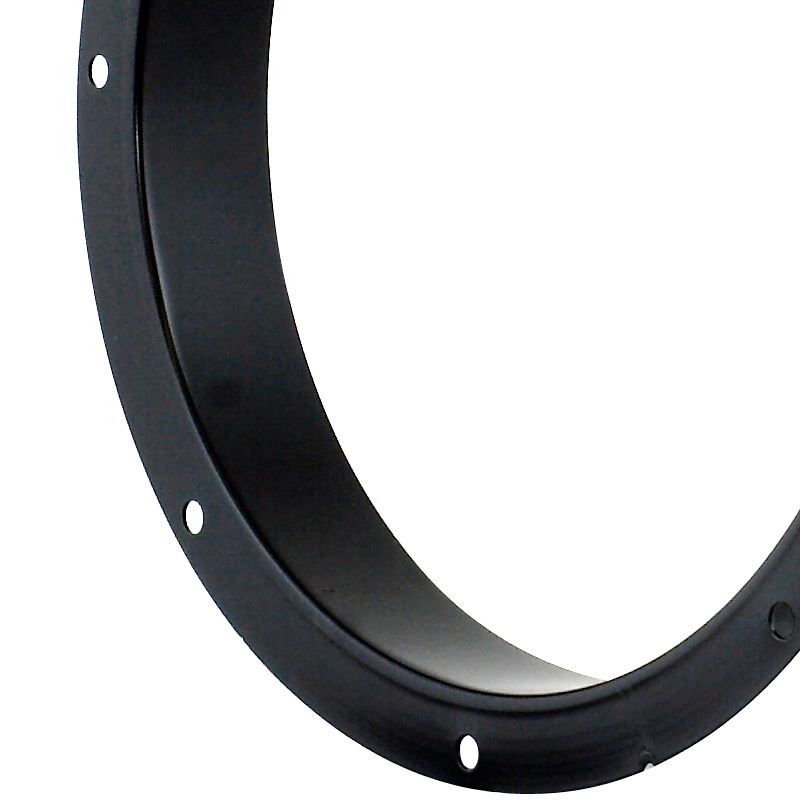

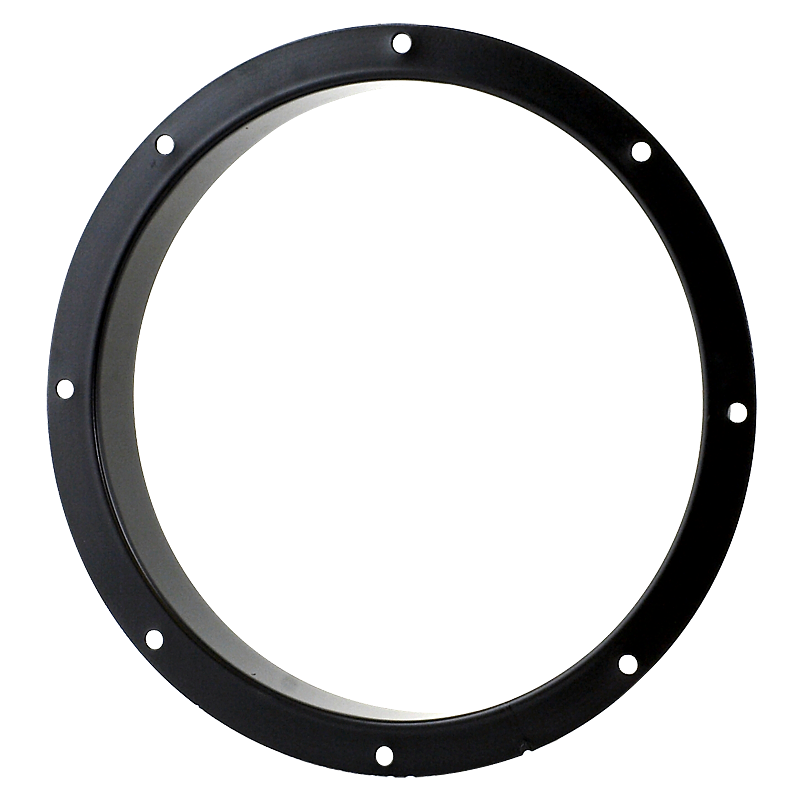

Application
- mounted when installing ventilation ducts
- mounting to the joint or directly to the fan base (screws or rivets)
Dimensions
| Type | E | ØD | ØH | ØJ |
|---|---|---|---|---|
| mm | mm | mm | mm | |
| K 300 | 55 | 182 | 205 | 219 |
| K 435 | 55 | 252 | 280 | 300 |
| K 560 | 55 | 358 | 395 | 415 |
| K 630 | 63 | 403 | 450 | 474 |
| K 710 | 69 | 503 | 560 | 581 |
| K 905 | 69 | 633 | 690 | 714 |
| K 1100 | 69 | 713 | 770 | 797 |
| K 1250 | 105 | 1004 | 1070 | 1100 |
