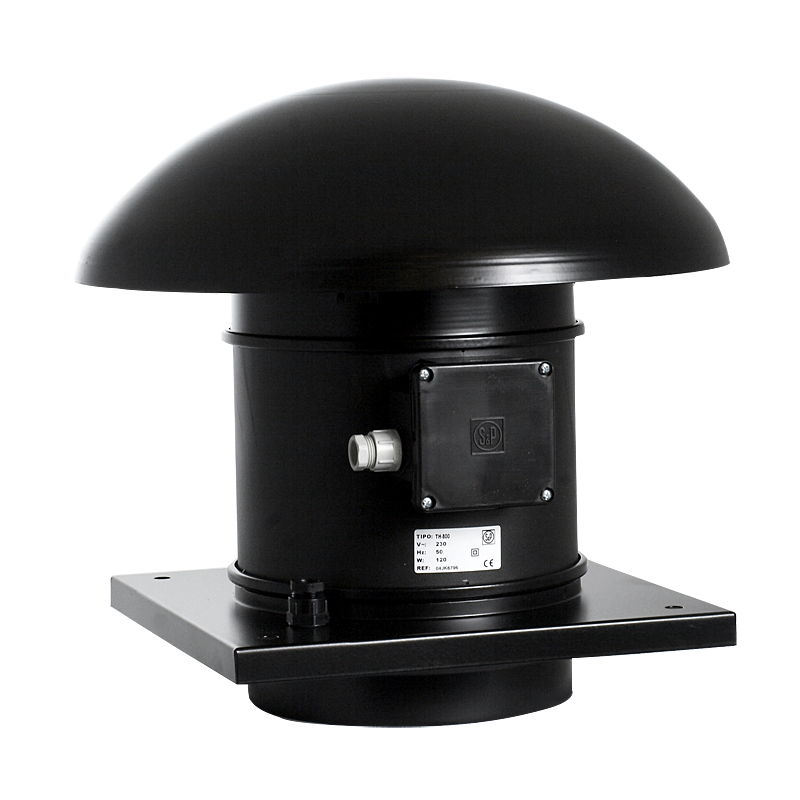

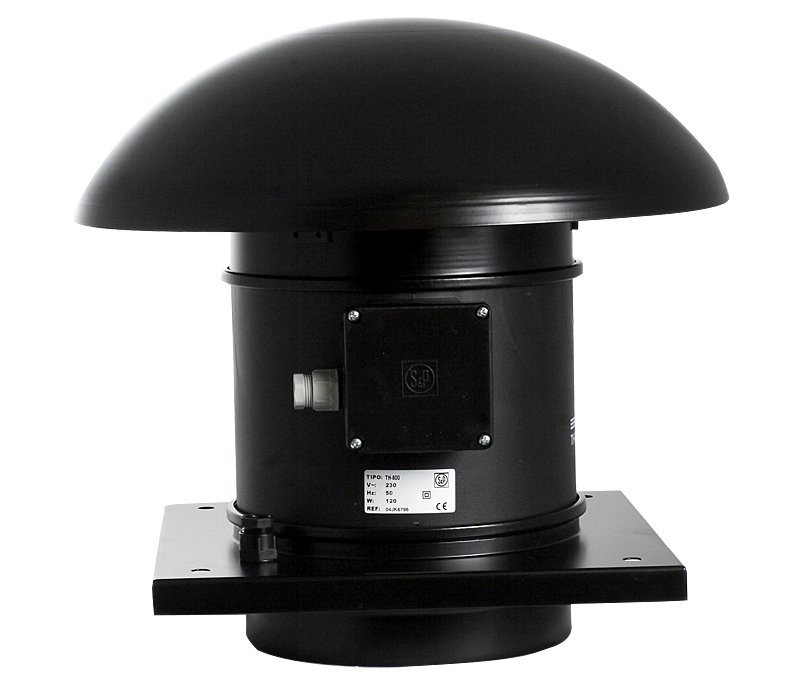

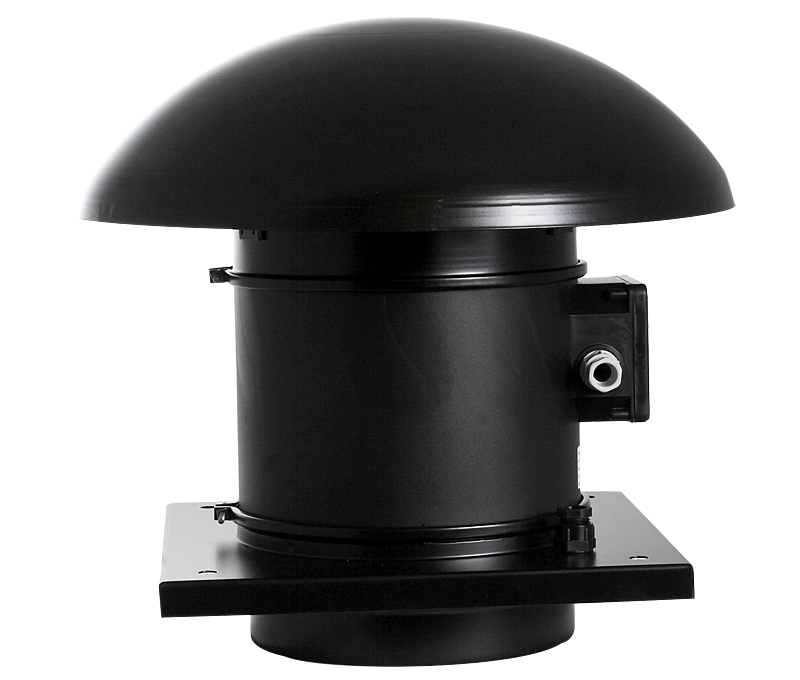

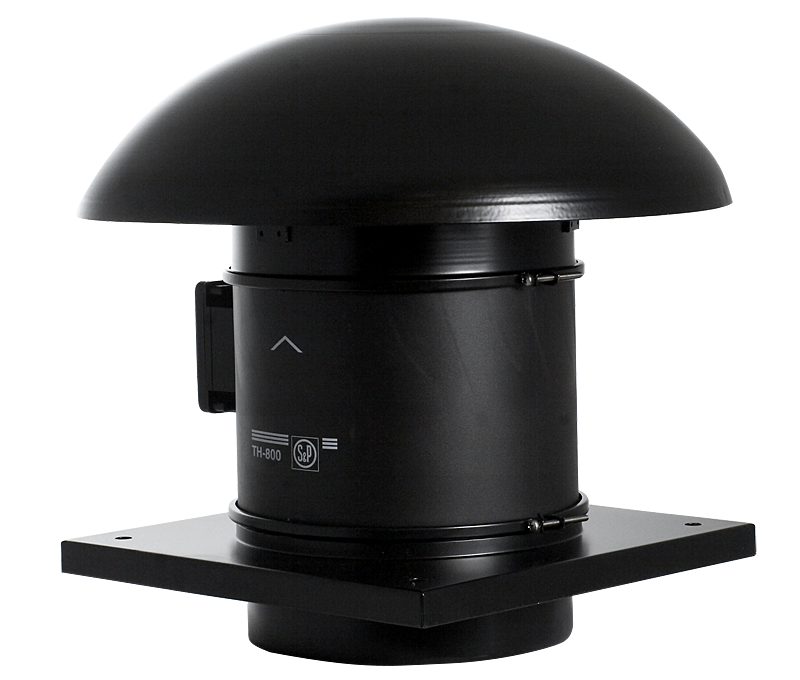

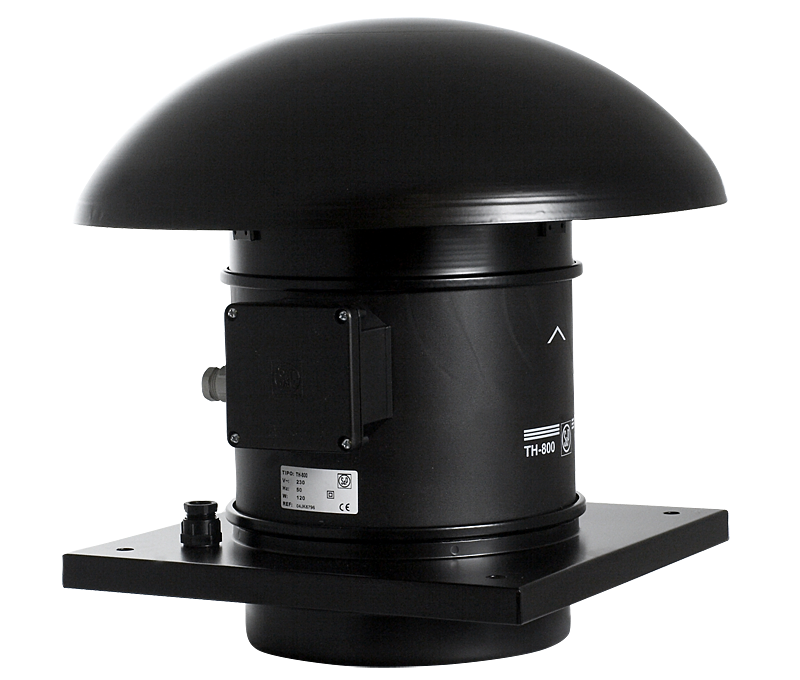

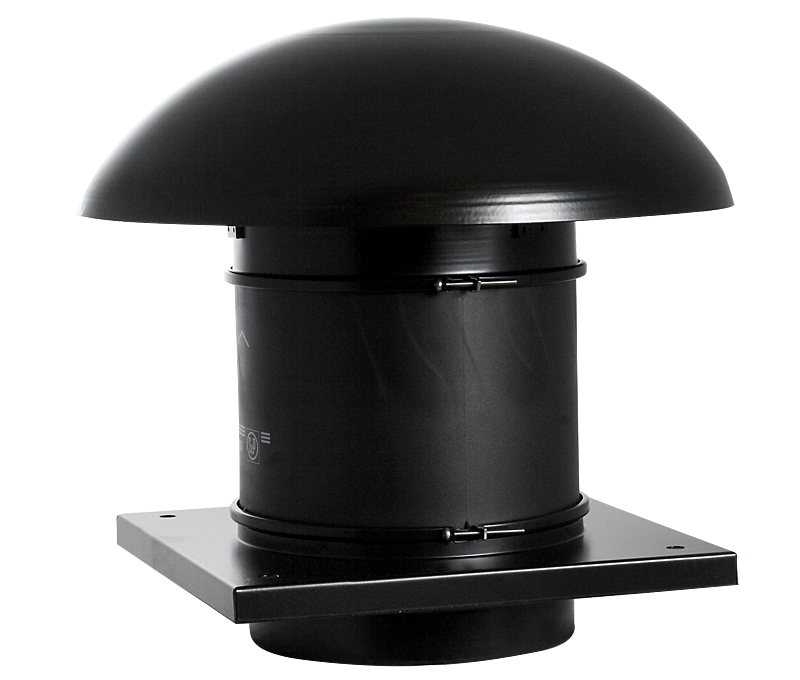

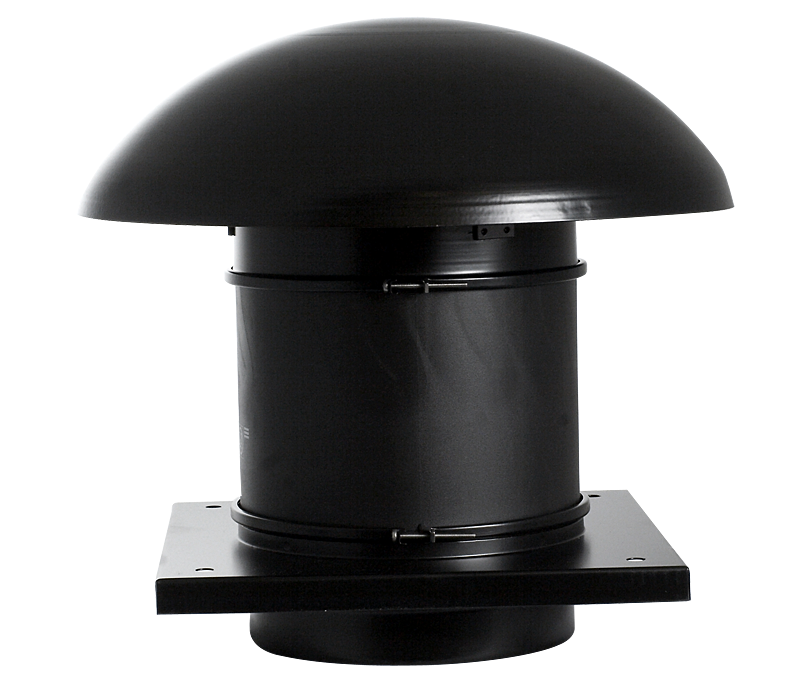

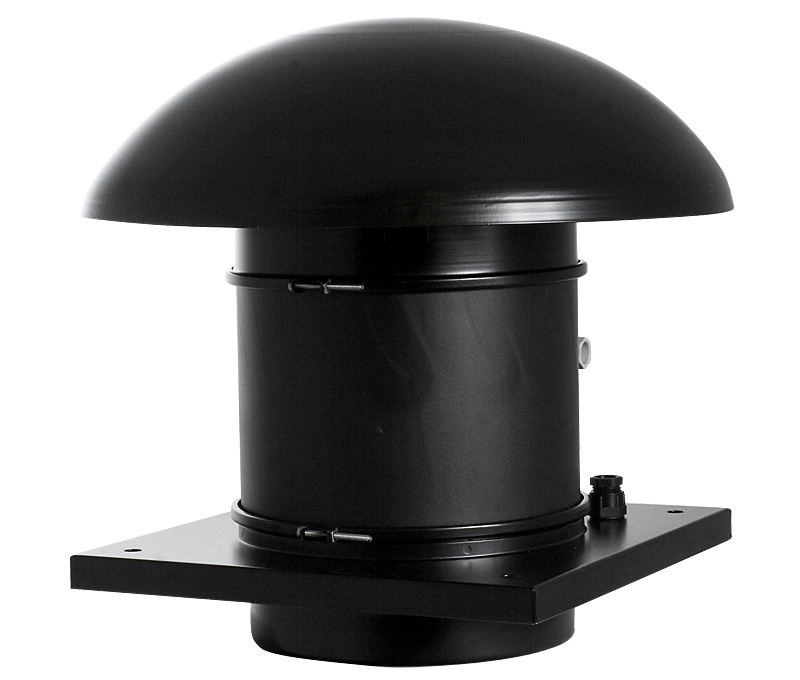

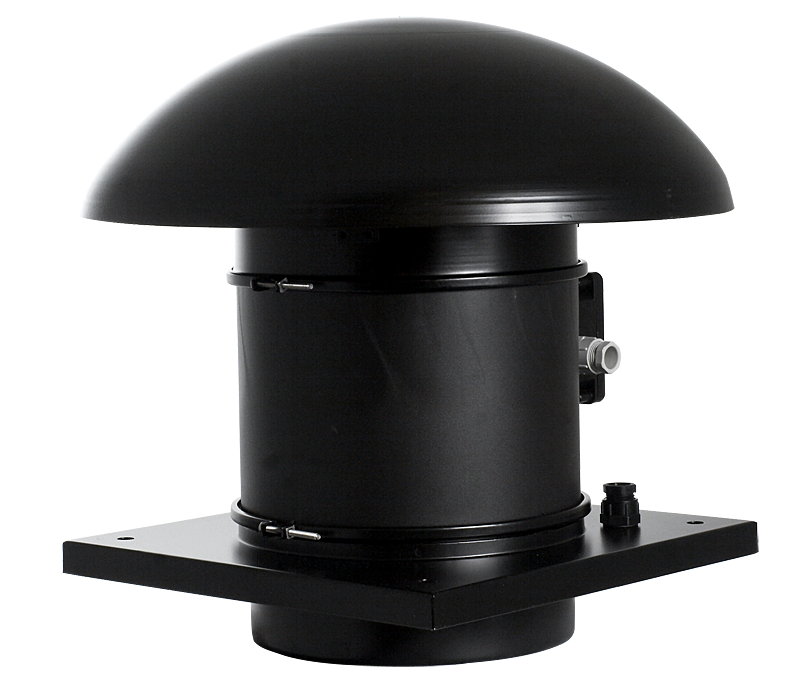

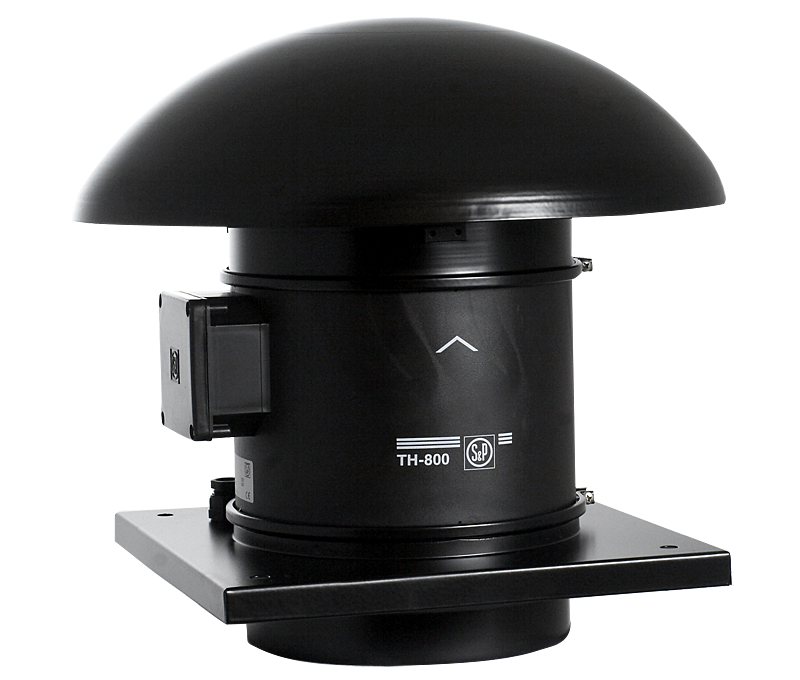

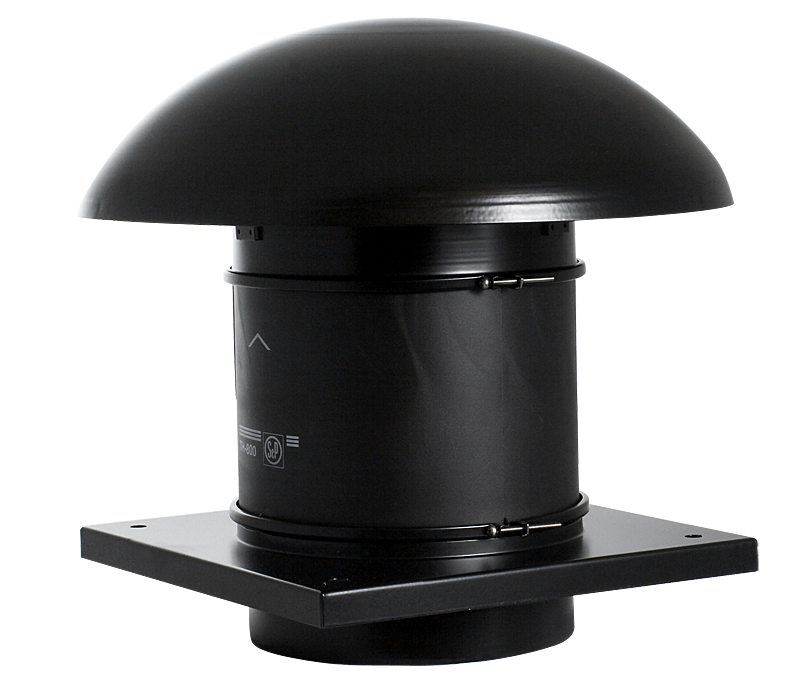

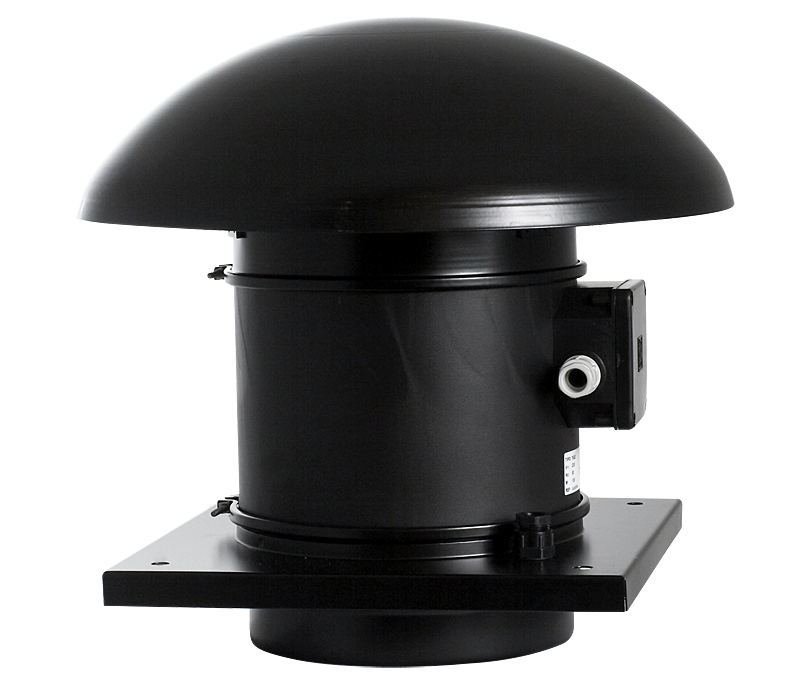

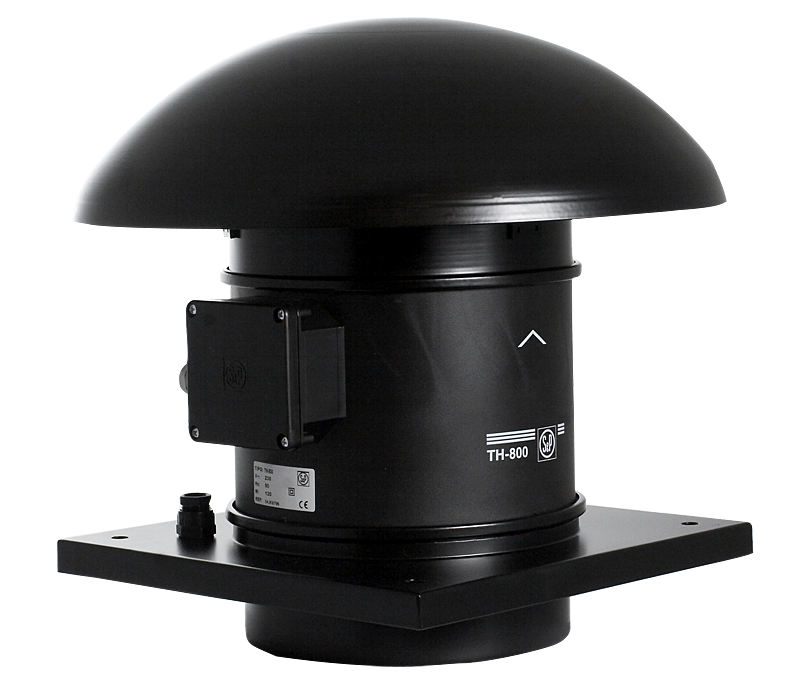

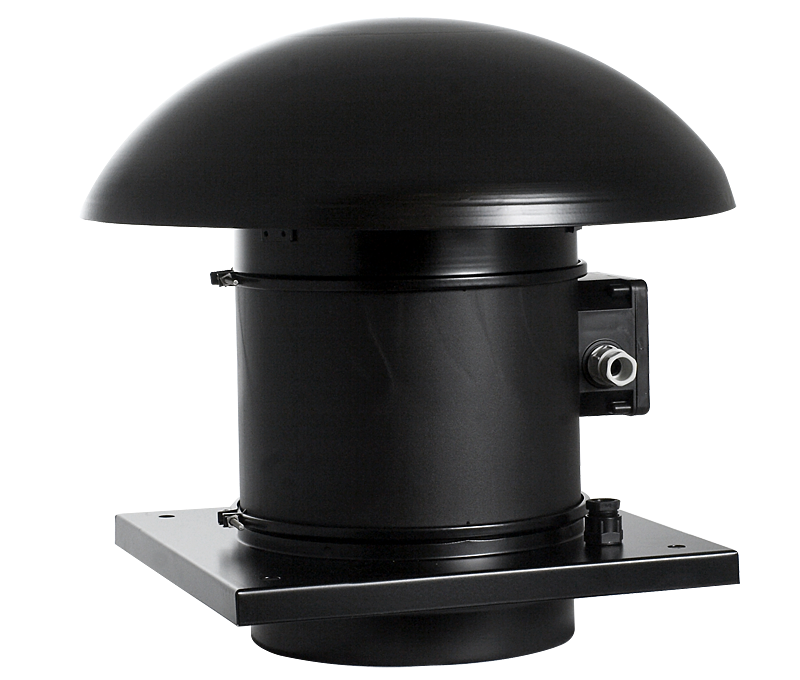

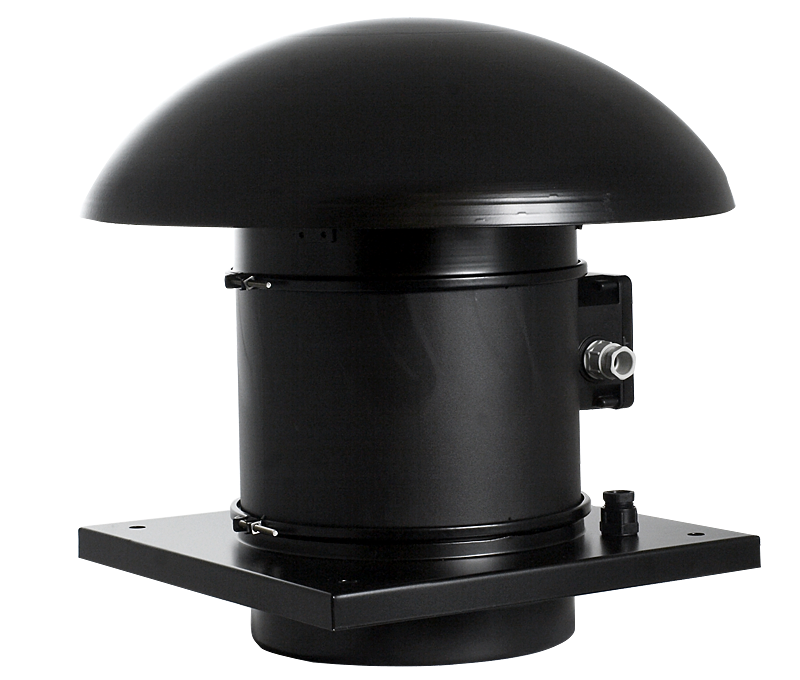

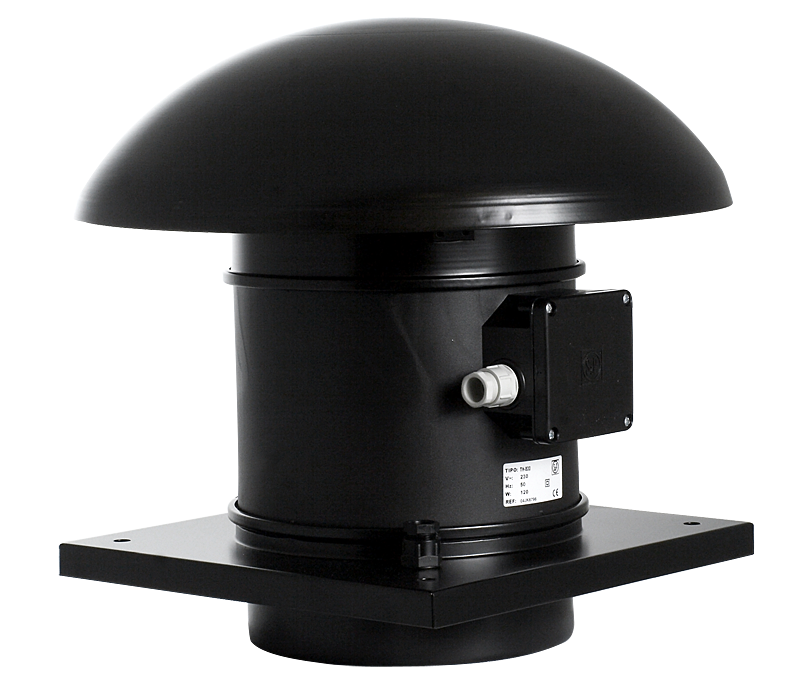

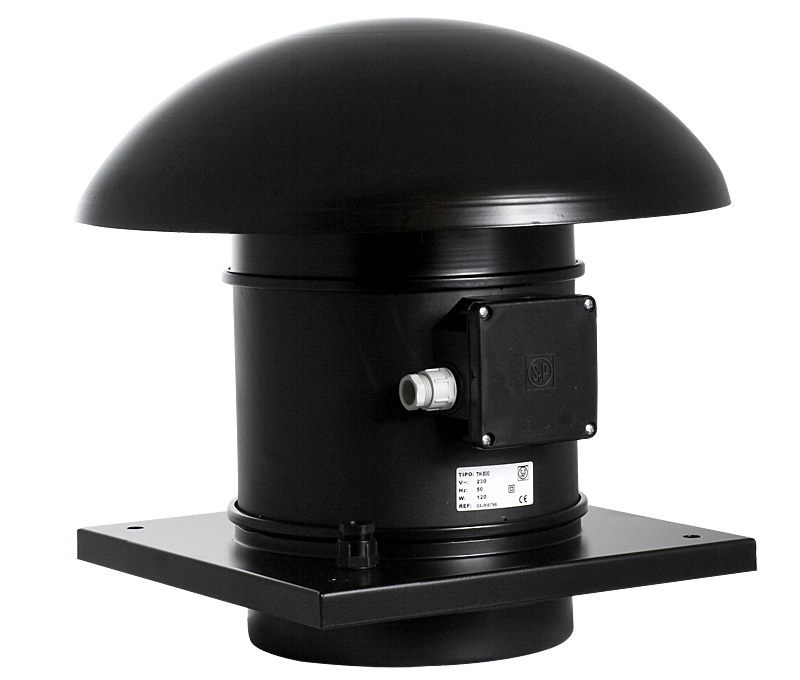

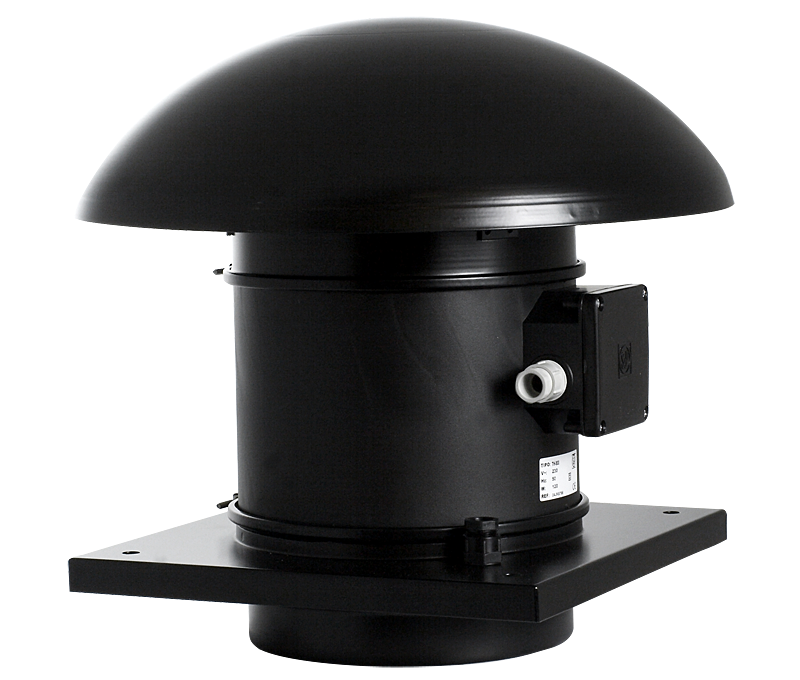

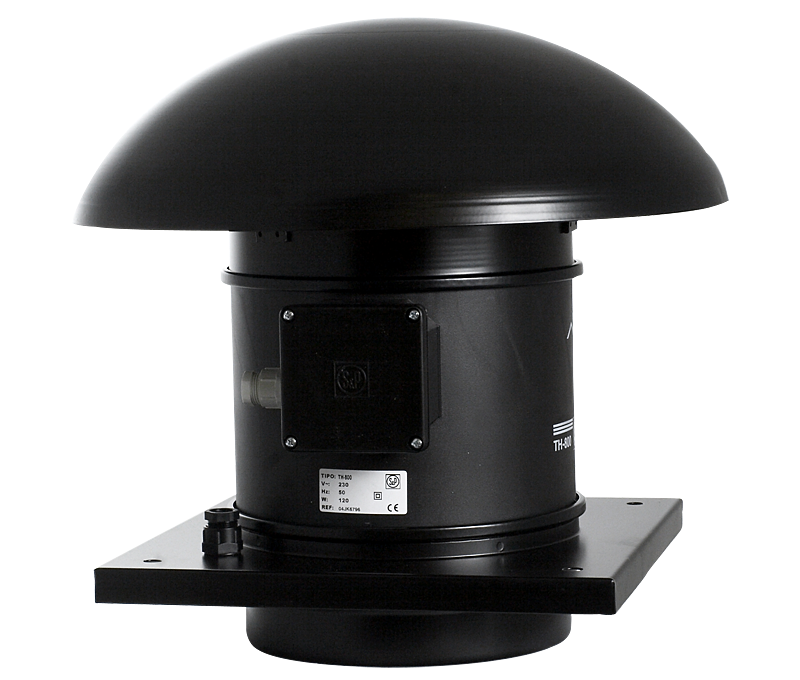

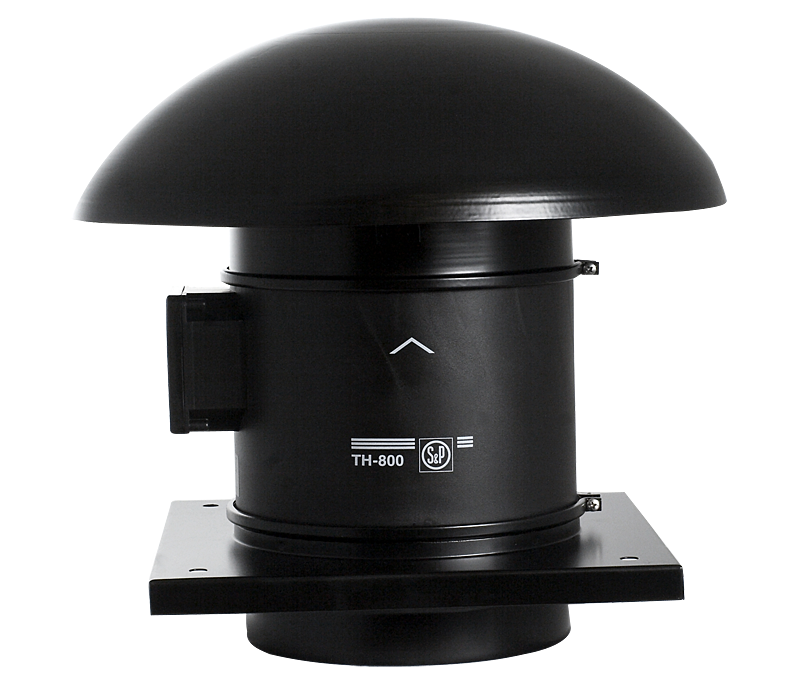

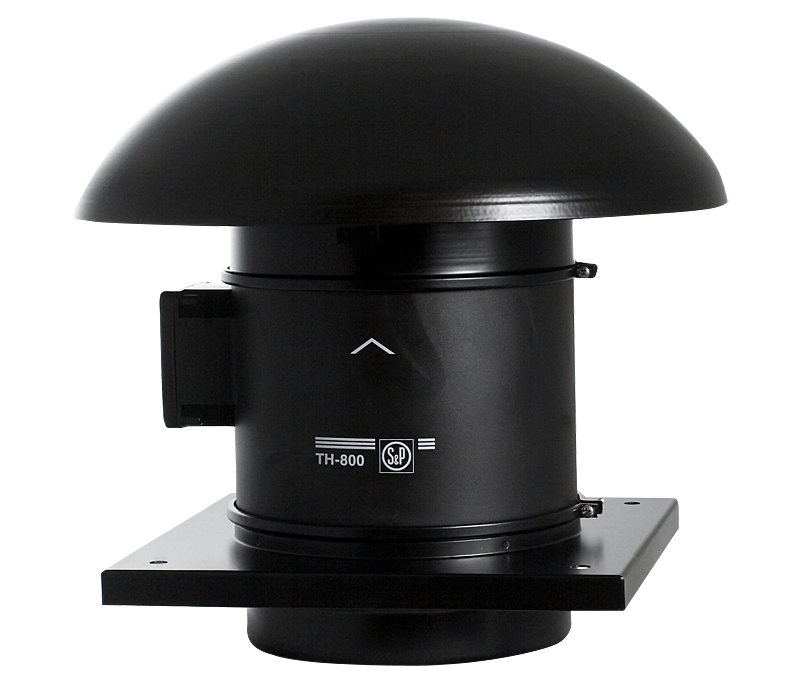

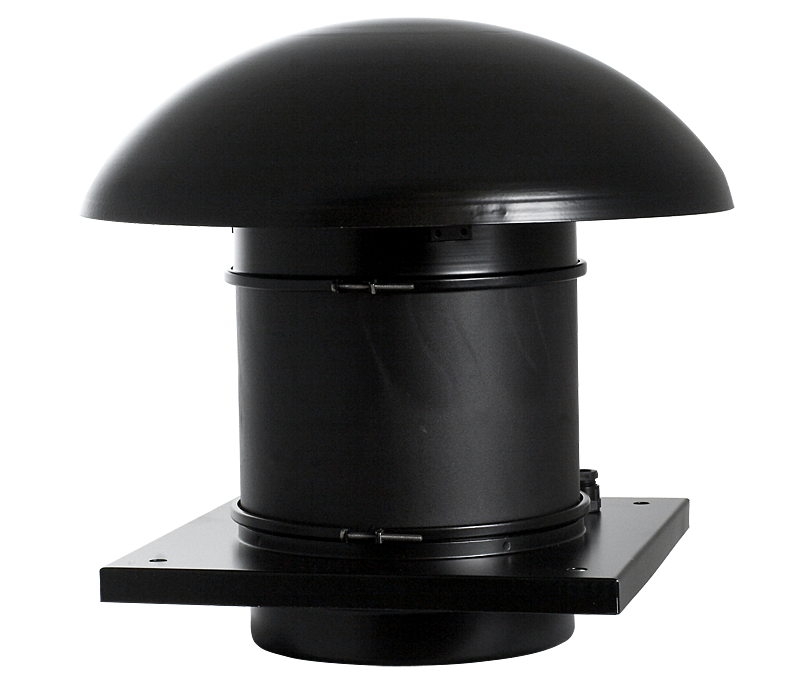

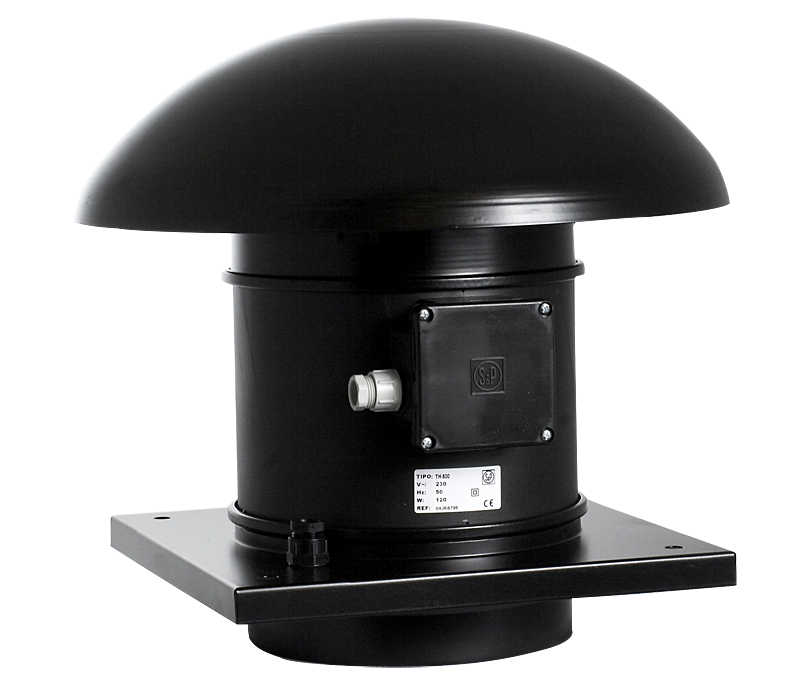

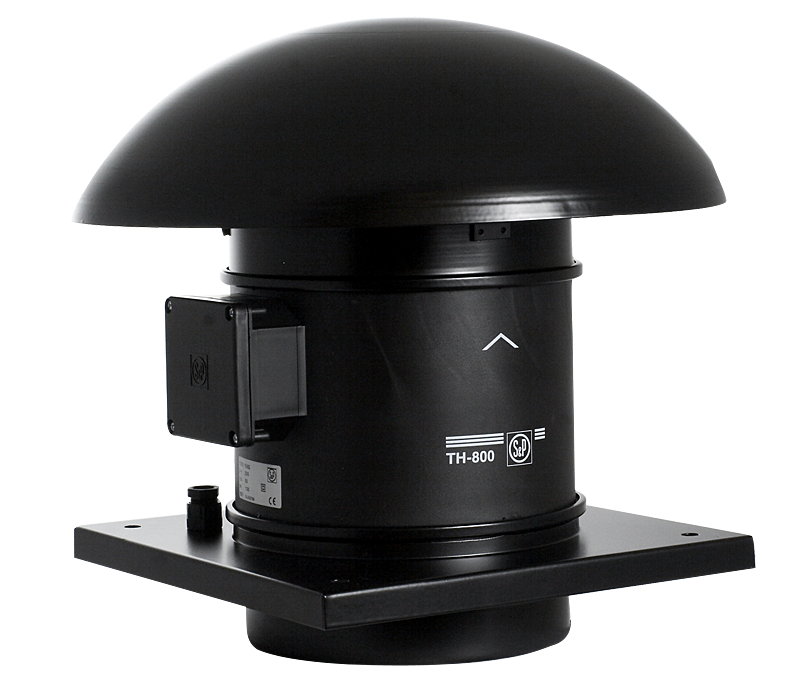

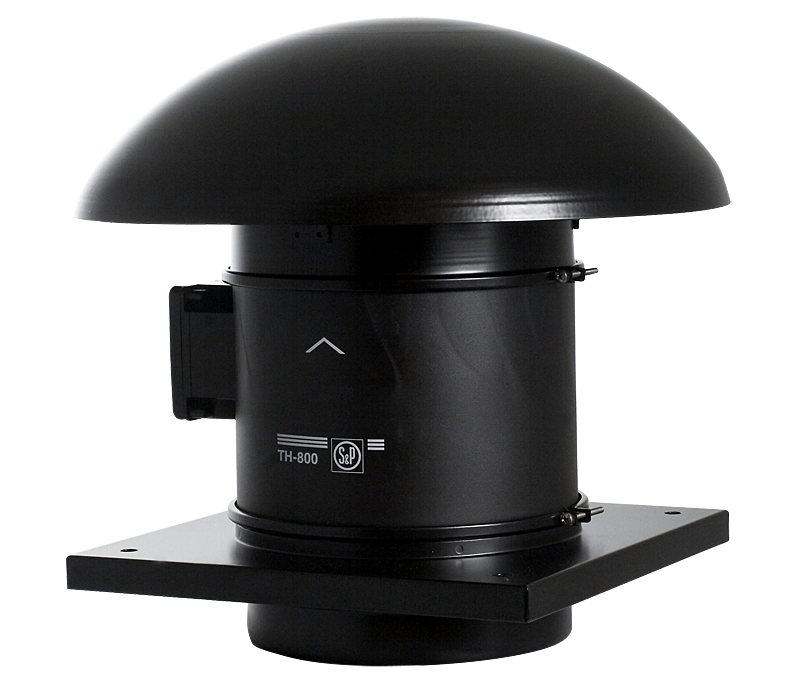

TH - Roof fan

TH

Roof fan

Range of roof mounted mixed flow fans supplied as standard for extract operation. The models 500 and 800 are manufactured from high strength injection moulded plastic, and models 1300 and 2000 from high grade pressed sheet steel.
Contact us

Construction

Range of roof mounted mixed flow fans supplied as standard for extract operation. The models 500 and 800 are manufactured from high strength injection moulded plastic, and models 1300 and 2000 from high grade pressed sheet steel. The bases are manufactured from sheet steel. The cowls are manufactured from pressed sheet steel (500 and 800 models) or spun aluminium (1200 and 2000).

All models incorporate a bird guard and base cable gland entry point as standard. All metallic parts are protected with a black epoxy-polyester weatherproof paint coating. The motor and impeller casing can be easily removed by 2 fixing clamps.

Motor

All motors are IP44, Class F, equipped with thermal protection and ball bearings greased for life.

Electrical supply:

  • Single phase 230V-50Hz (Capacitor located inside the wiring terminal box).
  • All motor have two speed connections also suitable for voltage speed control using electronic or auto-transformer controllers.

Additional Information

Supplied, in the standard version, as extractors. For the TH-500, 800 and 800N models, the motor and impeller casing can be removed and turned through 180º to provide supply air ventilation.

Technical assistance

Choose a fan www.fanselectoronline.com

m3/h
Pa
Type airflow max pressure max power max Rotation speed current max voltage Sound power
level*		 temp.
min		 temp.
max		 weight
  m3/h Pa W rpm A V db(A) oC oC kg
TH-500/150 3V out 500 290 64 2560 0.23 230 50 -20 60 3.8

TH-500/150 3V out

Nominal parameters

  • Max. volume flow 500 m3/h
  • Maximum pressure 290 Pa
  • Rotation speed 2560 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 64 W
  • Rated current 0.23 A
  • Rated frequency 50 Hz
  • Diameter 150 mm
  • Weight 3.8 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 50 dB(A)
  • Distance 3 m
TH-500/150 3V in 530 290 64 2540 0.27 230 50 -20 60 3.8

TH-500/150 3V in

Nominal parameters

  • Max. volume flow 530 m3/h
  • Maximum pressure 290 Pa
  • Rotation speed 2540 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 64 W
  • Rated current 0.27 A
  • Rated frequency 50 Hz
  • Diameter 150 mm
  • Weight 3.8 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 50 dB(A)
  • Distance 3 m
TH-500/160 3V out 500 290 64 2560 0.23 230 50 -20 60 3.8

TH-500/160 3V out

Nominal parameters

  • Max. volume flow 500 m3/h
  • Maximum pressure 290 Pa
  • Rotation speed 2560 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 64 W
  • Rated current 0.23 A
  • Rated frequency 50 Hz
  • Diameter 160 mm
  • Weight 3.8 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 50 dB(A)
  • Distance 3 m
TH-500/160 3V in 530 290 64 2540 0.27 230 50 -20 60 3.8

TH-500/160 3V in

Nominal parameters

  • Max. volume flow 530 m3/h
  • Maximum pressure 290 Pa
  • Rotation speed 2540 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 64 W
  • Rated current 0.27 A
  • Rated frequency 50 Hz
  • Diameter 160 mm
  • Weight 3.8 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 50 dB(A)
  • Distance 3 m
TH-800/200N 3V out 720 315 101 2210 0.49 230 53 -20 60 5.6

TH-800/200N 3V out

Nominal parameters

  • Max. volume flow 720 m3/h
  • Maximum pressure 315 Pa
  • Rotation speed 2210 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 101 W
  • Rated current 0.49 A
  • Rated frequency 50 Hz
  • Diameter 200 mm
  • Weight 5.6 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 53 dB(A)
  • Distance 3 m
TH-800/200N 3V in 830 315 101 2220 0.45 230 53 -20 60 5.6

TH-800/200N 3V in

Nominal parameters

  • Max. volume flow 830 m3/h
  • Maximum pressure 315 Pa
  • Rotation speed 2220 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 101 W
  • Rated current 0.45 A
  • Rated frequency 50 Hz
  • Diameter 200 mm
  • Weight 5.6 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 53 dB(A)
  • Distance 3 m
TH-800/200 3V out 790 345 129 2380 0.51 230 54 -20 60 5.6

TH-800/200 3V out

Nominal parameters

  • Max. volume flow 790 m3/h
  • Maximum pressure 345 Pa
  • Rotation speed 2380 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 129 W
  • Rated current 0.51 A
  • Rated frequency 50 Hz
  • Diameter 200 mm
  • Weight 5.6 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 54 dB(A)
  • Distance 3 m
TH-800/200 3V in 890 345 129 2390 0.56 230 54 -20 60 5.6

TH-800/200 3V in

Nominal parameters

  • Max. volume flow 890 m3/h
  • Maximum pressure 345 Pa
  • Rotation speed 2390 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 129 W
  • Rated current 0.56 A
  • Rated frequency 50 Hz
  • Diameter 200 mm
  • Weight 5.6 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 54 dB(A)
  • Distance 3 m

* measured in distance 3m from the fan.

Work characteristics

Dimensions

Type A B C D E F G H I
  mm mm mm mm mm mm mm mm mm
TH-500/150 3V out 400 349 300 150 245 10 20 274 33
TH-500/150 3V in 400 349 300 150 245 10 20 274 33
TH-500/160 3V out 400 339 300 150 245 10 20 274 33
TH-500/160 3V in 400 339 300 150 245 10 20 274 33
TH-800/200N 3V out 400 371 300 198 245 10 20 306 36
TH-800/200N 3V in 400 371 300 198 245 10 20 306 36
TH-800/200 3V out 400 371 300 198 245 10 20 306 36
TH-800/200 3V in 400 371 300 198 245 10 20 306 36
