P

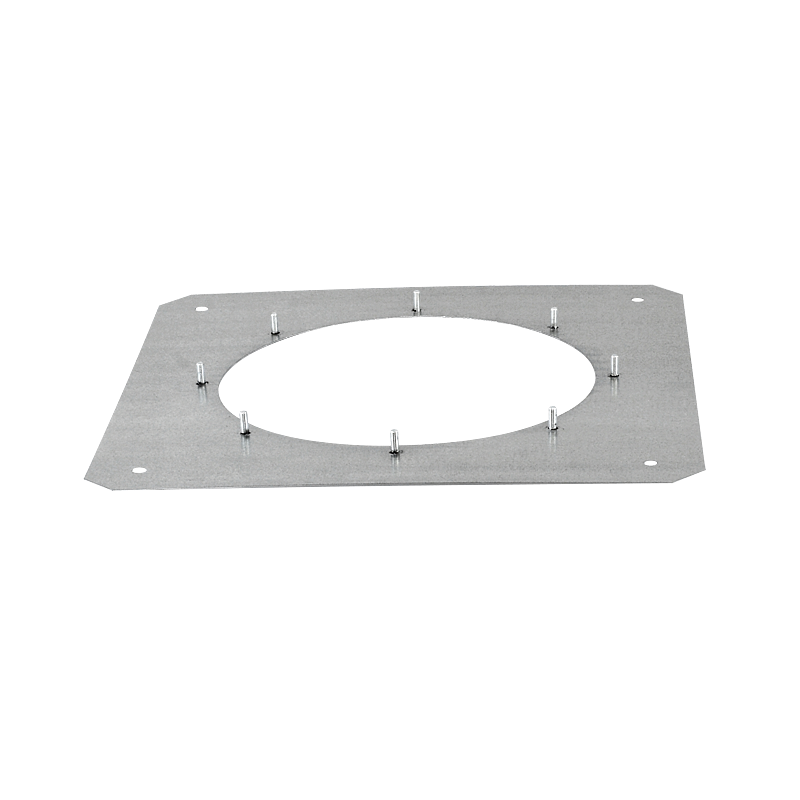

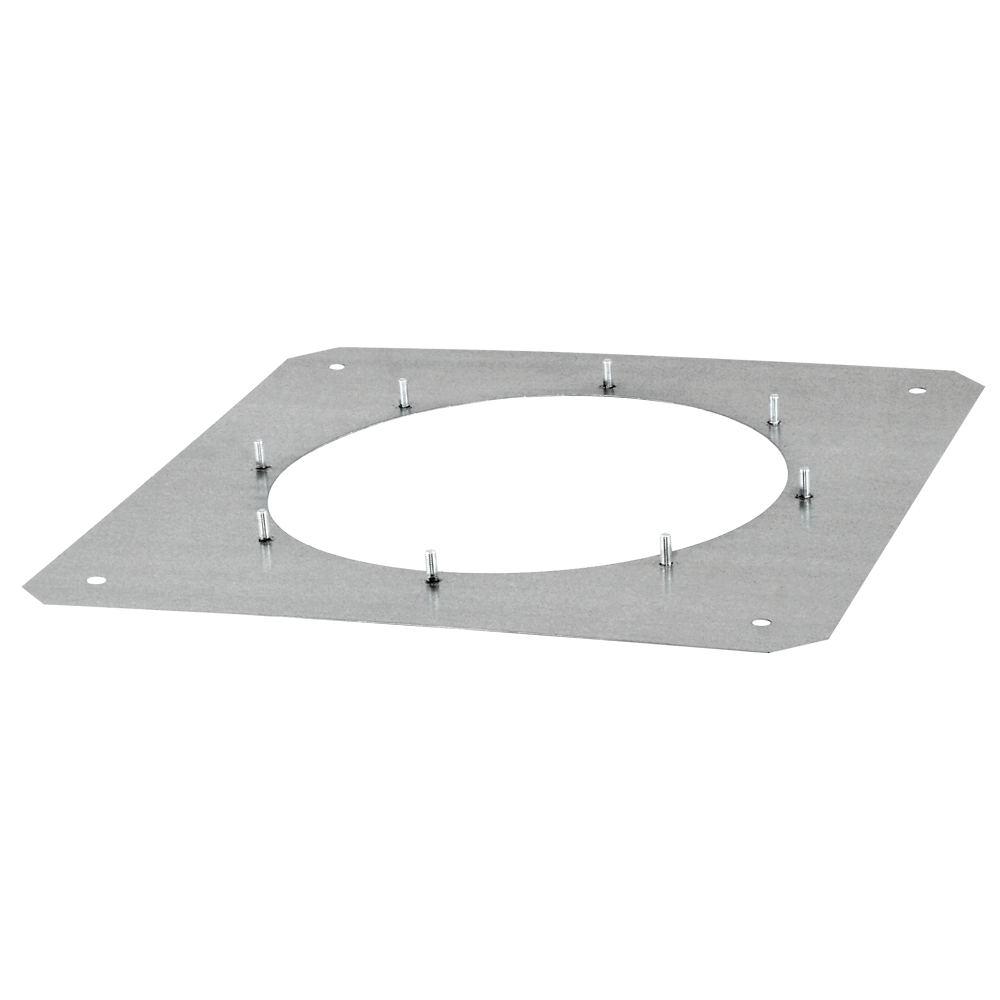

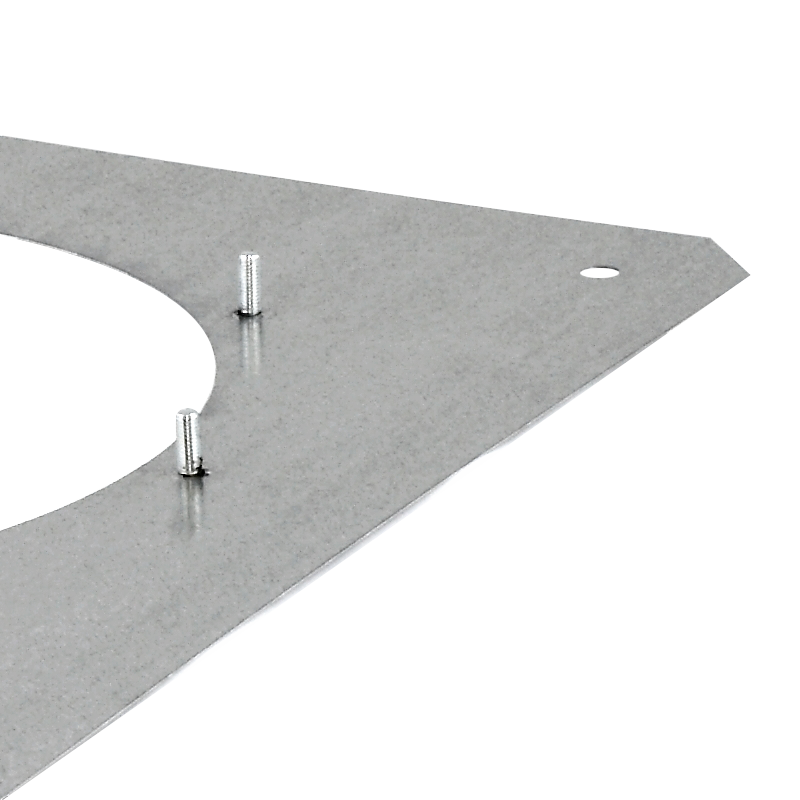

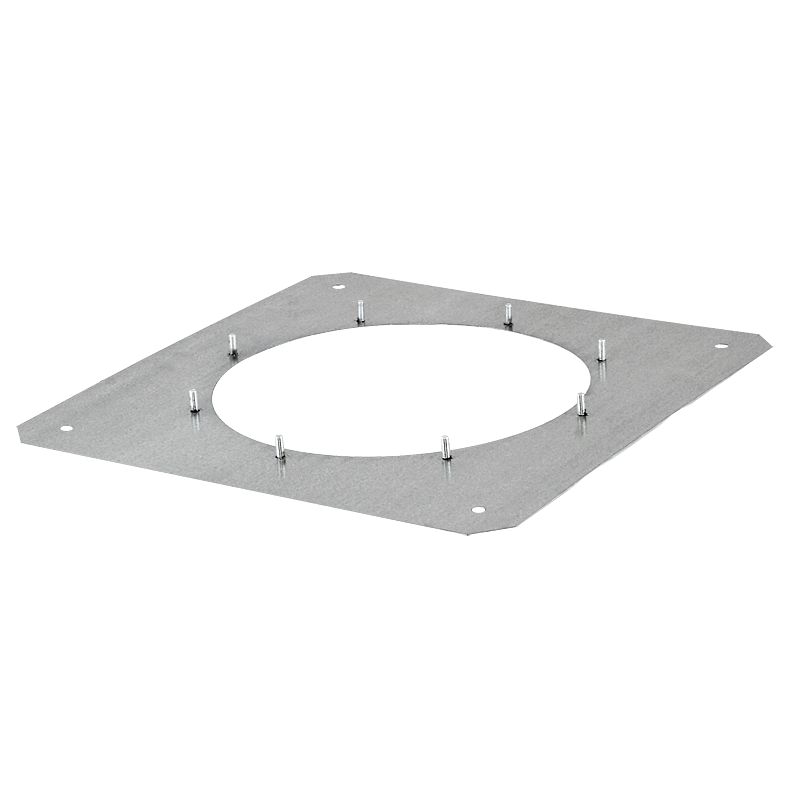

Connector
Used when mounting acessories JCA, JBR, and JAE.Allows the fan to be disconnected from the upstand without having to remove the duct.
Application
- used for mounting accessories (JCA / KZD, JBR / K, JAE / ZPD)
- allows the disassembly and assembly of fans without the need to disassemble the connection cable
Dimensions
| Type | ØD | ØH | □B | □C | n x t |
|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | |
| P 300 | 182 | 205 | 289 | 245 | 4 x M6 |
| P 435 | 252 | 280 | 419 | 330 | 4 x M8 |
| P 435 | 252 | 280 | 419 | 330 | 4 x M8 |
| P 560 | 358 | 395 | 544 | 450 | 8 x M8 |
| P 560 | 358 | 395 | 544 | 450 | 8 x M8 |
| P 630 | 403 | 450 | 614 | 535 | 8 x M10 |
| P 710 | 503 | 560 | 694 | 590 | 12 x M10 |
| P 710 | 503 | 560 | 694 | 590 | 12 x M10 |
| P 905 | 633 | 690 | 884 | 750 | 12 x M10 |
| P 905 | 633 | 690 | 884 | 750 | 12 x M10 |
| P 1100 | 713 | 770 | 1079 | 840 | 16 x M10 |
| P 1100 | 713 | 770 | 1079 | 840 | 16 x M10 |
| P 1250 | 1000 | 1070 | 1230 | 950 | 8 x M12 |
