DF - Filter

DF

Filter

Used to prefilter the supply air. Separation of larger particles of pollutants contained in the air prolongs the service life of devices placed behind the filter - fans, heaters, etc.
Contact us

APPLICATION

Used to prefilter the supply air. Separation of larger particles of pollutants contained in the air prolongs the service life of devices placed behind the filter - fans, heaters, etc.

CONSTRUCTION

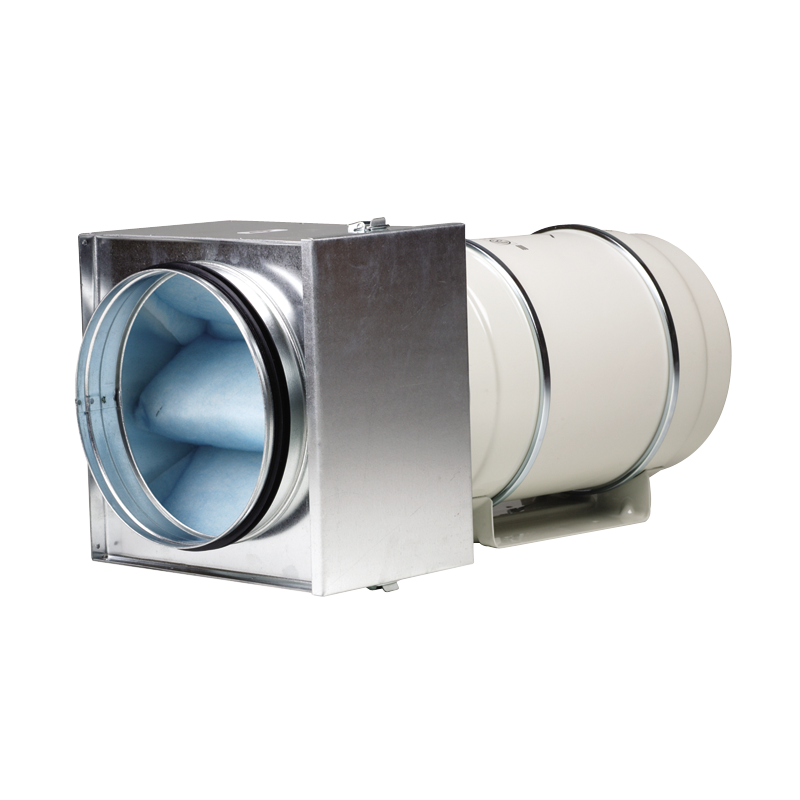

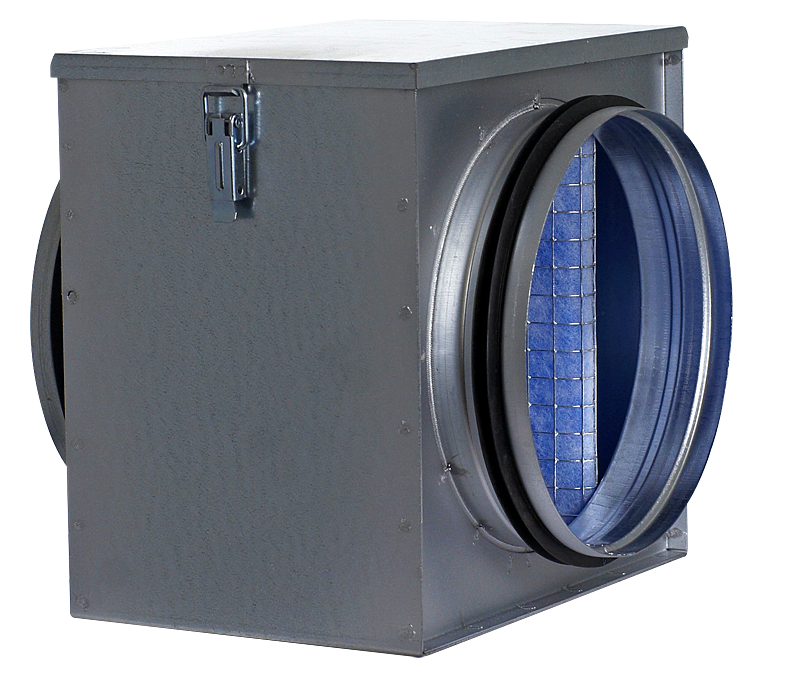

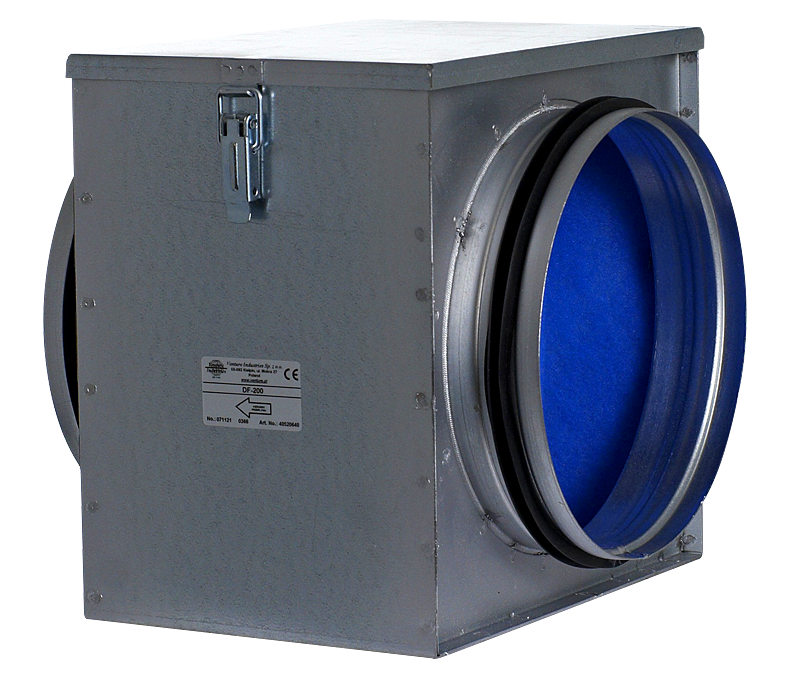

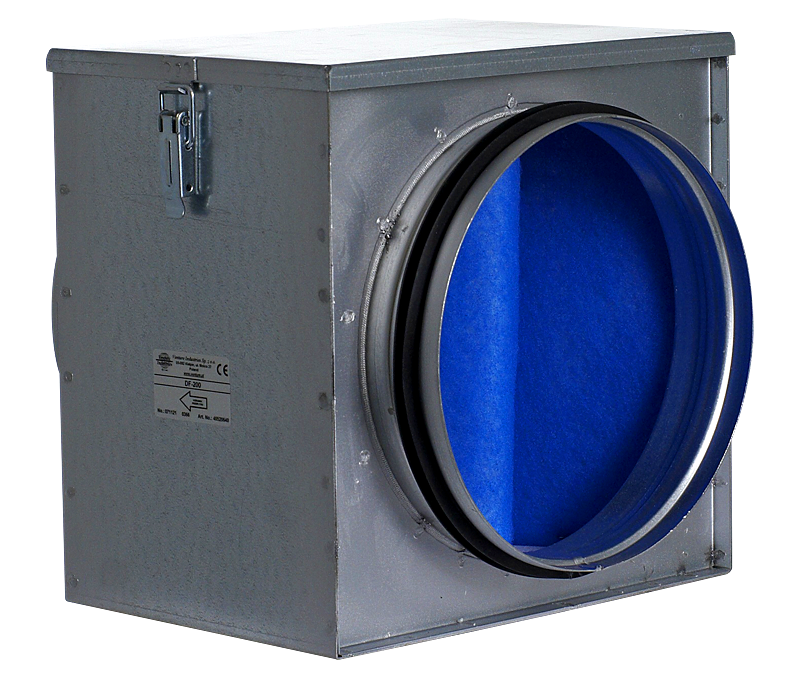

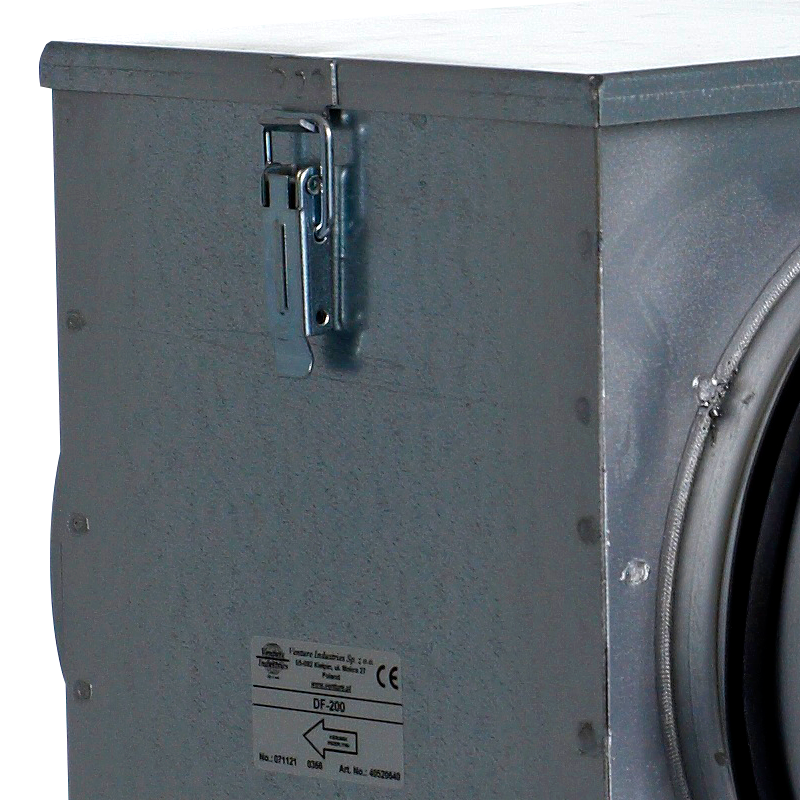

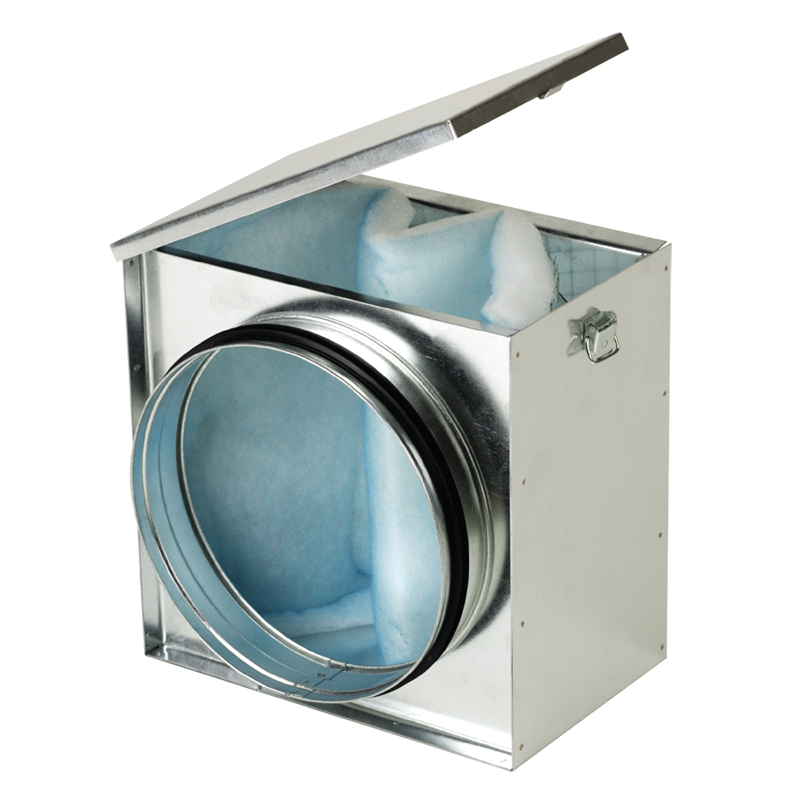

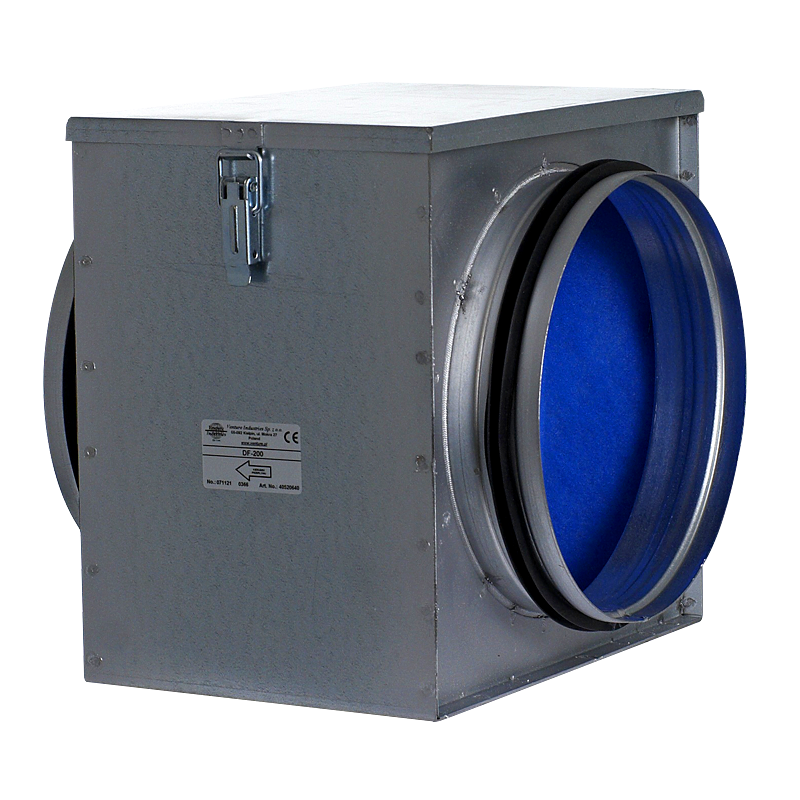

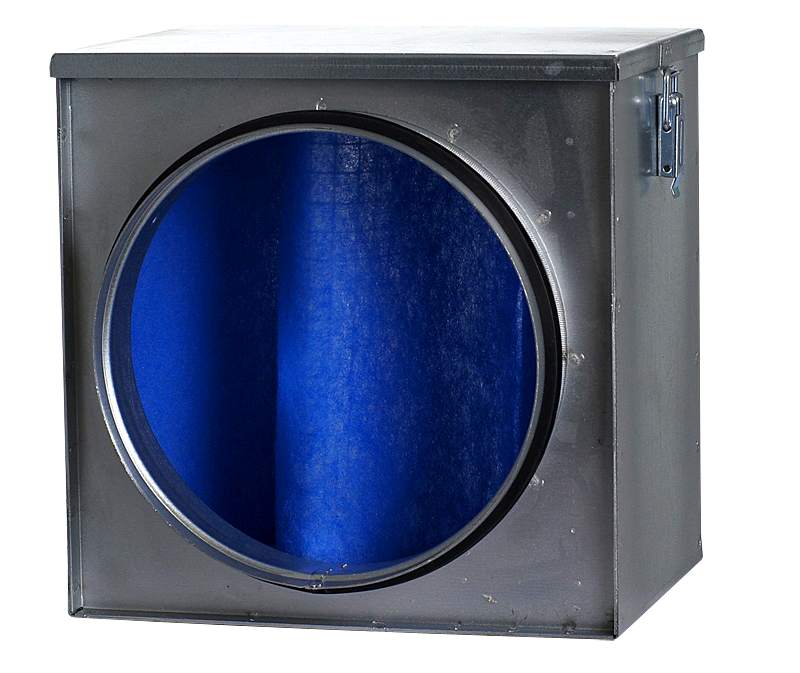

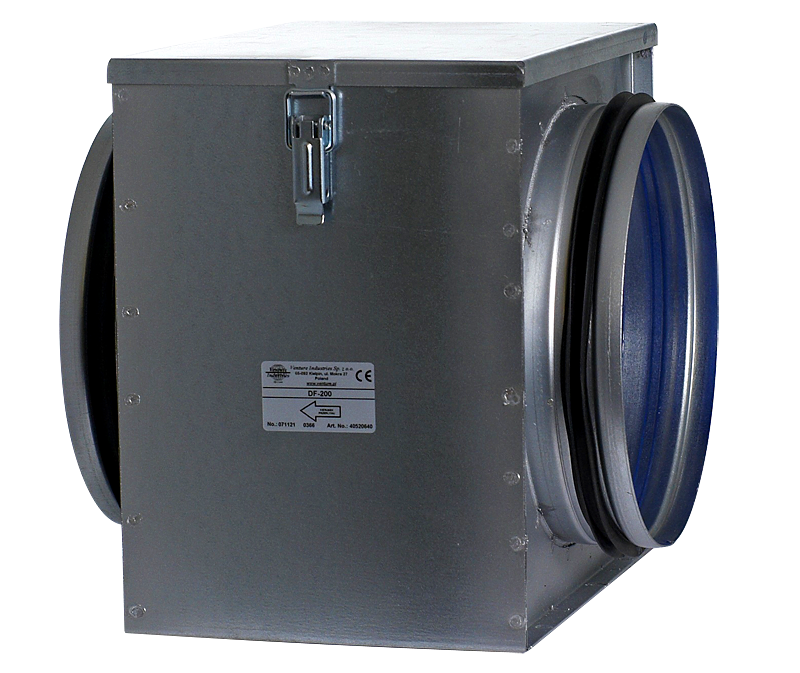

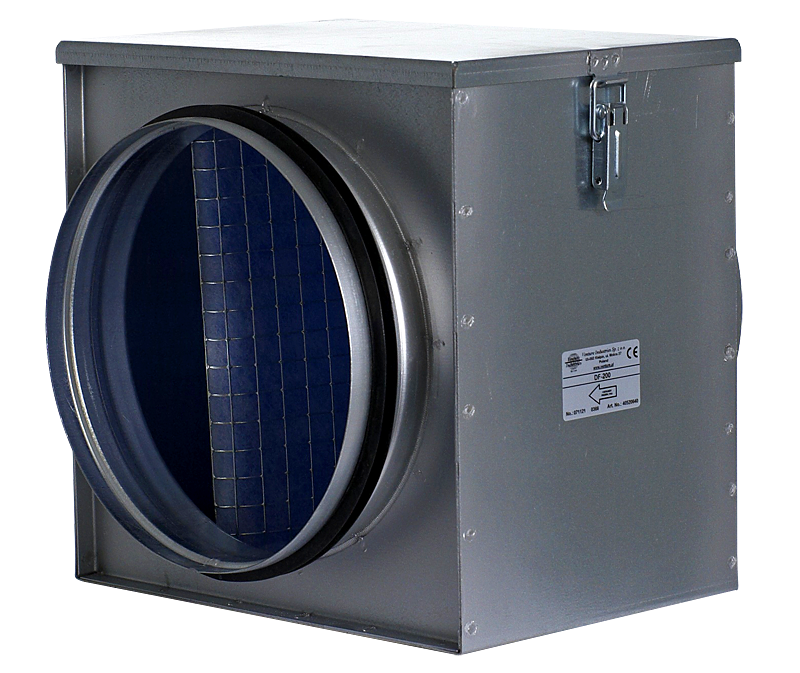

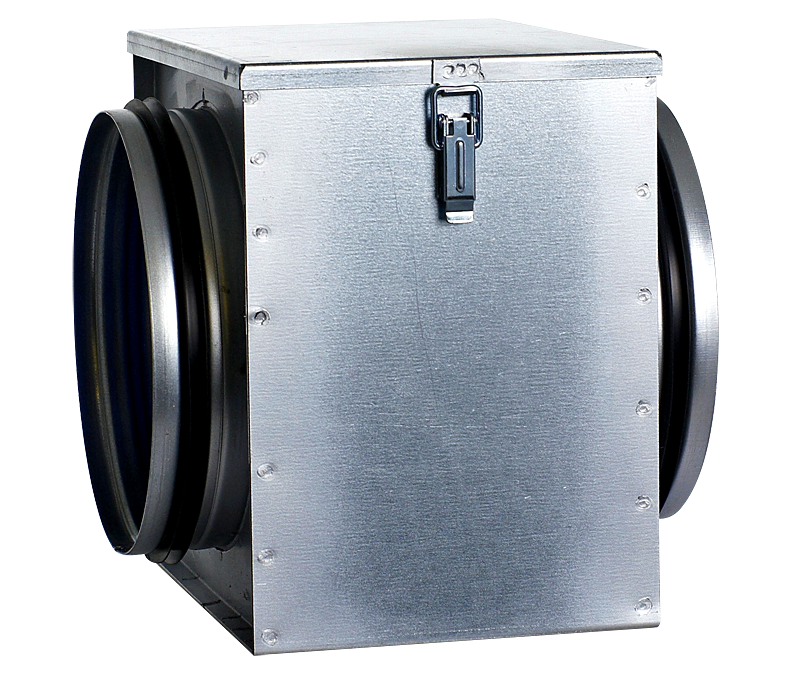

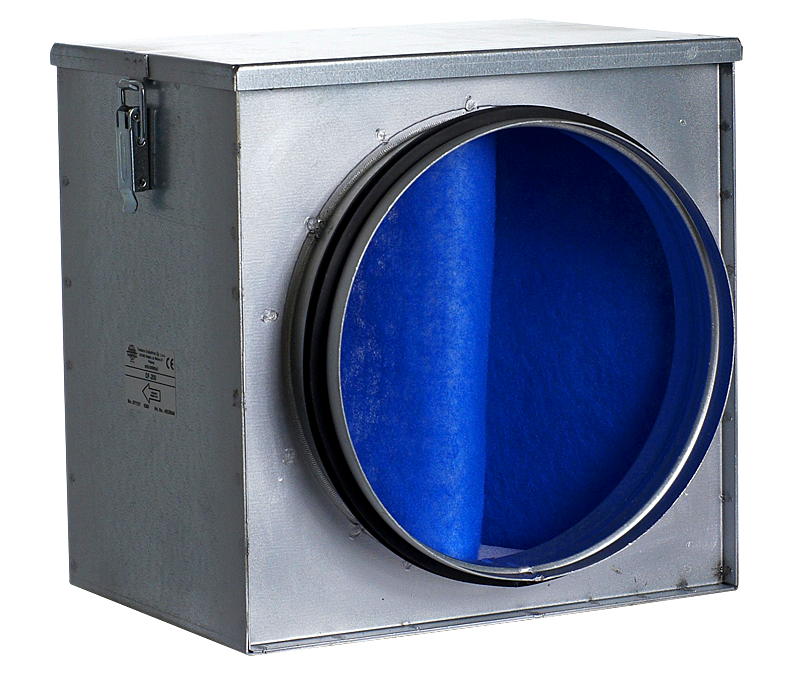

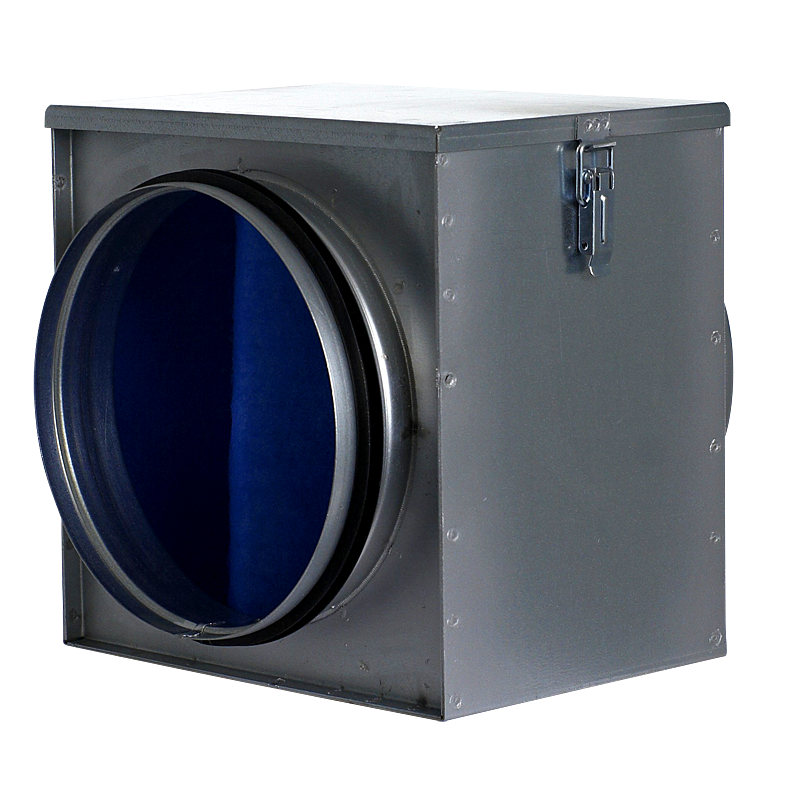

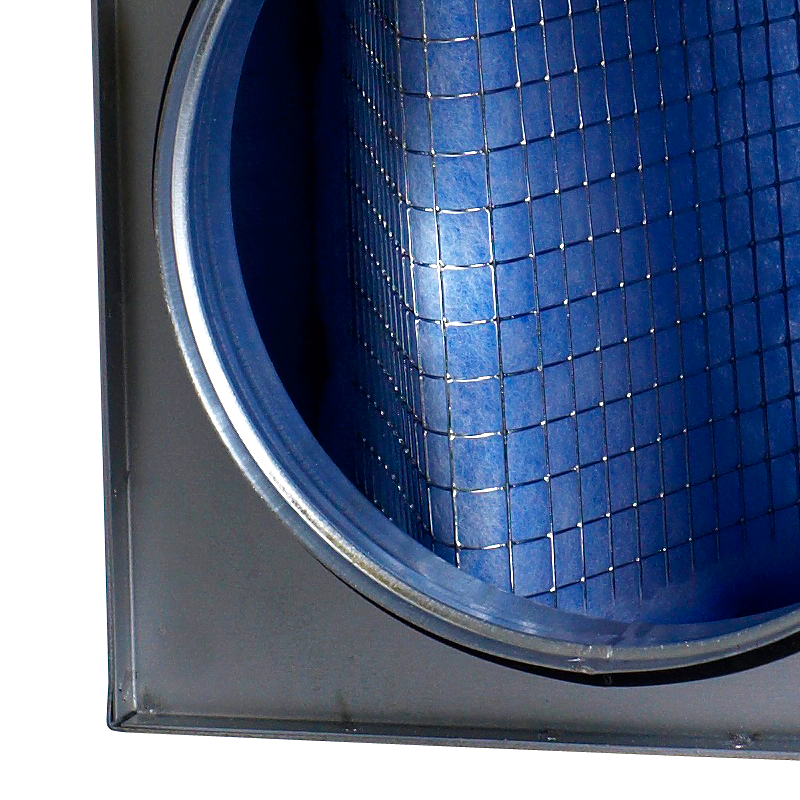

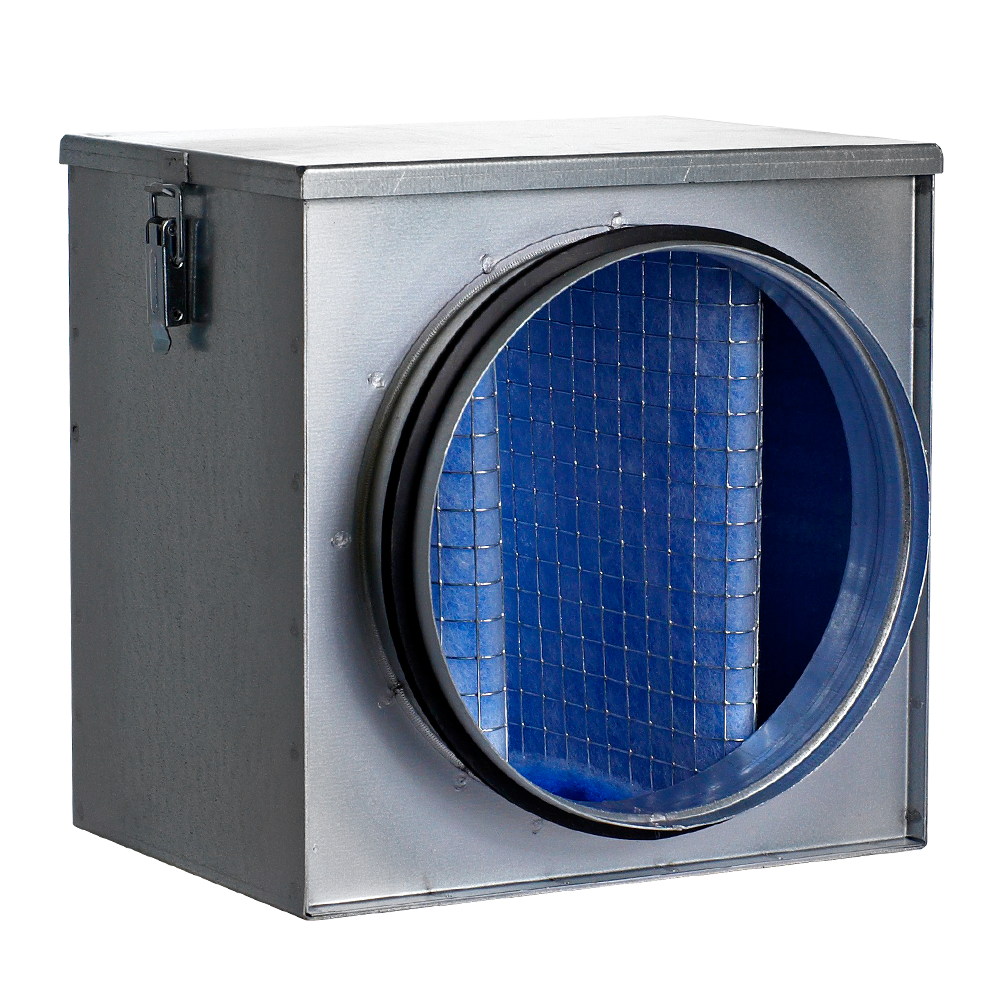

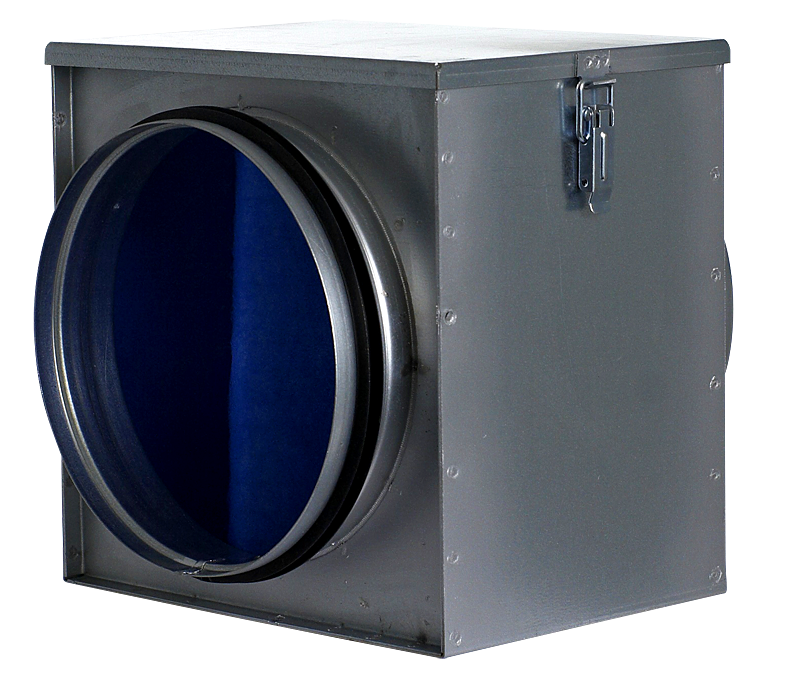

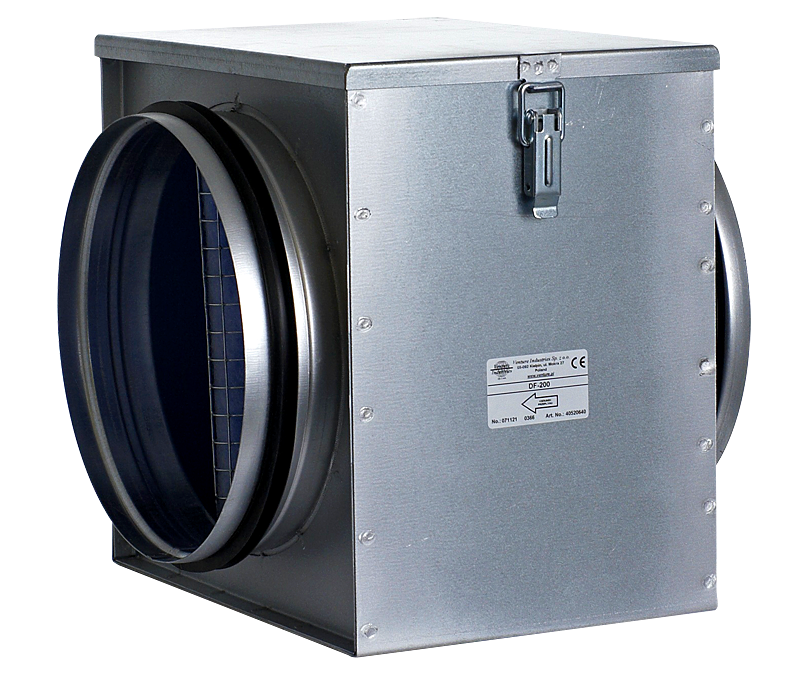

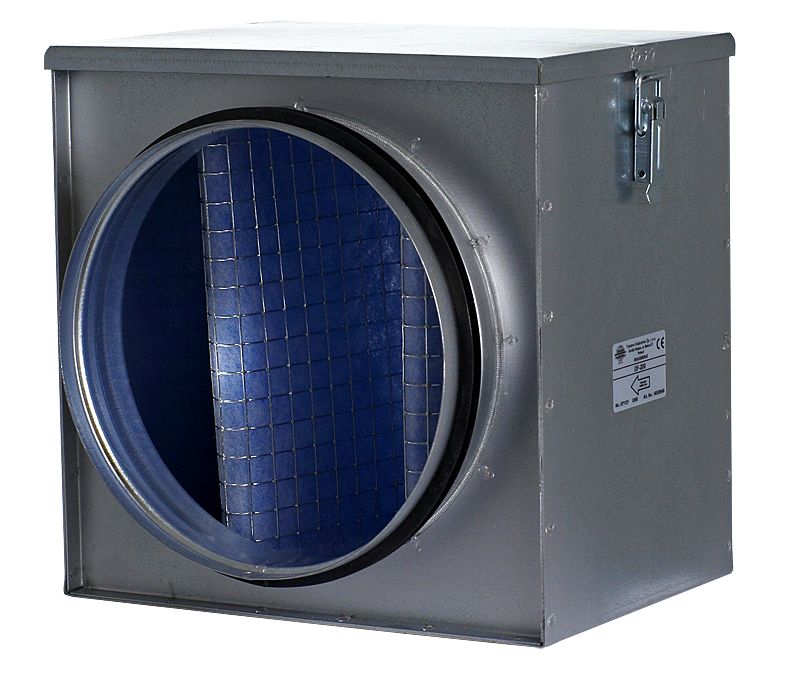

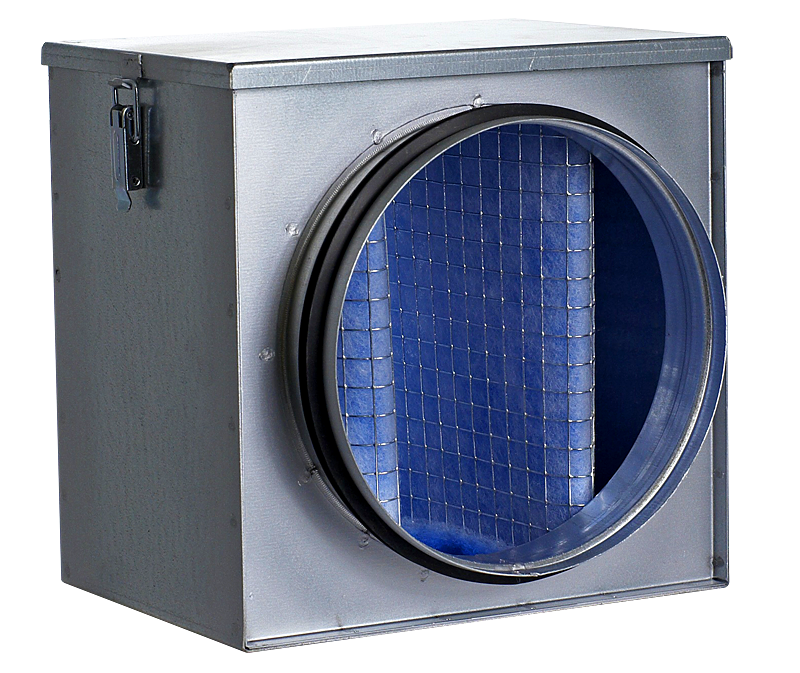

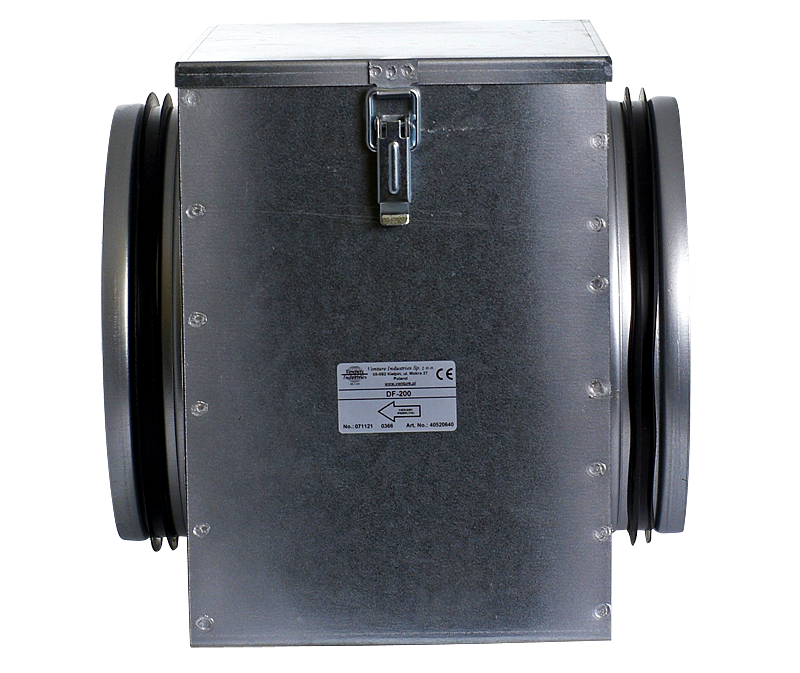

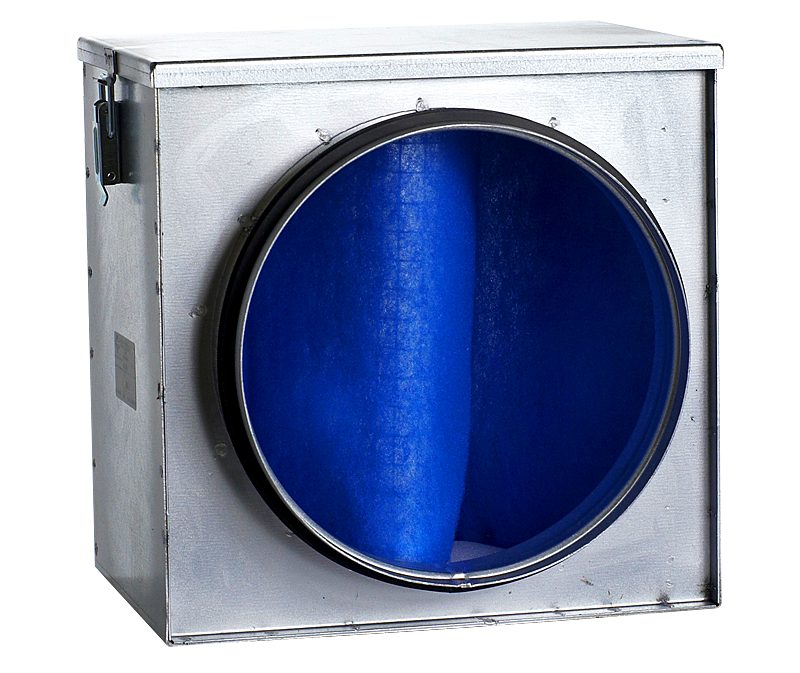

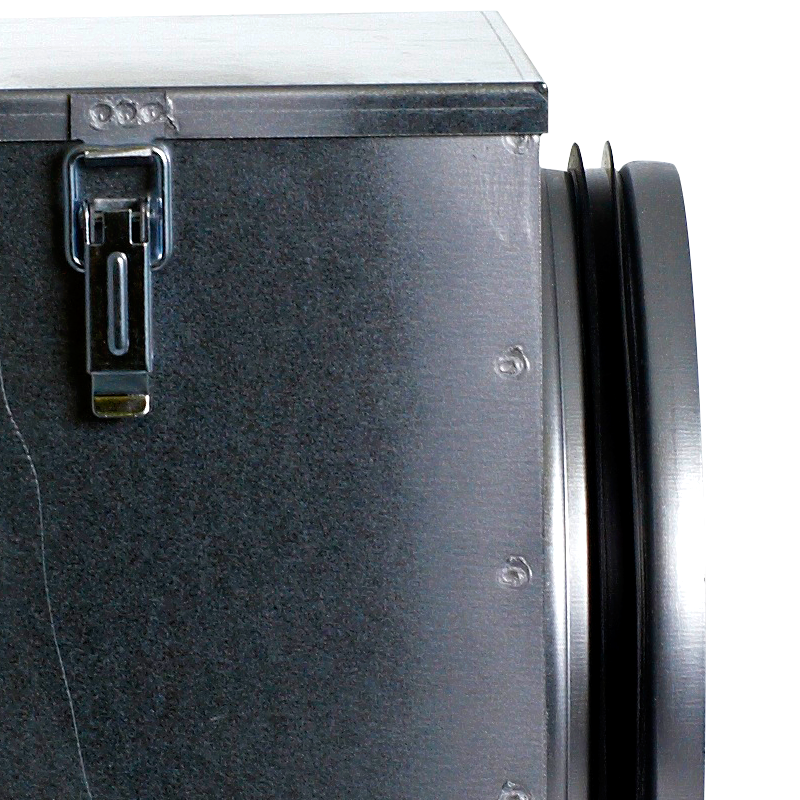

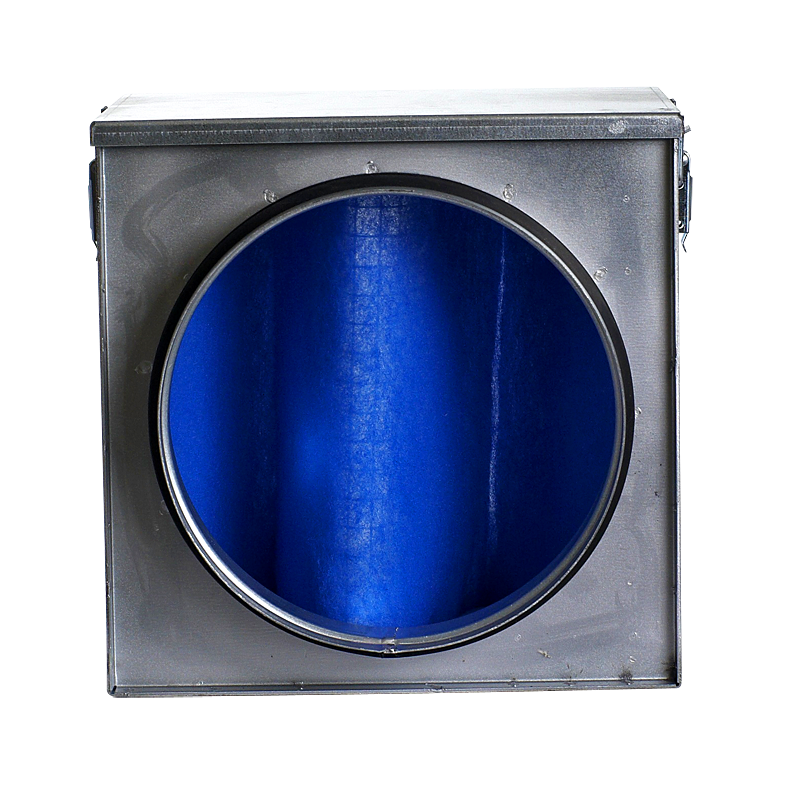

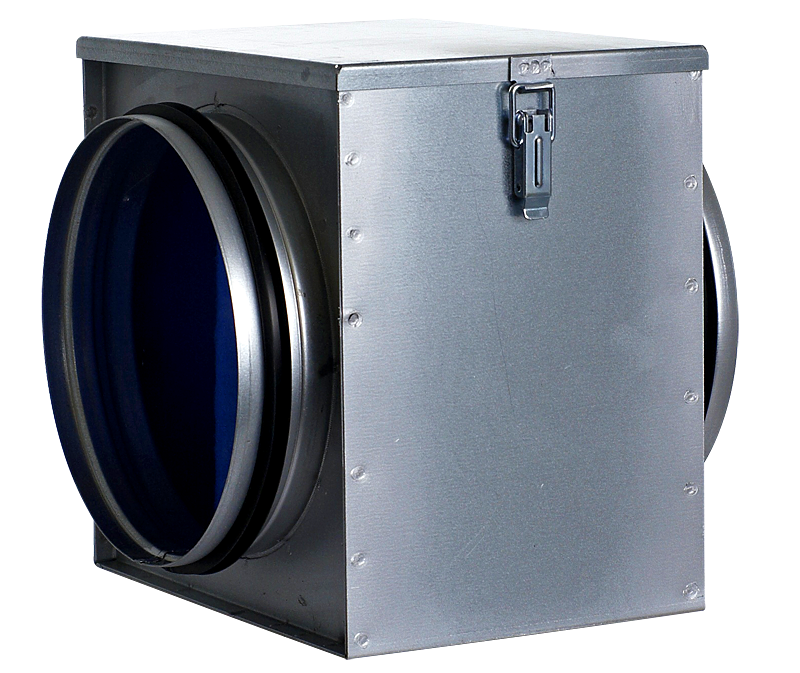

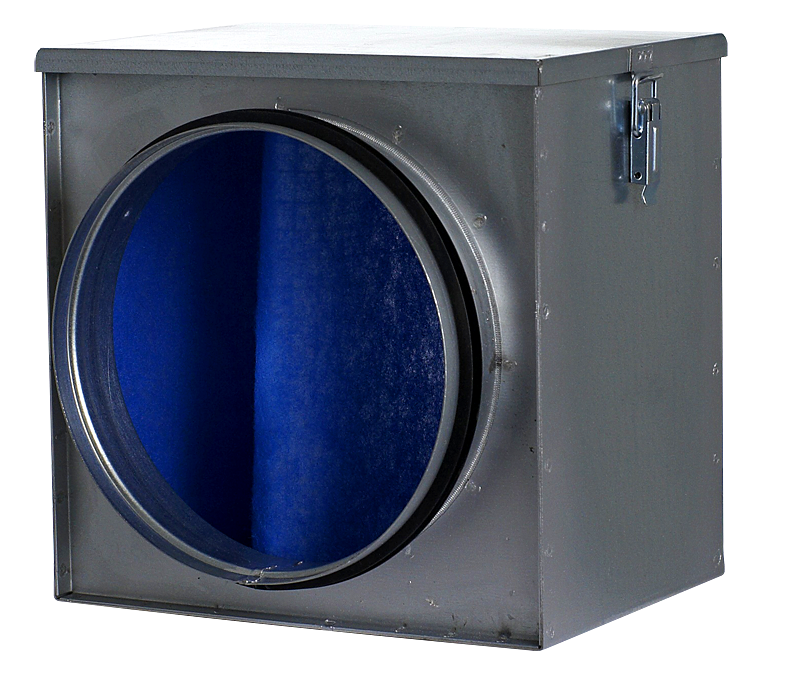

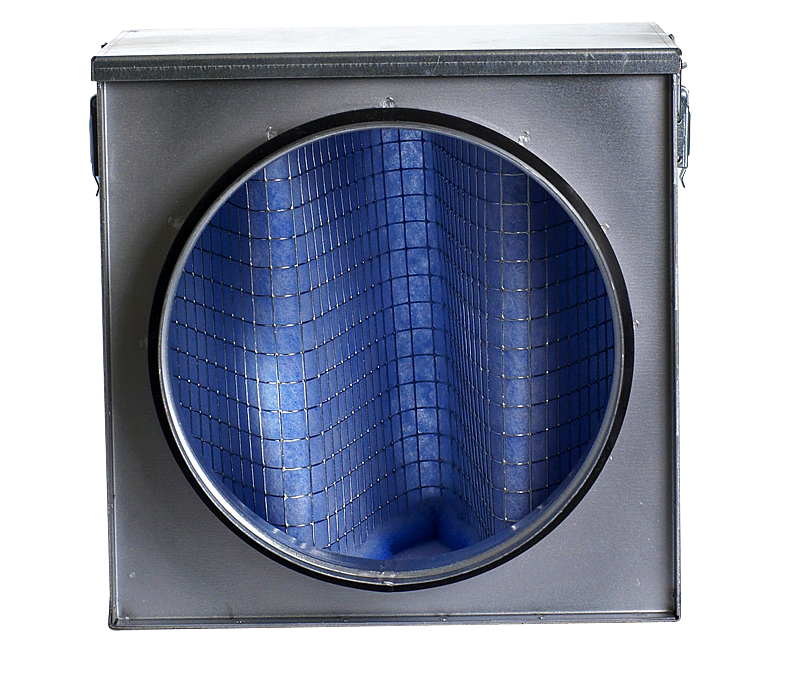

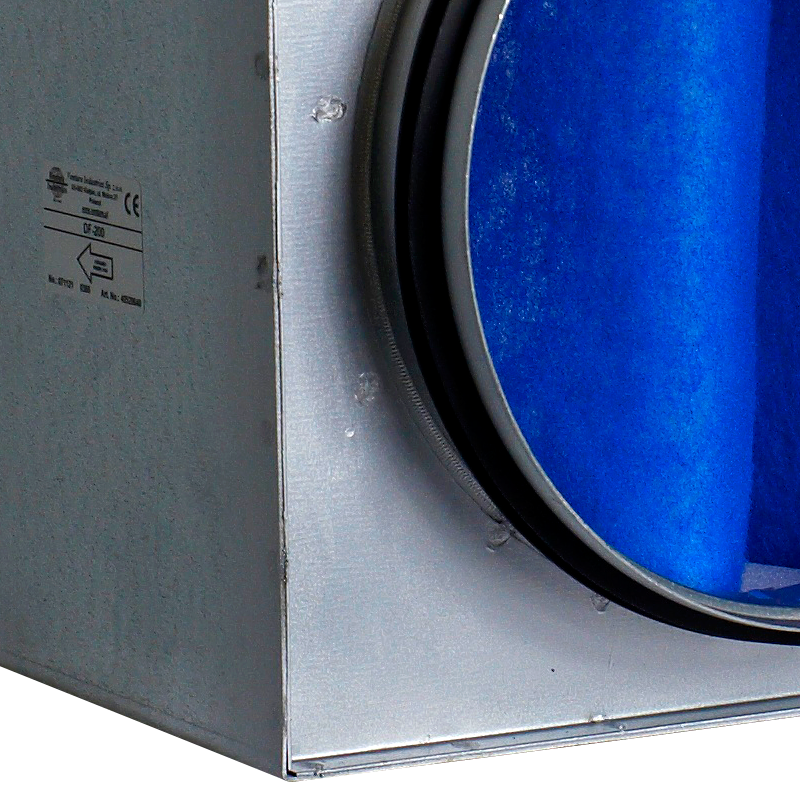

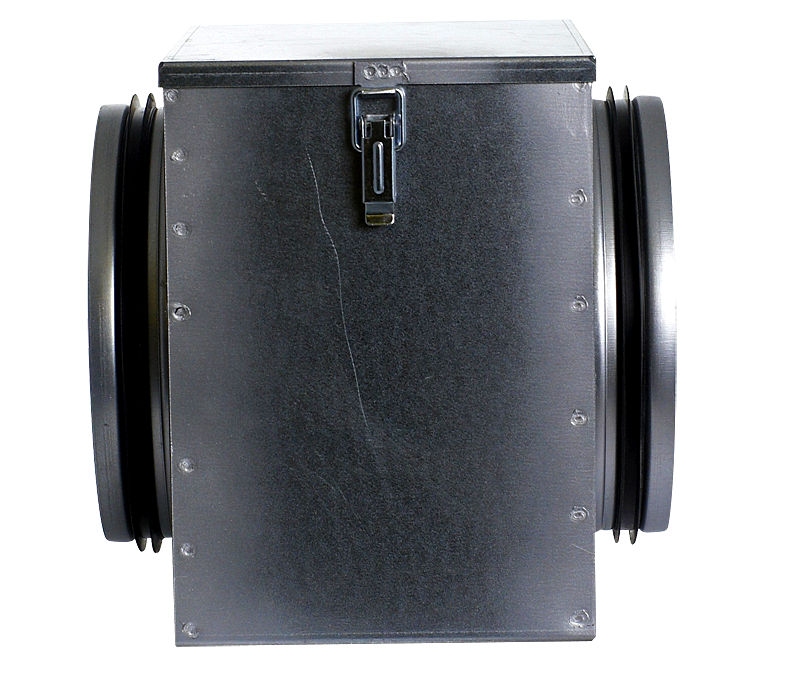

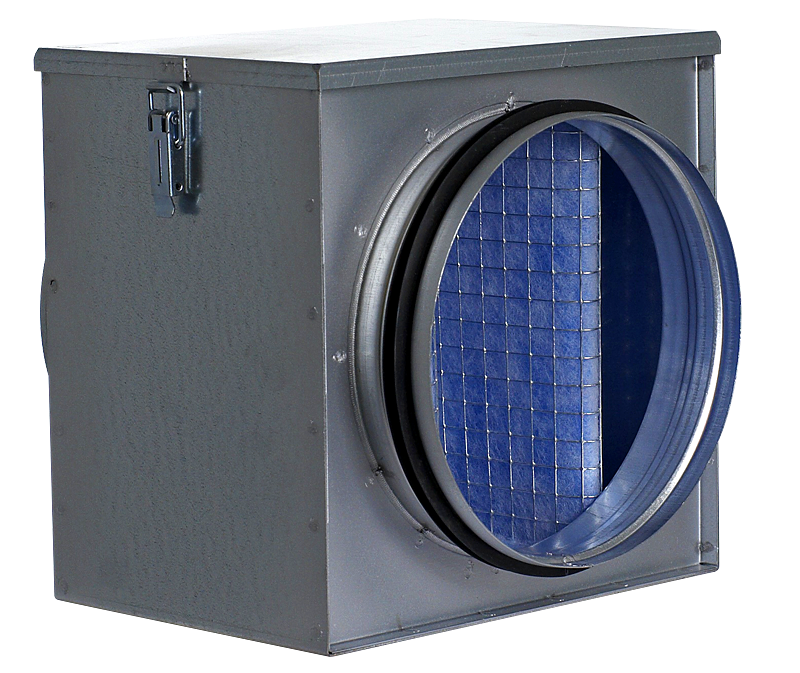

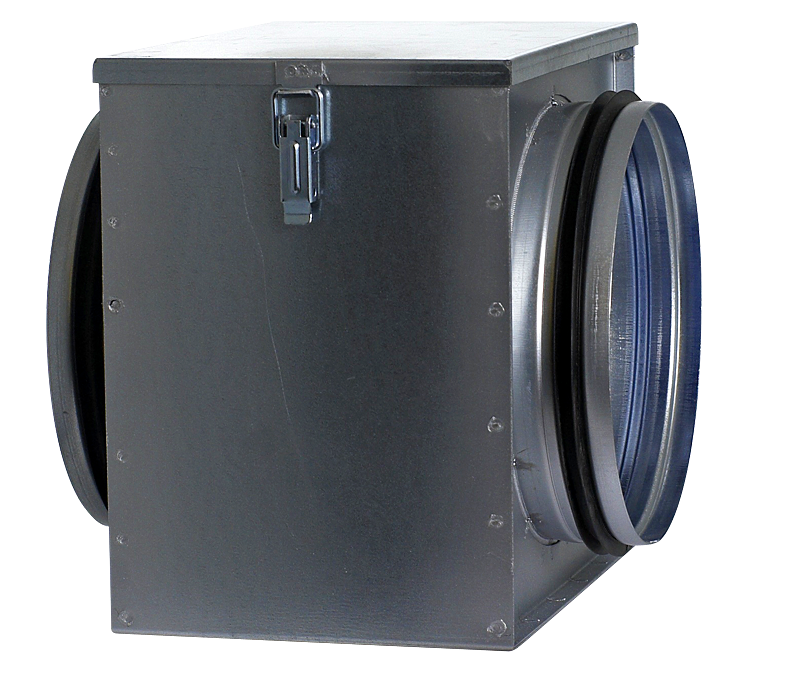

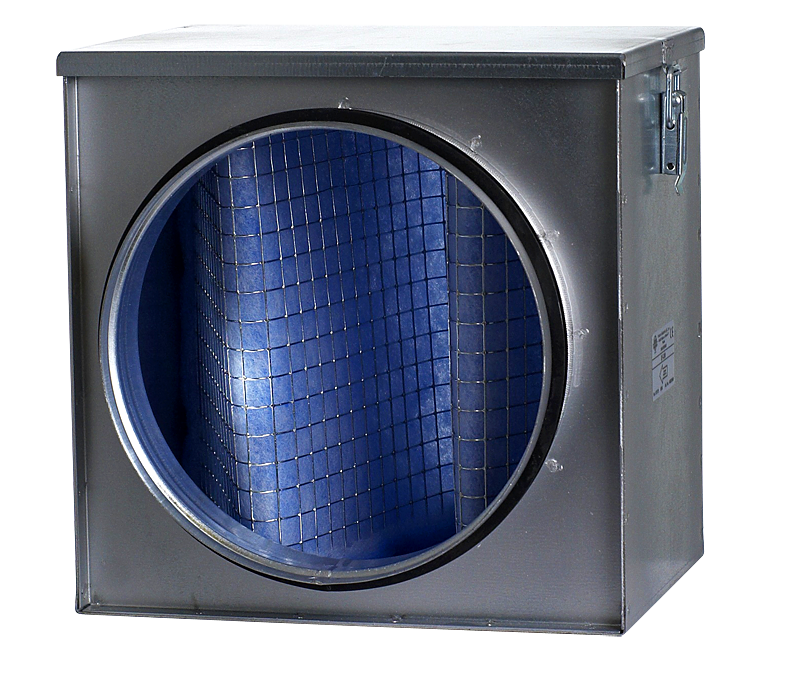

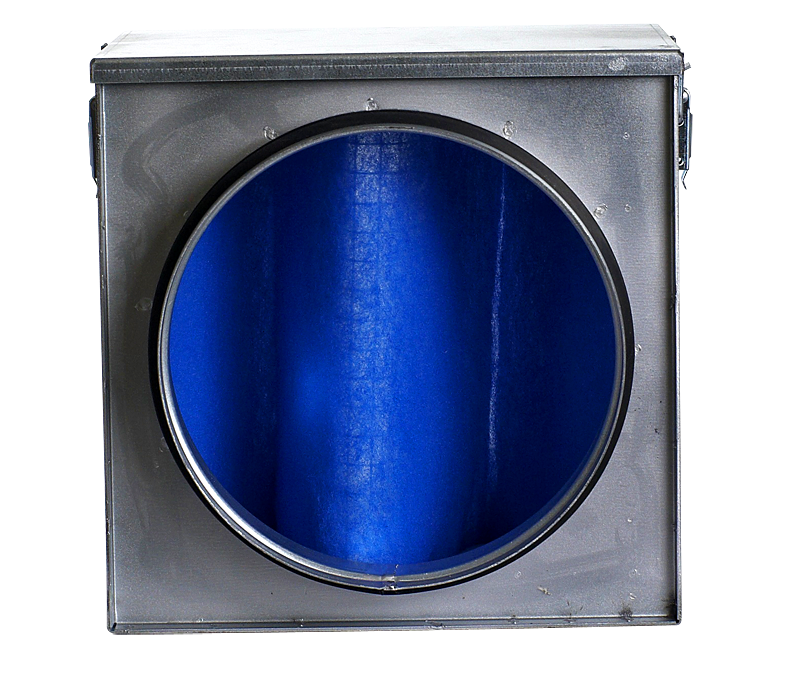

Channel filters designed for installation in circular ducts with standard diameters (100-400mm). Housing made of galvanized sheet steel, rubber fitting seals, EU3 filter cartridge on profiled steel wire mesh.

On request, the device can be supplied in any colour from the RAL palette.

Technical assistance

Catalog card

Choose a fan www.fanselectoronline.com

m3/h
Pa

Dimensions

Type A B ØD
  mm mm mm
DF 100 180 180 100
DF 125 180 180 125
DF 160 210 180 160
DF 200 250 180 200
DF 250 300 180 250
DF 315 360 180 315
DF 355 400 180 355
DF 400 450 180 400
DF 500 450 180 400
DF 560 450 180 400
