DFK
Filter
The complete filter is used to filter the air supply. Separation of larger particles of pollutants contained in the air prolongs the service life of devices placed behind the filter - fans, heaters, etc.
APPLICATION
The complete filter is used to filter the air supply. Separation of larger particles of pollutants contained in the air prolongs the service life of devices placed behind the filter - fans, heaters, etc.
CONSTRUCTION

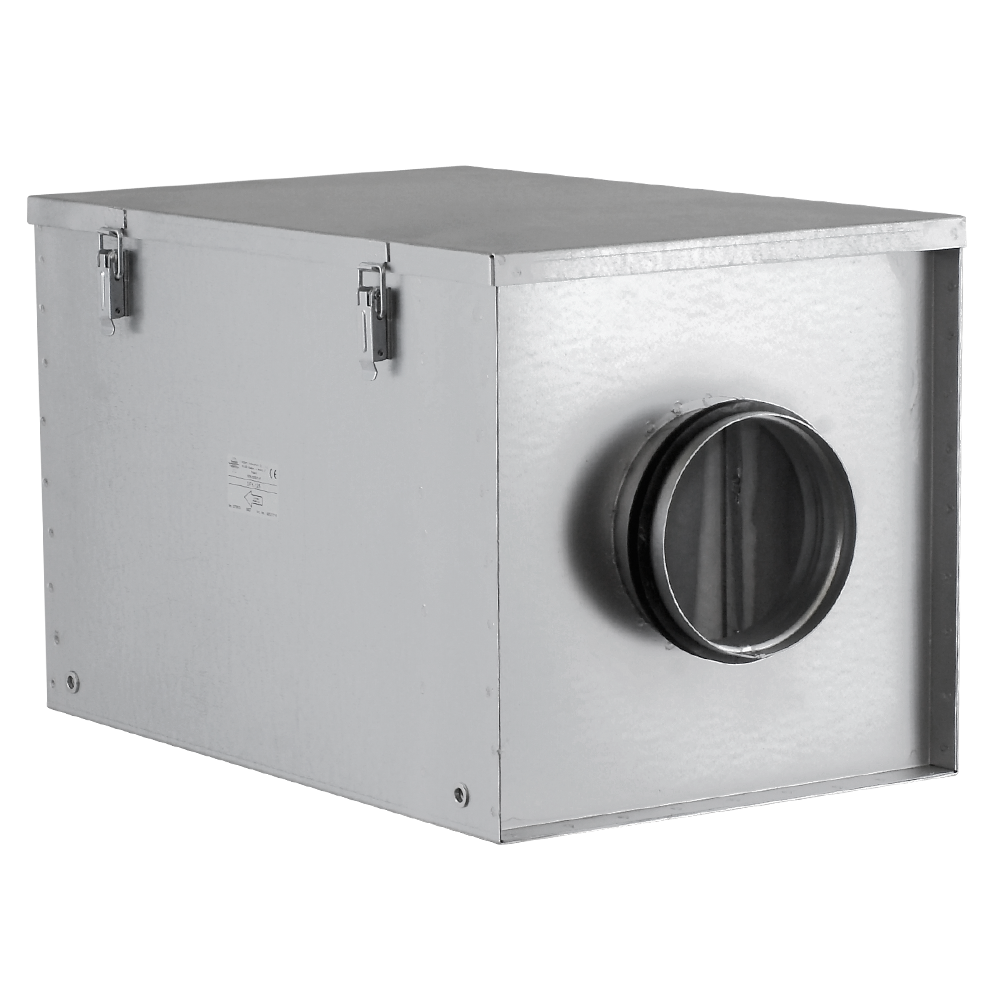

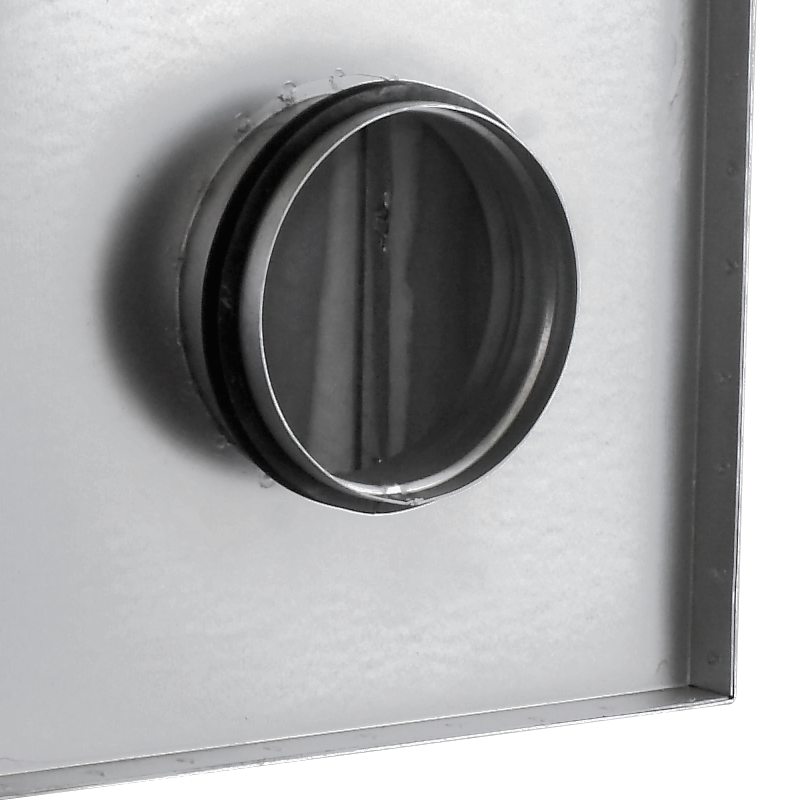

Filter set designed for installation in circular ventilation ducts of standard diameters (100-560 mm). Housing is made of galvanized sheet steel, mounting rings with rubber seals. Pocket EU3, EU5, EU7 filter cartridge should be ordered separately.
On request, the device can be supplied in any color from the RAL palette. The filter cartridge should be replaced when the air flow resistance exceeds 250 Pa.
Dimensions
| Type | A | B | C | E | ØD |
|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | |
| DF-K 100 | 291 | 298 | 497 | 457 | 100 |
| DF-K 125 | 291 | 298 | 497 | 457 | 125 |
| DF-K 160 | 291 | 298 | 497 | 457 | 160 |
| DF-K 200 | 291 | 298 | 507 | 457 | 200 |
| DF-K 250 | 291 | 298 | 527 | 457 | 250 |
| DF-K 315 | 494 | 602 | 677 | 607 | 315 |
| DF-K 355 | 494 | 602 | 677 | 607 | 355 |
| DF-K 400 | 494 | 602 | 713 | 607 | 400 |
| DF-K 450 | 494 | 602 | 617 | 607 | 450 |
| DF-K 500 | 596 | 602 | 677 | 607 | 500 |
| DF-K 560 | 604 | 600 | 960 | 800 | 560 |
