IBF EC - In-Line duct fan

IBF EC

In-Line duct fan

IBF EC fans are used in a wide variety of mechanical ventilation systems, combining the benefits of axial fans (flow direction) and radial (stable compression, low noise, high efficiency).
Contact us

APPLICATION

IBF EC fans are used in a wide variety of mechanical ventilation systems, combining the benefits of axial fans (flow direction) and radial (stable compression, low noise, high efficiency).

Thanks to the use of modern, high performance electronic commutation (EC) drives, fans are characterized by low power consumption. Examples of applications are supply ventilation and exhaust:

  • apartments,
  • offices, shops, bars, cafes, restaurants.

CONSTRUCTION

  • housing made of galvanized steel sheet,
  • flanges on the inlet and outlet sides assembly,
  • inspection hatch,
  • rotors with backward curved blades,
  • rotors are made of plastic,
  • working temperature -30°C 60°C (depending on the model),
  • terminal box (single-phase model), box connected with the motor-rotor (three-phase model),
  • installation in any rectangular position ventilation ducts.

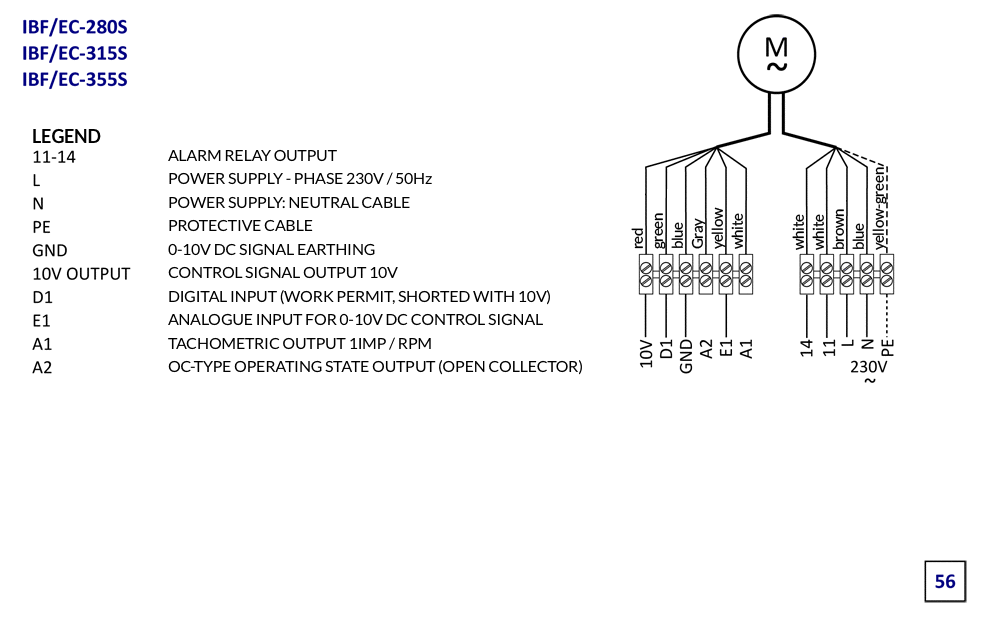

Electric motor

  • high efficiency motors with integrated EC technology, single-phase 200-240V 50Hz and three-phase 380-480V 50Hz, with external rotor,
  • 0-10VDC control input for smooth rotation control,
  • insulation class - F,
  • protection rating - IP54.

Special versions

  • painting in a color other than the standard,
  • painting in a higher corrosivity category

Technical assistance

Catalog card

Choose a fan www.fanselectoronline.com

m3/h
Pa
Type airflow max pressure max power max Rotation speed current max voltage Sound power
level*		 temp.
min		 temp.
max		 weight
  m3/h Pa W rpm A V db(A) oC oC kg
IBF/EC-30/15S 1050 780 170 2860 1.45 230 56 -30 60 7.5

IBF/EC-30/15S

Nominal parameters

  • Max. volume flow 1050 m3/h
  • Maximum pressure 780 Pa
  • Rotation speed 2860 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 170 W
  • Rated current 1.45 A
  • Rated frequency 50 Hz
  • Profile for rectangular connections 300x150 mm
  • Weight 7.5 kg
  • Motor type EC
  • Motor protection class IP54
  • Min. operating temperature -30 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 56 dB(A)
  • Distance 1.5 m
IBF/EC-40/20S 1300 780 170 2520 1.35 230 58 -30 60 10.5

IBF/EC-40/20S

Nominal parameters

  • Max. volume flow 1300 m3/h
  • Maximum pressure 780 Pa
  • Rotation speed 2520 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 170 W
  • Rated current 1.35 A
  • Rated frequency 50 Hz
  • Profile for rectangular connections 400x200 mm
  • Weight 10.5 kg
  • Motor type EC
  • Motor protection class IP54
  • Min. operating temperature -30 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 58 dB(A)
  • Distance 1.5 m
IBF/EC-50/25S 2400 1050 780 3600 4 230 65 -20 60 21

IBF/EC-50/25S

Nominal parameters

  • Max. volume flow 2400 m3/h
  • Maximum pressure 1050 Pa
  • Rotation speed 3600 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 780 W
  • Rated current 4 A
  • Rated frequency 50 Hz
  • Profile for rectangular connections 500x250 mm
  • Weight 21 kg
  • Motor type EC
  • Motor protection class IP54
  • Min. operating temperature -20 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 65 dB(A)
  • Distance 1.5 m
IBF/EC-60/35T 5200 930 1350 2100 2.4 400 66 -15 60 37

IBF/EC-60/35T

Nominal parameters

  • Max. volume flow 5200 m3/h
  • Maximum pressure 930 Pa
  • Rotation speed 2100 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 1350 W
  • Rated current 2.4 A
  • Rated frequency 50 Hz
  • Profile for rectangular connections 600x350 mm
  • Weight 37 kg
  • Motor type EC
  • Motor protection class IP54
  • Min. operating temperature -15 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 66 dB(A)
  • Distance 1.5 m
IBF/EC-70/40T 6300 860 1450 1800 2.5 400 72 -15 60 44

IBF/EC-70/40T

Nominal parameters

  • Max. volume flow 6300 m3/h
  • Maximum pressure 860 Pa
  • Rotation speed 1800 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 1450 W
  • Rated current 2.5 A
  • Rated frequency 50 Hz
  • Profile for rectangular connections 700x400 mm
  • Weight 44 kg
  • Motor type EC
  • Motor protection class IP54
  • Min. operating temperature -15 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 72 dB(A)
  • Distance 1.5 m
IBF/EC-70/40T/H 9900 990 3400 2120 5.4 400 67 -15 60 52

IBF/EC-70/40T/H

Nominal parameters

  • Max. volume flow 9900 m3/h
  • Maximum pressure 990 Pa
  • Rotation speed 2120 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 3400 W
  • Rated current 5.4 A
  • Rated frequency 50 Hz
  • Profile for rectangular connections 700x400 mm
  • Weight 52 kg
  • Motor type EC
  • Motor protection class IP54
  • Min. operating temperature -15 °C
  • Max. operating temperature 60 °C
  • Max. medium temperature 60 °C
  • Sound pressure level 67 dB(A)
  • Distance 1.5 m
IBF/EC-80/50T 11500 1450 5400 2130 8 400 74 -20 40 80

IBF/EC-80/50T

Nominal parameters

  • Max. volume flow 11500 m3/h
  • Maximum pressure 1450 Pa
  • Rotation speed 2130 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 5400 W
  • Rated current 8 A
  • Rated frequency 50 Hz
  • Profile for rectangular connections 800x500 mm
  • Weight 80 kg
  • Motor type EC
  • Motor protection class IP54
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 74 dB(A)
  • Distance 1.5 m
IBF/EC-100/50T 13000 1250 5000 1750 8 400 73 -20 40 75

IBF/EC-100/50T

Nominal parameters

  • Max. volume flow 13000 m3/h
  • Maximum pressure 1250 Pa
  • Rotation speed 1750 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 5000 W
  • Rated current 8 A
  • Rated frequency 50 Hz
  • Profile for rectangular connections 1000x500 mm
  • Weight 75 kg
  • Motor type EC
  • Motor protection class IP54
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 73 dB(A)
  • Distance 1.5 m

* measured in distance 1.5m from the fan.

Work characteristics

Dimensions

Type A B C D E F G H ØI
  mm mm mm mm mm mm mm mm mm
IBF/EC-30/15S 402 300 150 320 170 340 190 250 9
IBF/EC-40/20S 502 400 200 420 220 440 240 320 9
IBF/EC-50/25S 532 500 250 520 270 540 290 350 9
IBF/EC-60/35T 724 600 350 620 370 640 390 450 9
IBF/EC-70/40T 724 700 400 722 420 742 440 500 9
IBF/EC-70/40T/H 724 700 400 722 420 742 440 514 9
IBF/EC-80/50T 880 800 500 822 522 842 542 630 9
IBF/EC-100/50T 1000 1000 500 1029 529 1059 559 630 13
