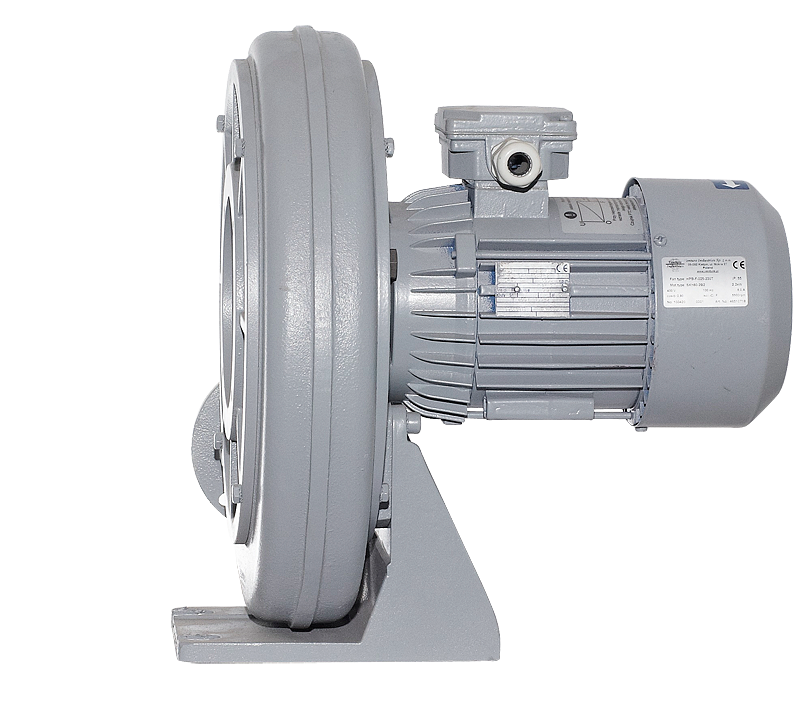

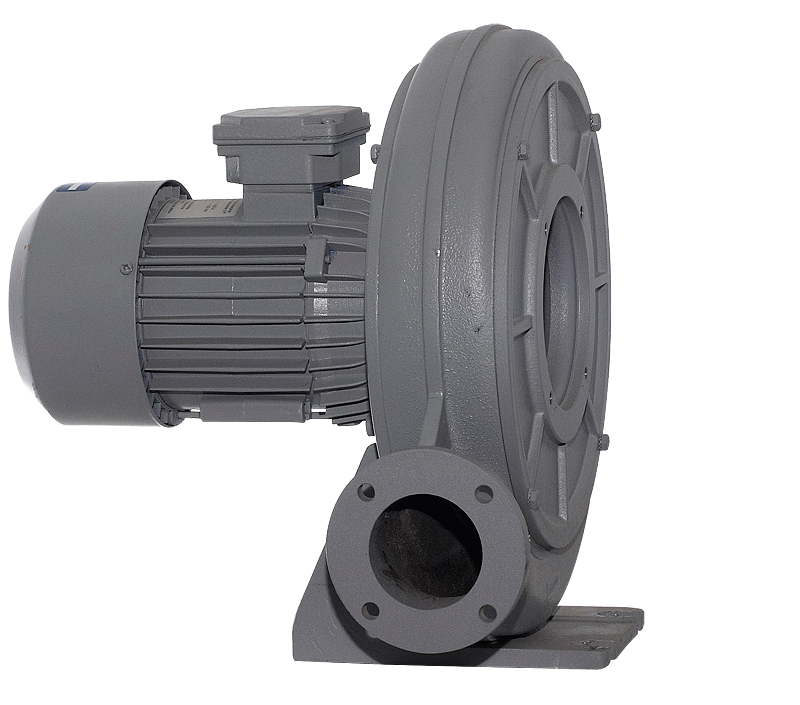

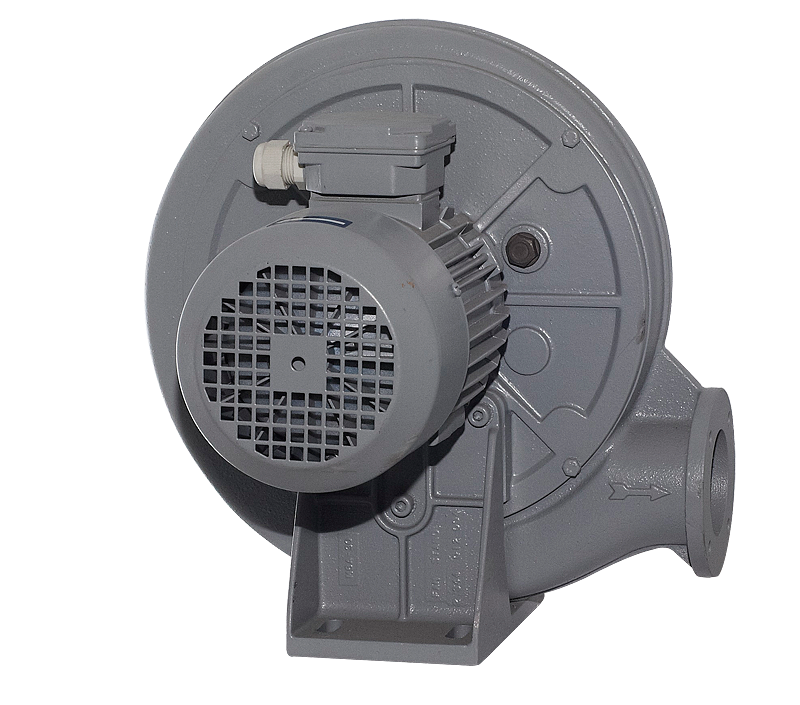

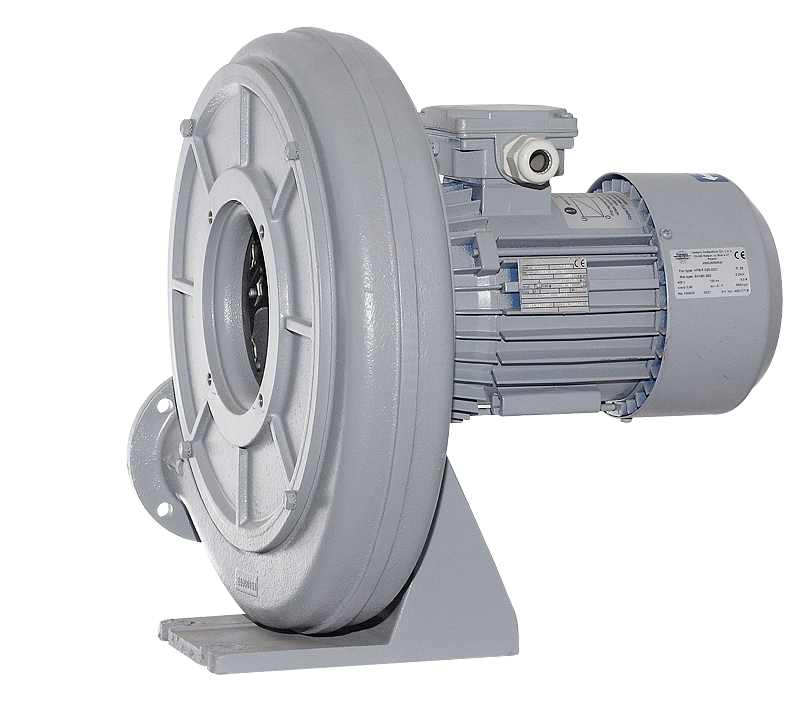

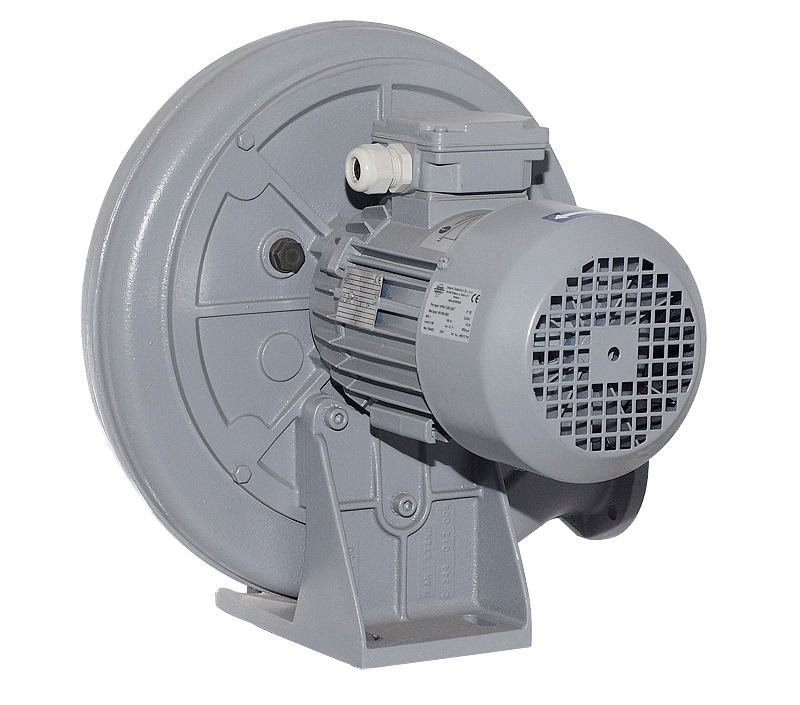

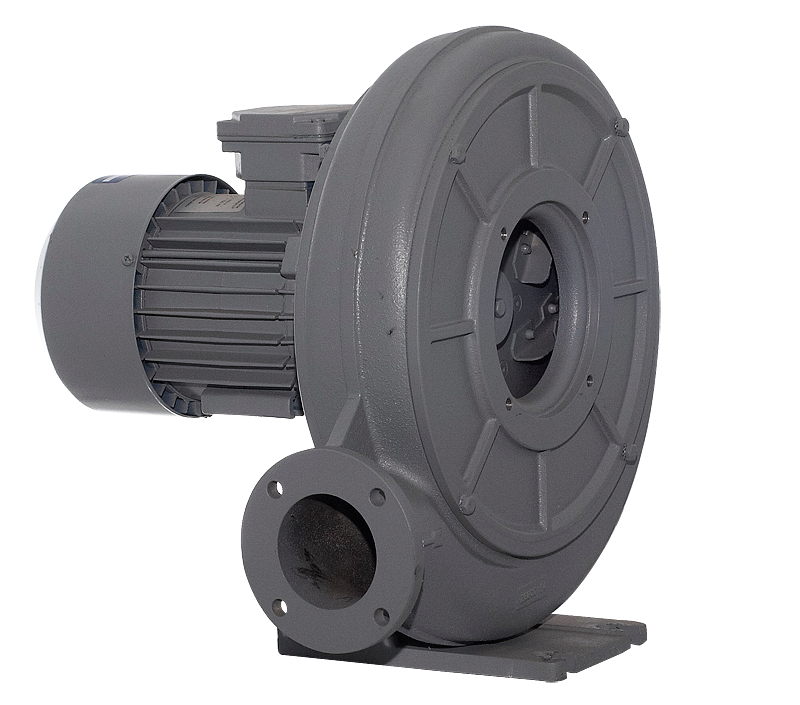

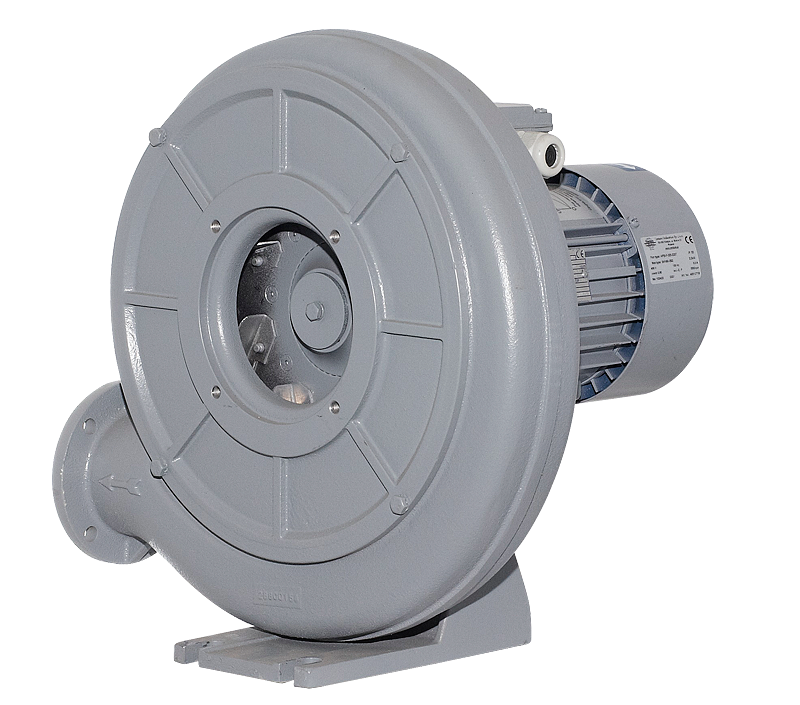

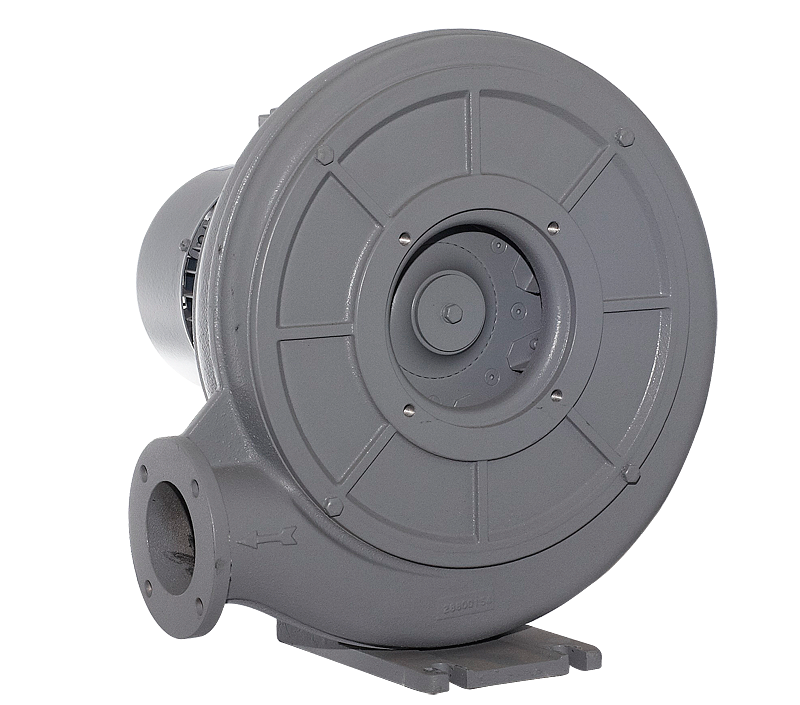

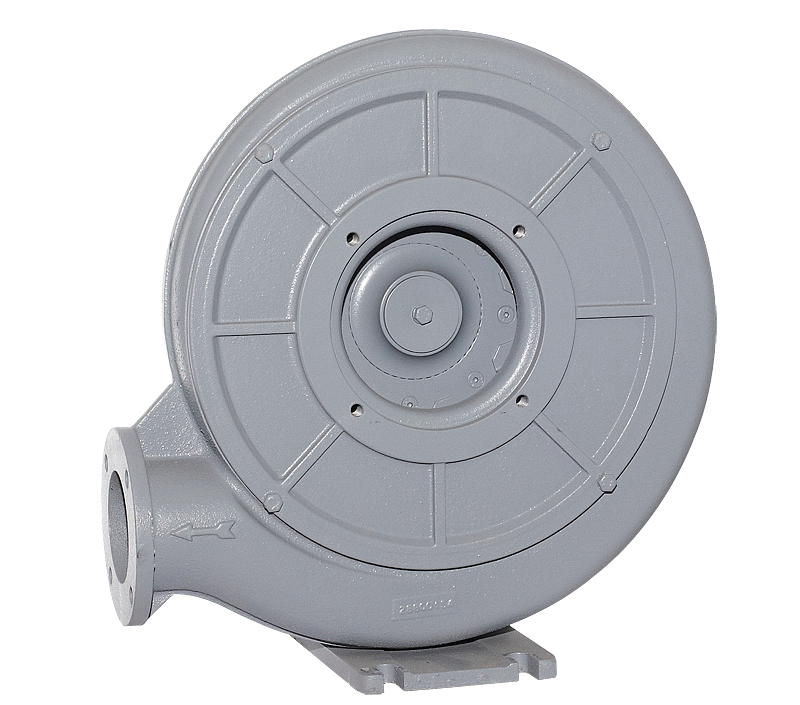

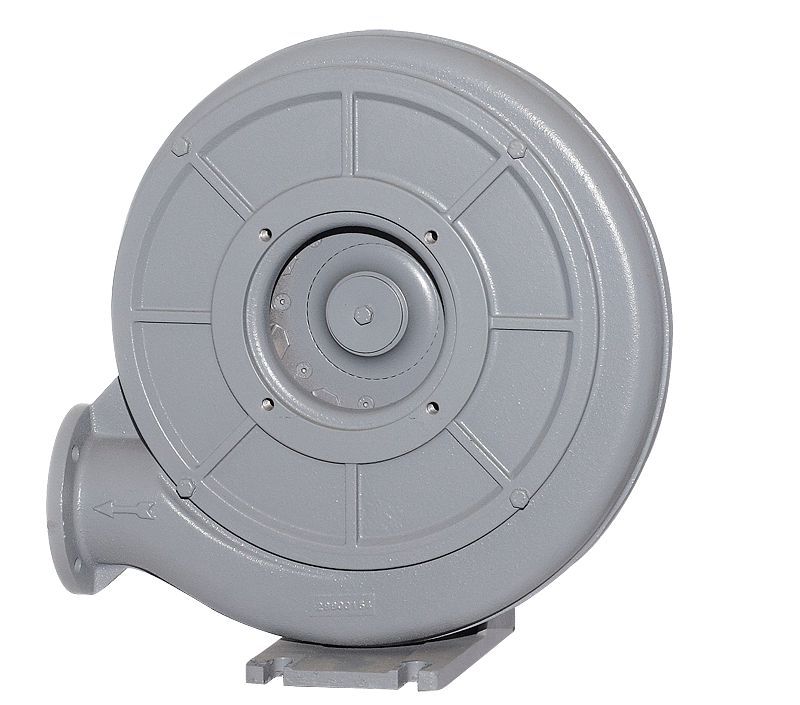

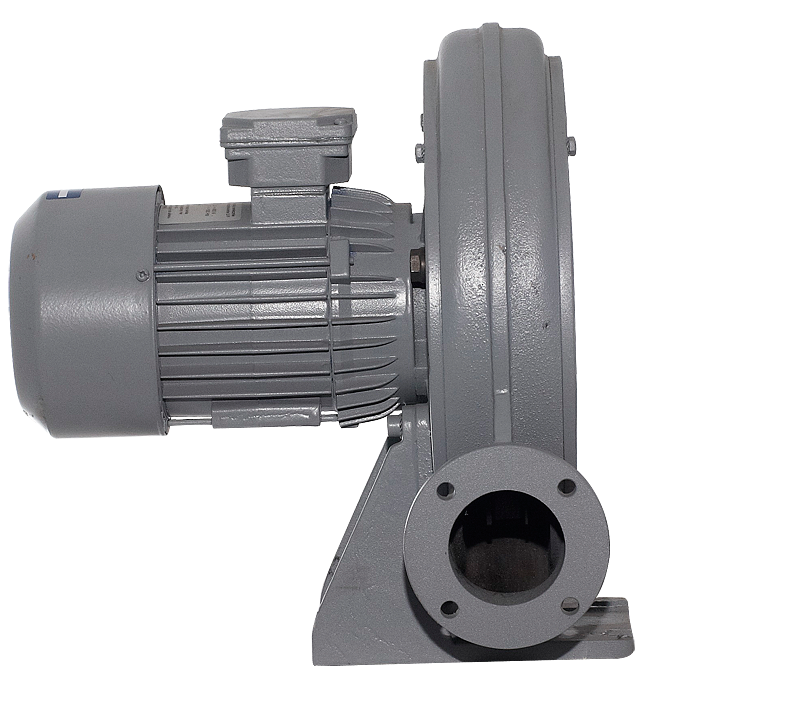

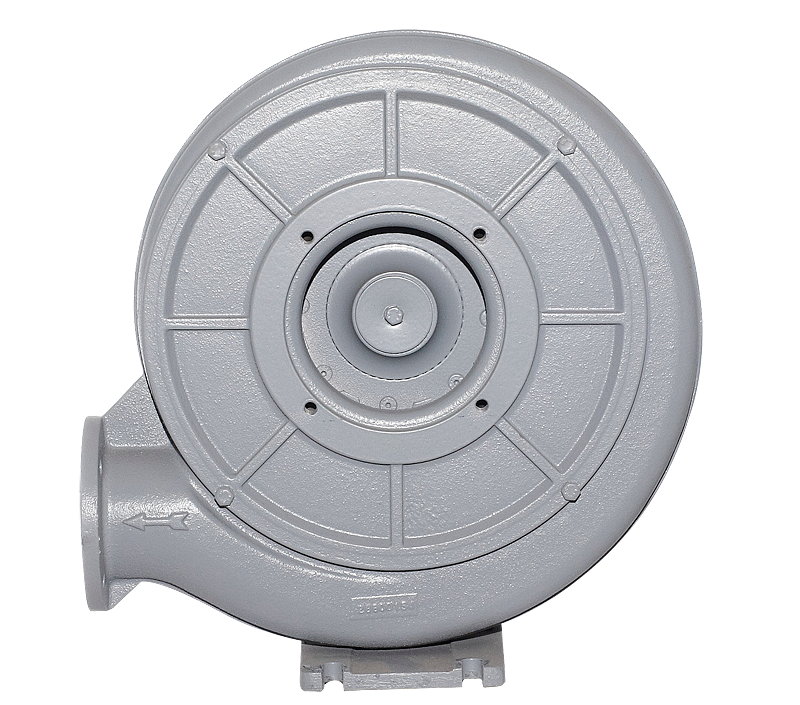

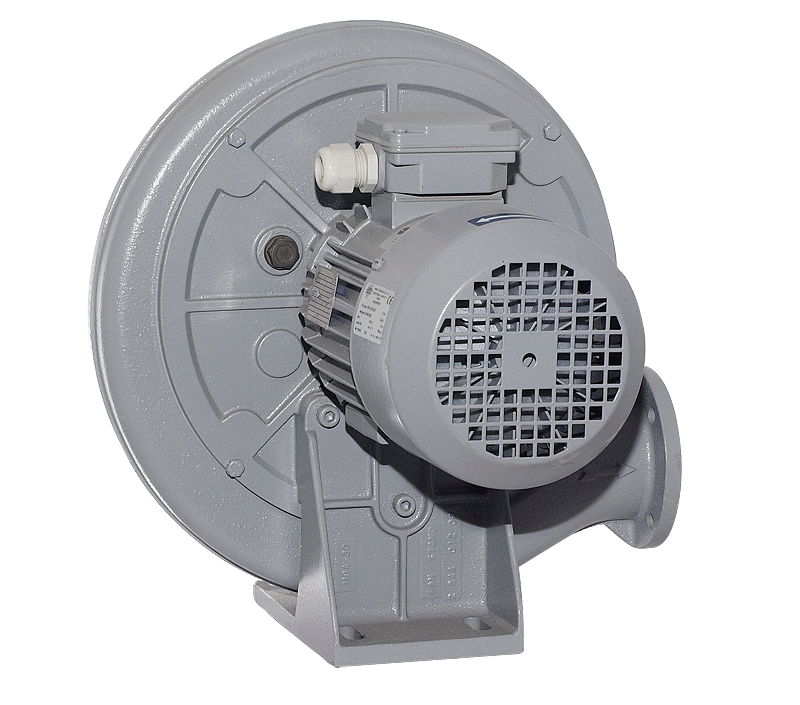

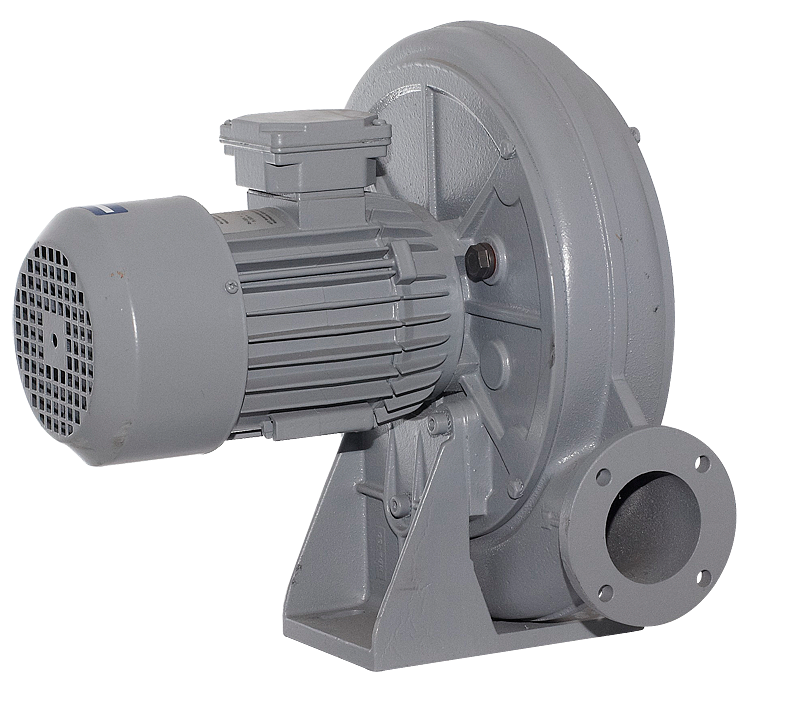

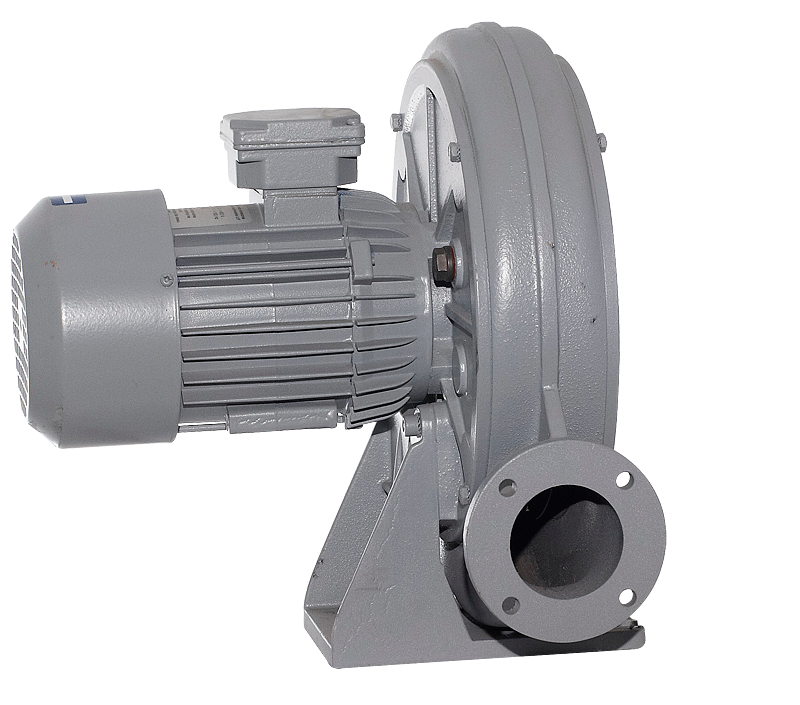

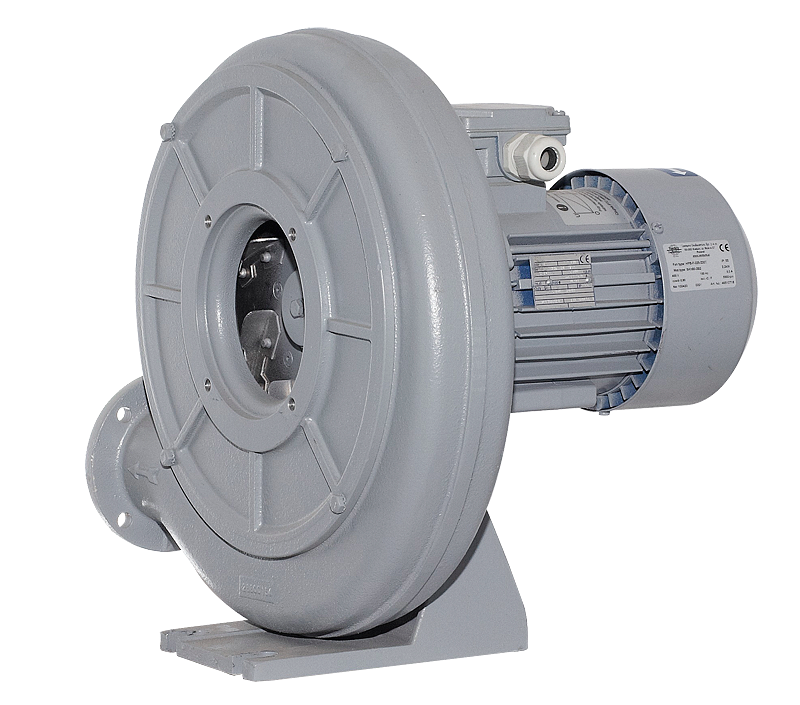

HPB-F 87Hz - Centrifugal fan

HPB-F 87Hz

Centrifugal fan

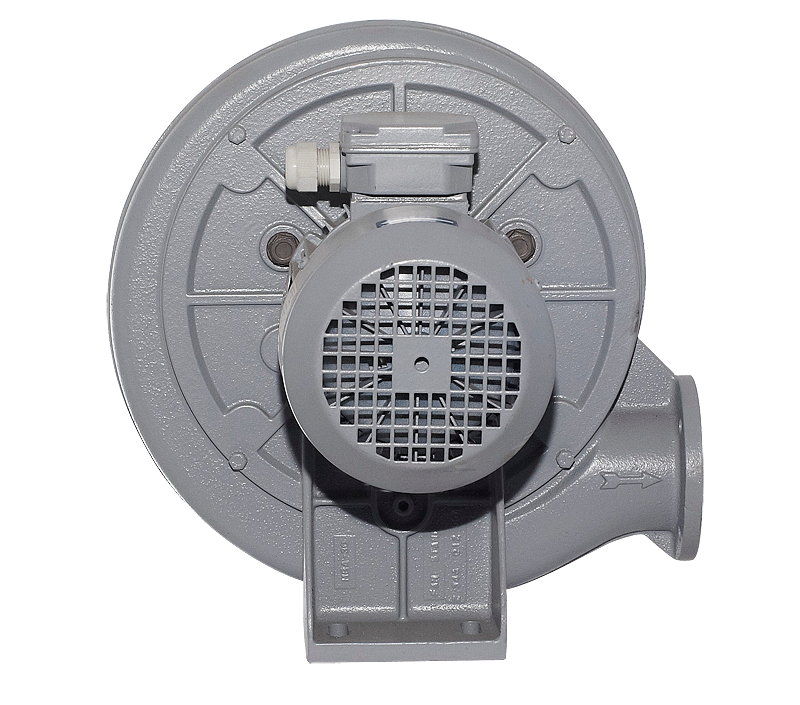

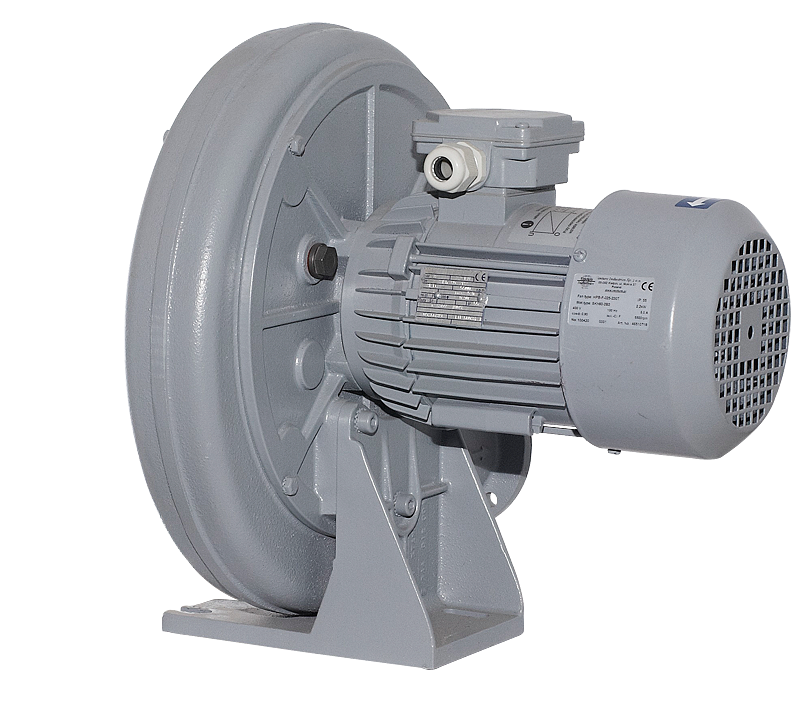

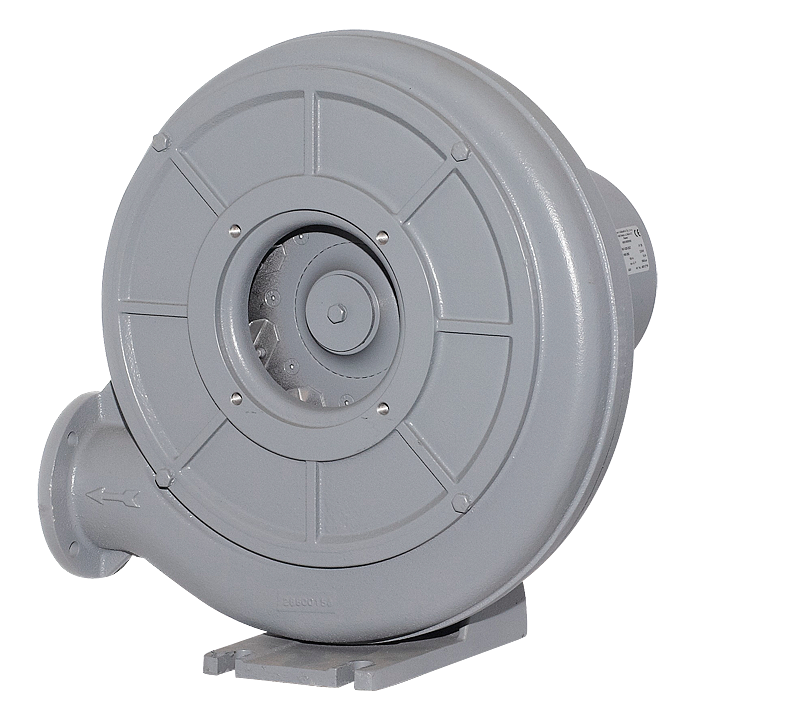

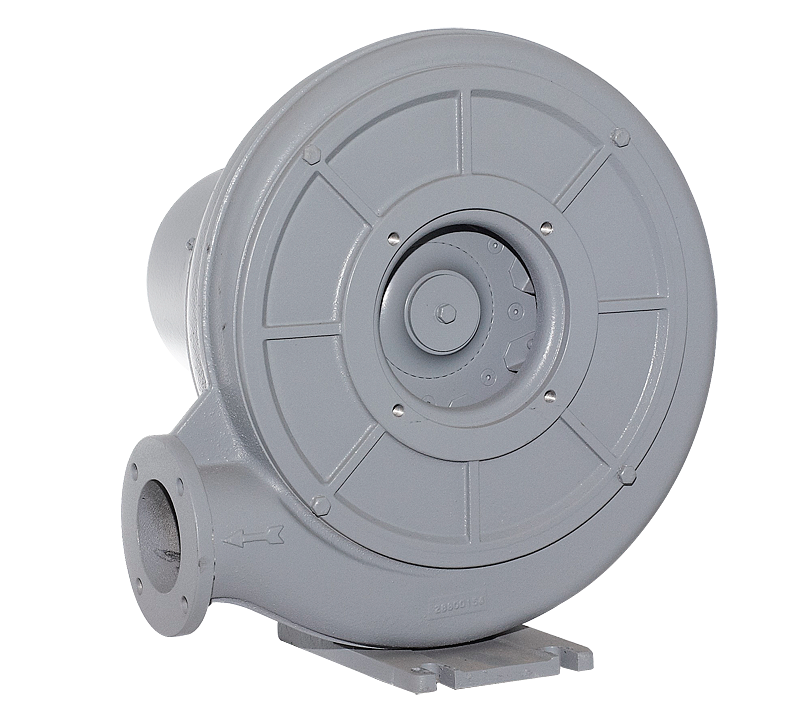

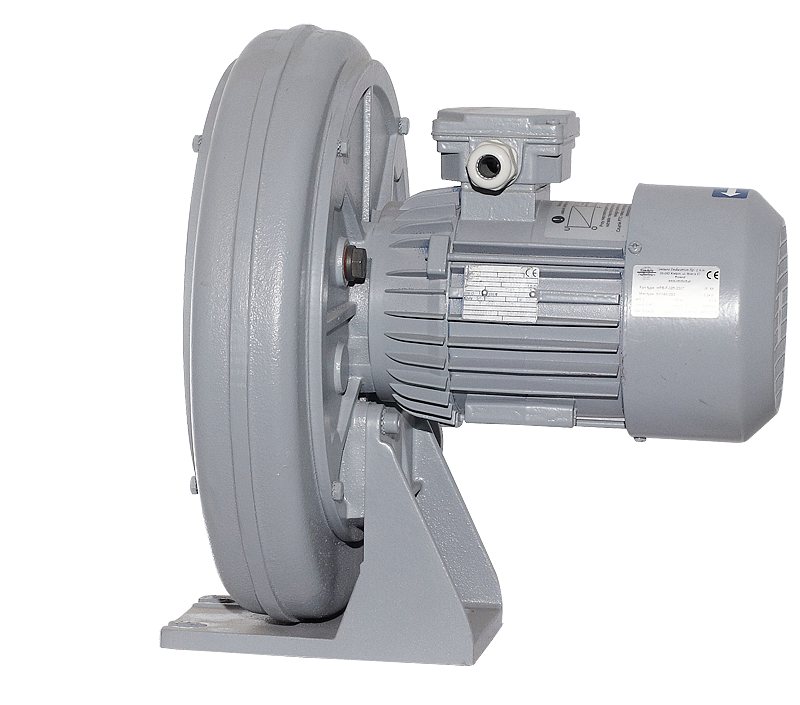

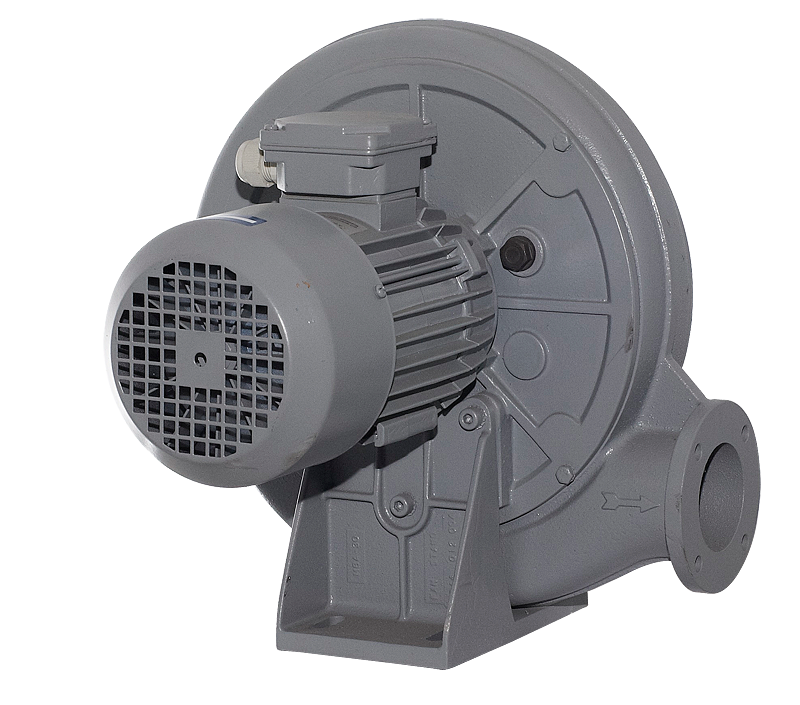

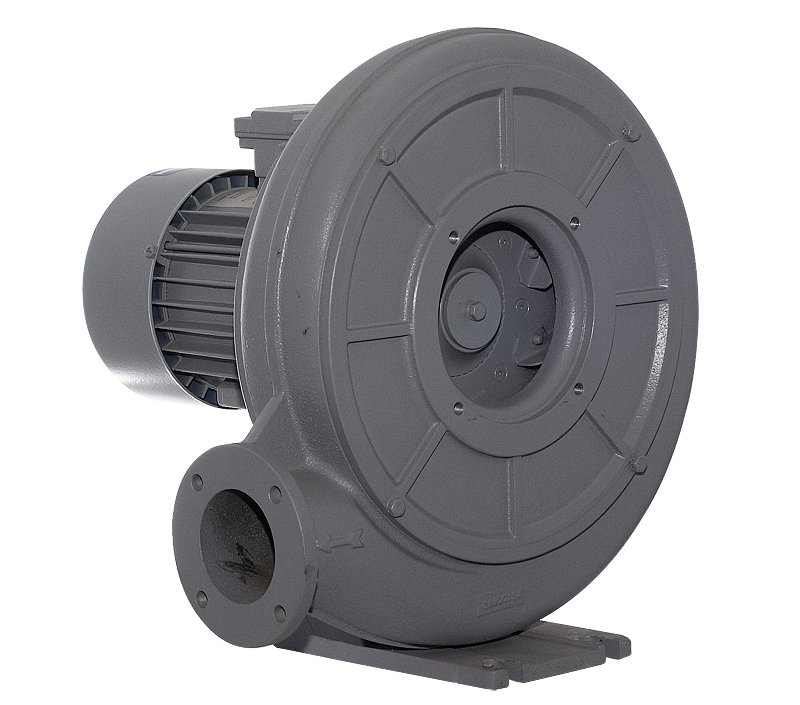

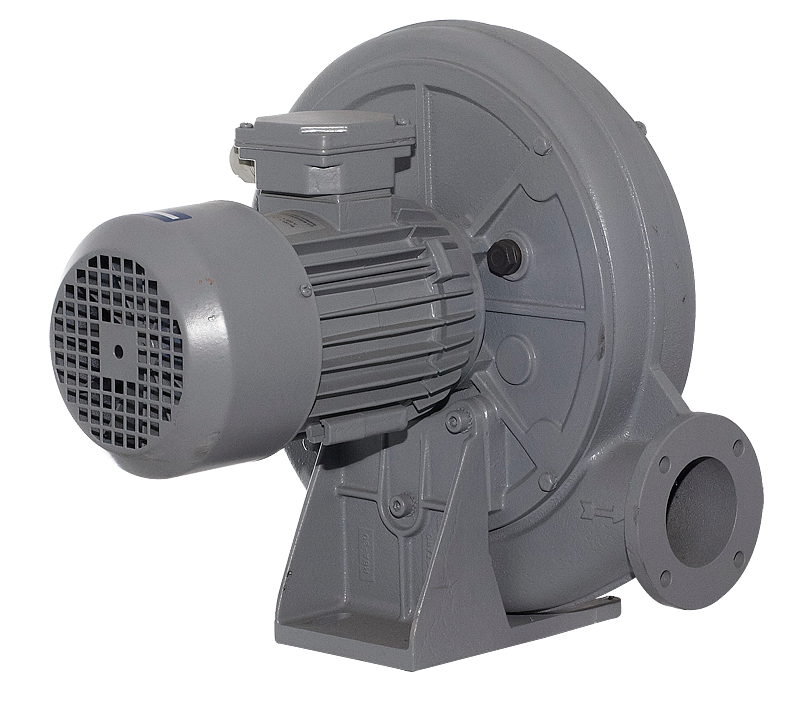

High-pressure centrifugal fans with direct drive. Riveted impeller made of aluminum sheet, with B-type blades. REQUIRED USE OF THE FREQUENCY DRIVE
Can be painted in a color
other than standard
Contact us

APPLICATION

The fan is designed for transport systems of non-aggressive and non-explosive gases without impurities. Typical applications are:
  • pneumatic conveying,
  • blowing in drying systems (e.g. graphic machines and plastics processing),
  • Air supply systems for combustion/heat treatment (e.g. melting furnaces).

CONSTRUCTION

  • High pressure centrifugal fan with direct drive,
  • riveted impeller made of aluminium sheet, with type B blades, dynamically balanced to ISO 1940-1,
  • cast aluminium housing,
  • base welded from steel sheet,
  • fan painted in grey RAL7042 (motor in manufacturer's color),
  • maximum temperature of pumped medium 80°C,
  • motor ambient temperature from -20°C to +40°C,
  • standard shape LG270.

MOTOR

  • asynchronous, three phase, 230/400 V, 50 Hz (connection in Δ for 87Hz - 87Hz technology),
  • degree of protection IP55,
  • insulation class F,
  • equipped with thermal protection PTC,
  • FC version equipped with an independent cooling module.
  • Frequency converter required for correct fan operation in 87Hz technology

SPECIAL EXECUTIONS

  • optional configuration LG / RD figure,
  • painted in a color other than the standard one,
  • Impeller made of galvanized steel sheet,
  • Impeller made of stainless steel 1.4301,
  • impeller made of stainless steel sheet 1.4404,
  • motor with a different IP degree of protection,
  • motor with sensors or additional cooling.

MOTOR TRANSDUCER

The converter supplying the motor must have the following classification U (f)

where: U - rated voltage of the motor operation; f - frequency 87Hz

If the recommendations are not followed, the motor current increases disproportionately and the drive motor does not reach the rated speed. Under no circumstances should the frequency (rotational speed) be set higher than the 87Hz frequency stated on the nameplate, because the motor may be overloaded or the fan damaged due to too high speed. The so-called boost, as this causes the drive motor to heat up too much. In order to protect the drive motor, a temperature sensor must be connected to the corresponding inputs of the converter.

Technical assistance

Choose a fan www.fanselectoronline.com

m3/h
Pa

Work characteristics

Dimensions

Type A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
HPB-F-025-060T 357 370 283 180 208 93 43 4 20
HPB-F-025-110T 357 370 310 180 208 93 43 4 20
HPB-F-025-130T 357 370 321 180 208 93 43 4 20
HPB-F-030-060T 357 370 309 180 208 93 43 4 20
HPB-F-030-100T 357 370 330 180 208 93 43 4 20
Type Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
HPB-F-025-060T 12 20 116 170 190 80 120 4
HPB-F-025-110T 12 20 116 170 190 80 120 4
HPB-F-025-130T 12 20 116 170 190 80 120 4
HPB-F-030-060T 12 20 116 170 190 80 120 4
HPB-F-030-100T 12 20 116 170 190 80 120 4
Type ØO ØD1 ØD2 ØD3 ØO1 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
HPB-F-025-060T 10 165 139 126 7 115 95 65
HPB-F-025-110T 10 165 139 126 7 115 95 65
HPB-F-025-130T 10 165 139 126 7 115 95 65
HPB-F-030-060T 11 165 139 126 7 160 135 100
HPB-F-030-100T 11 165 139 126 7 160 135 100
Type A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
HPB-F-040-130T 405 444 362 200 245 85 60 4 20
HPB-F-040-190T 405 444 380 200 245 85 60 4 20
HPB-F-040-260T 405 444 380 200 245 85 60 4 20
Type Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
HPB-F-040-130T 12 20 127 170 190 80 120 4
HPB-F-040-190T 12 20 127 170 190 80 120 4
HPB-F-040-260T 12 20 127 170 190 80 120 4
Type ØO ØD1 ØD2 ØD3 ØO1 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
HPB-F-040-130T 10 200 165 150 7 165 139 100
HPB-F-040-190T 10 200 165 150 7 165 139 100
HPB-F-040-260T 10 200 165 150 7 165 139 100
Type A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
HPB-F-200-260T 450 514 358 210 290 91 59 4 13
HPB-F-200-380T 450 514 210 290 91 59 4 13
HPB-F-260-260T 450 514 380 210 290 91 59 4 13
HPB-F-260-380T 450 514 492 210 290 91 59 4 13
HPB-F-260-520T 450 514 492 210 290 91 59 4 13
Type Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
HPB-F-200-260T 13 18 218 328 350 200 250 4
HPB-F-200-380T 13 18 218 328 350 200 250 4
HPB-F-260-260T 13 18 218 328 350 200 250 4
HPB-F-260-380T 13 18 218 328 350 200 250 4
HPB-F-260-520T 13 18 218 328 350 200 250 4
Type ØO ØD1 ØD2 ØD3 ØO1 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
HPB-F-200-260T 10 165 139 126 7 165 139 100
HPB-F-200-380T 10 165 139 126 7 165 139 100
HPB-F-260-260T 10 200 182 162 7 165 139 100
HPB-F-260-380T 10 200 182 162 7 165 139 100
HPB-F-260-520T 10 200 182 162 7 165 139 100
Type A B C E F S T X Y Z
  mm mm mm mm mm mm mm mm mm mm
HPB-F-300-380T 523 624 516 248 367 145 73 4 28 12
HPB-F-300-520T 523 644 685 248 387 165 73 4 28 12
HPB-F-300-690T 523 644 685 248 387 165 73 4 28 12
Type N1 N2 N3 N4 N5 P1 P2 X1
  mm mm mm mm mm mm mm mm
HPB-F-300-380T 31 221 396 411 470 340 380 8
HPB-F-300-520T 31 221 396 411 470 340 380 8
HPB-F-300-690T 31 221 396 411 470 340 380 8
Type ØO ØD1 ØD2 ØD3 ØO1 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
HPB-F-300-380T 10 200 182 140 5 191 165 125
HPB-F-300-520T 10 200 182 140 5 191 165 125
HPB-F-300-690T 10 200 182 140 5 191 165 125
Type A B C E F S T X N1
  mm mm mm mm mm mm mm mm mm
HPB-F-360-690T 570 649 692 270 368 135 86 4 50
HPB-F-360-950T 570 649 692 270 368 135 86 4 50
HPB-F-360-1300T 570 649 692 270 368 135 86 4 50
Type N2 N3 N4 N5 N6 N7 N8
  mm mm mm mm mm mm mm
HPB-F-360-690T 240 377 395 415 463 56 234
HPB-F-360-950T 240 377 395 415 463 56 234
HPB-F-360-1300T 240 377 395 415 463 56 234
Type P1 P2 P3 X1 X2 ØO ØD1
  mm mm mm mm mm mm mm
HPB-F-360-690T 334 390 430 4 10 10 200
HPB-F-360-950T 334 390 430 4 10 10 200
HPB-F-360-1300T 334 390 430 4 10 10 200
Type ØD2 ØD3 ØO1 ØO2 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm
HPB-F-360-690T 182 162 7 15 230 200 160
HPB-F-360-950T 182 162 7 15 230 200 160
HPB-F-360-1300T 182 162 7 15 230 200 160
Type A B C E F S T X
  mm mm mm mm mm mm mm mm
HPB-F-400-950T 625 700 779 295 400 125 88 8
HPB-F-400-1300T 625 700 779 295 400 125 88 8
HPB-F-400-1900T 625 700 779 295 400 125 88 8
Type N1 N2 N3 N4 N5 N6 N7
  mm mm mm mm mm mm mm
HPB-F-400-950T 35 265 495 516 530 166 356
HPB-F-400-1300T 35 265 495 516 530 166 356
HPB-F-400-1900T 35 265 495 516 530 166 356
Type P1 P2 P3 X1 X2 ØO ØD1
  mm mm mm mm mm mm mm
HPB-F-400-950T 390 410 458 8 10 12 234
HPB-F-400-1300T 390 410 458 8 10 12 234
HPB-F-400-1900T 390 410 458 8 10 12 234
Type ØD2 ØD3 ØO1 ØO2 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm
HPB-F-400-950T 200 162 5 13 234 200 160
HPB-F-400-1300T 200 162 5 13 234 200 160
HPB-F-400-1900T 200 162 5 13 234 200 160
