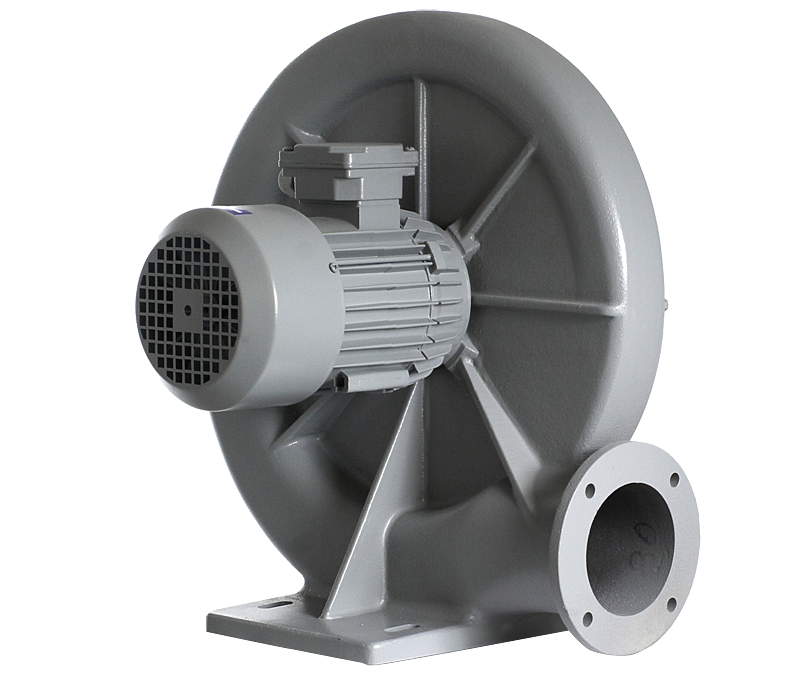

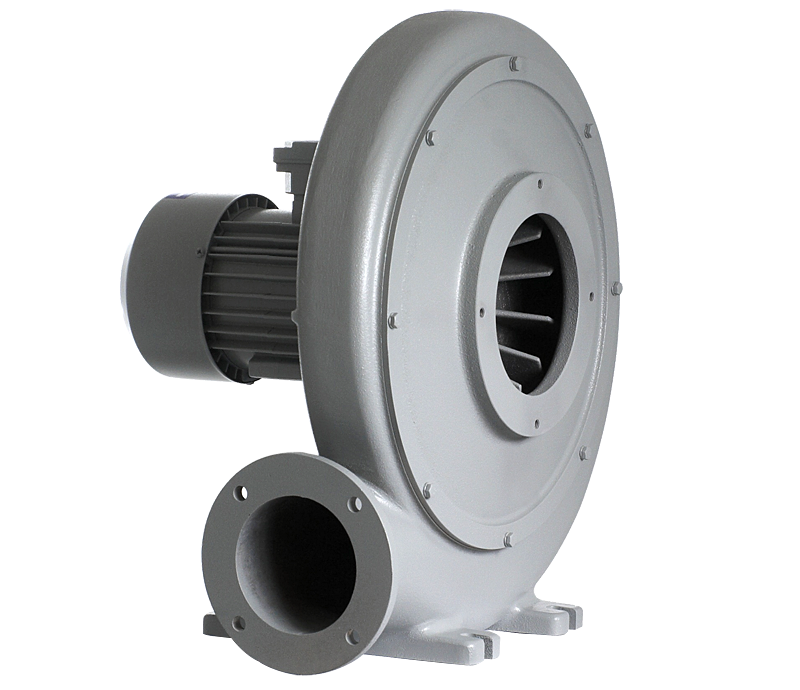

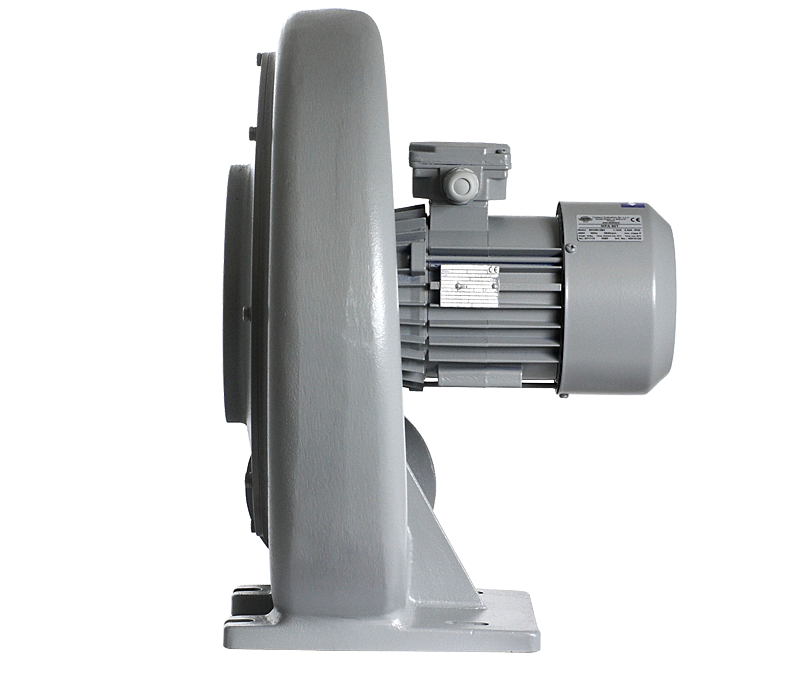

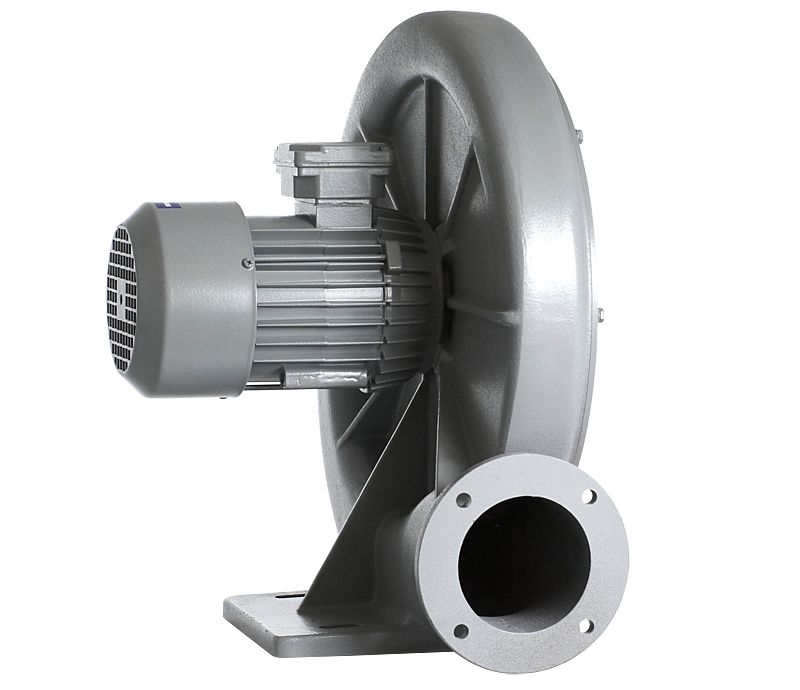

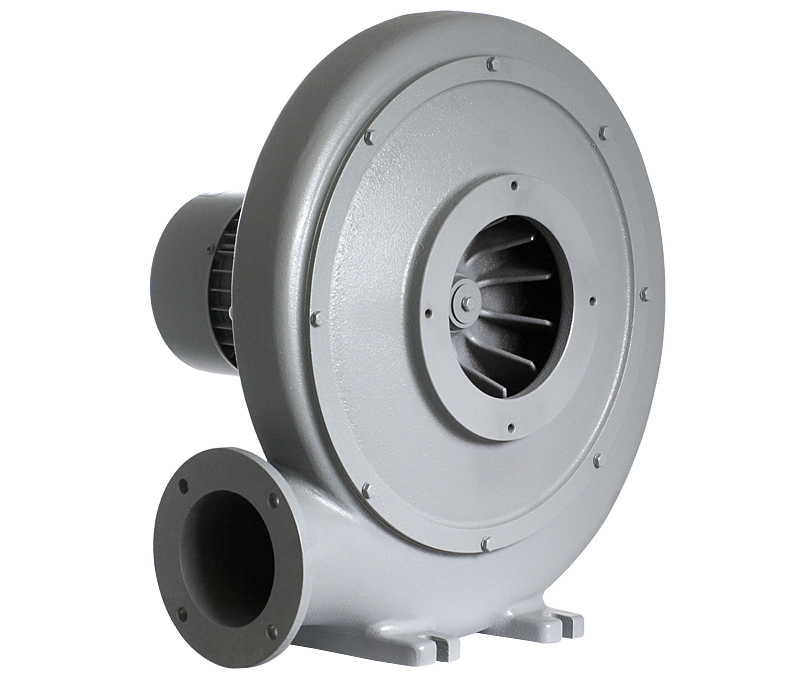

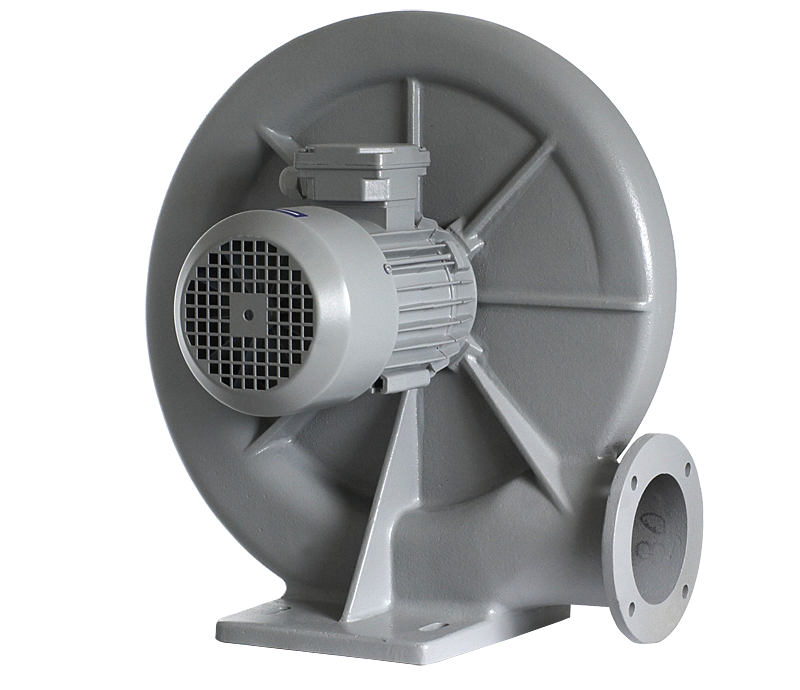

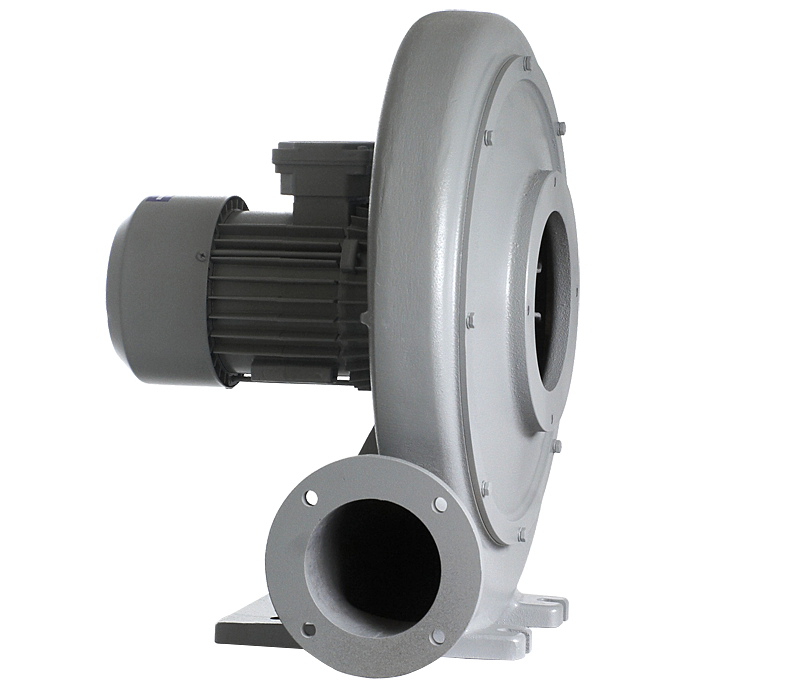

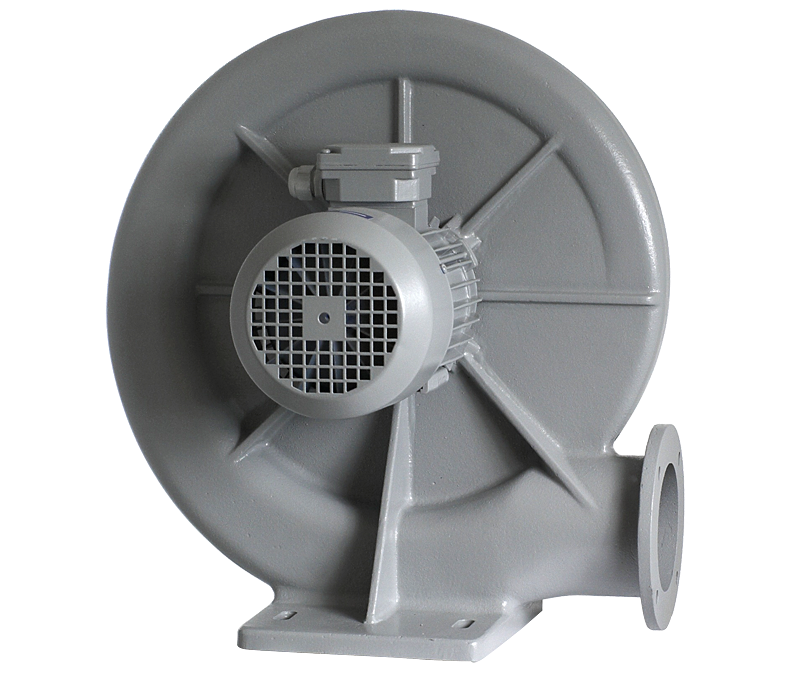

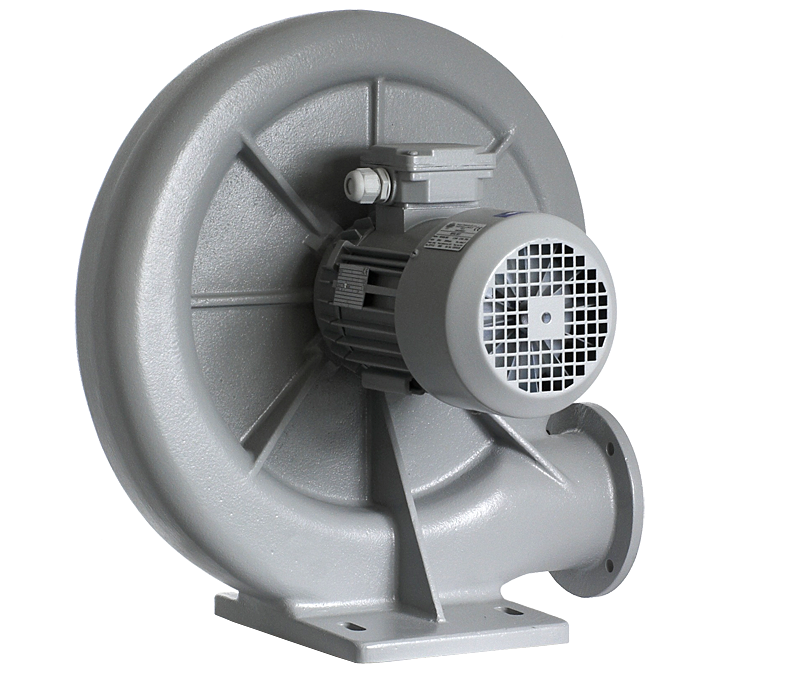

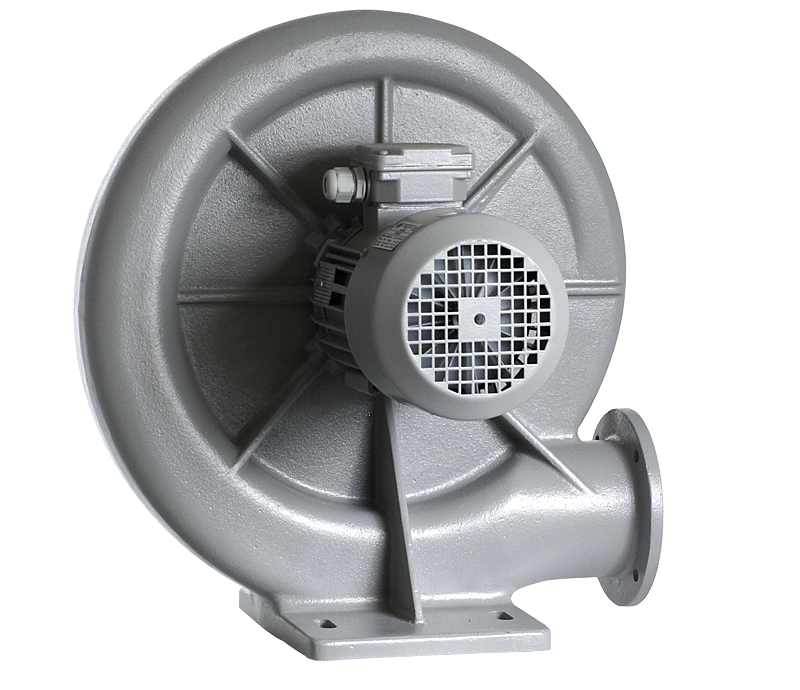

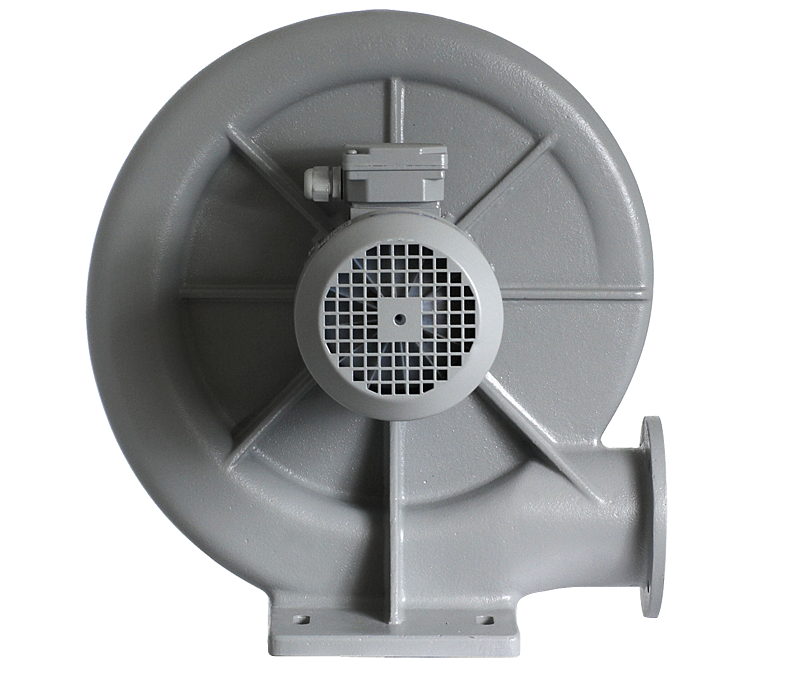

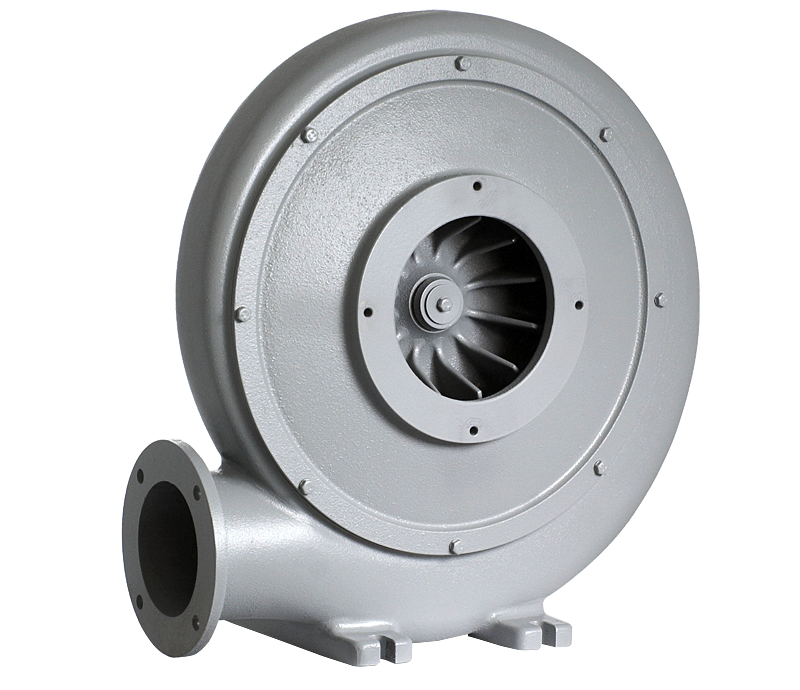

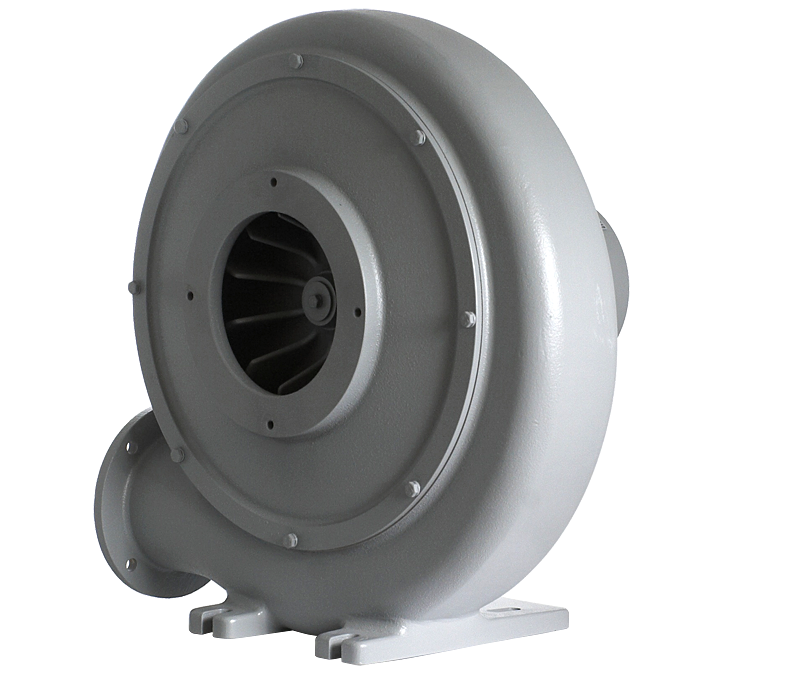

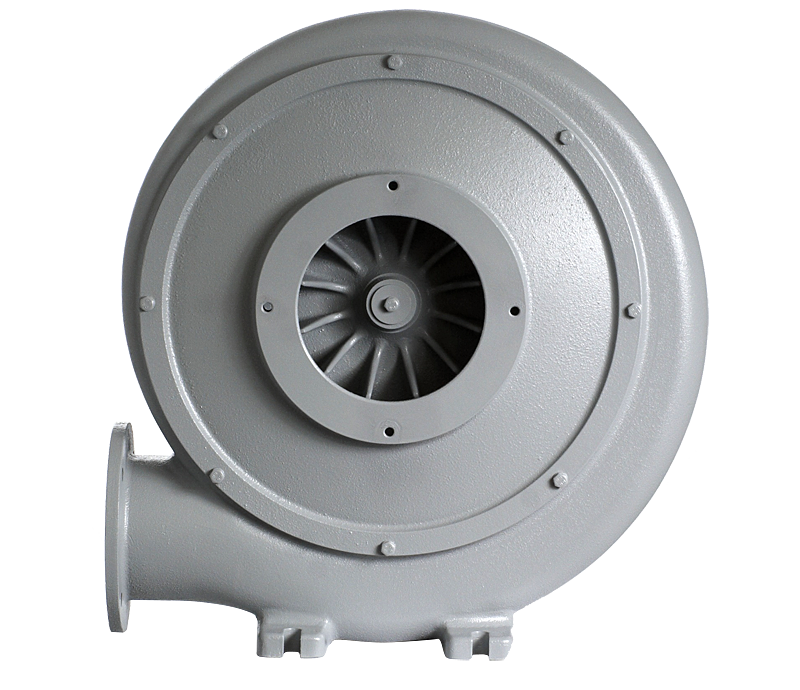

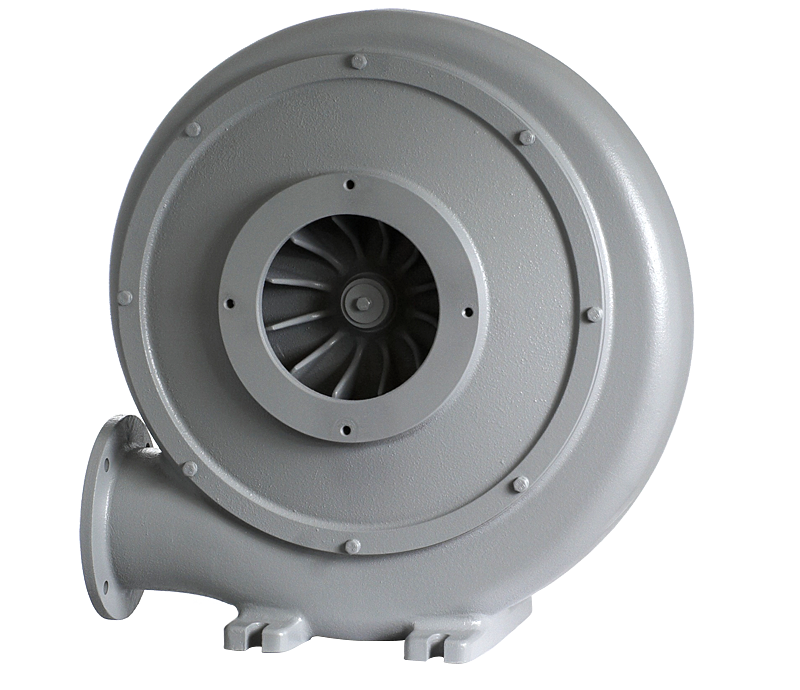

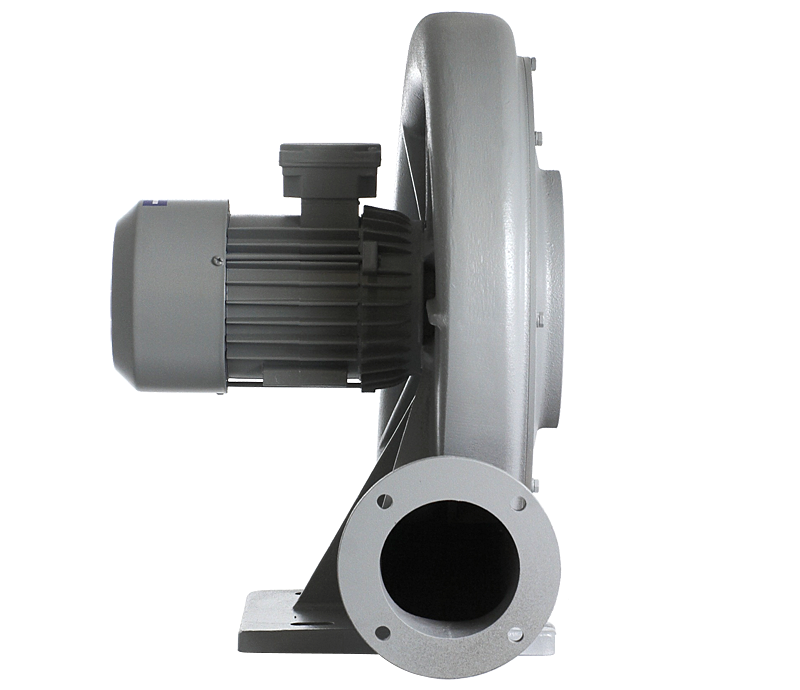

MPA - Centrifugal fan

MPA

Centrifugal fan

Medium-pressure centrifugal fans with direct drive. MPA fans have many applications in industry, including local extractors, dehumidifiers, drying systems, transport of chips, sawdust, granulates, car exhausts.
Can be painted in a color
other than standard
Contact us

APPLICATION

Fan dedicated to polluted air exhaust systems and pneumatic transport. Examples of use:

  • local exhaust systems, dehumidifiers, drying systems,
  • transport of shavings, sawdust, granulates,
  • combustion gases exhaustion systems.

CONSTRUCTION

  • medium-pressure, directly driven centrifugal fans,
  • the impeller is made of aluminum alloy, provided with straight blades is dynamically balanced according to ISO 1940-1 (in models to 290, in models from 350 and 600 the impeller is welded of steel sheet),
  • the housing is cast in aluminum alloy,
  • motor support in the 600 model,
  • galvanized mesh on inlet in models 200 and 600
  • standard color of the fan is gray RAL 7042,
  • maximum temperature of the transported medium is 80oC,
  • ambient temperature range from -20oC to +40oC,
  • figure LG270 (model 350 in the figure RD270).

MOTOR

  • asynchronous single-phase 230V 50Hz,
  • asynchronous, three-phase 230V/400V 50Hz,
  • asynchronous, three-phase 400V/690V 50Hz,
  • degree of protection IP55,
  • insulation class F,
  • three-phase motors are adapted for frequency converter.

SPECIAL EXECUTIONS

  • optional configuration LG/RD (in models from 160 to 290),
  • color other than standard,
  • painting in higher category of corrosivity,
  • impeller made of galvanized steel sheet,
  • impeller made of 1.4301 stainless steel sheet,
  • impeller made of acid-resistant steel sheet 1.4404,
  • motor with voltage and frequency of power different than standard,
  • single-phase motor adapted to voltage regulation,
  • motor with other than standard degree of protection,
  • motor equipped with sensors or additional cooling,
  • sealing between the housing and the motor,
  • maximum temperature of the transported medium above 80oC,
  • ambient temperature range below -20oC and above +40oC.

Technical assistance

Catalog card

Choose a fan www.fanselectoronline.com

m3/h
Pa
Type airflow max pressure max power max Rotation speed current max voltage Sound power
level*		 temp.
min		 temp.
max		 weight
  m3/h Pa W rpm A V db(A) oC oC kg
MPA 01S 140 635 50 2900 0.9 230 61 -20 40 6.8

MPA 01S

Nominal parameters

  • Max. volume flow 140 m3/h
  • Maximum pressure 635 Pa
  • Rotation speed 2900 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 50 W
  • Rated current 0.9 A
  • Rated frequency 50 Hz
  • Diameter 65 mm
  • Weight 6.8 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 61 dB(A)
  • Distance 1.5 m
MPA 01T 140 635 50 2900 0.32 400 61 -20 40 6.8

MPA 01T

Nominal parameters

  • Max. volume flow 140 m3/h
  • Maximum pressure 635 Pa
  • Rotation speed 2900 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 50 W
  • Rated current 0.32 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 65 mm
  • Weight 6.8 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 61 dB(A)
  • Distance 1.5 m
MPA 03S 430 1240 250 2890 1.6 230 74 -20 40 8.6

MPA 03S

Nominal parameters

  • Max. volume flow 430 m3/h
  • Maximum pressure 1240 Pa
  • Rotation speed 2890 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 250 W
  • Rated current 1.6 A
  • Rated frequency 50 Hz
  • Diameter 65 mm
  • Weight 8.6 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Capacitance 8 uF
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 74 dB(A)
  • Distance 1.5 m
MPA 03T 360 1180 180 2870 0.5 400 72 -20 40 8.6

MPA 03T

Nominal parameters

  • Max. volume flow 360 m3/h
  • Maximum pressure 1180 Pa
  • Rotation speed 2870 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 180 W
  • Rated current 0.5 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 65 mm
  • Weight 8.6 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 72 dB(A)
  • Distance 1.5 m
MPA 25S 390 1260 180 2780 1.1 230 78 -20 40 9.5

MPA 25S

Nominal parameters

  • Max. volume flow 390 m3/h
  • Maximum pressure 1260 Pa
  • Rotation speed 2780 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 180 W
  • Rated current 1.1 A
  • Rated frequency 50 Hz
  • Diameter 65 mm
  • Weight 9.5 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Capacitance 8 uF
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 78 dB(A)
  • Distance 1.5 m
MPA 25T 385 1280 180 2870 0.5 400 78 -20 40 8.2

MPA 25T

Nominal parameters

  • Max. volume flow 385 m3/h
  • Maximum pressure 1280 Pa
  • Rotation speed 2870 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 180 W
  • Rated current 0.5 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 65 mm
  • Weight 8.2 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 78 dB(A)
  • Distance 1.5 m
MPA 40S 345 2090 370 2880 2.2 230 74 -20 40 18

MPA 40S

Nominal parameters

  • Max. volume flow 345 m3/h
  • Maximum pressure 2090 Pa
  • Rotation speed 2880 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 370 W
  • Rated current 2.2 A
  • Rated frequency 50 Hz
  • Diameter 80 mm
  • Weight 18 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Capacitance 25 uF
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 74 dB(A)
  • Distance 1.5 m
MPA 40T 330 2110 370 2870 0.85 400 74 -20 40 16

MPA 40T

Nominal parameters

  • Max. volume flow 330 m3/h
  • Maximum pressure 2110 Pa
  • Rotation speed 2870 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 370 W
  • Rated current 0.85 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 80 mm
  • Weight 16 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 74 dB(A)
  • Distance 1.5 m
MPA 50S 500 2080 550 2780 3.1 230 84 -20 40 17.6

MPA 50S

Nominal parameters

  • Max. volume flow 500 m3/h
  • Maximum pressure 2080 Pa
  • Rotation speed 2780 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 550 W
  • Rated current 3.1 A
  • Rated frequency 50 Hz
  • Diameter 80 mm
  • Weight 17.6 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Capacitance 20 uF
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 84 dB(A)
  • Distance 1.5 m
MPA 50T 650 2120 550 2870 1.25 400 78 -20 40 17.7

MPA 50T

Nominal parameters

  • Max. volume flow 650 m3/h
  • Maximum pressure 2120 Pa
  • Rotation speed 2870 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 550 W
  • Rated current 1.25 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 80 mm
  • Weight 17.7 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 78 dB(A)
  • Distance 1.5 m
MPA 60S 590 2170 550 2870 3.1 230 78 -20 40 24

MPA 60S

Nominal parameters

  • Max. volume flow 590 m3/h
  • Maximum pressure 2170 Pa
  • Rotation speed 2870 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 550 W
  • Rated current 3.1 A
  • Rated frequency 50 Hz
  • Diameter 100 mm
  • Weight 24 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Capacitance 35 uF
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 78 dB(A)
  • Distance 1.5 m
MPA 60T 640 2145 550 2870 1.25 400 79 -20 40 24

MPA 60T

Nominal parameters

  • Max. volume flow 640 m3/h
  • Maximum pressure 2145 Pa
  • Rotation speed 2870 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 550 W
  • Rated current 1.25 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 100 mm
  • Weight 24 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 79 dB(A)
  • Distance 1.5 m
MPA 70S 910 2110 750 2880 4.2 230 76 -20 40 28

MPA 70S

Nominal parameters

  • Max. volume flow 910 m3/h
  • Maximum pressure 2110 Pa
  • Rotation speed 2880 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 750 W
  • Rated current 4.2 A
  • Rated frequency 50 Hz
  • Diameter 100 mm
  • Weight 28 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Capacitance 50 uF
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 76 dB(A)
  • Distance 1.5 m
MPA 70T 840 2140 750 2890 1.7 400 81 -20 40 24.3

MPA 70T

Nominal parameters

  • Max. volume flow 840 m3/h
  • Maximum pressure 2140 Pa
  • Rotation speed 2890 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 750 W
  • Rated current 1.7 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 100 mm
  • Weight 24.3 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 81 dB(A)
  • Distance 1.5 m
MPA 80S 800 2170 750 2800 4.2 230 85 -20 40 20.5

MPA 80S

Nominal parameters

  • Max. volume flow 800 m3/h
  • Maximum pressure 2170 Pa
  • Rotation speed 2800 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 750 W
  • Rated current 4.2 A
  • Rated frequency 50 Hz
  • Diameter 100 mm
  • Weight 20.5 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Capacitance 25 uF
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 85 dB(A)
  • Distance 1.5 m
MPA 80T 850 2200 750 2890 1.7 400 81 -20 40 21.5

MPA 80T

Nominal parameters

  • Max. volume flow 850 m3/h
  • Maximum pressure 2200 Pa
  • Rotation speed 2890 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 750 W
  • Rated current 1.7 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 100 mm
  • Weight 21.5 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 81 dB(A)
  • Distance 1.5 m
MPA 90S 1240 2160 1100 2800 5.8 230 85 -20 40 21

MPA 90S

Nominal parameters

  • Max. volume flow 1240 m3/h
  • Maximum pressure 2160 Pa
  • Rotation speed 2800 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 1100 W
  • Rated current 5.8 A
  • Rated frequency 50 Hz
  • Diameter 100 mm
  • Weight 21 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Capacitance 30 uF
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 85 dB(A)
  • Distance 1.5 m
MPA 90T 1290 2230 1100 2890 2.5 400 85 -20 40 24

MPA 90T

Nominal parameters

  • Max. volume flow 1290 m3/h
  • Maximum pressure 2230 Pa
  • Rotation speed 2890 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 1100 W
  • Rated current 2.5 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 100 mm
  • Weight 24 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 85 dB(A)
  • Distance 1.5 m
MPA 160T 1995 2300 2200 2895 4.6 400 83 -20 40 43.5

MPA 160T

Nominal parameters

  • Max. volume flow 1995 m3/h
  • Maximum pressure 2300 Pa
  • Rotation speed 2895 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 2200 W
  • Rated current 4.6 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 125 mm
  • Weight 43.5 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 83 dB(A)
  • Distance 1.5 m
MPA 200T 1995 2790 2200 2895 4.6 400 90 -20 40 43

MPA 200T

Nominal parameters

  • Max. volume flow 1995 m3/h
  • Maximum pressure 2790 Pa
  • Rotation speed 2895 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 2200 W
  • Rated current 4.6 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 125 mm
  • Weight 43 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 90 dB(A)
  • Distance 1.5 m
MPA 290T 3770 3165 4000 2895 7.3 400 90 -20 40 60.2

MPA 290T

Nominal parameters

  • Max. volume flow 3770 m3/h
  • Maximum pressure 3165 Pa
  • Rotation speed 2895 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 4000 W
  • Rated current 7.3 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 180 mm
  • Weight 60.2 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 90 dB(A)
  • Distance 1.5 m
MPA 350T 4150 3800 5500 2890 9.8 400 92 -20 40 80

MPA 350T

Nominal parameters

  • Max. volume flow 4150 m3/h
  • Maximum pressure 3800 Pa
  • Rotation speed 2890 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 5500 W
  • Rated current 9.8 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 170 mm
  • Weight 80 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 92 dB(A)
  • Distance 1.5 m
MPA 600T 11kW 3240 6950 11000 2900 19.1 400 95 -20 40 160

MPA 600T 11kW

Nominal parameters

  • Max. volume flow 3240 m3/h
  • Maximum pressure 6950 Pa
  • Rotation speed 2900 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 11000 W
  • Rated current 19.1 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 180 mm
  • Weight 160 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 95 dB(A)
  • Distance 1.5 m
MPA 600T 15kW 4900 6950 15000 2940 26.2 400 99 -20 40 203

MPA 600T 15kW

Nominal parameters

  • Max. volume flow 4900 m3/h
  • Maximum pressure 6950 Pa
  • Rotation speed 2940 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 15000 W
  • Rated current 26.2 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Min. allowed frequency 25 Hz
  • Diameter 180 mm
  • Weight 203 kg
  • Motor type AC
  • Speed number 2
  • Motor protection class 55
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 80 °C
  • Sound pressure level 99 dB(A)
  • Distance 1.5 m

* measured in distance 1.5m from the fan.

Work characteristics

Dimensions

Type A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
MPA 01S 257 296 155 120 167 71 37 4 20
MPA 01T 257 296 155 120 167 71 37 4 20
MPA 03S 327 333 243 160 174 58 62 4 19
MPA 03T 327 333 243 160 174 58 62 4 19
MPA 25S 327 333 257 160 174 58 62 4 19
MPA 25T 327 333 257 160 174 58 62 4 19
MPA 40S 433 464 295 200 246 65 76 4 20
MPA 40T 433 464 295 200 246 65 76 4 20
MPA 50S 433 464 331 200 246 65 76 4 20
MPA 50T 433 464 331 200 246 65 76 4 20
MPA 60S 451 483 335 210 258 91 58 4 20
MPA 60T 451 483 335 210 258 91 58 4 20
MPA 70S 451 483 335 210 258 91 58 4 20
MPA 70T 451 483 335 210 258 91 58 4 20
MPA 80S 450 483 341 210 261 82 85 4 20
MPA 80T 450 483 341 210 261 82 85 4 20
MPA 90S 450 483 341 210 261 82 85 4 20
MPA 90T 450 483 341 210 261 82 85 4 20
Type Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
MPA 01S 9 20 159 179 119 50 97 4
MPA 01T 9 20 159 179 119 50 97 4
MPA 03S 12 30 108 159 180 80 120 4
MPA 03T 12 30 108 159 180 80 120 4
MPA 25S 12 30 108 159 180 80 120 4
MPA 25T 12 30 108 159 180 80 120 4
MPA 40S 13 45 155 215 230 140 190 4
MPA 40T 13 45 155 215 230 140 190 4
MPA 50S 13 45 155 215 230 140 190 4
MPA 50T 13 45 155 215 230 140 190 4
MPA 60S 13 47 156 215 230 140 200 4
MPA 60T 13 47 156 215 230 140 200 4
MPA 70S 13 47 156 215 230 140 200 4
MPA 70T 13 47 156 215 230 140 200 4
MPA 80S 13 45 155 225 240 140 190 4
MPA 80T 13 45 155 225 240 140 190 4
MPA 90S 13 45 155 225 240 140 190 4
MPA 90T 13 45 155 225 240 140 190 4
Type Ø0 Ø01 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 01S 10 8 112 87 69,5 90 75 46
MPA 01T 10 8 112 87 69,5 90 75 46
MPA 03S 10 8 165 139 100 115 95 65
MPA 03T 10 8 165 139 100 115 95 65
MPA 25S 10 8 165 139 100 115 95 65
MPA 25T 10 8 165 139 100 115 95 65
MPA 40S 11 8 165 139 107 130 112 80
MPA 40T 11 8 165 139 107 130 112 80
MPA 50S 11 8 165 139 107 130 112 80
MPA 50T 11 8 165 139 107 130 112 80
MPA 60S 9.5 8 200 182 162 165 139 100
MPA 60T 9.5 8 200 182 162 165 139 100
MPA 70S 9.5 8 200 182 162 165 139 100
MPA 70T 9.5 8 200 182 162 165 139 100
MPA 80S 11 8 200 182 138 160 135 100
MPA 80T 11 8 200 182 138 160 135 100
MPA 90S 11 8 200 182 138 160 135 100
MPA 90T 11 8 200 182 138 160 135 100
Type A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
MPA 160T 506 595 476 220 342 127 107 4 20
MPA 290T 617 708 523 280 410 170 133 20 20
Type Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
MPA 160T 13 15 166 250 291 180 210 4
MPA 290T 13 16 166 250 295 180 215 13
Type Ø0 Ø01 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 160T 12 12 250 220 170 200 168 125
MPA 290T 13 9.5 245 217 180 260 230 179
Type A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
MPA 200T 506 595 476 220 342 127 107 4 20
Type Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
MPA 200T 13 15 166 250 291 180 210 4
Type Ø0 Ø01 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 200T 12 12 250 220 170 200 168 125
Type A B C E F S T X N1
  mm mm mm mm mm mm mm mm mm
MPA 600T 15kW 850 914 734 395 560 210 121 4 50
Type N2 N3 N4 N5 P1 P2 P3 X1 X2
  mm mm mm mm mm mm mm mm mm
MPA 600T 15kW 350 571 650 700 350 415 460 8 6
Type Ø0 Ø01 Ø02 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm mm
MPA 600T 15kW 14 9 14 280 260 212 270 240 180
Type A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
MPA 350T 617 708 582 280 410 170 133 4 20
Type Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
MPA 350T 13 16 166 250 295 180 215 8
Type Ø0 Ø01 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 350T 13 9.5 245 217 180 260 230 170
Type A B C E F S T X N1 N2
  mm mm mm mm mm mm mm mm mm mm
MPA 600T 11kW 850 920 688 395 500 150 117 4 30 290
Type N3 N4 P1 P2 P3 X1 X2 Ø0
  mm mm mm mm mm mm mm mm
MPA 600T 11kW 320 476 326 390 430 8 4 14
Type Ø01 Ø02 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 600T 11kW 9 13 280 260 212 270 240 180

Additional equipment


Venture Industries Group

Company

Products

Materials

This site uses cookies to deliver services in accordance with the Cookie Files Policy. You can specify the conditions for storage or access to cookies in your browser. I understand
