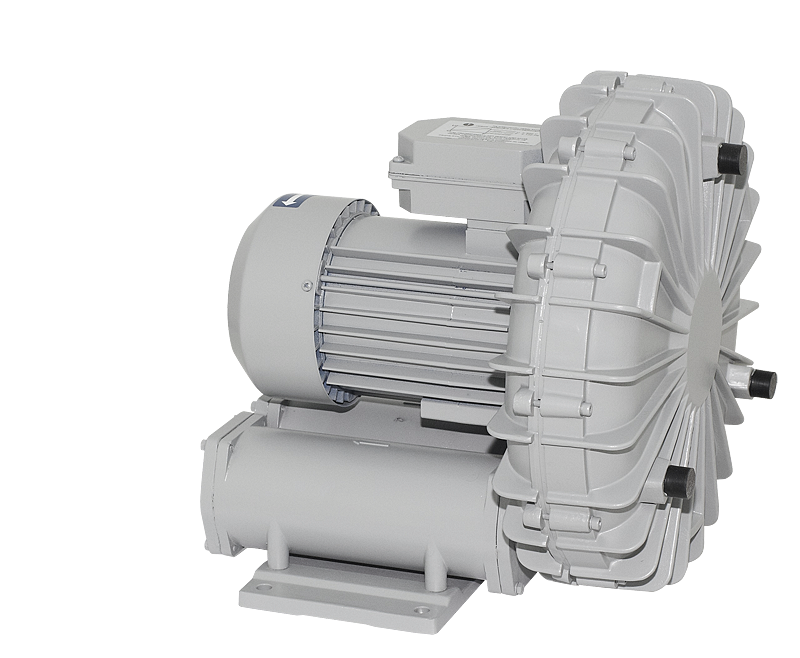

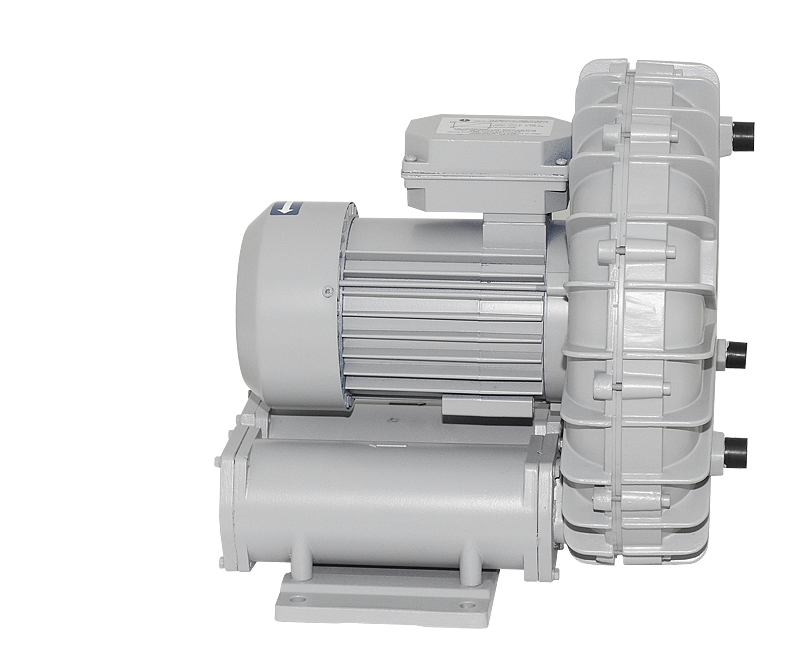

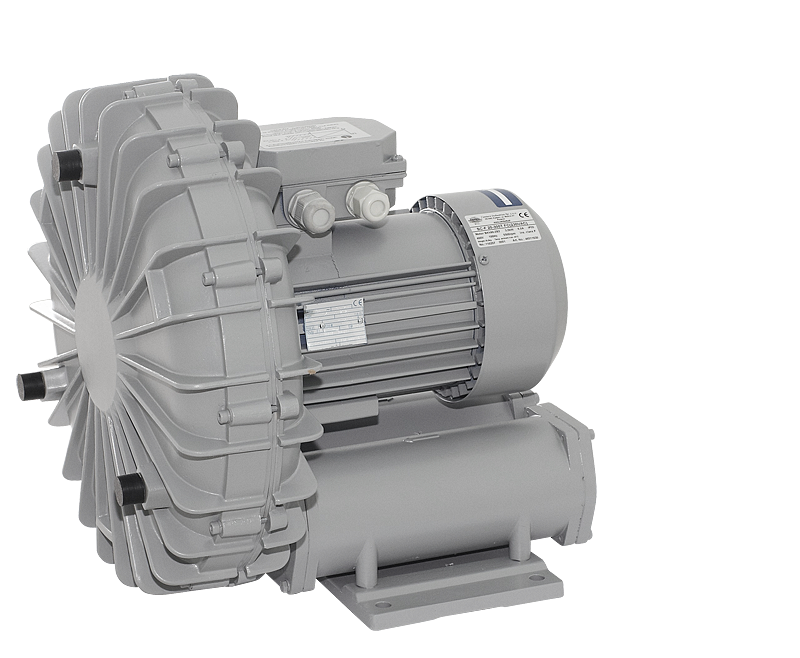

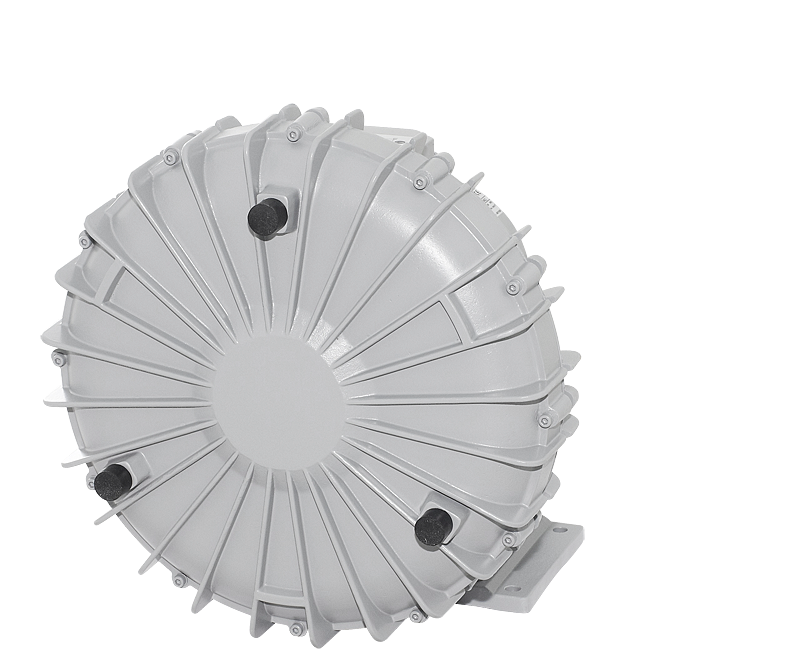

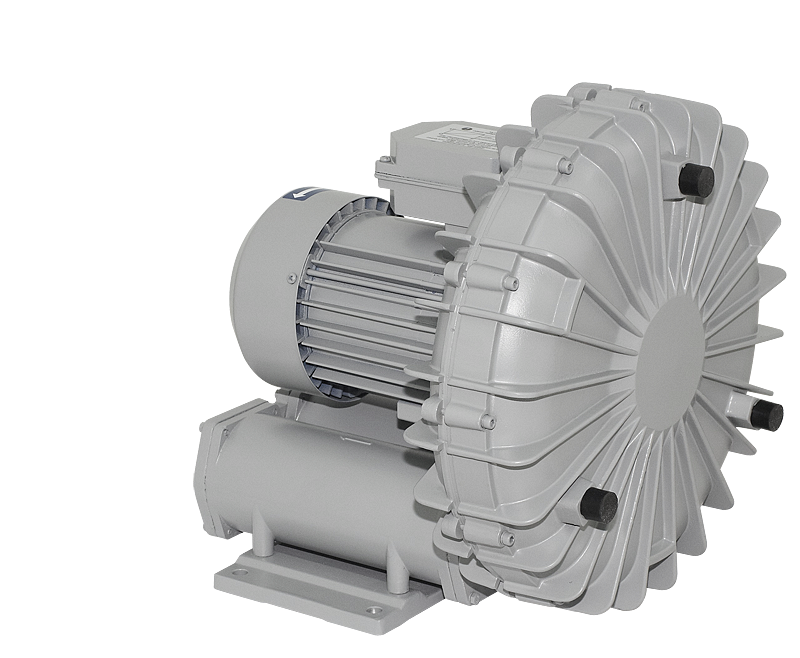

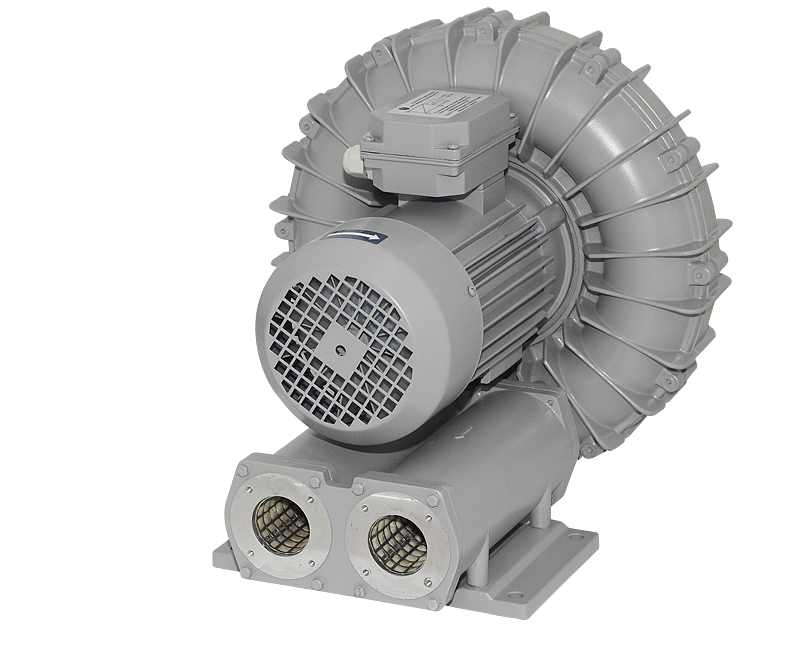

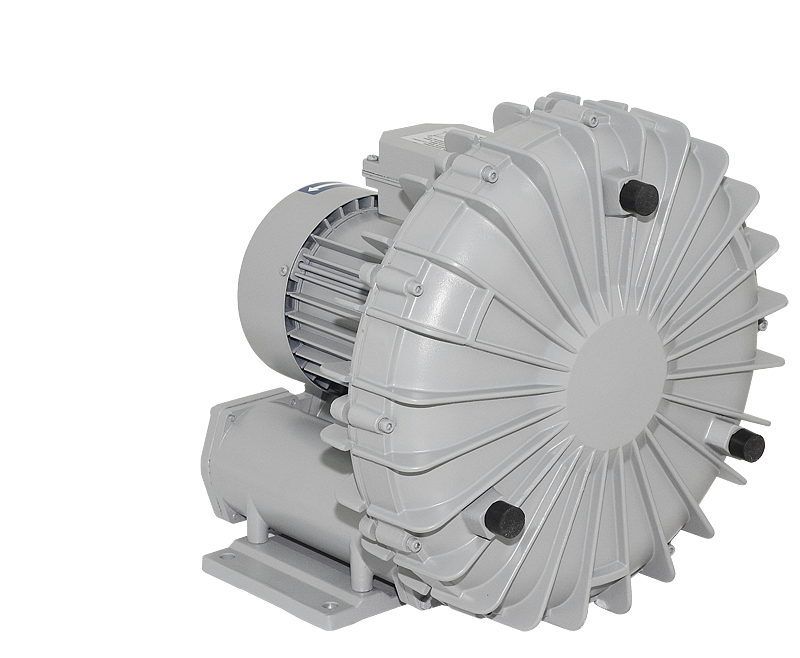

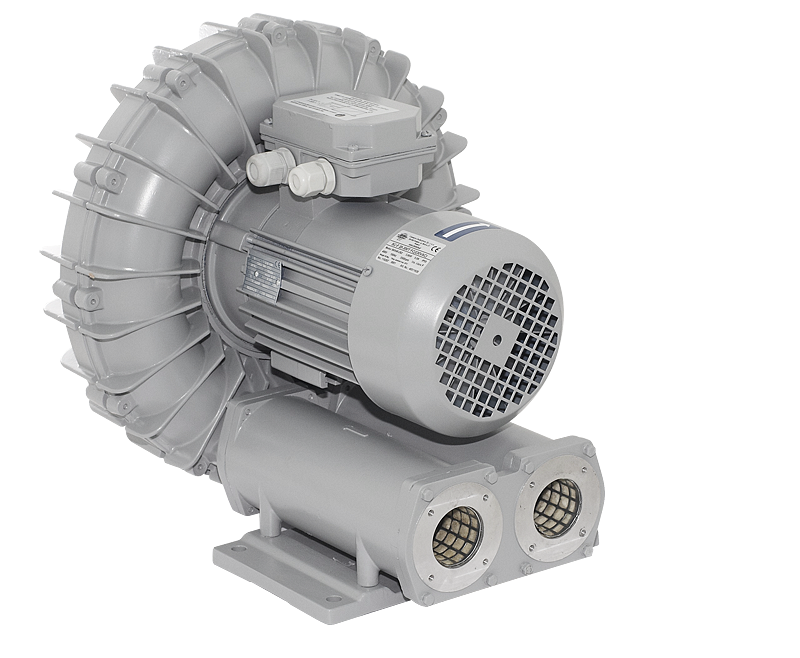

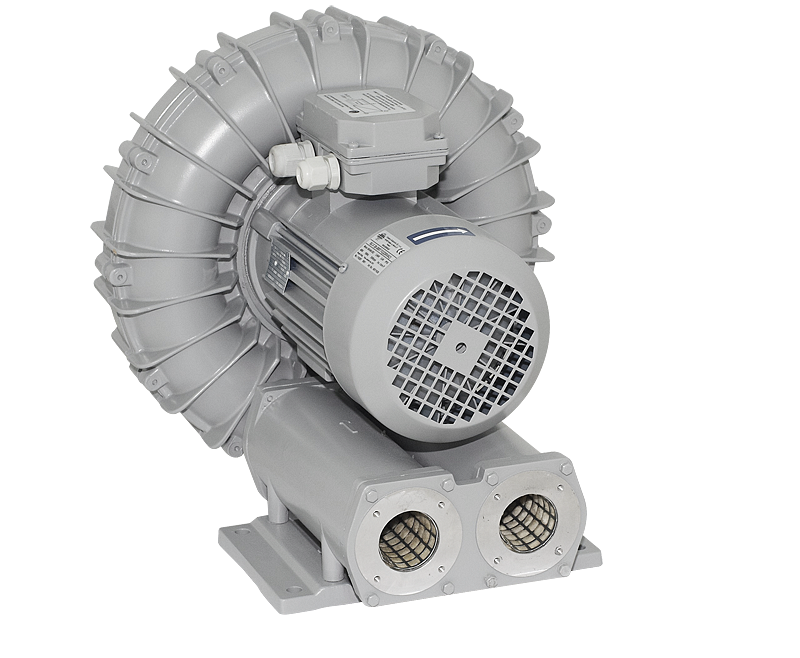

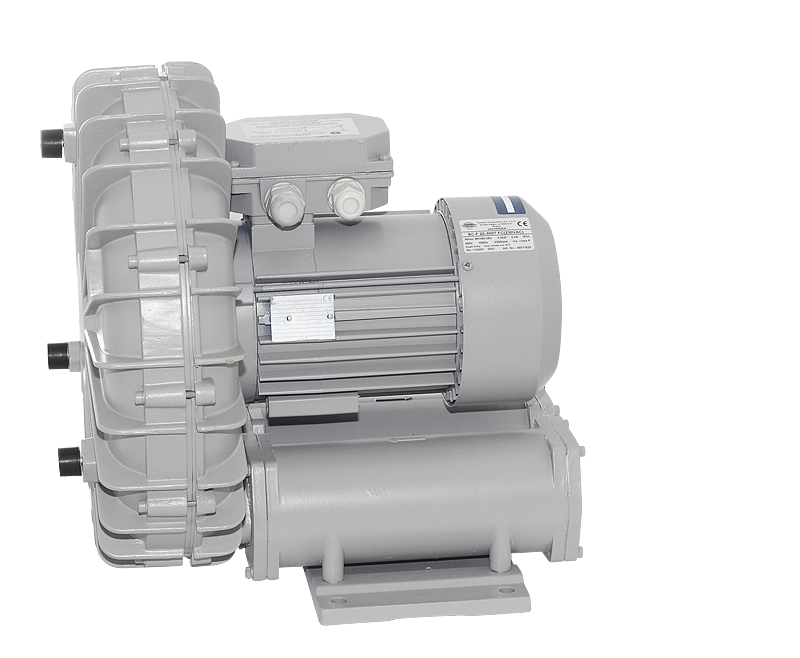

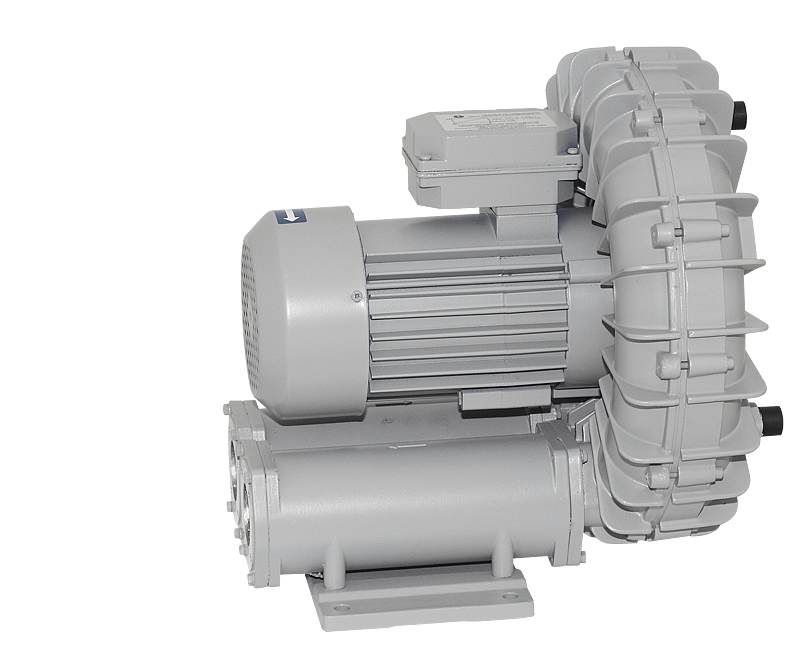

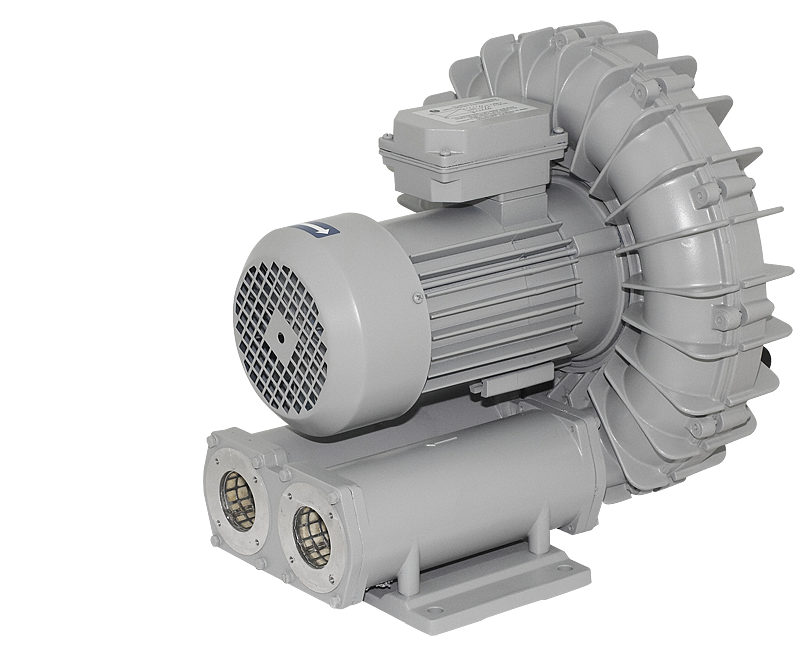

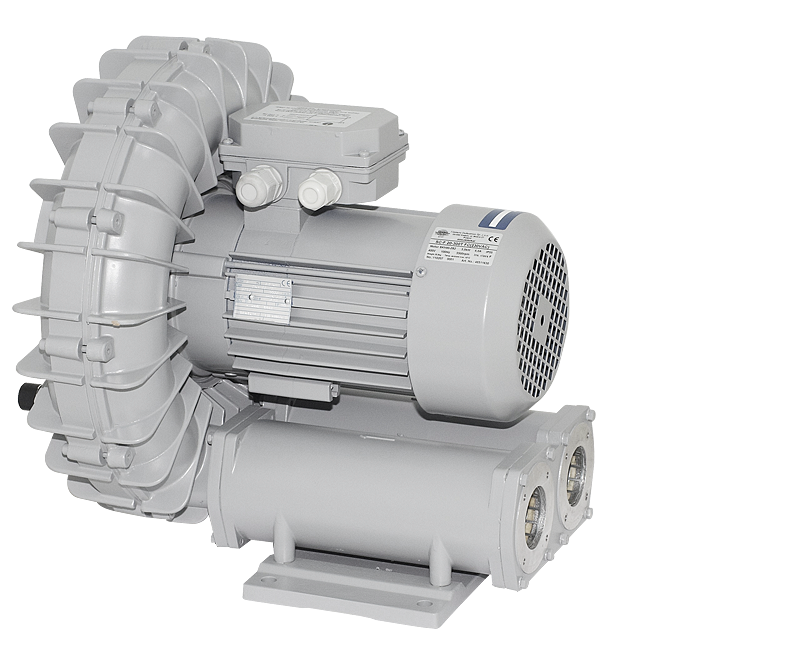

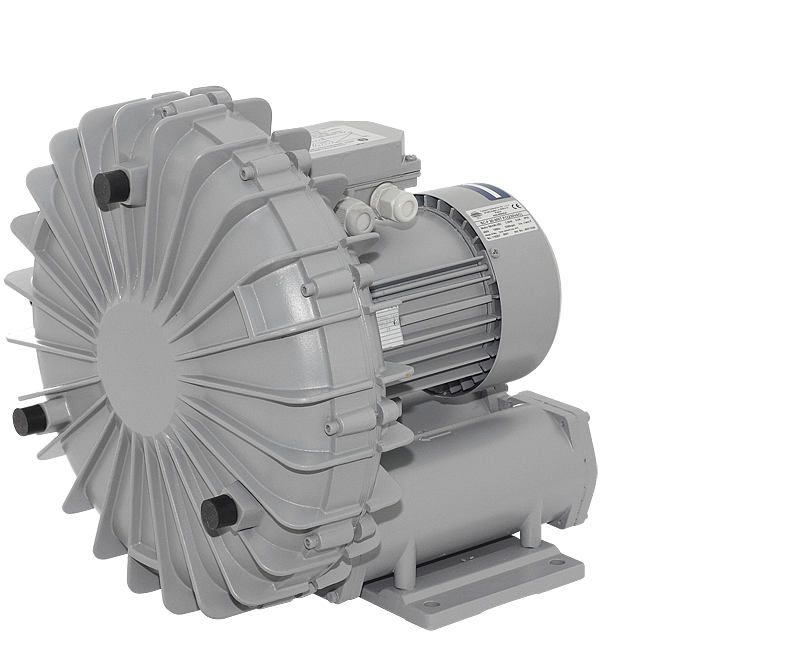

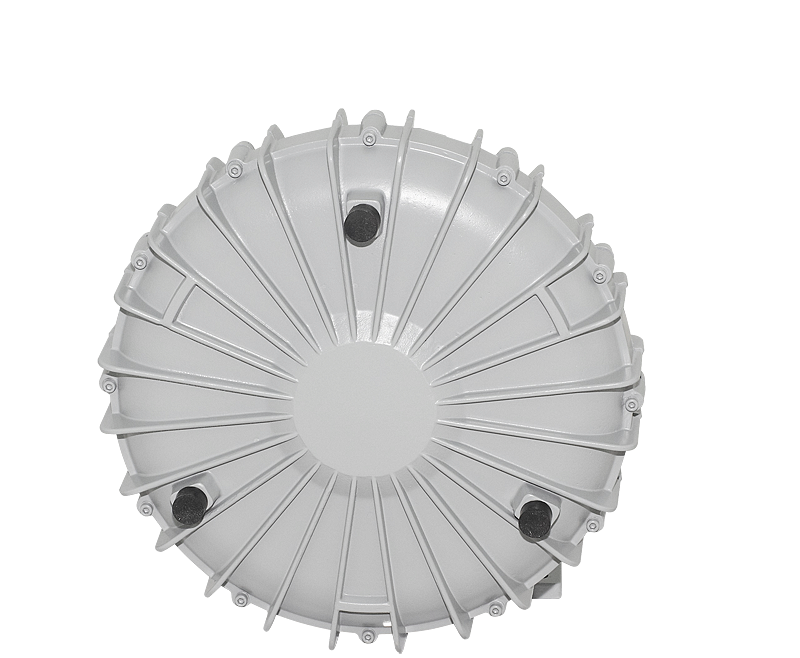

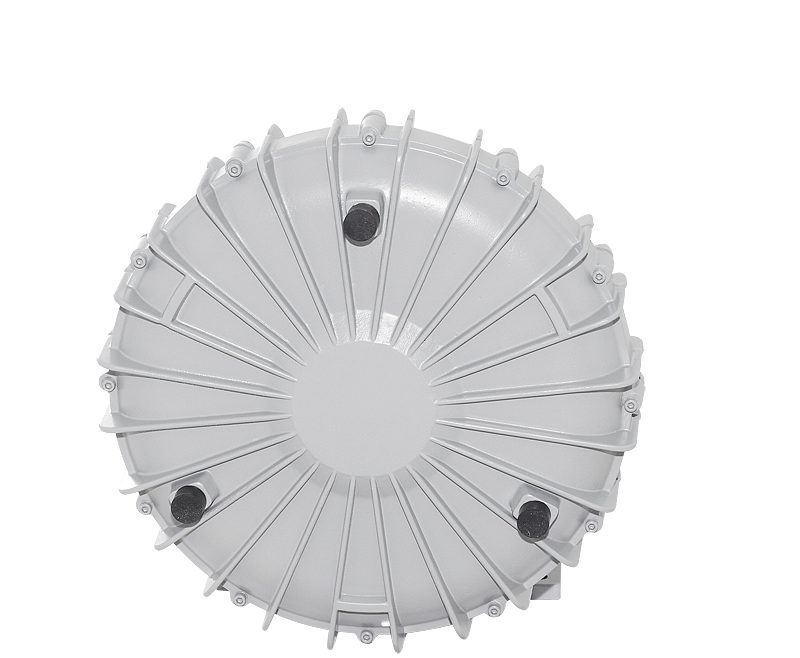

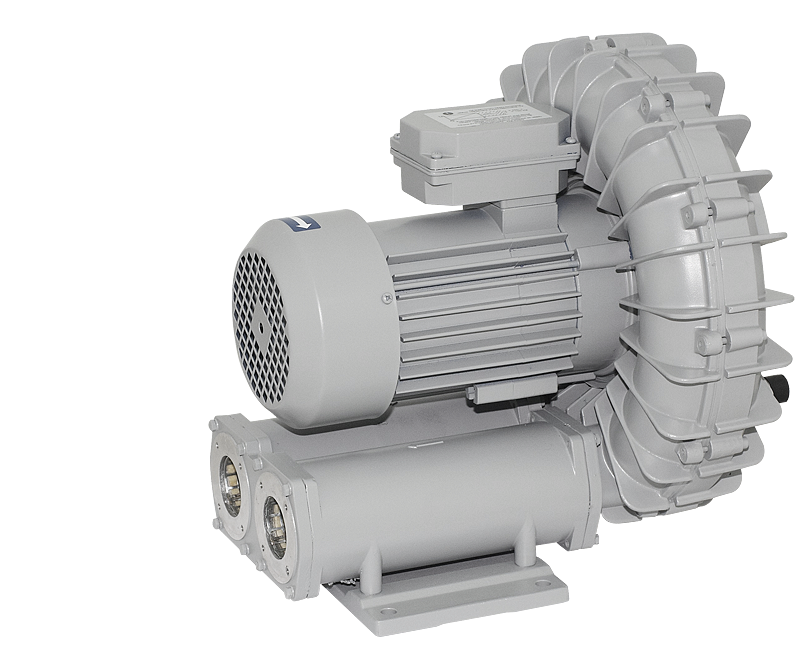

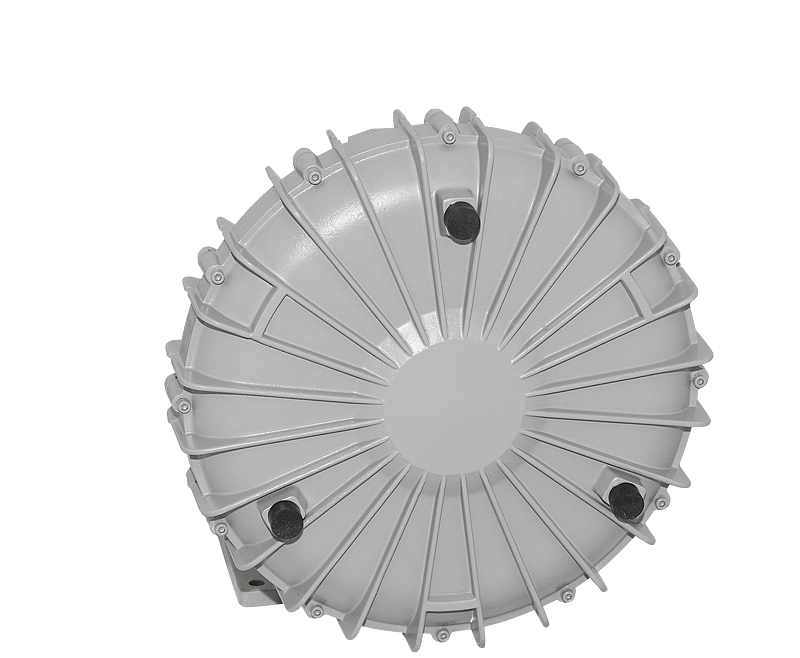

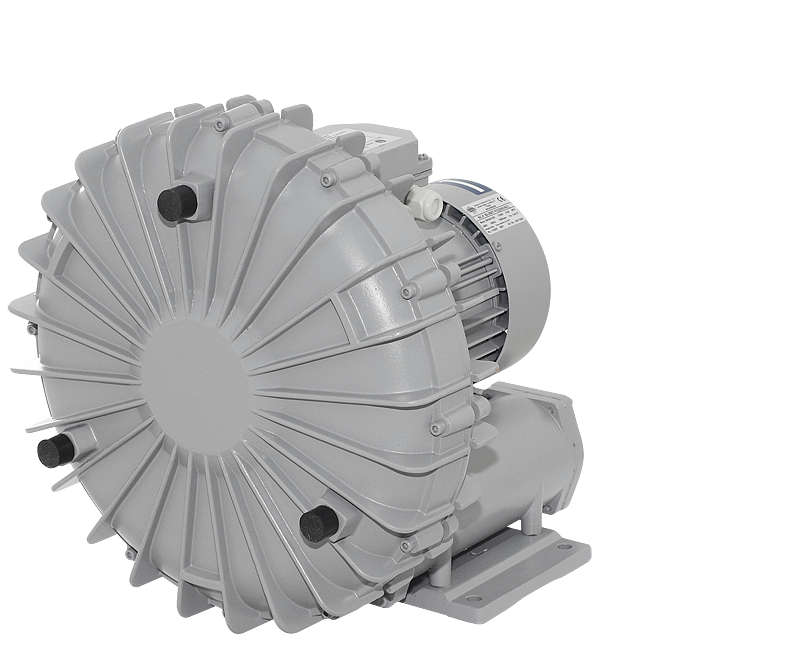

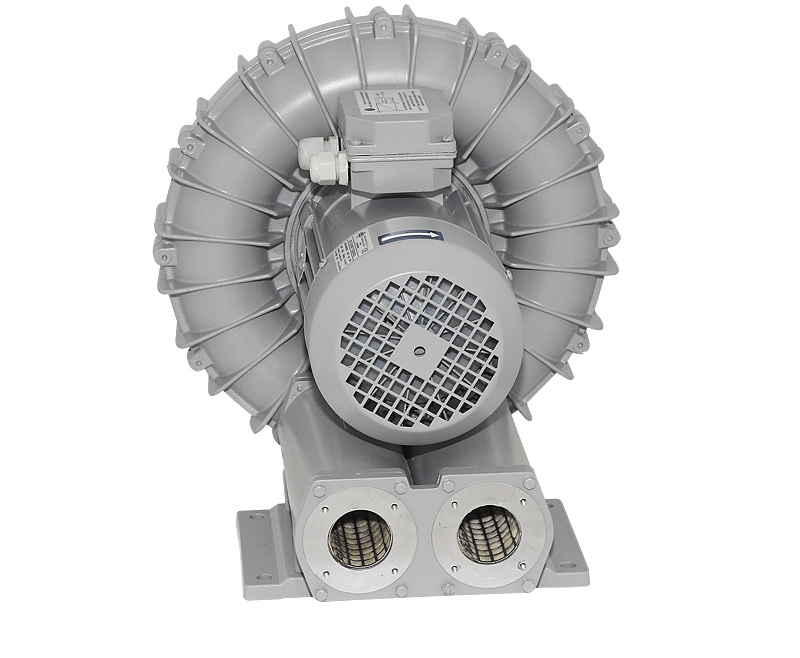

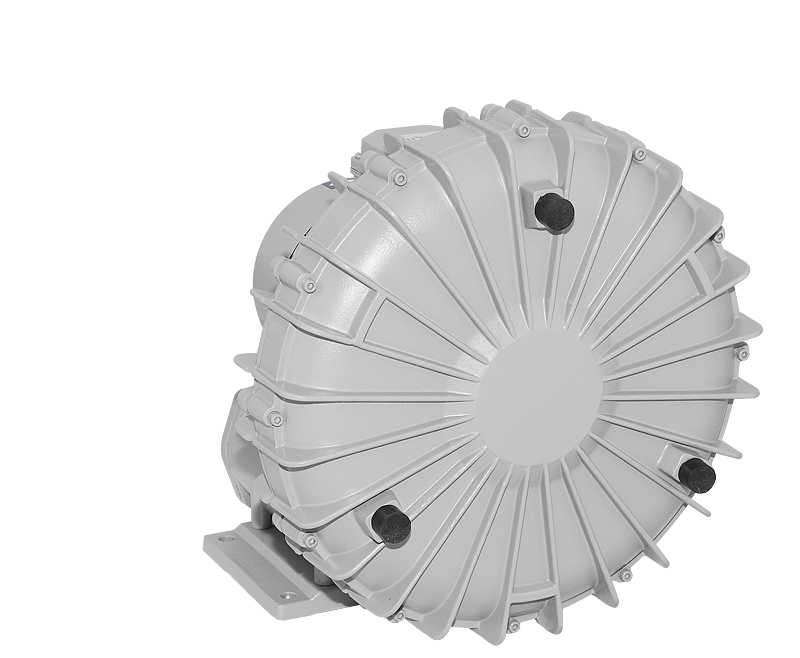

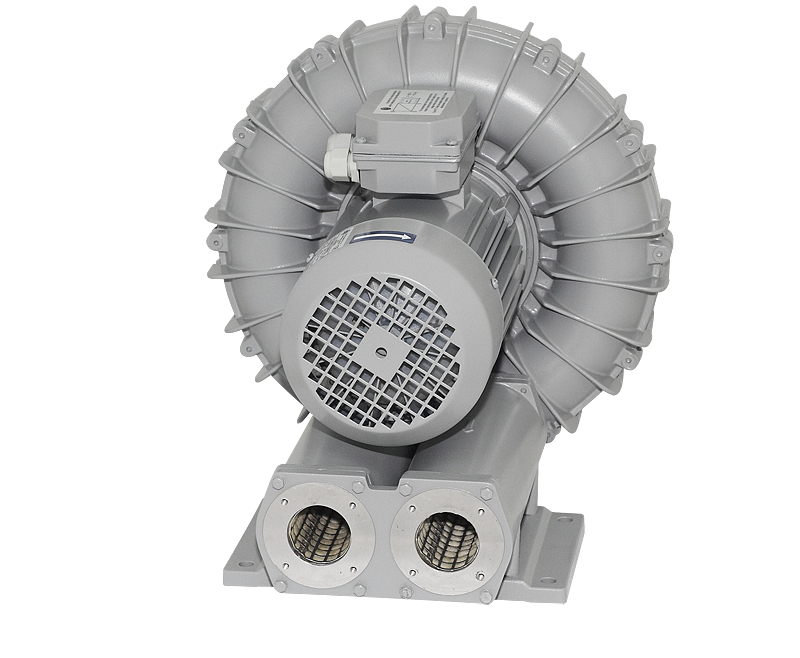

SC-F - Side channel blower

SC-F

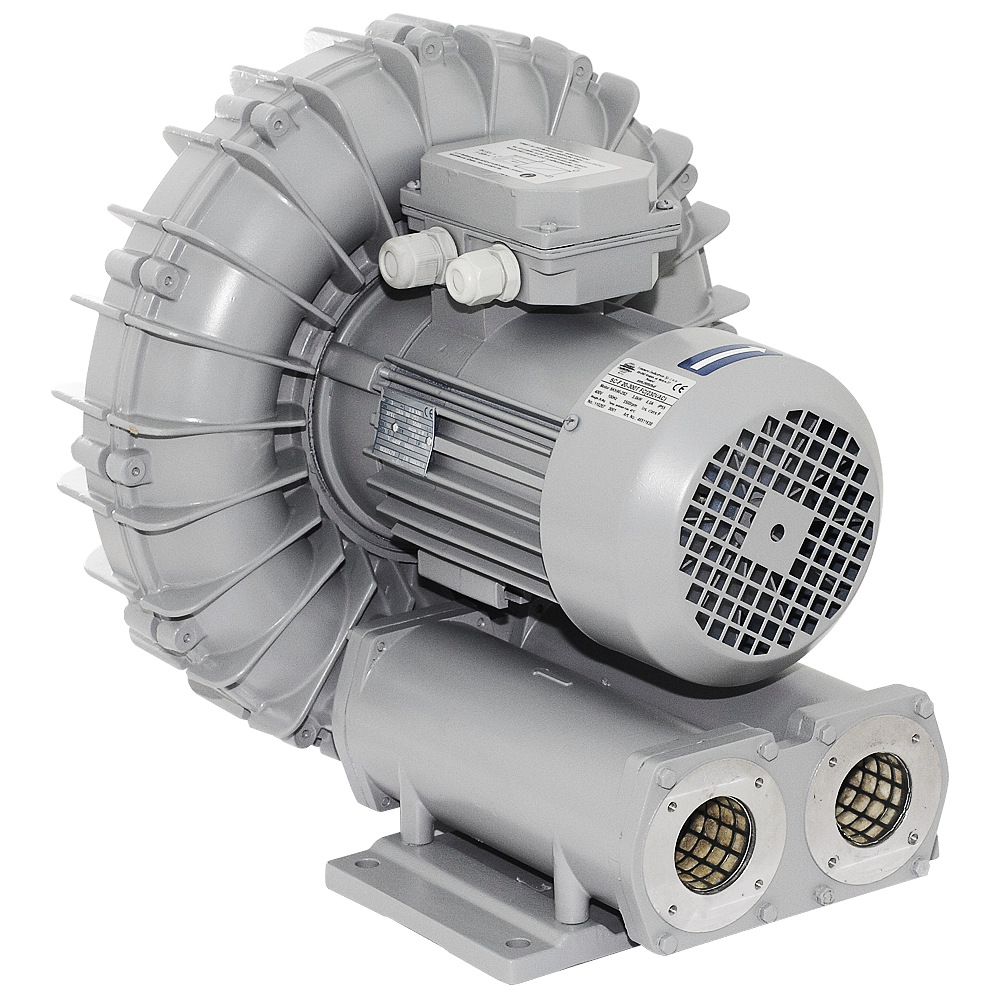

Side channel blower

Side-channel devices for use in: pneumatic transport, pneumatic mail, graphic machines, pneumatic elevators, industrial vacuum cleaners, wastewater treatment plants, electroplating plants, etc. REQUIRED USE OF THE FREQUENCY DRIVE
Can be painted in a color
other than standard
Contact us

APPLICATION

Side-channel blowers are used in pneumatic transport.

Typical applications:

  • pneumatic transport,
  • graphic machines, pneumatic lifts, multi-stage filtration devices with a very high degree of dust separation,
  • industrial vacuum cleaners, pools, aeration in biological sewage treatment plants, electroplating plants, etc.,
  • for oil-free transport of non-aggressive and non-explosive gases.



CONSTRUCTION

  • side-channel blower with direct drive,
  • the impeller is made of aluminum alloy, dynamically balanced according to ISO 1940-1,
  • the housing is cast in aluminum alloy,
  • blower adapted to work in horizontal or vertical position,
  • standard color of the blower is gray RAL 7042,
  • maximum temperature of the transported medium is 60°C,
  • ambient temperature range from -20°C to +40°C.

MOTOR

  • asynchronous, three-phase 400V 100Hz (power up to 15 kW),
  • degree of protection IP55,
  • insulation class F,
  • for use with frequency converter,
  • thermal protection (TP or TP and PTC) - in selected motors.
  • external cooling 230V 50Hz

SPECIAL EXECUTIONS

  • motor with voltage and frequency of power different than standard,
  • motor with other than standard degree of protection,
  • sealing between the housing and the motor,
  • maximum temperature of the transported medium above 60°C,
  • ambient temperature range below -20°C and above +40°C
  • belt drive.

If the recommendations are not followed, the motor current increases disproportionately and the drive motor does not reach the rated speed. Under no circumstances should the frequency (rotational speed) be set higher than the 100Hz frequency stated on the nameplate, because the motor may be overloaded or the blower damaged due to too high speed.

The so-called boost, as this causes the drive motor to heat up too much. In order to protect the drive motor, a temperature sensor must be connected to the appropriate inputs of the converter..

Technical assistance

Choose a fan www.fanselectoronline.com

m3/h
Pa
Type airflow max pressure max power max Rotation speed current max voltage Sound power
level*
temp.
min
temp.
max
weight
  m3/h Pa W rpm A V db(A) oC oC kg
SC-F-10-150T FC (230VAC) (vacuum) 164 20500 1500 4600 3.2 400 -20 40 22

SC-F-10-150T FC (230VAC) (vacuum)

Nominal parameters

  • Max. volume flow 164 m3/h
  • Maximum pressure 20500 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Voltage min allowed 80 m3/h
  • Rated power 1500 W
  • Rated current 3.2 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Diameter 45 mm
  • Weight 22 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-10-150T FC (230VAC) (pressure) 164 23500 1500 4600 3.2 400 -20 40 22

SC-F-10-150T FC (230VAC) (pressure)

Nominal parameters

  • Max. volume flow 164 m3/h
  • Maximum pressure 23500 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Voltage min allowed 80 m3/h
  • Rated power 1500 W
  • Rated current 3.2 A
  • Rated frequency 50 Hz
  • Max. allowed frequency 50 Hz
  • Diameter 45 mm
  • Weight 22 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-10-220T FC (230VAC) (vacuum) 164 26000 2200 4600 4.7 400 -20 40 24

SC-F-10-220T FC (230VAC) (vacuum)

Nominal parameters

  • Max. volume flow 164 m3/h
  • Maximum pressure 26000 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 2200 W
  • Rated current 4.7 A
  • Rated frequency 50 Hz
  • Diameter 45 mm
  • Weight 24 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-10-220T FC (230VAC) (pressure) 164 29500 2200 4600 4.7 400 -20 40 24

SC-F-10-220T FC (230VAC) (pressure)

Nominal parameters

  • Max. volume flow 164 m3/h
  • Maximum pressure 29500 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 2200 W
  • Rated current 4.7 A
  • Rated frequency 50 Hz
  • Diameter 45 mm
  • Weight 24 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-20-300T FC (230VAC) (vacuum) 270 21500 3000 4600 6.1 400 -20 40 34

SC-F-20-300T FC (230VAC) (vacuum)

Nominal parameters

  • Max. volume flow 270 m3/h
  • Maximum pressure 21500 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 3000 W
  • Rated current 6.1 A
  • Rated frequency 50 Hz
  • Diameter 45 mm
  • Weight 34 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-20-300T FC (230VAC) (pressure) 270 30000 3000 4600 6.1 400 -20 40 34

SC-F-20-300T FC (230VAC) (pressure)

Nominal parameters

  • Max. volume flow 270 m3/h
  • Maximum pressure 30000 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 3000 W
  • Rated current 6.1 A
  • Rated frequency 50 Hz
  • Diameter 45 mm
  • Weight 34 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-20-400T FC (230VAC) (vacuum) 270 29000 4000 4600 7.5 400 -20 40 37

SC-F-20-400T FC (230VAC) (vacuum)

Nominal parameters

  • Max. volume flow 270 m3/h
  • Maximum pressure 29000 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 4000 W
  • Rated current 7.5 A
  • Rated frequency 50 Hz
  • Diameter 45 mm
  • Weight 37 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-20-400T FC (230VAC) (pressure) 270 30000 4000 4600 7.5 400 -20 40 37

SC-F-20-400T FC (230VAC) (pressure)

Nominal parameters

  • Max. volume flow 270 m3/h
  • Maximum pressure 30000 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 4000 W
  • Rated current 7.5 A
  • Rated frequency 50 Hz
  • Diameter 45 mm
  • Weight 37 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-30-750T FC (230VAC) (vacuum) 510 38000 7500 4600 15 400 -20 40 55

SC-F-30-750T FC (230VAC) (vacuum)

Nominal parameters

  • Max. volume flow 510 m3/h
  • Maximum pressure 38000 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 7500 W
  • Rated current 15 A
  • Rated frequency 50 Hz
  • Diameter 58 mm
  • Weight 55 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-30-750T FC (230VAC) (pressure) 510 39000 7500 4600 15 400 -20 40 55

SC-F-30-750T FC (230VAC) (pressure)

Nominal parameters

  • Max. volume flow 510 m3/h
  • Maximum pressure 39000 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 7500 W
  • Rated current 15 A
  • Rated frequency 50 Hz
  • Diameter 58 mm
  • Weight 55 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-40-1500T FC (230VAC) (vacuum) 1000 28000 15000 4600 29.5 400 -20 40 155

SC-F-40-1500T FC (230VAC) (vacuum)

Nominal parameters

  • Max. volume flow 1000 m3/h
  • Maximum pressure 28000 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 15000 W
  • Rated current 29.5 A
  • Rated frequency 50 Hz
  • Diameter 75 mm
  • Weight 155 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m
SC-F-40-1500T FC (230VAC) (pressure) 1000 28500 15000 4600 29.5 400 -20 40 155

SC-F-40-1500T FC (230VAC) (pressure)

Nominal parameters

  • Max. volume flow 1000 m3/h
  • Maximum pressure 28500 Pa
  • Rotation speed 4600 rpm
  • Phase 3
  • Rated voltage 400 V
  • Rated power 15000 W
  • Rated current 29.5 A
  • Rated frequency 50 Hz
  • Diameter 75 mm
  • Weight 155 kg
  • Motor type AC
  • Speed number 2
  • Min. operating temperature -20 °C
  • Max. operating temperature 40 °C
  • Max. medium temperature 60 °C
  • Distance 3 m

* measured in distance 3m from the fan.
