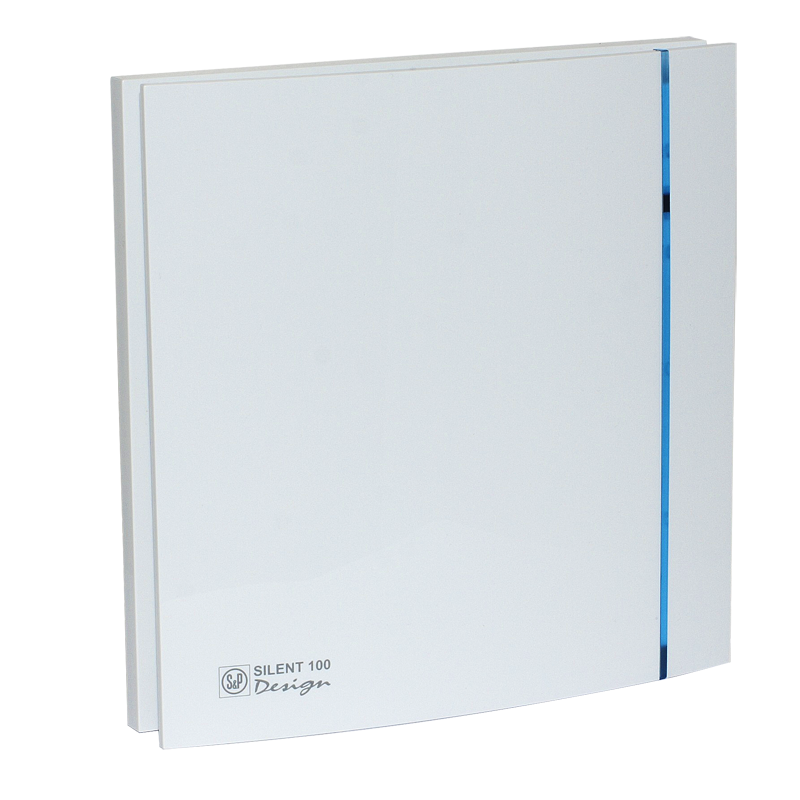

SILENT DESIGN - Domestic fan

SILENT DESIGN

Domestic fan

Range of axial extractors with airflow rates of approx. 85 m3/h, for connection to 100 mm diameter circular ducting. Motor mounted on silent-elastic-blocks which absorb the vibrations and allow offering very low noise level.
Contact us

Construction

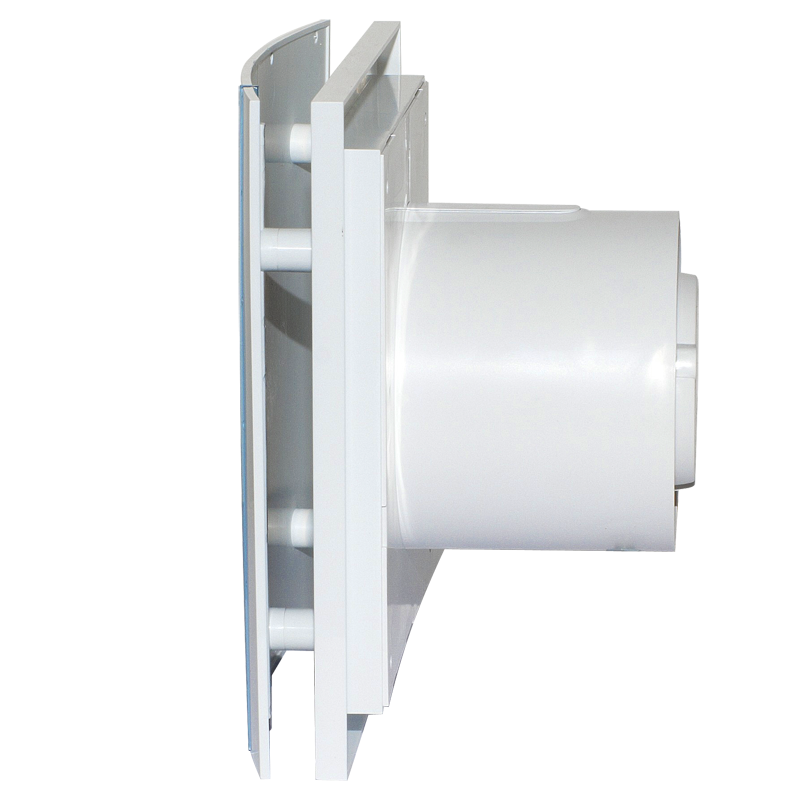

Range of axial extractors with airflow rates of approx. 85 m3/h, for connection to 100 mm diameter circular ducting. Motor mounted on silent-elastic-blocks which absorb the vibrations and allow offering very low noise level. All the fans are manufactured from injection moulded plastic, fitted with automatic shutter.

Motor

  • Single phase 230V-50Hz, class B low consumption motor equipped with thermal overload protection,
  • All the fans are class II insulation, IP45 rated and suitable to operate with air temperature up to 40ºC.

Back draft shutter

To prevent air entry and limit heat leakage when the extractor is not operating. It opens due to the pressure of the air.

Silent-blocks

Motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.

Interchangeable bars colours

Interchangeable bars colours let the fan blend in with every setting. 4 colours to match the decor of the room: blue, red, green and yellow.

Technical assistance

Catalog card

Choose a fan www.fanselectoronline.com

m3/h
Pa
Type airflow max pressure max power max Rotation speed current max voltage Sound power
level*		 temp.
min		 temp.
max		 weight
  m3/h Pa W rpm A V db(A) oC oC kg
SILENT-100 CZ DESIGN 85 18 8 2400 230 26.5 40 0.65

SILENT-100 CZ DESIGN

Nominal parameters

  • Max. volume flow 85 m3/h
  • Maximum pressure 18 Pa
  • Rotation speed 2400 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 8 W
  • Rated frequency 50 Hz
  • Diameter 100 mm
  • Weight 0.65 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 26.5 dB(A)
  • Distance 3 m
SILENT-100 CRZ DESIGN 85 18 8 2400 230 26.5 40 0.65

SILENT-100 CRZ DESIGN

Nominal parameters

  • Max. volume flow 85 m3/h
  • Maximum pressure 18 Pa
  • Rotation speed 2400 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 8 W
  • Rated frequency 50 Hz
  • Diameter 100 mm
  • Weight 0.65 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 26.5 dB(A)
  • Distance 3 m
SILENT-100 CHZ DESIGN 85 18 8 2400 230 26.5 40 0.65

SILENT-100 CHZ DESIGN

Nominal parameters

  • Max. volume flow 85 m3/h
  • Maximum pressure 18 Pa
  • Rotation speed 2400 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 8 W
  • Rated frequency 50 Hz
  • Diameter 100 mm
  • Weight 0.65 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 26.5 dB(A)
  • Distance 3 m
SILENT-100 DESIGN 12V 80 18 12 2320 12 26.5 40 0.65

SILENT-100 DESIGN 12V

Nominal parameters

  • Max. volume flow 80 m3/h
  • Maximum pressure 18 Pa
  • Rotation speed 2320 rpm
  • Rated voltage 12 V
  • Rated power 12 W
  • Diameter 100 mm
  • Weight 0.65 kg
  • Motor type AC
  • Motor protection class IP57
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 26.5 dB(A)
  • Distance 3 m
SILENT-100 CZ DESIGN ECOWATT 85 23 5 2100 230 26.5 40 0.65

SILENT-100 CZ DESIGN ECOWATT

Nominal parameters

  • Max. volume flow 85 m3/h
  • Maximum pressure 23 Pa
  • Rotation speed 2100 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 5 W
  • Diameter 100 mm
  • Weight 0.65 kg
  • Motor type EC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 26.5 dB(A)
  • Distance 3 m
SILENT-100 CRZ DESIGN ECOWATT 85 23 5 2100 230 26.5 40 0.65

SILENT-100 CRZ DESIGN ECOWATT

Nominal parameters

  • Max. volume flow 85 m3/h
  • Maximum pressure 23 Pa
  • Rotation speed 2100 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 5 W
  • Diameter 100 mm
  • Weight 0.65 kg
  • Motor type EC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 26.5 dB(A)
  • Distance 3 m
SILENT-100 CHZ DESIGN ECOWATT 85 23 5 2100 230 26.5 40 0.65

SILENT-100 CHZ DESIGN ECOWATT

Nominal parameters

  • Max. volume flow 85 m3/h
  • Maximum pressure 23 Pa
  • Rotation speed 2100 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 5 W
  • Diameter 100 mm
  • Weight 0.65 kg
  • Motor type EC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 26.5 dB(A)
  • Distance 3 m
SILENT-100 DESIGN 12DC ECOWATT 90 23 8 2300 230 29 40 0.65

SILENT-100 DESIGN 12DC ECOWATT

Nominal parameters

  • Max. volume flow 90 m3/h
  • Maximum pressure 23 Pa
  • Rotation speed 2300 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 8 W
  • Rated frequency 50 Hz
  • Diameter 100 mm
  • Weight 0.65 kg
  • Motor type EC
  • Motor protection class IP57
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 29 dB(A)
  • Distance 3 m
SILENT-200 CZ DESIGN 175 53 16 2350 230 35 40 0.88

SILENT-200 CZ DESIGN

Nominal parameters

  • Max. volume flow 175 m3/h
  • Maximum pressure 53 Pa
  • Rotation speed 2350 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 16 W
  • Rated frequency 50 Hz
  • Diameter 120 mm
  • Weight 0.88 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 35 dB(A)
  • Distance 3 m
SILENT-200 CRZ DESIGN 175 53 16 2350 230 35 40 0.88

SILENT-200 CRZ DESIGN

Nominal parameters

  • Max. volume flow 175 m3/h
  • Maximum pressure 53 Pa
  • Rotation speed 2350 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 16 W
  • Rated frequency 50 Hz
  • Diameter 120 mm
  • Weight 0.88 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 35 dB(A)
  • Distance 3 m
SILENT-200 CHZ DESIGN 175 53 16 2350 230 35 40 0.88

SILENT-200 CHZ DESIGN

Nominal parameters

  • Max. volume flow 175 m3/h
  • Maximum pressure 53 Pa
  • Rotation speed 2350 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 16 W
  • Rated frequency 50 Hz
  • Diameter 120 mm
  • Weight 0.88 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 35 dB(A)
  • Distance 3 m
SILENT-300 CZ DESIGN 250 53 26 1700 230 38 40 1.5

SILENT-300 CZ DESIGN

Nominal parameters

  • Max. volume flow 250 m3/h
  • Maximum pressure 53 Pa
  • Rotation speed 1700 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 26 W
  • Rated frequency 50 Hz
  • Diameter 150 mm
  • Weight 1.5 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 38 dB(A)
  • Distance 3 m
SILENT-300 CRZ DESIGN 250 53 26 1700 230 38 40 1.5

SILENT-300 CRZ DESIGN

Nominal parameters

  • Max. volume flow 250 m3/h
  • Maximum pressure 53 Pa
  • Rotation speed 1700 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 26 W
  • Rated frequency 50 Hz
  • Diameter 150 mm
  • Weight 1.5 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 38 dB(A)
  • Distance 3 m
SILENT-300 CHZ DESIGN 250 53 26 1700 230 38 40 1.5

SILENT-300 CHZ DESIGN

Nominal parameters

  • Max. volume flow 250 m3/h
  • Maximum pressure 53 Pa
  • Rotation speed 1700 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 26 W
  • Rated frequency 50 Hz
  • Diameter 150 mm
  • Weight 1.5 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 38 dB(A)
  • Distance 3 m
SILENT-300 PLUS DESIGN 300 47 22 2000 230 42 40 1.9

SILENT-300 PLUS DESIGN

Nominal parameters

  • Max. volume flow 300 m3/h
  • Maximum pressure 47 Pa
  • Rotation speed 2000 rpm
  • Phase 1
  • Rated voltage 230 V
  • Rated power 22 W
  • Rated frequency 50 Hz
  • Diameter 150 mm
  • Weight 1.9 kg
  • Motor type AC
  • Motor protection class IP45
  • Max. operating temperature 40 °C
  • Max. medium temperature 40 °C
  • Sound pressure level 42 dB(A)
  • Distance 3 m

* measured in distance 3m from the fan.
